다이오드 어레이

제조사	시리즈	패키지/케이스	패키징	제품 상태	다이오드 구성	기술	전압 - DC 역방향(Vr)(최대)	전류 - 평균 정류(Io)(다이오드당)	전압 - 순방향(Vf)(최대) @ If	속도	역방향 복구 시간(trr)	전류 - 역방향 누설 @ Vr	작동 온도 - 접합	등급	자격	장착 유형	공급자 장치 패키지
Alpha & Omega Semiconductor Inc. ANBON SEMICONDUCTOR (INT'L) LIMITED Bourns Inc. Bruckewell Central Semiconductor Corp Comchip Technology Diodes Incorporated Diotec Semiconductor EVVO Fairchild Semiconductor fastSiC Flip Electronics GeneSiC Semiconductor Good-Ark Semiconductor Harris Corporation HY Electronic (Cayman) Limited Infineon Technologies Inventchip IXYS KYOCERA AVX Linear Integrated Systems, Inc. Littelfuse Inc. Luminus Devices Inc. MDD Micro Commercial Co Microchip Technology Microsemi Corporation Motorola Nexperia USA Inc. NextGen Components Group NXP Semiconductors onsemi Panasonic - BSG Panjit International Inc. Phoenix Contact Power Integrations Powerex Inc. Quest Semi Renesas ROHM Semiconductor Sanken Electric USA Inc. SanRex Corporation Sanyo SemiQ Semtech Corporation Sensata-Crydom Shenzhen Slkormicro Semicon Co., Ltd. Siemens SMC Diode Solutions STMicroelectronics Taiwan Semiconductor Corporation Texas Instruments Toshiba Semiconductor and Storage TT Electronics/Optek Technology Unitrode Venkel Vishay Vishay General Semiconductor - Diodes Division Vishay Semiconductor Opto Division WAGO Corporation WeEn Semiconductors Weidmuller Wolfspeed, Inc.	* - 159CMQ 203CMQ 203DMQ 300CMQ 300CNQ 403CMQ 403CNQ 403DMQ 409CMQ 503CNQ 74S 80CNQ Amp+™ B48 BAS40 BAS40-xx-HF BAS70 BAS70-AU BAS70-xx-HF BAS70TW BAS70TW-AU BAS70W BAS70W-AU BAT54-G BAT54-HF BAT54TB BAT54TB6 BAT54W-AU BAT54xT-HF BAT64 BAT754 BAV23C BAV23C-G BAV23x BAV70 BAV70-G BAV99 BD10H150CS CMUSH2-4 CoolSiC™ CoolSiC™+ DAA10P1800PZ DAA200X1800NA DAA200XA1800NA DCG 160X650NA DD DD104N DD160N DD171N DD98N DFE240X600NA DFE250X600NA DFE25I600HA DHG 50X650NA DLA5P800UC DMA200X1600NA DMA200XA1600NA DMA200YA1600NA DMA200YC1600NA DMA240YA1600NA DMA240YC1600NA DNA90YA2200NA DNA90YC2200NA DPAD DPG20C400PC DPG30C200PC DPG30C300PC DPG60C300PC DPJ50XS1800NA DSA10C150UC DSA20C200PB DSA30C150PC DSA30C200PC DSA30C45PC DSEI2x60-04C DSEK300-06A DSEP2x61-12B DSP DSP25-12AT DSP25-16AT DSSK18-0025BS DUR E E-Series ECOPACK® ECOPACK®2 eSMP® eSMP®, TMBS® F18 FRED FRED Pt® FRED Pt® Gen 4 FRED Pt® Gen 5 GSBAT54xT GSBAT54xxW HEXFRED® HiPerDynFRED™ HiPerFRED²™ HiPerFRED™ HTZ110A HTZ120A HTZ130B HTZ150C HTZ160C HTZ170C HTZ180D HTZ240F HTZ270H HTZ280H MBR MBR10100FAT MBR10H150CT MBR10H150DC MBR10H150FCT MBR2040DC MBR2040FCT MBR2540CT MBR3040CT MBR3040FCT MBR3040PT MBR30H150CT MBR30H150DC MBR30H150FCT MBR4040PT MBR6040PT MDMA1400C1600CC MDMA280P1600YD MDMA425P1600PTSF MDMA600P1600PTSF MDMA700P1600CC MEGAHERTZ™ MMBD7000 MMBD717 MMBD717W MPS™ MSP POW-R-BLOK™ Q Qspeed™ Rapid 1 Rapid 2 RB551V-30TA Sanan SOT Sanan TO247 Sanan TO3PF SB1620DC SB2020CT SB3020CT SB3020FCT SB3020PT SB4020PT SBR SBR® SiC Schottky MPS™ Stealth™ SWITCHMODE™ TMBS® TO 220AB TrenchMOS™ TrenchSBR TrenchSBR® TURBOSWITCH™ UF1600FCT UF2002FCT Z-Rec® Zero Recovery™	- 10-XFDFN 14-CDIP (0.300", 7.62mm) 14-DIP (0.300", 7.62mm) 16-DIP (0.300", 7.62mm) 16-SOIC (0.154", 3.90mm Width) 16-SOIC (0.209", 5.30mm Width) 16-SOIC (0.295", 7.50mm Width) 16-TSSOP (0.173", 4.40mm Width) 20-CLCC 20-CSOIC (0.295", 7.50mm Width) 20-SOIC (0.433", 11.00mm Width) Exposed Pad 20-SSOP (0.209", 5.30mm Width) 3-MAGN-A-PAK™ 3-PowerDFN 3-PowerUDFN 3-SIP 3-SIP Module 3-SMD Module 3-SMD, Gull Wing 3-SMD, No Lead 3-UDFN Exposed Pad 3-UFDFN 3-XDFN Exposed Pad 3-XFDFN 4-PowerXSFN 4-SMD, Flat Leads 4-SMD, No Lead 4-UFDFN 4-XFDFN 5-SMD, Flat Leads 5-TSSOP, SC-70-5, SOT-353 6-SMD (5 Leads), Flat Lead 6-SMD (5 Leads), Flat Leads 6-SMD, Flat Leads 6-TSSOP, SC-88, SOT-363 6-UDFN 6-UDFN Exposed Pad 6-UFDFN Exposed Pad 6-VSSOP, SC-88, SOT-363 6-XFDFN Exposed Pad 8-CDIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm) 8-PowerTDFN 8-PowerVDFN 8-SMD 8-SMD, Flat Leads 8-SOIC (0.154", 3.90mm Width) 8-TDFN Exposed Pad 8-VDFN Exposed Pad 8-XFDFN 9-SMD Module A-3 Module ADD-A-PAK (2) ADD-A-PAK (3) B48 Module Block, 4 Lead D-61-8 D-61-8-SL D-61-8-SM D1 D2 D61-3M Die Din Rail Module DO-201AD, Axial DO-203AA, DO-4, Stud DOP3I-2 Insulated (Straight Leads) ECO-PAC1 ECO-PAC2 F2 Module F3 Module F4 Module G24 Housed Axial i4-Pac™-3 i4-Pac™-5 (3 Leads) INT-A-Pak INT-A-PAK (3) ISOPLUS220™ ISOTOP LP4 MAGN-A-PAK MAGN-A-PAK (3) MD3CC Module Module, Screw Terminals ND ND, Module POW-R-BLOK™ Module PowerDI™ 5 Powermite®3 Powertap II PRM2 PRM2-SL PRM2-SM PRM3 PRM3-SL PRM3-SM PRM4 PRM4 Isolated S-3 Module SC-101, SOT-883 SC-61AA SC-61AB SC-70, SOT-323 SC-74, SOT-457 SC-74A, SOT-753 SC-75, SOT-416 SC-75-4, SOT-543 SC-82 SC-82A, SOT-343 SC-85 SC-89, SOT-490 SC-94 SC-96 SimBus F SOD-93-2 SOT-227-4 SOT-227-4, miniBLOC SOT-23-3 Flat Leads SOT-23-5 Thin, TSOT-23-5 SOT-23-6 SOT-23-6 Thin, TSOT-23-6 SOT-28 SOT-523 SOT-553 SOT-563, SOT-666 SOT-665 SOT-723 SOT-963 SUPER MAGN-A-PAK Three Tower TO-204AA, TO-3 TO-205AD, TO-39-3 Metal Can TO-206AF, TO-72-4 Metal Can TO-218-3 TO-218-3 Isolated Tab, TO-218AC TO-218-3, TO-218AC TO-220-2 TO-220-2 Full Pack TO-220-2 Full Pack, Isolated Tab TO-220-3 TO-220-3 Full Pack TO-220-3 Full Pack, Formed Leads TO-220-3 Full Pack, Isolated Tab TO-220-3 Full Pack, Isolated Tab, Formed Leads TO-220-3 Isolated Tab TO-220AB TO-226-3, TO-92-3 Long Body TO-226-3, TO-92-3 Long Body, Formed Leads TO-236-3, SC-59, SOT-23-3 TO-240AA TO-243AA TO-244AB TO-244AB Isolated Tab TO-247-2 TO-247-3 TO-247-3 Variant TO-249-9, TO-249AA Variant TO-249AA TO-249AA (Modified), D-60 TO-249AA Isolated Base TO-249AB TO-251-3 Short Leads, IPAK, TO-251AA TO-252-3, DPAK (2 Leads + Tab), SC-63 TO-252-4, DPAK (3 Leads + Tab) TO-253-4, TO-253AA TO-254-3, TO-254AA TO-254-3, TO-254AA (Straight Leads) TO-257-3 TO-261-4, TO-261AA TO-262-3 Full Pack, I2PAK TO-262-3 Long Leads, I2PAK, TO-262AA TO-263-3, D2PAK (2 Leads + Tab), TO-263AB TO-263-3, D2PAK (2 Leads + Tab), Variant TO-263-4, D2PAK (3 Leads + Tab), TO-263AA TO-264-3, TO-264AA TO-268-3, D3PAK (2 Leads + Tab), TO-268AA TO-276AA TO-277, 3-PowerDFN TO-3P-3 Full Pack TO-3P-3, SC-65-3 TO-3PF TO-3PFM, SC-93-3 TO-78-5 Metal Can TOP-3 Insulated TOP-3F Twin Tower WC-500 Y1-CU Y2-DCB Y4-M6	- Box Bulk Cut Tape (CT) Strip Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Not For New Designs Obsolete	- 1 Independent 1 Pair Common Anode 1 Pair Common Anode, 1 Pair Common Cathode 1 Pair Common Cathode 1 Pair Series Connection 12 Pair Series Connection 14 Common Anode 14 Common Cathode 16 Independent 16 Pair Common Cathode 17 Independent 2 Independent 2 Pair CA + CC 2 Pair Common Anode 2 Pair Common Cathode 2 Pair Series Connection 3 Common Anode 3 Common Cathode 3 Independent 3 Pair Series Connection 32 Common Anode 32 Common Cathode 4 Common Anode 4 Common Cathode 4 Independent 4 Pair Common Cathode 4 Pair Series Connection 5 Common Cathode 6 Common Cathode 6 Independent 7 Common Anode 7 Common Cathode 7 Independent 7 Pair Common Cathode 8 Common Anode 8 Common Cathode 8 Independent 8 Pair Common Cathode 8 Pair Series Connection	- Avalanche FERD (Field Effect Rectifier Diode) GaAS Schottky Schottky Schottky, Reverse Polarity SiC (Silicon Carbide) Schottky Single Phase (Braking) Standard Standard, Reverse Polarity Super Barrier	- 1.2 kV 10 V 100 V 1000 V 10000 V 110 V 11000 V 120 V 1200 V 12000 V 1300 V 135 V 140 V 1400 V 15 V 150 V 1500 V 15000 V 16 V 160 V 1600 V 16000 V 16800 V 170 V 1700 V 175 V 180 V 1800 V 19000 V 20 V 200 V 2000 V 20000 V 2200 V 22000 V 24 V 240 V 2400 V 24000 V 25 V 250 V 2500 V 25000 V 2600 V 2800 V 3 V 30 V 300 V 3000 V 30000 V 3200 V 32000 V 325 V 3300 V 3400 V 35 V 350 V 35000 V 3600 V 40 V 400 V 4000 V 40000 V 45 V 450 V 4500 V 48 V 48000 V 5 V 50 V 500 V 5000 V 51000 V 56000 V 57 V 60 V 600 V 6000 V 64000 V 65 V 650 V 6500 V 7 V 70 V 700 V 75 V 8 V 80 V 800 V 8000 V 85 V 90 V 9600 V	- 1.3A 1.5A 1.65A (DC) 1.7A 1.8A 1.9A 1000A (DC) 100A 100A (DC) 100mA 100mA (DC) 101A (DC) 102.5A (DC) 102A (DC) 104A 104A (DC) 105A (DC) 108A 108A (DC) 10A 10A (DC) 10mA (DC) 1100A 110A 110A (DC) 110mA (DC) 111A (DC) 113A 115A 115A (DC) 116A 11A 11A (DC) 12.5A 1200A 1200A (DC) 120A 120A (DC) 120mA 120mA (DC) 123A 123A (DC) 125A 125mA 125mA (DC) 126A 126A (DC) 127A 128A 12A 12A (DC) 130A 135A 135mA 136A (DC) 13A 140A 140A (DC) 140mA 140mA (DC) 141A (DC) 142A 142A (DC) 144A 147A 14A 15.7A 150A 150A (DC) 150mA 150mA (DC) 155A 155mA 15A 15A (DC) 15mA 15mA (DC) 16.5A 160A 160A (DC) 160mA 160mA (DC) 161A 165A 167A 168A 16A 16A (DC) 170A 170A (DC) 170mA (DC) 171A 171A (DC) 172A 172A (DC) 175A (DC) 175mA 175mA (DC) 177A 17A 17A (DC) 180A 180mA 180mA (DC) 185A (DC) 18A 18A (DC) 190A 192A 193A (DC) 195A 198A (DC) 19A 19A (DC) 1A 1A (DC) 2.5A 2.75A 2.8A 200A 200A (DC) 200mA 200mA (DC) 202A 209A (DC) 20A 20A (DC) 20mA (DC) 21.25A 210A 210A (DC) 215mA 215mA (DC) 21A 220A 222A (DC) 223A 224A 225mA 225mA (DC) 226A 229A (DC) 22A 22A (DC) 230A 235A 23A 23A (DC) 24.5A (DC) 240A 243A (DC) 244A (DC) 24A 24A (DC) 250A 250A (DC) 250mA 250mA (DC) 259A (DC) 25A 25A (DC) 25mA 260A 261A 26A 27.5A (DC) 270A 273A 27A 27A (DC) 280A 280A (DC) 285A 28A 290A 290mA 29A 2A 3.1A 3.2A 3.4A 3.5A 3.6A 3.75A 3.7A 3.8A 3.9A 300A 300A (DC) 300mA 300mA (DC) 304A 305A 30A 30A (DC) 30mA 30mA (DC) 310A 31A 320A 320mA 320mA (DC) 321A (DC) 32A 32A (DC) 330A 33A 33A (DC) 33mA 345A 34A 34A (DC) 350A 350mA 350mA (DC) 355mA (DC) 356A 35A 35A (DC) 35mA (DC) 36A 36A (DC) 375mA 375mA (DC) 380A 38A 38A (DC) 390A 393A 39A (DC) 3A 3A (DC) 4.2A 4.5A 4.6A 4.7A 4.8A 400A 400A (DC) 400mA 400mA (DC) 40A 40A (DC) 40mA 410A 42.5A 420A 420mA 425A 42A 42A (DC) 430mA 435A 43A 440A 448A (DC) 44A 44A (DC) 450A 450mA (DC) 45A 45A (DC) 460A 470A 480A 485A 48A 490A 49A 4A 4A (DC) 5.1A 5.1mA 5.2A 5.4A 5.5A 5.6A 500A 500A (DC) 500mA 500mA (DC) 505A (DC) 50A 50A (DC) 50mA 510A 51A 52A 52A (DC) 530A 53A 540A 551A 55A 55A (DC) 56.5A (DC) 56A 56A (DC) 572A 573A 57A 59A 5A 5A (DC) 6.3A 6.5A 600A 600A (DC) 600mA 60A 60A (DC) 619A 630A 63A 64A 650A 65A 65A (DC) 660A (DC) 670A 6A 6A (DC) 7.5A 700A 700mA 708A 70A 70A (DC) 70mA 70mA (DC) 710A 715mA 71A 74A 75A 75A (DC) 75mA 75mA (DC) 76A 76A (DC) 772A (DC) 800A (DC) 807A 80A 80A (DC) 80mA 82.5A 83A (DC) 85A 85A (DC) 87A 880A 883A 89A 8A 8A (DC) 90A 90A (DC) 91A 93A 93A (DC) 94A 94A (DC) 950A 95A 95A (DC) 96A 97.5A 98A 99A (DC)	- 1 V @ 1.5 A 1 V @ 10 A 1 V @ 10 mA 1 V @ 100 A 1 V @ 100 mA 1 V @ 110 A 1 V @ 120 A 1 V @ 15 A 1 V @ 15 mA 1 V @ 150 A 1 V @ 18 A 1 V @ 20 A 1 V @ 200 A 1 V @ 200 mA 1 V @ 25 A 1 V @ 3 A 1 V @ 30 A 1 V @ 30 mA 1 V @ 35 mA 1 V @ 40 A 1 V @ 40 mA 1 V @ 5 A 1 V @ 50 A 1 V @ 50 mA 1 V @ 6 A 1 V @ 60 A 1 V @ 7.5 A 1 V @ 70 A 1 V @ 75 A 1 V @ 8 A 1 V @ 80 A 1.01 V @ 10 A 1.01 V @ 100 A 1.01 V @ 40 A 1.02 V @ 10 A 1.02 V @ 20 A 1.02 V @ 25 A 1.02 V @ 30 A 1.02 V @ 40 A 1.03 V @ 10 A 1.03 V @ 100 A 1.03 V @ 15 A 1.03 V @ 150 A 1.03 V @ 20 A 1.03 V @ 200 A 1.03 V @ 5 A 1.03 V @ 8 A 1.04 V @ 20 A 1.05 V @ 10 A 1.05 V @ 100 A 1.05 V @ 100 mA 1.05 V @ 12 A 1.05 V @ 15 A 1.05 V @ 150 A 1.05 V @ 2 A 1.05 V @ 20 A 1.05 V @ 30 A 1.05 V @ 300 A 1.05 V @ 5 A 1.05 V @ 60 A 1.05 V @ 7.5 A 1.05 V @ 8 A 1.05 V @ 80 A 1.06 V @ 100 A 1.06 V @ 15 A 1.06 V @ 3 A 1.06 V @ 40 A 1.06 V @ 400 A 1.06 V @ 8 A 1.07 V @ 120 A 1.07 V @ 15 A 1.07 V @ 200 A 1.07 V @ 260 A 1.07 V @ 30 A 1.07 V @ 300 A 1.08 V @ 15 A 1.08 V @ 30 A 1.08 V @ 5 A 1.08 V @ 60 A 1.08 V @ 7.5 A 1.09 V @ 200 A 1.09 V @ 300 A 1.09 V @ 35 A 1.09 V @ 60 A 1.1 V @ 10 A 1.1 V @ 100 A 1.1 V @ 100 mA 1.1 V @ 120 A 1.1 V @ 15 A 1.1 V @ 150 A 1.1 V @ 16 A 1.1 V @ 20 A 1.1 V @ 200 A 1.1 V @ 200 mA 1.1 V @ 22.5 A 1.1 V @ 3 A 1.1 V @ 30 A 1.1 V @ 300 A 1.1 V @ 4 A 1.1 V @ 400 A 1.1 V @ 5 A 1.1 V @ 50 mA 1.1 V @ 500 mA 1.1 V @ 6 A 1.1 V @ 6.5 A 1.1 V @ 75 A 1.1 V @ 8 A 1.1 V @ 80 A 1.1 V @ 9 A 1.11 V @ 15 A 1.12 V @ 10 A 1.12 V @ 20 A 1.125 V @ 100 A 1.13 V @ 16 A 1.13 V @ 200 A 1.13 V @ 210 A 1.13 V @ 50 A 1.13 V @ 60 A 1.14 V @ 280 A 1.14 V @ 40 A 1.14 V @ 400 A 1.14 V @ 700 A 1.14 V @ 8 A 1.14 V @ 80 A 1.15 V @ 10 A 1.15 V @ 100 A 1.15 V @ 15 A 1.15 V @ 16 A 1.15 V @ 1800 A 1.15 V @ 20 A 1.15 V @ 200 mA 1.15 V @ 3 A 1.15 V @ 30 A 1.15 V @ 300 A 1.15 V @ 300 mA 1.15 V @ 5 A 1.15 V @ 6 A 1.15 V @ 7 A 1.15 V @ 800 A 1.16 V @ 30 A 1.16 V @ 35 A 1.16 V @ 40 A 1.16 V @ 800 A 1.17 V @ 10 A 1.17 V @ 150 A 1.17 V @ 160 A 1.17 V @ 250 A 1.17 V @ 80 A 1.17 V @ 85 A 1.18 V @ 100 A 1.18 V @ 110 A 1.18 V @ 140 A 1.18 V @ 15 A 1.18 V @ 1500 A 1.18 V @ 5 A 1.18 V @ 50 A 1.18 V @ 65 A 1.19 V @ 100 A 1.19 V @ 150 A 1.19 V @ 1800 A 1.19 V @ 30 A 1.19 V @ 50 A 1.2 V @ 1 A 1.2 V @ 1 mA 1.2 V @ 10 A 1.2 V @ 100 A 1.2 V @ 100 mA 1.2 V @ 1000 A 1.2 V @ 15 A 1.2 V @ 150 A 1.2 V @ 16 A 1.2 V @ 18 A 1.2 V @ 20 A 1.2 V @ 200 A 1.2 V @ 200 mA 1.2 V @ 250 A 1.2 V @ 3 A 1.2 V @ 30 A 1.2 V @ 300 A 1.2 V @ 35 A 1.2 V @ 400 A 1.2 V @ 5 A 1.2 V @ 50 mA 1.2 V @ 500 A 1.2 V @ 6 A 1.2 V @ 60 A 1.2 V @ 600 A 1.2 V @ 7.5 A 1.2 V @ 8 A 1.2 V @ 80 A 1.2 V @ 9 A 1.21 V @ 33 A 1.21 V @ 400 A 1.21 V @ 50 A 1.22 V @ 10 A 1.22 V @ 20 A 1.22 V @ 35 A 1.22 V @ 40 A 1.22 V @ 8 A 1.23 V @ 100 mA 1.23 V @ 20 A 1.23 V @ 25 A 1.23 V @ 30 A 1.23 V @ 40 A 1.23 V @ 70 A 1.24 V @ 10 A 1.24 V @ 100 A 1.24 V @ 1800 A 1.24 V @ 2000 A 1.24 V @ 750 A 1.25 V @ 10 A 1.25 V @ 100 A 1.25 V @ 100 mA 1.25 V @ 12.5 A 1.25 V @ 120 A 1.25 V @ 15 A 1.25 V @ 150 mA 1.25 V @ 16 A 1.25 V @ 165 A 1.25 V @ 180 A 1.25 V @ 20 A 1.25 V @ 200 A 1.25 V @ 200 mA 1.25 V @ 3 A 1.25 V @ 30 A 1.25 V @ 300 A 1.25 V @ 300 mA 1.25 V @ 3000 A 1.25 V @ 320 A 1.25 V @ 35 A 1.25 V @ 40 A 1.25 V @ 400 mA 1.25 V @ 5 A 1.25 V @ 60 A 1.25 V @ 70 A 1.25 V @ 8 A 1.26 V @ 10 A 1.26 V @ 1000 A 1.26 V @ 125 A 1.26 V @ 15 A 1.26 V @ 30 A 1.26 V @ 45 A 1.26 V @ 500 A 1.27 V @ 10 A 1.27 V @ 100 A 1.27 V @ 30 A 1.275 V @ 200 mA 1.28 V @ 10 A 1.28 V @ 1000 A 1.28 V @ 30 A 1.28 V @ 45 A 1.29 V @ 90 A 1.3 V @ 10 A 1.3 V @ 100 A 1.3 V @ 100 mA 1.3 V @ 120 A 1.3 V @ 125 A 1.3 V @ 15 A 1.3 V @ 150 A 1.3 V @ 16 A 1.3 V @ 1600 A 1.3 V @ 2.5 A 1.3 V @ 20 A 1.3 V @ 200 A 1.3 V @ 200 mA 1.3 V @ 2000 A 1.3 V @ 250 A 1.3 V @ 3 A 1.3 V @ 30 A 1.3 V @ 300 A 1.3 V @ 35 A 1.3 V @ 4 A 1.3 V @ 5 A 1.3 V @ 50 A 1.3 V @ 50 mA 1.3 V @ 500 A 1.3 V @ 6 A 1.3 V @ 60 A 1.3 V @ 600 A 1.3 V @ 620 A 1.3 V @ 7.5 A 1.3 V @ 70 A 1.3 V @ 8 A 1.3 V @ 80 A 1.31 V @ 110 A 1.31 V @ 1600 A 1.31 V @ 200 A 1.31 V @ 2500 A 1.31 V @ 50 A 1.31 V @ 800 A 1.32 V @ 1.8 kA 1.32 V @ 10 A 1.32 V @ 1800 A 1.32 V @ 35 A 1.32 V @ 600 A 1.32 V @ 800 A 1.33 V @ 180 A 1.33 V @ 800 A 1.34 V @ 100 A 1.34 V @ 30 A 1.34 V @ 800 A 1.35 V @ 10 A 1.35 V @ 100 A 1.35 V @ 150 A 1.35 V @ 150 mA 1.35 V @ 1500 A 1.35 V @ 16 A 1.35 V @ 180 A 1.35 V @ 20 A 1.35 V @ 200 A 1.35 V @ 30 A 1.35 V @ 300 A 1.35 V @ 3000 A 1.35 V @ 320 A 1.35 V @ 35 A 1.35 V @ 50 A 1.35 V @ 500 A 1.35 V @ 6 A 1.35 V @ 60 A 1.35 V @ 70 A 1.35 V @ 750 A 1.355 V @ 250 A 1.358 V @ 400 A 1.36 V @ 10 A 1.36 V @ 15 A 1.36 V @ 2200 A 1.36 V @ 260 A 1.36 V @ 30 A 1.36 V @ 40 A 1.37 V @ 400 A 1.37 V @ 60 A 1.38 V @ 15 A 1.38 V @ 80 A 1.39 V @ 15 A 1.39 V @ 30 A 1.39 V @ 500 A 1.4 V @ 10 A 1.4 V @ 100 A 1.4 V @ 120 A 1.4 V @ 15 A 1.4 V @ 150 A 1.4 V @ 1500 A 1.4 V @ 1600 A 1.4 V @ 165 A 1.4 V @ 1978 A 1.4 V @ 20 A 1.4 V @ 200 A 1.4 V @ 200 mA 1.4 V @ 25 A 1.4 V @ 270 A 1.4 V @ 30 A 1.4 V @ 300 A 1.4 V @ 4 A 1.4 V @ 400 A 1.4 V @ 5 A 1.4 V @ 50 A 1.4 V @ 500 A 1.4 V @ 6 A 1.4 V @ 60 A 1.4 V @ 600 A 1.4 V @ 620 A 1.4 V @ 8 A 1.4 V @ 80 A 1.4 V @ 90 A 1.41 V @ 30 A 1.41 V @ 320 A 1.41 V @ 5 A 1.42 V @ 800 A 1.43 V @ 150 A 1.43 V @ 20 A 1.43 V @ 259 A 1.43 V @ 300 A 1.43 V @ 40 A 1.43 V @ 520 A 1.44 V @ 100 A 1.45 V @ 10 A 1.45 V @ 100 A 1.45 V @ 15 A 1.45 V @ 20 A 1.45 V @ 200 A 1.45 V @ 30 A 1.45 V @ 300 A 1.45 V @ 5 A 1.45 V @ 50 A 1.45 V @ 500 A 1.45 V @ 6.5 A 1.45 V @ 7.5 A 1.45 V @ 8 A 1.46 V @ 400 A 1.47 V @ 15 A 1.47 V @ 20 A 1.47 V @ 200 A 1.48 V @ 1.7 kA 1.48 V @ 1700 A 1.48 V @ 20 A 1.48 V @ 200 A 1.48 V @ 30 A 1.49 V @ 30 A 1.49 V @ 60 A 1.5 V @ 1 mA 1.5 V @ 10 A 1.5 V @ 100 A 1.5 V @ 105 A 1.5 V @ 12 A 1.5 V @ 120 A 1.5 V @ 15 A 1.5 V @ 16 A 1.5 V @ 2.5 A 1.5 V @ 20 A 1.5 V @ 240 A 1.5 V @ 25 A 1.5 V @ 250 A 1.5 V @ 30 A 1.5 V @ 300 A 1.5 V @ 300 mA 1.5 V @ 35 A 1.5 V @ 360 A 1.5 V @ 400 A 1.5 V @ 5 A 1.5 V @ 50 A 1.5 V @ 500 A 1.5 V @ 60 A 1.5 V @ 600 A 1.5 V @ 7.5 A 1.5 V @ 70 A 1.5 V @ 750 A 1.5 V @ 8 A 1.5 V @ 80 A 1.51 V @ 450 A 1.53 V @ 10 A 1.53 V @ 300 A 1.53 V @ 600 A 1.54 V @ 10 A 1.54 V @ 100 A 1.54 V @ 320 A 1.54 V @ 90 A 1.55 V @ 10 A 1.55 V @ 100 A 1.55 V @ 12 A 1.55 V @ 15 A 1.55 V @ 20 A 1.55 V @ 30 A 1.55 V @ 300 A 1.55 V @ 320 A 1.55 V @ 5 A 1.55 V @ 6.5 A 1.55 V @ 60 A 1.55 V @ 75 A 1.55 V @ 800 A 1.57 V @ 800 A 1.58 V @ 20 A 1.58 V @ 40 A 1.59 V @ 100 A 1.59 V @ 60 A 1.59 V @ 700 A 1.59 V @ 80 A 1.6 V @ 1 A 1.6 V @ 10 A 1.6 V @ 100 A 1.6 V @ 12 A 1.6 V @ 140 A 1.6 V @ 15 A 1.6 V @ 150 A 1.6 V @ 2 A 1.6 V @ 20 A 1.6 V @ 200 A 1.6 V @ 280 A 1.6 V @ 30 A 1.6 V @ 300 A 1.6 V @ 35 A 1.6 V @ 350 A 1.6 V @ 37 A 1.6 V @ 5 A 1.6 V @ 50 A 1.6 V @ 55 A 1.6 V @ 6 A 1.6 V @ 60 A 1.6 V @ 7.5 A 1.6 V @ 8 A 1.6 V @ 80 A 1.6 V @ 9 A 1.61 V @ 100 A 1.61 V @ 120 A 1.61 V @ 300 A 1.62 V @ 230 A 1.62 V @ 30 A 1.63 V @ 120 A 1.65 V @ 10 A 1.65 V @ 100 A 1.65 V @ 15 A 1.65 V @ 150 A 1.65 V @ 20 A 1.65 V @ 200 A 1.65 V @ 30 A 1.65 V @ 300 A 1.65 V @ 330 A 1.65 V @ 5 A 1.66 V @ 500 A 1.67 V @ 15 A 1.68 V @ 120 A 1.68 V @ 60 A 1.69 V @ 30 A 1.7 V @ 1.5 A 1.7 V @ 10 A 1.7 V @ 100 A 1.7 V @ 12 A 1.7 V @ 15 A 1.7 V @ 150 A 1.7 V @ 16 A 1.7 V @ 2.5 A 1.7 V @ 20 A 1.7 V @ 200 A 1.7 V @ 240 A 1.7 V @ 25 A 1.7 V @ 250 A 1.7 V @ 3 A 1.7 V @ 30 A 1.7 V @ 300 A 1.7 V @ 4 A 1.7 V @ 40 A 1.7 V @ 45 A 1.7 V @ 5 A 1.7 V @ 50 A 1.7 V @ 6 A 1.7 V @ 60 A 1.7 V @ 7.5 A 1.7 V @ 70 A 1.7 V @ 75 A 1.7 V @ 8 A 1.7 V @ 90 A 1.71 V @ 1200 A 1.72 V @ 240 A 1.72 V @ 400 A 1.72 V @ 800 A 1.73 V @ 50 A 1.74 V @ 800 A 1.75 V @ 10 A 1.75 V @ 12 A 1.75 V @ 15 A 1.75 V @ 16 A 1.75 V @ 20 A 1.75 V @ 30 A 1.75 V @ 4 A 1.75 V @ 6 A 1.75 V @ 60 A 1.75 V @ 8 A 1.75 V @ 800 A 1.78 V @ 100 A 1.8 V @ 10 A 1.8 V @ 100 A 1.8 V @ 15 A 1.8 V @ 150 A 1.8 V @ 16 A 1.8 V @ 20 A 1.8 V @ 200 A 1.8 V @ 25 A 1.8 V @ 260 A 1.8 V @ 30 A 1.8 V @ 300 A 1.8 V @ 4 A 1.8 V @ 40 A 1.8 V @ 450 A 1.8 V @ 5 A 1.8 V @ 50 A 1.8 V @ 60 A 1.8 V @ 600 A 1.8 V @ 8 A 1.82 V @ 600 A 1.85 V @ 10 A 1.85 V @ 150 A 1.85 V @ 200 A 1.85 V @ 30 A 1.85 V @ 5 A 1.87 V @ 100 A 1.87 V @ 30 A 1.88 V @ 120 A 1.9 V @ 10 A 1.9 V @ 15 A 1.9 V @ 16 A 1.9 V @ 20 A 1.9 V @ 200 A 1.9 V @ 30 A 1.9 V @ 40 A 1.9 V @ 5 A 1.9 V @ 50 A 1.9 V @ 6 A 1.9 V @ 60 A 1.9 V @ 7.5 A 1.91 V @ 120 A 1.94 V @ 100 mA 1.94 V @ 30 A 1.95 V @ 15 A 1.95 V @ 30 A 1.96 V @ 300 A 1.97 V @ 50 A 10 V @ 2 A 12 V @ 2 A 12 V @ 3 A 14 V @ 500 mA 15 V @ 3 A 18.3 V @ 12 A 19.8 V @ 1 A 2 V @ 10 A 2 V @ 12 A 2 V @ 15 A 2 V @ 200 A 2 V @ 250 A 2 V @ 3 A 2 V @ 30 A 2 V @ 300 A 2 V @ 400 A 2 V @ 450 A 2 V @ 5 A 2 V @ 60 A 2.01 V @ 60 A 2.03 V @ 15 A 2.03 V @ 25 A 2.04 V @ 15 A 2.04 V @ 60 A 2.05 V @ 45 A 2.05 V @ 600 A 2.05 V @ 90 A 2.06 V @ 600 A 2.08 V @ 16 A 2.08 V @ 700 mA 2.1 V @ 10 A 2.1 V @ 1200 A 2.1 V @ 140 A 2.1 V @ 15 A 2.1 V @ 16 A 2.1 V @ 20 A 2.1 V @ 210 A 2.1 V @ 25 A 2.1 V @ 30 A 2.1 V @ 40 A 2.1 V @ 45 A 2.1 V @ 5 A 2.1 V @ 6 A 2.1 V @ 8 A 2.1 V @ 800 A 2.12 V @ 25 A 2.15 V @ 15 A 2.15 V @ 30 A 2.16 V @ 50 A 2.17 V @ 100 A 2.2 V @ 10 A 2.2 V @ 100 A 2.2 V @ 15 A 2.2 V @ 150 A 2.2 V @ 16 A 2.2 V @ 1800 A 2.2 V @ 20 A 2.2 V @ 3 A 2.2 V @ 30 A 2.2 V @ 3600 A 2.2 V @ 4 A 2.2 V @ 40 A 2.2 V @ 5 A 2.2 V @ 60 A 2.2 V @ 75 A 2.2 V @ 8 A 2.2 V @ 800 A 2.22 V @ 10 A 2.25 V @ 210 A 2.25 V @ 30 A 2.25 V @ 60 A 2.3 V @ 10 A 2.3 V @ 15 A 2.3 V @ 30 A 2.3 V @ 5 A 2.3 V @ 60 A 2.31 V @ 20 A 2.32 V @ 20 A 2.35 V @ 10 A 2.35 V @ 100 A 2.35 V @ 120 A 2.35 V @ 1200 A 2.35 V @ 30 A 2.35 V @ 60 A 2.36 V @ 30 A 2.37 V @ 10 A 2.4 V @ 15 A 2.4 V @ 30 A 2.4 V @ 4 A 2.4 V @ 40 A 2.4 V @ 60 A 2.4 V @ 8 A 2.42 V @ 60 A 2.45 V @ 15 A 2.45 V @ 60 A 2.48 V @ 30 A 2.49 V @ 30 A 2.5 V @ 10 A 2.5 V @ 100 A 2.5 V @ 120 A 2.5 V @ 140 A 2.5 V @ 15 A 2.5 V @ 20 A 2.5 V @ 200 A 2.5 V @ 210 A 2.5 V @ 280 A 2.5 V @ 30 A 2.5 V @ 35 A 2.5 V @ 400 A 2.5 V @ 50 A 2.5 V @ 60 A 2.51 V @ 30 A 2.54 V @ 30 A 2.55 V @ 30 A 2.58 V @ 15 A 2.6 V @ 100 A 2.6 V @ 150 A 2.6 V @ 200 A 2.6 V @ 250 A 2.6 V @ 300 A 2.6 V @ 4 A 2.6 V @ 400 A 2.66 V @ 60 A 2.69 V @ 20 A 2.7 V @ 100 A 2.7 V @ 300 A 2.7 V @ 400 A 2.7 V @ 600 A 2.72 V @ 30 A 2.74 V @ 15 A 2.74 V @ 30 A 2.8 V @ 15 A 2.8 V @ 200 A 2.8 V @ 30 A 2.8 V @ 4 A 2.8 V @ 60 A 2.8 V @ 600 A 2.89 V @ 500 A 2.9 V @ 15 A 2.9 V @ 5 A 2.9 V @ 60 A 2.91 V @ 100 mA 2.94 V @ 10 A 2.94 V @ 6 A 2.94 V @ 8 A 2.95 V @ 30 A 2.96 V @ 4 A 20 V @ 200 mA 21 V @ 250 mA 22 V @ 2 A 23 V @ 12 A 24 V @ 2 A 290 mV @ 1 mA 3 V @ 100 A 3 V @ 15 A 3 V @ 16 A 3 V @ 30 A 3 V @ 300 A 3 V @ 40 A 3 V @ 400 A 3 V @ 6 A 3 V @ 60 A 3.1 V @ 1200 A 3.1 V @ 30 A 3.1 V @ 400 A 3.1 V @ 60 A 3.1 V @ 800 A 3.2 V @ 100 A 3.2 V @ 5 A 3.2 V @ 8 A 3.3 V @ 15 A 3.3 V @ 18 A 3.3 V @ 30 A 3.3 V @ 40 A 3.3 V @ 60 A 3.3 V @ 8 A 3.33 V @ 120 A 3.33 V @ 60 A 3.5 V @ 10 A 3.5 V @ 100 A 3.5 V @ 1200 A 3.5 V @ 140 A 3.5 V @ 15 A 3.5 V @ 20 A 3.5 V @ 200 A 3.5 V @ 210 A 3.5 V @ 25 A 3.5 V @ 250 A 3.5 V @ 300 A 3.5 V @ 400 A 3.5 V @ 5 A 3.5 V @ 500 A 3.5 V @ 600 A 3.5 V @ 750 A 3.5 V @ 800 A 3.52 V @ 60 A 3.57 V @ 30 A 3.6 V @ 100 A 3.6 V @ 15 A 3.6 V @ 30 A 3.6 V @ 5 A 3.6 V @ 8 A 3.8 V @ 150 A 3.8 V @ 300 A 3.8 V @ 60 A 3.85 V @ 1000 A 3.85 V @ 500 A 300 mV @ 200 µA 310 mV @ 100 mA 330 mV @ 2 mA 340 mV @ 100 A 340 mV @ 70 A 350 mV @ 10 mA 350 mV @ 3 A 36.8 V @ 12 A 360 mV @ 10 mA 360 mV @ 40 A 370 mV @ 1 mA 370 mV @ 10 mA 370 mV @ 55 A 380 mV @ 110 A 390 mV @ 1 A 390 mV @ 12.5 A 390 mV @ 500 mA 4 V @ 12 A 4 V @ 15 A 4 V @ 30 A 4 V @ 60 A 4.1 V @ 100 mA 4.3 V @ 100 A 4.41 V @ 50 A 4.71 V @ 25 A 400 mV @ 1 A 400 mV @ 1 mA 400 mV @ 10 mA 400 mV @ 100 mA 400 mV @ 2 A 410 mV @ 1 mA 410 mV @ 19 A 410 mV @ 20 A 420 mV @ 100 mA 420 mV @ 2 A 420 mV @ 20 A 420 mV @ 40 A 420 mV @ 5 A 425 mV @ 3 A 430 mV @ 1 A 430 mV @ 100 mA 430 mV @ 20 A 430 mV @ 500 mA 430 mV @ 60 A 440 mV @ 100 mA 440 mV @ 15 A 440 mV @ 2 A 440 mV @ 20 A 440 mV @ 5 A 440 mV @ 75 A 450 mV @ 1 A 450 mV @ 10 A 450 mV @ 10 mA 450 mV @ 100 mA 450 mV @ 20 A 450 mV @ 3 A 450 mV @ 35 A 450 mV @ 40 A 450 mV @ 5 A 450 mV @ 80 A 46 V @ 12 A 460 mV @ 1 A 460 mV @ 1 mA 460 mV @ 10 A 460 mV @ 110 A 460 mV @ 15 A 460 mV @ 2 A 460 mV @ 20 A 460 mV @ 30 A 460 mV @ 40 A 460 mV @ 5 A 460 mV @ 500 mA 470 mV @ 10 A 470 mV @ 12.5 A 470 mV @ 15 A 470 mV @ 200 mA 470 mV @ 40 A 470 mV @ 5 A 470 mV @ 500 mA 470 mV @ 6 A 480 mV @ 110 A 480 mV @ 15 A 480 mV @ 20 A 480 mV @ 200 mA 480 mV @ 25 A 480 mV @ 4 A 480 mV @ 40 A 480 mV @ 5 A 480 mV @ 500 mA 480 mV @ 7.5 A 490 mV @ 100 mA 490 mV @ 110 A 490 mV @ 12.5 A 490 mV @ 15 A 490 mV @ 20 A 490 mV @ 220 A 490 mV @ 30 A 490 mV @ 55 A 490 mV @ 700 mA 5 V @ 3 A 50 V @ 1 A 500 mV @ 1 A 500 mV @ 1 mA 500 mV @ 10 A 500 mV @ 100 mA 500 mV @ 15 A 500 mV @ 2 A 500 mV @ 20 A 500 mV @ 200 mA 500 mV @ 220 A 500 mV @ 30 A 500 mV @ 30 mA 500 mV @ 5 A 500 mV @ 500 mA 500 mV @ 7.5 A 500 mV @ 8 A 510 mV @ 10 A 510 mV @ 15 A 510 mV @ 20 A 510 mV @ 25 A 510 mV @ 3 A 510 mV @ 35 A 510 mV @ 40 A 510 mV @ 7.5 A 520 mV @ 10 A 520 mV @ 110 A 520 mV @ 15 A 520 mV @ 2 A 520 mV @ 20 A 520 mV @ 3 A 520 mV @ 30 A 520 mV @ 40 A 520 mV @ 5 A 520 mV @ 500 mA 520 mV @ 6 A 520 mV @ 7.5 A 530 mV @ 1 A 530 mV @ 10 A 530 mV @ 100 mA 530 mV @ 12.5 A 530 mV @ 15 A 530 mV @ 20 A 530 mV @ 220 A 530 mV @ 3 A 530 mV @ 30 A 530 mV @ 300 mA 530 mV @ 5 A 530 mV @ 6 A 530 mV @ 80 A 540 mV @ 1 A 540 mV @ 10 A 540 mV @ 100 A 540 mV @ 110 A 540 mV @ 15 A 540 mV @ 3 A 540 mV @ 30 A 540 mV @ 4 A 540 mV @ 40 A 540 mV @ 5 A 540 mV @ 55 A 540 mV @ 7.5 A 540 mV @ 8 A 545 mV @ 15 A 545 mV @ 20 A 550 mV @ 1 A 550 mV @ 10 A 550 mV @ 100 A 550 mV @ 100 mA 550 mV @ 12 A 550 mV @ 12.5 A 550 mV @ 15 A 550 mV @ 2 A 550 mV @ 2.5 A 550 mV @ 20 A 550 mV @ 200 mA 550 mV @ 250 A 550 mV @ 3 A 550 mV @ 30 A 550 mV @ 300 A 550 mV @ 35 A 550 mV @ 4 A 550 mV @ 40 A 550 mV @ 5 A 550 mV @ 50 A 550 mV @ 50 mA 550 mV @ 500 mA 550 mV @ 6 A 550 mV @ 7.5 A 550 mV @ 75 A 550 mV @ 8 A 550 mV @ 80 A 555 mV @ 5 A 560 mV @ 15 A 560 mV @ 150 A 560 mV @ 20 A 560 mV @ 30 A 560 mV @ 40 A 560 mV @ 5 A 560 mV @ 500 mA 560 mV @ 6 A 560 mV @ 7.5 A 570 mV @ 1 A 570 mV @ 10 A 570 mV @ 10 mA 570 mV @ 100 A 570 mV @ 12.5 A 570 mV @ 15 A 570 mV @ 20 A 570 mV @ 200 A 570 mV @ 220 A 570 mV @ 3 A 570 mV @ 30 A 570 mV @ 30 mA 570 mV @ 40 A 570 mV @ 5 A 570 mV @ 7.5 A 570 mV @ 8 A 575 mV @ 10 A 580 mV @ 1 A 580 mV @ 10 A 580 mV @ 100 mA 580 mV @ 15 A 580 mV @ 150 A 580 mV @ 20 A 580 mV @ 200 A 580 mV @ 200 mA 580 mV @ 25 A 580 mV @ 3 A 580 mV @ 30 A 580 mV @ 300 A 580 mV @ 4 A 580 mV @ 40 A 580 mV @ 400 A 580 mV @ 5 A 580 mV @ 6 A 580 mV @ 7.5 A 585 mV @ 15 A 590 mV @ 1 A 590 mV @ 10 A 590 mV @ 110 A 590 mV @ 15 A 590 mV @ 20 A 590 mV @ 3 A 590 mV @ 30 A 590 mV @ 40 A 590 mV @ 40 mA 590 mV @ 5 A 590 mV @ 500 mA 590 mV @ 7.5 A 595 mV @ 20 A 6 V @ 2 A 6.8 V @ 15 A 6.9 V @ 20 A 6.99 V @ 25 A 600 mV @ 1 A 600 mV @ 10 A 600 mV @ 10 mA 600 mV @ 100 mA 600 mV @ 15 A 600 mV @ 150 A 600 mV @ 20 A 600 mV @ 200 A 600 mV @ 200 mA 600 mV @ 3 A 600 mV @ 30 A 600 mV @ 300 A 600 mV @ 40 A 600 mV @ 400 A 600 mV @ 440 A 600 mV @ 5 A 600 mV @ 500 mA 600 mV @ 6 A 600 mV @ 60 A 600 mV @ 7.5 A 600 mV @ 80 A 610 mV @ 10 A 610 mV @ 100 mA 610 mV @ 15 A 610 mV @ 150 A 610 mV @ 20 A 610 mV @ 3 A 610 mV @ 30 A 610 mV @ 40 A 610 mV @ 5 A 610 mV @ 55 A 610 mV @ 6 A 620 mV @ 10 A 620 mV @ 100 mA 620 mV @ 120 A 620 mV @ 15 A 620 mV @ 2 A 620 mV @ 20 A 620 mV @ 3 A 620 mV @ 30 A 620 mV @ 40 A 620 mV @ 5 A 620 mV @ 6 A 620 mV @ 7.5 A 620 mV @ 80 A 625 mV @ 15 A 625 mV @ 20 A 630 mV @ 10 A 630 mV @ 15 A 630 mV @ 20 A 630 mV @ 3 A 630 mV @ 30 A 630 mV @ 440 A 630 mV @ 5 A 630 mV @ 7.5 A 640 mV @ 10 A 640 mV @ 15 A 640 mV @ 20 A 640 mV @ 30 A 640 mV @ 4 A 645 mV @ 10 A 650 mV @ 1 A 650 mV @ 10 A 650 mV @ 100 A 650 mV @ 100 mA 650 mV @ 12.5 A 650 mV @ 120 A 650 mV @ 15 A 650 mV @ 150 A 650 mV @ 160 A 650 mV @ 2 A 650 mV @ 20 A 650 mV @ 200 A 650 mV @ 3 A 650 mV @ 30 A 650 mV @ 300 A 650 mV @ 40 A 650 mV @ 400 mA 650 mV @ 5 A 650 mV @ 60 A 650 mV @ 7.5 A 650 mV @ 80 A 660 mV @ 10 A 660 mV @ 15 A 660 mV @ 30 A 660 mV @ 4 A 660 mV @ 40 A 660 mV @ 5 A 660 mV @ 80 A 670 mV @ 10 A 670 mV @ 100 A 670 mV @ 120 A 670 mV @ 15 A 670 mV @ 20 A 670 mV @ 200 A 670 mV @ 30 A 670 mV @ 5 A 670 mV @ 60 A 670 mV @ 75 A 680 mV @ 10 A 680 mV @ 10 mA 680 mV @ 100 A 680 mV @ 12 A 680 mV @ 15 A 680 mV @ 20 A 680 mV @ 200 A 680 mV @ 220 A 680 mV @ 3 A 680 mV @ 30 A 680 mV @ 4 A 680 mV @ 40 A 680 mV @ 5 A 690 mV @ 10 A 690 mV @ 100 A 690 mV @ 100 mA 690 mV @ 15 A 690 mV @ 150 A 690 mV @ 2 A 690 mV @ 3 A 690 mV @ 30 A 690 mV @ 5 A 690 mV @ 60 A 690 mV @ 7.5 A 690 mV @ 80 A 7 V @ 250 mA 700 mV @ 1 A 700 mV @ 10 A 700 mV @ 100 A 700 mV @ 110 A 700 mV @ 12.5 A 700 mV @ 120 A 700 mV @ 15 A 700 mV @ 150 A 700 mV @ 20 A 700 mV @ 200 A 700 mV @ 250 A 700 mV @ 3 A 700 mV @ 30 A 700 mV @ 30 mA 700 mV @ 300 A 700 mV @ 35 A 700 mV @ 4 A 700 mV @ 5 A 700 mV @ 50 A 700 mV @ 6 A 700 mV @ 60 A 700 mV @ 7.5 A 700 mV @ 8 A 700 mV @ 80 A 705 mV @ 5 A 710 mV @ 10 A 710 mV @ 15 A 710 mV @ 20 A 710 mV @ 30 A 710 mV @ 7.5 A 710 mV @ 75 A 710 mV @ 8 A 710 mV @ 80 A 720 mV @ 10 A 720 mV @ 100 A 720 mV @ 15 A 720 mV @ 20 A 720 mV @ 200 A 720 mV @ 3 A 720 mV @ 400 A 720 mV @ 5 A 720 mV @ 60 A 720 mV @ 7.5 A 720 mV @ 8 A 725 mV @ 7.5 A 726 mV @ 15 A 730 mV @ 10 A 730 mV @ 12 A 730 mV @ 15 A 730 mV @ 20 A 730 mV @ 25 A 730 mV @ 250 A 730 mV @ 3 A 730 mV @ 30 A 730 mV @ 300 A 730 mV @ 40 A 730 mV @ 400 A 730 mV @ 5 A 730 mV @ 7.5 A 730 mV @ 800 A 735 mV @ 20 A 740 mV @ 10 A 740 mV @ 15 A 740 mV @ 20 A 740 mV @ 200 A 740 mV @ 3 A 740 mV @ 30 A 740 mV @ 40 A 740 mV @ 5 A 740 mV @ 60 A 740 mV @ 7.5 A 740 mV @ 8 A 740 mV @ 80 A 745 mV @ 15 A 745 mV @ 5 A 750 mV @ 10 A 750 mV @ 100 A 750 mV @ 100 mA 750 mV @ 12.5 A 750 mV @ 120 A 750 mV @ 15 A 750 mV @ 150 A 750 mV @ 16 A 750 mV @ 160 A 750 mV @ 20 A 750 mV @ 200 A 750 mV @ 200 mA 750 mV @ 25 A 750 mV @ 250 A 750 mV @ 3 A 750 mV @ 30 A 750 mV @ 300 A 750 mV @ 35 A 750 mV @ 4 A 750 mV @ 5 A 750 mV @ 50 A 750 mV @ 6 A 750 mV @ 60 A 750 mV @ 7.5 A 750 mV @ 8 A 750 mV @ 80 A 760 mV @ 10 A 760 mV @ 20 A 760 mV @ 200 A 760 mV @ 30 A 760 mV @ 35 A 760 mV @ 5 A 760 mV @ 6 A 760 mV @ 60 A 765 mV @ 15 A 770 mV @ 1 A 770 mV @ 10 A 770 mV @ 15 A 770 mV @ 20 A 770 mV @ 3 A 770 mV @ 30 A 770 mV @ 300 A 770 mV @ 35 A 770 mV @ 40 A 770 mV @ 5 A 770 mV @ 8 A 770 mV @ 80 A 780 mV @ 10 A 780 mV @ 15 A 780 mV @ 20 A 780 mV @ 25 A 780 mV @ 250 A 780 mV @ 3 A 780 mV @ 30 A 780 mV @ 30 mA 780 mV @ 40 A 780 mV @ 400 A 780 mV @ 5 A 780 mV @ 7.5 A 790 mV @ 1 A 790 mV @ 10 A 790 mV @ 12 A 790 mV @ 15 A 790 mV @ 150 A 790 mV @ 2 A 790 mV @ 20 A 790 mV @ 30 A 790 mV @ 35 A 790 mV @ 5 A 8 V @ 12 A 800 mV @ 10 A 800 mV @ 100 A 800 mV @ 100 mA 800 mV @ 12.5 A 800 mV @ 15 A 800 mV @ 150 A 800 mV @ 160 A 800 mV @ 20 A 800 mV @ 200 A 800 mV @ 25 A 800 mV @ 250 A 800 mV @ 3 A 800 mV @ 30 A 800 mV @ 300 A 800 mV @ 4 A 800 mV @ 40 A 800 mV @ 5 A 800 mV @ 6 A 800 mV @ 60 A 800 mV @ 7.5 A 800 mV @ 700 mA 800 mV @ 8 A 800 mV @ 80 A 810 mV @ 10 A 810 mV @ 15 A 810 mV @ 2 A 810 mV @ 20 A 810 mV @ 200 A 810 mV @ 25 A 810 mV @ 3 A 810 mV @ 30 A 810 mV @ 4 A 810 mV @ 40 A 810 mV @ 400 mA 810 mV @ 5 A 810 mV @ 55 A 810 mV @ 7.5 A 810 mV @ 8 A 820 mV @ 10 A 820 mV @ 10 mA 820 mV @ 12.5 A 820 mV @ 15 A 820 mV @ 20 A 820 mV @ 200 A 820 mV @ 25 A 820 mV @ 3 A 820 mV @ 30 A 820 mV @ 40 A 820 mV @ 5 A 820 mV @ 60 A 825 mV @ 120 A 830 mV @ 10 A 830 mV @ 100 A 830 mV @ 15 A 830 mV @ 20 A 830 mV @ 20 mA 830 mV @ 200 A 830 mV @ 3 A 830 mV @ 30 A 830 mV @ 40 A 830 mV @ 5 A 830 mV @ 7.5 A 840 mV @ 10 A 840 mV @ 100 A 840 mV @ 120 A 840 mV @ 15 A 840 mV @ 150 A 840 mV @ 160 A 840 mV @ 2.5 A 840 mV @ 20 A 840 mV @ 200 A 840 mV @ 25 A 840 mV @ 250 A 840 mV @ 30 A 840 mV @ 300 A 840 mV @ 35 A 840 mV @ 40 A 840 mV @ 400 A 840 mV @ 5 A 840 mV @ 50 A 840 mV @ 60 A 840 mV @ 7.5 A 840 mV @ 8 A 840 mV @ 80 A 843 mV @ 20 A 844 mV @ 20 A 845 mV @ 10 A 850 mV @ 1 A 850 mV @ 10 A 850 mV @ 100 A 850 mV @ 12 A 850 mV @ 15 A 850 mV @ 16 A 850 mV @ 20 A 850 mV @ 25 A 850 mV @ 3 A 850 mV @ 30 A 850 mV @ 300 A 850 mV @ 5 A 850 mV @ 50 A 850 mV @ 500 mA 850 mV @ 6 A 850 mV @ 7.5 A 850 mV @ 8 A 850 mV @ 80 A 855 mV @ 10 mA 855 mV @ 100 mA 858 mV @ 10 A 860 mV @ 10 A 860 mV @ 100 A 860 mV @ 15 A 860 mV @ 150 A 860 mV @ 160 A 860 mV @ 20 A 860 mV @ 30 A 860 mV @ 40 A 860 mV @ 5 A 860 mV @ 60 A 860 mV @ 80 A 870 mV @ 10 A 870 mV @ 15 A 870 mV @ 2 A 870 mV @ 20 A 870 mV @ 30 A 870 mV @ 40 A 870 mV @ 5 A 880 mV @ 10 A 880 mV @ 100 A 880 mV @ 120 A 880 mV @ 15 A 880 mV @ 15 mA 880 mV @ 150 A 880 mV @ 16 A 880 mV @ 160 A 880 mV @ 20 A 880 mV @ 200 A 880 mV @ 25 A 880 mV @ 250 A 880 mV @ 3.5 A 880 mV @ 30 A 880 mV @ 300 A 880 mV @ 40 A 880 mV @ 400 A 880 mV @ 5 A 880 mV @ 50 A 880 mV @ 500 A 880 mV @ 60 A 880 mV @ 80 A 890 mV @ 10 A 890 mV @ 15 A 890 mV @ 20 A 890 mV @ 200 A 890 mV @ 3 A 890 mV @ 5 A 890 mV @ 6 A 900 mV @ 10 A 900 mV @ 100 mA 900 mV @ 12.5 A 900 mV @ 15 A 900 mV @ 15 mA 900 mV @ 20 A 900 mV @ 200 A 900 mV @ 25 A 900 mV @ 250 A 900 mV @ 3 A 900 mV @ 30 A 900 mV @ 30 mA 900 mV @ 300 A 900 mV @ 35 A 900 mV @ 4 A 900 mV @ 40 A 900 mV @ 400 mA 900 mV @ 5 A 900 mV @ 5 mA 900 mV @ 6 A 900 mV @ 60 A 900 mV @ 7.5 A 900 mV @ 8 A 910 mV @ 10 A 910 mV @ 100 A 910 mV @ 15 A 910 mV @ 150 A 910 mV @ 20 A 910 mV @ 40 A 910 mV @ 45 A 910 mV @ 5 A 910 mV @ 60 A 910 mV @ 8 A 920 mV @ 10 A 920 mV @ 100 A 920 mV @ 120 A 920 mV @ 15 A 920 mV @ 150 A 920 mV @ 160 A 920 mV @ 20 A 920 mV @ 200 A 920 mV @ 25 A 920 mV @ 250 A 920 mV @ 30 A 920 mV @ 300 A 920 mV @ 35 A 920 mV @ 4 A 920 mV @ 5 A 920 mV @ 50 A 920 mV @ 60 A 920 mV @ 7.5 A 920 mV @ 8 A 920 mV @ 80 A 930 mV @ 10 A 930 mV @ 15 A 930 mV @ 150 A 930 mV @ 20 A 930 mV @ 3 A 930 mV @ 30 A 930 mV @ 35 A 930 mV @ 4 A 930 mV @ 40 A 930 mV @ 400 A 930 mV @ 5 A 930 mV @ 60 A 930 mV @ 8 A 940 mV @ 10 A 940 mV @ 100 A 940 mV @ 15 A 940 mV @ 3 A 940 mV @ 30 A 940 mV @ 5 A 940 mV @ 75 A 940 mV @ 80 A 950 mV @ 10 A 950 mV @ 100 A 950 mV @ 12 A 950 mV @ 15 A 950 mV @ 2 A 950 mV @ 20 A 950 mV @ 3 A 950 mV @ 30 A 950 mV @ 35 mA 950 mV @ 4 A 950 mV @ 5 A 950 mV @ 60 A 950 mV @ 7.5 A 950 mV @ 8 A 950 mV @ 90 A 960 mV @ 15 A 960 mV @ 20 A 960 mV @ 30 A 960 mV @ 4 A 960 mV @ 45 A 960 mV @ 5 A 960 mV @ 6 A 960 mV @ 75 A 960 mV @ 80 A 970 mV @ 10 A 970 mV @ 15 A 970 mV @ 2 A 970 mV @ 20 A 970 mV @ 30 A 970 mV @ 400 A 970 mV @ 60 A 970 mV @ 8 A 975 mV @ 10 A 975 mV @ 100 A 975 mV @ 16 A 975 mV @ 200 A 975 mV @ 3 A 975 mV @ 4 A 975 mV @ 5 A 975 mV @ 8 A 980 mV @ 10 A 980 mV @ 10 mA 980 mV @ 12.5 A 980 mV @ 120 A 980 mV @ 15 A 980 mV @ 160 A 980 mV @ 2 A 980 mV @ 2.5 A 980 mV @ 20 A 980 mV @ 200 A 980 mV @ 200 mA 980 mV @ 3 A 980 mV @ 30 A 980 mV @ 40 A 980 mV @ 5 A 980 mV @ 500 mA 980 mV @ 6.5 A 980 mV @ 60 A 980 mV @ 7.5 A 980 mV @ 8 A 980 mV @ 80 A 990 mV @ 10 A 990 mV @ 100 A 990 mV @ 12 A 990 mV @ 200 A 990 mV @ 3 A 990 mV @ 30 A 990 mV @ 40 A 990 mV @ 5 A 990 mV @ 8 A	- Fast Recovery =< 500ns, > 200mA (Io) No Recovery Time > 500mA (Io) Small Signal =< 200mA (Io), Any Speed Standard Recovery >500ns, > 200mA (Io)	- 0 ns 1 ns 1 µs 1.2 µs 1.3 ns 1.5 ns 1.5 µs 1.6 ns 10 ns 10 µs 10.7 ns 100 ns 100 ps 104 ns 105 ns 108 ns 11 ns 11.4 ns 11.5 ns 11.8 ns 110 ns 112 ns 115 ns 118 ns 12 ns 12.3 ns 12.6 ns 120 ns 123 ns 124 ns 125 ns 13 ns 13.7 ns 13.9 ns 130 ns 132 ns 135 ns 136 ns 14 ns 14.8 ns 140 ns 141 ns 145 ns 15 ns 15.1 ns 150 ns 157 ns 16 ns 16.1 ns 16.3 ns 16.5 ns 16.5 µs 16.9 ns 160 ns 165 ns 166 ns 17 ns 170 ns 179 ns 18 ns 18 µs 18.5 ns 180 ns 19 ns 2 ns 2 µs 2.5 ns 2.99 ns 20 ns 20.2 ns 200 ns 21 ns 21.5 ns 215 ns 22 ns 22 µs 220 ns 23 ns 23.4 ns 230 ns 235 ns 24 ns 24.7 ns 240 ns 25 ns 25 µs 250 ns 255 ns 26 ns 260 ns 265 ns 27 ns 27.4 ns 270 ns 28 ns 280 ns 290 ns 295 ns 3 ns 3 µs 3.5 ns 30 ns 300 ns 31 ns 32 ns 320 ns 325 ns 33 ns 34 ns 35 ns 350 ns 36 ns 360 ns 37 ns 370 ns 38 ns 385 ns 39 ns 4 ns 40 ns 400 ns 408 ns 41 ns 42 ns 420 ns 43 ns 44 ns 45 ns 46 ns 47 ns 5 ns 5 µs 50 ns 500 ns 51 ns 52 ns 54 ns 55 ns 57 ns 572 ns 58 ns 6 ns 6.8 ns 60 ns 61 ns 63 ns 65 ns 66 ns 67 ns 68 ns 7.4 ns 70 ns 700 ps 71 ns 72 ns 73 ns 74 ns 75 ns 75.5 ns 76 ns 77 ns 77.5 ns 78 ns 8 ns 8.2 ns 8.3 ns 8.4 ns 8.6 ns 8.9 ns 80 ns 800 ns 800 ps 85 ns 86 ns 87 ns 9 ns 9.3 ns 90 ns 900 ps 93 ns 95 ns 96 ns 97 ns 98 ns	- 0.1 mA @ 1.2 kV 1 mA @ 10 V 1 mA @ 100 V 1 mA @ 120 V 1 mA @ 1200 V 1 mA @ 1400 V 1 mA @ 15 V 1 mA @ 150 V 1 mA @ 1600 V 1 mA @ 1800 V 1 mA @ 20 V 1 mA @ 200 V 1 mA @ 2000 V 1 mA @ 2200 V 1 mA @ 25 V 1 mA @ 2800 V 1 mA @ 30 V 1 mA @ 300 V 1 mA @ 3400 V 1 mA @ 35 V 1 mA @ 40 V 1 mA @ 400 V 1 mA @ 45 V 1 mA @ 50 V 1 mA @ 60 V 1 mA @ 600 V 1 mA @ 65 V 1 mA @ 75 V 1 mA @ 80 V 1 mA @ 90 V 1 nA @ 125 V 1 pA @ 20 V 1 µA @ 10 V 1 µA @ 100 V 1 µA @ 1000 V 1 µA @ 10000 V 1 µA @ 150 V 1 µA @ 15000 V 1 µA @ 20 V 1 µA @ 200 V 1 µA @ 25 V 1 µA @ 30 V 1 µA @ 300 V 1 µA @ 40 V 1 µA @ 400 V 1 µA @ 50 V 1 µA @ 500 V 1 µA @ 5000 V 1 µA @ 600 V 1 µA @ 70 V 1 µA @ 75 V 1 µA @ 80 V 1 µA @ 800 V 1 µA @ 85 V 1.1 mA @ 200 V 1.1 mA @ 45 V 1.1 mA @ 60 V 1.2 mA @ 1200 V 1.2 mA @ 1700 V 1.2 mA @ 40 V 1.2 mA @ 45 V 1.2 mA @ 50 V 1.2 mA @ 60 V 1.2 mA @ 600 V 1.2 mA @ 700 V 1.2 µA @ 60 V 1.25 mA @ 100 V 1.25 mA @ 15 V 1.25 mA @ 80 V 1.28 mA @ 400 V 1.3 mA @ 180 V 1.3 mA @ 250 V 1.3 mA @ 45 V 1.3 mA @ 600 V 1.38 mA @ 200 V 1.38 mA @ 600 V 1.4 mA @ 45 V 1.4 mA @ 60 V 1.5 mA @ 100 V 1.5 mA @ 135 V 1.5 mA @ 150 V 1.5 mA @ 20 V 1.5 mA @ 200 V 1.5 mA @ 30 V 1.5 mA @ 35 V 1.5 mA @ 40 V 1.5 mA @ 45 V 1.5 mA @ 50 V 1.5 mA @ 60 V 1.5 mA @ 80 V 1.5 µA @ 100 V 1.5 µA @ 30 V 1.5 µA @ 40 V 1.5 µA @ 60 V 1.6 mA @ 45 V 1.6 µA @ 650 V 1.7 mA @ 50 V 1.7 mA @ 60 V 1.75 mA @ 25 V 1.75 mA @ 30 V 1.75 mA @ 35 V 1.75 mA @ 40 V 1.75 mA @ 45 V 1.8 mA @ 1200 V 1.8 mA @ 150 V 1.8 mA @ 1700 V 1.8 mA @ 45 V 1.8 mA @ 50 V 1.8 mA @ 60 V 1.8 mA @ 700 V 1.8 µA @ 60 V 1.9 mA @ 100 V 1.9 mA @ 30 V 10 mA @ 1000 V 10 mA @ 1200 V 10 mA @ 1400 V 10 mA @ 15 V 10 mA @ 150 V 10 mA @ 1600 V 10 mA @ 1800 V 10 mA @ 20 V 10 mA @ 200 V 10 mA @ 2200 V 10 mA @ 25 V 10 mA @ 30 V 10 mA @ 35 V 10 mA @ 40 V 10 mA @ 400 V 10 mA @ 45 V 10 mA @ 50 V 10 mA @ 60 V 10 mA @ 600 V 10 mA @ 800 V 10 nA @ 120 V 10 nA @ 180 V 10 nA @ 20 V 10 nA @ 40 V 10 nA @ 80 V 10 pA @ 20 V 10 µA @ 10 V 10 µA @ 100 V 10 µA @ 1000 V 10 µA @ 120 V 10 µA @ 1200 V 10 µA @ 1400 V 10 µA @ 15 V 10 µA @ 150 V 10 µA @ 15000 V 10 µA @ 160 V 10 µA @ 1600 V 10 µA @ 170 V 10 µA @ 1800 V 10 µA @ 20 V 10 µA @ 200 V 10 µA @ 250 V 10 µA @ 30 V 10 µA @ 300 V 10 µA @ 320 V 10 µA @ 40 V 10 µA @ 400 V 10 µA @ 480 V 10 µA @ 50 V 10 µA @ 500 V 10 µA @ 5000 V 10 µA @ 60 V 10 µA @ 600 V 10 µA @ 650 V 10 µA @ 70 V 10 µA @ 80 V 10 µA @ 800 V 10.5 mA @ 15 V 100 mA @ 400 V 100 mA @ 600 V 100 nA @ 10 V 100 nA @ 120 V 100 nA @ 15 V 100 nA @ 150 V 100 nA @ 175 V 100 nA @ 200 V 100 nA @ 240 V 100 nA @ 250 V 100 nA @ 280 V 100 nA @ 30 V 100 nA @ 33 V 100 nA @ 35 V 100 nA @ 350 V 100 nA @ 40 V 100 nA @ 400 V 100 nA @ 50 V 100 nA @ 60 V 100 nA @ 600 V 100 nA @ 70 V 100 nA @ 75 V 100 nA @ 80 V 100 nA @ 90 V 100 pA @ 20 V 100 µA @ 10 V 100 µA @ 100 V 100 µA @ 1000 V 100 µA @ 120 V 100 µA @ 1200 V 100 µA @ 140 V 100 µA @ 150 V 100 µA @ 160 V 100 µA @ 1600 V 100 µA @ 170 V 100 µA @ 180 V 100 µA @ 20 V 100 µA @ 200 V 100 µA @ 2200 V 100 µA @ 30 V 100 µA @ 300 V 100 µA @ 35 V 100 µA @ 40 V 100 µA @ 400 V 100 µA @ 45 V 100 µA @ 480 V 100 µA @ 50 V 100 µA @ 500 V 100 µA @ 60 V 100 µA @ 600 V 100 µA @ 65 V 100 µA @ 650 V 100 µA @ 70 V 100 µA @ 80 V 100 µA @ 800 V 100 µA @ 90 V 110 µA @ 10 V 110 µA @ 1200 V 110 µA @ 60 V 12 mA @ 1200 V 12 mA @ 1600 V 12 mA @ 1800 V 12 mA @ 2000 V 12 mA @ 2200 V 12 mA @ 2400 V 12 mA @ 25 V 12 mA @ 45 V 12 mA @ 600 V 12 mA @ 800 V 12 µA @ 100 V 12 µA @ 150 V 12 µA @ 30 V 12 µA @ 40 V 12 µA @ 400 V 12 µA @ 60 V 12 µA @ 70 V 12 µA @ 90 V 120 mA @ 45 V 120 µA @ 100 V 120 µA @ 120 V 120 µA @ 1200 V 120 µA @ 30 V 120 µA @ 300 V 120 µA @ 40 V 120 µA @ 400 V 120 µA @ 650 V 124 µA @ 1200 V 125 µA @ 45 V 125 µA @ 650 V 13 µA @ 1200 V 14 µA @ 1200 V 14 µA @ 150 V 140 mA @ 100 V 140 µA @ 100 V 140 µA @ 1200 V 140 µA @ 45 V 140 µA @ 65 V 15 mA @ 1200 V 15 mA @ 1400 V 15 mA @ 1600 V 15 mA @ 1800 V 15 mA @ 2000 V 15 mA @ 2200 V 15 mA @ 30 V 15 mA @ 35 V 15 mA @ 40 V 15 mA @ 45 V 15 mA @ 50 V 15 mA @ 800 V 15 µA @ 10 V 15 µA @ 100 V 15 µA @ 1000 V 15 µA @ 120 V 15 µA @ 1200 V 15 µA @ 150 V 15 µA @ 16 V 15 µA @ 170 V 15 µA @ 200 V 15 µA @ 30 V 15 µA @ 300 V 15 µA @ 400 V 15 µA @ 50 V 15 µA @ 500 V 15 µA @ 60 V 15 µA @ 600 V 15 µA @ 700 V 15 µA @ 80 V 15 µA @ 800 V 150 mA @ 11000 V 150 mA @ 600 V 150 mA @ 650 V 150 mA @ 6500 V 150 nA @ 16 V 150 nA @ 240 V 150 nA @ 25 V 150 nA @ 250 V 150 nA @ 70 V 150 µA @ 100 V 150 µA @ 120 V 150 µA @ 1200 V 150 µA @ 150 V 150 µA @ 160 V 150 µA @ 170 V 150 µA @ 200 V 150 µA @ 30 V 150 µA @ 300 V 150 µA @ 35 V 150 µA @ 400 V 150 µA @ 45 V 150 µA @ 480 V 150 µA @ 50 V 150 µA @ 60 V 150 µA @ 600 V 150 µA @ 65 V 150 µA @ 80 V 150 µA @ 90 V 16 mA @ 15 V 16 µA @ 100 V 160 mA @ 1800 V 160 mA @ 2400 V 160 µA @ 1200 V 160 µA @ 200 V 166 µA @ 1200 V 17 mA @ 1600 V 17 mA @ 800 V 17 µA @ 70 V 170 µA @ 60 V 18 A @ 18 A 18 µA @ 1200 V 180 µA @ 100 V 180 µA @ 1200 V 180 µA @ 60 V 180 µA @ 650 V 190 µA @ 650 V 2 mA @ 100 V 2 mA @ 1200 V 2 mA @ 150 V 2 mA @ 1600 V 2 mA @ 180 V 2 mA @ 20 V 2 mA @ 200 V 2 mA @ 25 V 2 mA @ 250 V 2 mA @ 30 V 2 mA @ 35 V 2 mA @ 40 V 2 mA @ 400 V 2 mA @ 45 V 2 mA @ 50 V 2 mA @ 60 V 2 mA @ 600 V 2 mA @ 80 V 2 mA @ 90 V 2 pA @ 20 V 2 µA @ 100 V 2 µA @ 1000 V 2 µA @ 1200 V 2 µA @ 150 V 2 µA @ 200 V 2 µA @ 25 V 2 µA @ 30 V 2 µA @ 40 V 2 µA @ 400 V 2 µA @ 600 V 2 µA @ 75 V 2.1 mA @ 60 V 2.2 mA @ 1200 V 2.2 mA @ 60 V 2.4 mA @ 1200 V 2.4 mA @ 1700 V 2.4 mA @ 60 V 2.4 mA @ 700 V 2.5 mA @ 30 V 2.5 mA @ 45 V 2.5 mA @ 70 V 2.5 µA @ 100 V 2.5 µA @ 600 V 2.5 µA @ 650 V 2.5 µA @ 70 V 2.5 µA @ 75 V 20 mA @ 100 V 20 mA @ 1000 V 20 mA @ 120 V 20 mA @ 1200 V 20 mA @ 1400 V 20 mA @ 15 V 20 mA @ 1600 V 20 mA @ 1800 V 20 mA @ 200 V 20 mA @ 2200 V 20 mA @ 25 V 20 mA @ 30 V 20 mA @ 3000 V 20 mA @ 3200 V 20 mA @ 3400 V 20 mA @ 35 V 20 mA @ 40 V 20 mA @ 400 V 20 mA @ 45 V 20 mA @ 50 V 20 mA @ 60 V 20 mA @ 600 V 20 mA @ 80 V 20 mA @ 800 V 20 pA @ 20 V 20 µA @ 10 V 20 µA @ 100 V 20 µA @ 1000 V 20 µA @ 120 V 20 µA @ 1200 V 20 µA @ 1400 V 20 µA @ 150 V 20 µA @ 1600 V 20 µA @ 170 V 20 µA @ 1700 V 20 µA @ 20 µA 20 µA @ 200 V 20 µA @ 30 V 20 µA @ 300 V 20 µA @ 400 V 20 µA @ 45 V 20 µA @ 60 V 20 µA @ 600 V 20 µA @ 650 V 20 µA @ 80 V 20 µA @ 800 V 200 mA @ 1000 V 200 mA @ 1200 V 200 mA @ 1400 V 200 mA @ 1600 V 200 mA @ 1800 V 200 mA @ 2200 V 200 mA @ 2400 V 200 mA @ 2600 V 200 mA @ 3600 V 200 mA @ 4000 V 200 mA @ 600 V 200 mA @ 8 V 200 mA @ 800 V 200 nA @ 1 V 200 nA @ 100 V 200 nA @ 15 V 200 nA @ 200 V 200 nA @ 25 V 200 nA @ 30 V 200 nA @ 35 V 200 nA @ 40 V 200 nA @ 45 V 200 nA @ 50 V 200 nA @ 70 V 200 nA @ 80 V 200 µA @ 100 V 200 µA @ 120 V 200 µA @ 1200 V 200 µA @ 150 V 200 µA @ 160 V 200 µA @ 1600 V 200 µA @ 170 V 200 µA @ 1700 V 200 µA @ 1800 V 200 µA @ 20 V 200 µA @ 200 V 200 µA @ 2000 V 200 µA @ 2200 V 200 µA @ 30 V 200 µA @ 300 V 200 µA @ 35 V 200 µA @ 40 V 200 µA @ 400 V 200 µA @ 45 V 200 µA @ 480 V 200 µA @ 50 V 200 µA @ 60 V 200 µA @ 600 V 200 µA @ 65 V 200 µA @ 650 V 200 µA @ 700 V 200 µA @ 80 V 200 µA @ 90 V 200 µA @ 960 V 21 mA @ 45 V 210 µA @ 200 V 210 µA @ 45 V 210 µA @ 50 V 210 µA @ 60 V 210 µA @ 650 V 22 mA @ 12 V 220 µA @ 100 V 220 µA @ 60 V 230 nA @ 15 V 230 µA @ 650 V 24 µA @ 650 V 240 µA @ 1200 V 240 µA @ 40 V 240 µA @ 650 V 25 mA @ 1600 V 25 mA @ 2200 V 25 mA @ 2400 V 25 mA @ 2500 V 25 mA @ 30 V 25 mA @ 3600 V 25 mA @ 40 V 25 mA @ 45 V 25 mA @ 60 V 25 nA @ 20 V 25 nA @ 50 V 25 µA @ 100 V 25 µA @ 1000 V 25 µA @ 120 V 25 µA @ 1200 V 25 µA @ 150 V 25 µA @ 1700 V 25 µA @ 200 V 25 µA @ 300 V 25 µA @ 400 V 25 µA @ 45 V 25 µA @ 50 V 25 µA @ 500 V 25 µA @ 600 V 25 µA @ 650 V 25 µA @ 80 V 25 µA @ 800 V 250 nA @ 3 V 250 µA @ 100 V 250 µA @ 1000 V 250 µA @ 120 V 250 µA @ 1200 V 250 µA @ 150 V 250 µA @ 1500 V 250 µA @ 170 V 250 µA @ 180 V 250 µA @ 1800 V 250 µA @ 20 V 250 µA @ 200 V 250 µA @ 250 V 250 µA @ 300 V 250 µA @ 400 V 250 µA @ 45 V 250 µA @ 60 V 250 µA @ 600 V 250 µA @ 650 V 270 µA @ 100 V 275 µA @ 120 V 280 µA @ 100 V 280 µA @ 60 V 280 µA @ 80 V 29 µA @ 60 V 3 mA @ 100 V 3 mA @ 1000 V 3 mA @ 120 V 3 mA @ 1200 V 3 mA @ 135 V 3 mA @ 150 V 3 mA @ 1600 V 3 mA @ 180 V 3 mA @ 20 V 3 mA @ 200 V 3 mA @ 30 V 3 mA @ 35 V 3 mA @ 40 V 3 mA @ 400 V 3 mA @ 45 V 3 mA @ 60 V 3 mA @ 600 V 3 mA @ 80 V 3 mA @ 90 V 3 nA @ 50 V 3 µA @ 100 V 3 µA @ 150 V 3 µA @ 200 V 3 µA @ 30 V 3 µA @ 40 V 3 µA @ 400 V 3 µA @ 6 V 3 µA @ 60 V 3 µA @ 600 V 3 µA @ 90 V 3.5 mA @ 30 V 3.5 mA @ 60 V 3.5 µA @ 100 V 3.5 µA @ 90 V 3.6 µA @ 100 V 30 mA @ 1200 V 30 mA @ 1400 V 30 mA @ 1600 V 30 mA @ 1700 V 30 mA @ 1800 V 30 mA @ 2000 V 30 mA @ 2200 V 30 mA @ 400 V 30 mA @ 45 V 30 mA @ 600 V 30 mA @ 800 V 30 µA @ 1 V 30 µA @ 10 V 30 µA @ 100 V 30 µA @ 120 V 30 µA @ 1200 V 30 µA @ 15 V 30 µA @ 150 V 30 µA @ 170 V 30 µA @ 200 V 30 µA @ 30 V 30 µA @ 300 V 30 µA @ 400 V 30 µA @ 45 V 30 µA @ 50 V 30 µA @ 500 V 30 µA @ 60 V 30 µA @ 600 V 30 µA @ 650 V 30 µA @ 80 V 300 mA @ 600 V 300 nA @ 10 V 300 nA @ 30 V 300 nA @ 50 V 300 µA @ 1.2 kV 300 µA @ 100 V 300 µA @ 120 V 300 µA @ 1200 V 300 µA @ 150 V 300 µA @ 1600 V 300 µA @ 180 V 300 µA @ 20 V 300 µA @ 200 V 300 µA @ 30 V 300 µA @ 40 V 300 µA @ 45 V 300 µA @ 50 V 300 µA @ 60 V 300 µA @ 600 V 300 µA @ 7.5 V 300 µA @ 80 V 300 µA @ 90 V 305 µA @ 1200 V 320 µA @ 100 V 320 µA @ 45 V 330 µA @ 60 V 330 µA @ 600 V 35 nA @ 30 V 35 µA @ 120 V 35 µA @ 170 V 35 µA @ 400 V 35 µA @ 60 V 350 µA @ 100 V 350 µA @ 120 V 350 µA @ 15 V 350 µA @ 40 V 350 µA @ 45 V 350 µA @ 60 V 360 µA @ 15 V 360 µA @ 40 V 360 µA @ 80 V 370 µA @ 120 V 375 µA @ 1200 V 380 µA @ 60 V 4 mA @ 100 V 4 mA @ 150 V 4 mA @ 1600 V 4 mA @ 200 V 4 mA @ 30 V 4 mA @ 35 V 4 mA @ 40 V 4 mA @ 400 V 4 mA @ 45 V 4 mA @ 480 V 4 mA @ 50 V 4 mA @ 60 V 4 mA @ 600 V 4 mA @ 80 V 4 mA @ 800 V 4 µA @ 100 V 4 µA @ 120 V 4 µA @ 1200 V 4 µA @ 200 V 4 µA @ 2000 V 4 µA @ 25 V 4 µA @ 4000 V 4 µA @ 8000 V 4.5 mA @ 100 V 4.5 mA @ 60 V 4.5 mA @ 80 V 4.5 µA @ 100 V 4.5 µA @ 90 V 40 mA @ 100 V 40 mA @ 1000 V 40 mA @ 1200 V 40 mA @ 1400 V 40 mA @ 15 V 40 mA @ 1600 V 40 mA @ 1800 V 40 mA @ 2000 V 40 mA @ 2200 V 40 mA @ 2400 V 40 mA @ 25 V 40 mA @ 2600 V 40 mA @ 30 V 40 mA @ 400 V 40 mA @ 450 V 40 mA @ 60 V 40 mA @ 800 V 40 µA @ 100 V 40 µA @ 1200 V 40 µA @ 150 V 40 µA @ 1600 V 40 µA @ 200 V 40 µA @ 300 V 40 µA @ 400 V 40 µA @ 60 V 40 µA @ 600 V 40 µA @ 650 V 40 µA @ 80 V 400 mA @ 8 V 400 µA @ 100 V 400 µA @ 120 V 400 µA @ 1200 V 400 µA @ 1700 V 400 µA @ 250 V 400 µA @ 40 V 400 µA @ 45 V 400 µA @ 60 V 400 µA @ 600 V 400 µA @ 65 V 400 µA @ 700 V 400 µA @ 80 V 400 µA @ 90 V 42 µA @ 15 V 430 µA @ 40 V 45 µA @ 100 V 45 µA @ 1200 V 45 µA @ 150 V 45 µA @ 650 V 450 µA @ 100 V 450 µA @ 150 V 450 µA @ 170 V 450 µA @ 45 V 450 µA @ 60 V 450 µA @ 65 V 48 µA @ 650 V 480 µA @ 45 V 480 µA @ 60 V 5 mA @ 1.8 kV 5 mA @ 100 V 5 mA @ 1200 V 5 mA @ 15 V 5 mA @ 150 V 5 mA @ 1600 V 5 mA @ 1800 V 5 mA @ 20 V 5 mA @ 30 V 5 mA @ 3300 V 5 mA @ 35 V 5 mA @ 40 V 5 mA @ 400 V 5 mA @ 45 V 5 mA @ 50 V 5 mA @ 60 V 5 mA @ 800 V 5 mA @ 90 V 5 nA @ 100 V 5 nA @ 70 V 5 nA @ 75 V 5 pA @ 20 V 5 µA @ 100 V 5 µA @ 1000 V 5 µA @ 120 V 5 µA @ 1200 V 5 µA @ 1300 V 5 µA @ 150 V 5 µA @ 20 V 5 µA @ 200 V 5 µA @ 30 V 5 µA @ 300 V 5 µA @ 35 V 5 µA @ 36 V 5 µA @ 360 V 5 µA @ 40 V 5 µA @ 400 V 5 µA @ 50 V 5 µA @ 500 V 5 µA @ 60 V 5 µA @ 600 V 5 µA @ 650 V 5 µA @ 7 V 5 µA @ 70 V 5 µA @ 75 V 5 µA @ 800 V 5 µA @ 90 V 5.5 mA @ 20 V 5.69 µA @ 1200 V 50 mA @ 1000 V 50 mA @ 1200 V 50 mA @ 1400 V 50 mA @ 1600 V 50 mA @ 1800 V 50 mA @ 2000 V 50 mA @ 2200 V 50 mA @ 2500 V 50 mA @ 3000 V 50 mA @ 3400 V 50 mA @ 3600 V 50 mA @ 400 V 50 mA @ 4000 V 50 mA @ 600 V 50 mA @ 650 V 50 mA @ 800 V 50 nA @ 1 V 50 nA @ 100 V 50 nA @ 20 V 50 nA @ 50 V 50 pA @ 20 V 50 µA @ 100 V 50 µA @ 120 V 50 µA @ 1200 V 50 µA @ 150 V 50 µA @ 1600 V 50 µA @ 170 V 50 µA @ 1700 V 50 µA @ 20 V 50 µA @ 200 V 50 µA @ 2200 V 50 µA @ 240 V 50 µA @ 25 V 50 µA @ 30 V 50 µA @ 300 V 50 µA @ 320 V 50 µA @ 35 V 50 µA @ 40 V 50 µA @ 400 V 50 µA @ 45 V 50 µA @ 50 V 50 µA @ 50 µA 50 µA @ 500 V 50 µA @ 60 V 50 µA @ 600 V 50 µA @ 650 V 50 µA @ 70 V 50 µA @ 75 V 50 µA @ 80 V 50 µA @ 90 V 500 nA @ 10 V 500 nA @ 100 V 500 nA @ 150 V 500 nA @ 20 V 500 nA @ 200 V 500 nA @ 25 V 500 nA @ 30 V 500 nA @ 75 V 500 nA @ 8 V 500 nA @ 80 V 500 pA @ 75 V 500 µA @ 10 V 500 µA @ 100 V 500 µA @ 10000 V 500 µA @ 120 V 500 µA @ 1200 V 500 µA @ 12000 V 500 µA @ 135 V 500 µA @ 150 V 500 µA @ 1600 V 500 µA @ 16800 V 500 µA @ 170 V 500 µA @ 1800 V 500 µA @ 19000 V 500 µA @ 20 V 500 µA @ 200 V 500 µA @ 2000 V 500 µA @ 20000 V 500 µA @ 2200 V 500 µA @ 22000 V 500 µA @ 24000 V 500 µA @ 25000 V 500 µA @ 30 V 500 µA @ 300 V 500 µA @ 30000 V 500 µA @ 32000 V 500 µA @ 35 V 500 µA @ 35000 V 500 µA @ 40 V 500 µA @ 400 V 500 µA @ 40000 V 500 µA @ 45 V 500 µA @ 48000 V 500 µA @ 50 V 500 µA @ 500 V 500 µA @ 51000 V 500 µA @ 56000 V 500 µA @ 6 V 500 µA @ 60 V 500 µA @ 600 V 500 µA @ 6000 V 500 µA @ 64000 V 500 µA @ 700 V 500 µA @ 80 V 500 µA @ 90 V 500 µA @ 9600 V 51 µA @ 650 V 55 µA @ 40 V 55 µA @ 45 V 55 µA @ 60 V 55 µA @ 650 V 550 nA @ 150 V 550 µA @ 100 V 550 µA @ 120 V 550 µA @ 150 V 550 µA @ 30 V 550 µA @ 40 V 550 µA @ 45 V 550 µA @ 50 V 550 µA @ 60 V 550 µA @ 80 V 550 µA @ 90 V 58 µA @ 45 V 580 µA @ 60 V 6 mA @ 100 V 6 mA @ 1200 V 6 mA @ 135 V 6 mA @ 15 V 6 mA @ 150 V 6 mA @ 1600 V 6 mA @ 1800 V 6 mA @ 200 V 6 mA @ 400 V 6 mA @ 45 V 6 mA @ 480 V 6 mA @ 60 V 6 mA @ 80 V 6 mA @ 800 V 6 µA @ 1000 V 6 µA @ 110 V 6 µA @ 120 V 6 µA @ 200 V 6 µA @ 400 V 6 µA @ 600 V 6.5 µA @ 150 V 60 mA @ 45 V 60 µA @ 100 V 60 µA @ 1200 V 60 µA @ 150 V 60 µA @ 170 V 60 µA @ 200 V 60 µA @ 300 V 60 µA @ 400 V 60 µA @ 50 V 60 µA @ 60 V 60 µA @ 600 V 60 µA @ 650 V 60 µA @ 800 V 600 µA @ 100 V 600 µA @ 120 V 600 µA @ 1200 V 600 µA @ 170 V 600 µA @ 1700 V 600 µA @ 30 V 600 µA @ 35 V 600 µA @ 45 V 600 µA @ 60 V 600 µA @ 700 V 600 µA @ 80 V 62 µA @ 1200 V 640 µA @ 200 V 640 µA @ 60 V 65 µA @ 100 V 65 µA @ 120 V 65 µA @ 60 V 65 µA @ 80 V 650 µA @ 100 V 650 µA @ 1200 V 650 µA @ 300 V 650 µA @ 45 V 650 µA @ 60 V 650 µA @ 600 V 675 µA @ 100 V 680 µA @ 150 V 680 µA @ 45 V 7 mA @ 150 V 7 mA @ 1600 V 7 mA @ 800 V 7 µA @ 10 V 7 µA @ 100 V 7 µA @ 1200 V 7 µA @ 150 V 7 µA @ 200 V 7.5 mA @ 40 V 7.5 µA @ 15 V 70 µA @ 100 V 70 µA @ 120 V 70 µA @ 150 V 70 µA @ 25 V 70 µA @ 45 V 70 µA @ 60 V 70 µA @ 65 V 70 µA @ 650 V 700 nA @ 1 V 700 nA @ 30 V 700 µA @ 100 V 700 µA @ 120 V 700 µA @ 20 V 700 µA @ 250 V 700 µA @ 40 V 700 µA @ 45 V 700 µA @ 50 V 700 µA @ 60 V 700 µA @ 600 V 700 µA @ 80 V 72 µA @ 1200 V 75 µA @ 1200 V 75 µA @ 150 V 75 µA @ 300 V 750 µA @ 1000 V 750 µA @ 120 V 750 µA @ 1200 V 750 µA @ 1700 V 750 µA @ 200 V 750 µA @ 600 V 8 mA @ 100 V 8 mA @ 1000 V 8 mA @ 1200 V 8 mA @ 1400 V 8 mA @ 1600 V 8 mA @ 1800 V 8 mA @ 20 V 8 mA @ 35 V 8 mA @ 60 V 8 mA @ 80 V 8 mA @ 800 V 8 µA @ 100 V 8 µA @ 15 V 8 µA @ 150 V 8 µA @ 600 V 8 µA @ 650 V 8 µA @ 90 V 80 µA @ 100 V 80 µA @ 120 V 80 µA @ 1200 V 80 µA @ 170 V 80 µA @ 200 V 80 µA @ 300 V 80 µA @ 35 V 80 µA @ 400 V 80 µA @ 45 V 80 µA @ 60 V 80 µA @ 650 V 800 nA @ 150 V 800 µA @ 10 V 800 µA @ 100 V 800 µA @ 120 V 800 µA @ 1200 V 800 µA @ 1700 V 800 µA @ 25 V 800 µA @ 30 V 800 µA @ 35 V 800 µA @ 40 V 800 µA @ 45 V 800 µA @ 50 V 800 µA @ 60 V 800 µA @ 600 V 800 µA @ 700 V 820 µA @ 60 V 820 µA @ 600 V 83 µA @ 1200 V 85 µA @ 100 V 850 µA @ 20 V 850 µA @ 30 V 850 µA @ 60 V 9 mA @ 1200 V 9 mA @ 1400 V 9 mA @ 1600 V 9 mA @ 1800 V 9 mA @ 45 V 9 mA @ 800 V 9 µA @ 400 V 90 µA @ 100 V 90 µA @ 120 V 90 µA @ 1200 V 90 µA @ 170 V 90 µA @ 200 V 90 µA @ 40 V 90 µA @ 60 V 90 µA @ 650 V 900 µA @ 100 V 900 µA @ 15 V 900 µA @ 20 V 900 µA @ 200 V 900 µA @ 25 V 900 µA @ 30 V 900 µA @ 45 V 900 µA @ 60 V 94 µA @ 45 V 95 µA @ 100 V 95 µA @ 650 V 970 µA @ 60 V 980 nA @ 25 V	- -0°C ~ 70°C -10°C ~ 55°C -20°C ~ 150°C -20°C ~ 50°C -25°C ~ 105°C -25°C ~ 40°C -25°C ~ 85°C -30°C ~ 125°C -40°C ~ 100°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 135°C -40°C ~ 150°C -40°C ~ 175°C -40°C ~ 180°C -40°C ~ 70°C -45°C ~ 150°C -50°C ~ 125°C -50°C ~ 150°C -50°C ~ 175°C -55°C ~ 100°C -55°C ~ 125°C -55°C ~ 135°C -55°C ~ 150°C -55°C ~ 155°C -55°C ~ 175°C -55°C ~ 200°C -55°C ~ 75°C -60°C ~ 150°C -65°C ~ 125°C -65°C ~ 150°C -65°C ~ 155°C -65°C ~ 175°C -65°C ~ 200°C 0°C ~ 70°C 125°C 125°C (Max) 130°C 135°C (Max) 150°C 150°C (Max) 175°C 175°C (Max) 200°C (Max)	- Automotive Military	- AEC-Q100 AEC-Q101 MIL-PRF-19500/116 MIL-PRF-19500/4 MIL-PRF-19500/444 MIL-PRF-19500/578 MIL-PRF-19500/608 MIL-PRF-19500/617 MIL-PRF-19500/680 MIL-PRF-19500/681 MIL-PRF-19500/730 MIL-PRF-19500/737	- Chassis Mount Chassis, Stud Mount DIN Rail DIN Rail/Channel Screw Mount Socketable Surface Mount Surface Mount, Wettable Flank Terminal Block Through Hole	- 14-CDIP 14-DIP 16-DIP 16-PDIP 16-SO 16-SOIC 16-TSSOP 20-CSOIC 20-LCCC (8.89x8.89) 20-SSOP 3-CMPAK 3-CP 3-HUSON (2x2) 3-MCP 3-Mini-Mod, Small Pin 4-ECSP1608 4-SMD 4-XDFN (2x1.35) 5-CPH 5-MCPH 5-SSOP 5-TSSOP 6-TCP 6-TSOP 6-TSSOP 8-CDIP 8-DFN (5x6) Dual Flag (SO8FL-Dual) 8-EMH 8-HMD (1.6x0.8) 8-MLP (3x2) 8-PDIP 8-SOIC 8-VEC A-IHM190-1 A-IHV130-3 A-IHV130-4 A-IHV130-6 A-IHV73-3 A3 ADD-A-PAK® AG-62MM-2 AG-IHMB130-1 AG-IHMB130-2 AG-IHVB130-3 AG-ISOPACK-1 BG-PB34AT-1 BG-PB34SB-1 BG-PB50AT-1 BG-PB50SB-1 BG-PB60-1 BG-PB60AT-1 BG-PB60E2A-1 BG-PB60ECO-1 CFP15B ComPack CPD CST3 D-60 D-61-8 D-61-8-SL D-61-8-SM D1 D1P D2 D2PAK D3 D61-3M DFN1010D-3 DFN1110D-3 DFN1412-6 DFN1412D-3 DFN1616-6 DFN2015-6L DFN2020D-3 DFN2510-10 Die DO-201AD DO-203AA DOP3I DPAK ECO-PAC1 ECO-PAC2 EMD3 EMD3F EMD4 EMD6 ES6 ES6 (1.6x1.6) ESV F2 F3 F4 F4N F5 FJ FJ/SOT-227 FlatPack FlatPAK (5x6) FlatPAK 5x6 (Dual) G24 I2PAK i4-PAC™ INT-A-PAK IPAK IPAK (TO-251) ISO247 ISOPLUS i4-PAC™ ISOPLUS-SMPD™.B ISOPLUS220™ ISOPLUS247™ ISOTOP ISOTOP® ITO-220AB ITO-220AC ITO-220S ITO220AB (Type WX) ITO220AB (Type WX2) LPDS LPTS MAGN-A-PAK® MAX247™ MCP MD3CC Mini3-G1 MINI3-G3-B Mini4-G1 Mini4-G3 Mini4-G4-B MINI6-G1 Mini6-G2 Mini6-G4-B Module ND PG-SC74-6 PG-SC75-3D PG-SOT-143-3D PG-SOT143-4 PG-SOT23 PG-SOT23-3-3 PG-SOT323 PG-SOT323-3 PG-SOT323-3-1 PG-SOT343-3D PG-SOT343-4-1 PG-SOT343-4-3 PG-SOT363-6-1 PG-SOT363-6-3 PG-SOT363-PO PG-SOT89 PG-TO220-3 PG-TO220-3-1 PG-TO220-3-45 PG-TO247-3 PG-TO247-3-1 PG-TO247-3-41 PG-TO247-3-AI POW-R-BLOK™ Module PowerDI5060-8 (Type D) PowerDI™ 5 PowerFlat™ (5x6) PowerFlat™ (5x6) Dual Powermite 3 PowerSO-20 PowerTap II PRM2 PRM2-SL PRM2-SM PRM3 PRM3-SL PRM3-SM PRM4 (Isolated) PRM4 (Non-Isolated) PRM4-1 S-Mini S3 SC-59 SC-59-3 SC-59-3/CP3 SC-61B SC-70 SC-70-3 (SOT323) SC-73 SC-74 SC-75 SC-75, SOT-416 SC-82 SC-88/SC70-6/SOT-363 SC-88A (SC-70-5/SOT-353) SC-89 SC-89-3 SD2 SimBus F SlimDPAK SM1 SM4 SM5 SM6 SMD3 SMD5 SMini3-F1 SMini3-F2 SMini3-F2-B SMini4-F1 SMini4-F3-B SMini5-F1 SMini6-F1 SMini6-F3-B SMP-FD SMPD SMT3; MPAK SMT5 SMT6 SMV SOD-93-2 SOT-143 SOT-143B SOT-223 SOT-227 SOT-227 (ISOTOP®) SOT-227B SOT-227B - miniBLOC SOT-23 SOT-23 (TO-236AB) SOT-23-3 SOT-23-3 (TO-236) SOT-23-3L SOT-23-6 SOT-23-6L SOT-23F SOT-26 SOT-28 SOT-323 SOT-323-3 SOT-323-6L SOT-353 SOT-363 SOT-523 SOT-523 Flat Leads SOT-563 SOT-563F SOT-665 SOT-666 SOT-723 SOT-883 SOT-93 SOT-963 SOT23-3 (TO-236) SP6 SP6C SSD3 SSM SSMini3-F2 SSMini3-F3 SSMini3-F3-B SSMini4-F1 SSMini5-F4-B SSSMini3-F1 SSSMini3-F2 SSSMini3-F2-B Super MAGN-A-PAK T-MAX™ [B2] T1 T2 TESQ ThinDPAK Three Tower TLM832D TO-204AA (TO-3) TO-218 TO-218 Isolated TO-220 TO-220 Full Pack TO-220 Full-Mold TO-220 [K] TO-220-2 Full Pack TO-220-2 Full-Mold TO-220-3 TO-220-3 Full Pack TO-220-3 FULLPACK TO-220-3L TO-220AB TO-220AB Full-Pak TO-220AB Insulated TO-220AB Narrow Leads TO-220ABFP TO-220AC TO-220D-A1 TO-220E TO-220F TO-220F-2L TO-220F-3 TO-220FI(LS) TO-220FN TO-220FP TO-220FP-2L TO-220FPAB TO-220FPAB FD6 TO-220ML TO-220S TO-220SM TO-236AB TO-240AA TO-244 TO-244AB TO-244AB (Isolated) TO-247 TO-247 (IXTH) TO-247 Long Leads TO-247 [B] TO-247-2 TO-247-3 TO-247-3L TO-247AB TO-247AC TO-247AD TO-247AD (TO-3P) TO-247N TO-249 TO-249AA TO-249AB TO-251 TO-252 TO-252 (DPAK) TO-252 (Type WX) TO-252-2 TO-252-3 TO-252AA TO-252AA (DPAK) TO-252GE TO-254 TO-254AA TO-257 TO-262 TO-262 (I2PAK) TO-262-3 TO-262AA TO-263 TO-263 (D2PAK) TO-263AA TO-263AB TO-263AB (D2PAK) TO-263AC TO-263AC (SMPD) TO-263HV TO-263L TO-263LP TO-263S TO-264 [L] TO-264-3 TO-264AA TO-268AA TO-268AA (D3Pak-HV) TO-277 TO-277A (SMPC) TO-39 (TO-205AD) TO-3P TO-3P(N) TO-3PB TO-3PF TO-3PF-3 TO-3PML TO-3PN TO-3PW TO-72-4 TO-78-5 TO-92 (TO-226) TO220AB (Type WX) TOP-3F-A1 TOP-3I TP TP-FA TSLP-4-4 TSMD5 TSMD6 TSMD8 TUMD5 Twin Tower U-DFN2020-6 (Type B) U-G2 U1 (SMD-1) U3 (SMD-0.5) UB UBC UFV UMD3 UMD3F UMD4 UMD5 UMD6 US6 USM USQ USV VESM VMD3 WC-500 WSMINI5-F1-B X1-DFN1006-3 X3-DSN1006-3 Y1-CU Y2-DCB Y4-M6

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	다이오드 구성	기술	전압 - DC 역방향(Vr)(최대)	전류 - 평균 정류(Io)(다이오드당)	전압 - 순방향(Vf)(최대) @ If	속도	역방향 복구 시간(trr)	전류 - 역방향 누설 @ Vr	작동 온도 - 접합	등급	자격	장착 유형	공급자 장치 패키지
MBR20200CT DIODE ARR SCHOTT 200V 10A TO-220 onsemi	8,167	-	RFQ	데이터시트	SWITCHMODE™	TO-220-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	200 V	10A	900 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 200 V	-65°C ~ 175°C	-	-	Through Hole	TO-220
MBR2030CTL DIODE ARRAY SCHOT 30V 10A TO-220 onsemi	2,030	-	RFQ	데이터시트	SWITCHMODE™	TO-220-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	30 V	10A	520 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 mA @ 30 V	-65°C ~ 175°C	-	-	Through Hole	TO-220
MBRB2535CTLT4 DIODE ARR SCHOTT 35V 12.5A D2PAK onsemi	7,651	-	RFQ	데이터시트	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Obsolete	1 Pair Common Cathode	Schottky	35 V	12.5A	470 mV @ 12.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 mA @ 35 V	-65°C ~ 125°C	-	-	Surface Mount	D2PAK
MUR3020WT DIODE ARRAY GP 200V 15A TO247-3 onsemi	6,166	-	RFQ	데이터시트	SWITCHMODE™	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Standard	200 V	15A	1.05 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	10 µA @ 200 V	-65°C ~ 175°C	-	-	Through Hole	TO-247-3
MBRB20200CT DIODE ARRAY SCHOT 200V 10A D2PAK onsemi	5,876	-	RFQ	데이터시트	SWITCHMODE™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Schottky	200 V	10A	900 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 200 V	-65°C ~ 150°C	-	-	Surface Mount	D2PAK
BAW79DE6327HTSA1 DIODE ARRAY GP 400V 1A PG-SOT89 Infineon Technologies	8,881	-	RFQ	데이터시트	-	TO-243AA	Tape & Reel (TR)	Obsolete	1 Pair Common Cathode	Standard	400 V	1A (DC)	1.6 V @ 1 A	Standard Recovery >500ns, > 200mA (Io)	1 µs	1 µA @ 400 V	150°C (Max)	-	-	Surface Mount	PG-SOT89
BAV99T116 DIODE ARRAY GP 75V 215MA SSD3 Rohm Semiconductor	8,781	-	RFQ	데이터시트	-	TO-236-3, SC-59, SOT-23-3	Tape & Reel (TR)	Obsolete	1 Pair Series Connection	Standard	75 V	215mA	1.25 V @ 150 mA	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	1 µA @ 75 V	150°C (Max)	-	-	Surface Mount	SSD3
MBR6045PT DIODE ARRAY SCHOTT 45V 60A TO-3P Diodes Incorporated	7,259	-	RFQ	데이터시트	-	TO-3P-3, SC-65-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	45 V	60A	750 mV @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-55°C ~ 150°C	-	-	Through Hole	TO-3P
NSR15DW1T1G DIODE ARRAY SCHOTT 15V 30MA SC88 onsemi	7,955	-	RFQ	데이터시트	-	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR)	Obsolete	2 Independent	Schottky	15 V	30mA (DC)	680 mV @ 10 mA	Small Signal =< 200mA (Io), Any Speed	-	50 nA @ 1 V	-65°C ~ 150°C	-	-	Surface Mount	SC-88/SC70-6/SOT-363
STTH1002CG DIODE ARRAY GP 200V 8A D2PAK STMicroelectronics	7,997	-	RFQ	데이터시트	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Standard	200 V	8A	1.1 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	25 ns	5 µA @ 200 V	175°C (Max)	-	-	Surface Mount	D2PAK
CPT30050 DIODE MOD SCHOTT 50V 150A 2TOWER Microsemi Corporation	6,122	-	RFQ	데이터시트	-	MD3CC	Bulk	Obsolete	1 Pair Common Cathode	Schottky	50 V	150A	760 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4 mA @ 50 V	-	-	-	Chassis Mount	Twin Tower

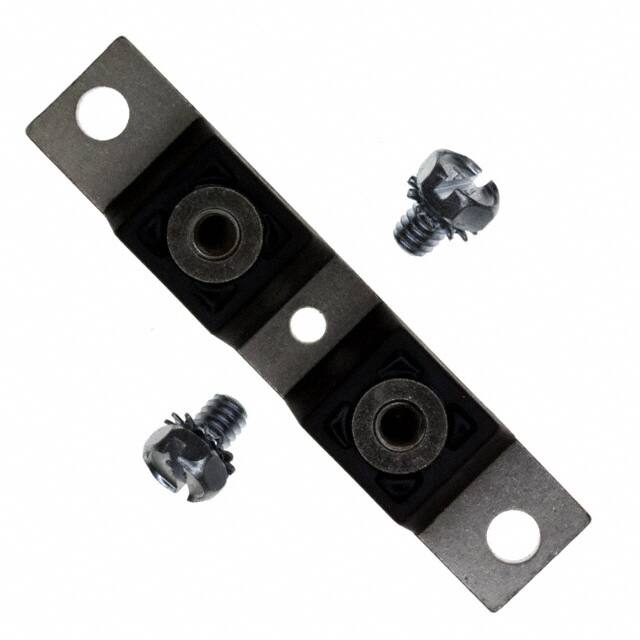

CPT600100 DIODE MOD SCHOT 100V 300A 2TOWER Microsemi Corporation	4,620	-	RFQ	데이터시트	-	Twin Tower	Bulk	Obsolete	1 Pair Common Cathode	Schottky	100 V	300A	850 mV @ 300 A	Fast Recovery =< 500ns, > 200mA (Io)	-	8 mA @ 100 V	-	-	-	Chassis Mount	Twin Tower
F1842RD400 DIODE MODULE GP 400V 40A MODULE Sensata-Crydom	2,733	-	RFQ	데이터시트	-	Module	Bulk	Active	1 Pair Series Connection	Standard	400 V	40A (DC)	1.4 V @ 120 A	Standard Recovery >500ns, > 200mA (Io)	-	-	-40°C ~ 125°C	-	-	Chassis Mount	Module
VS-30CTQ080PBF DIODE ARR SCHOTT 80V 15A TO2203 Vishay General Semiconductor - Diodes Division	5,805	-	RFQ	데이터시트	-	TO-220-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	80 V	15A	860 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	550 µA @ 80 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
VS-30CTQ100PBF DIODE ARR SCHOT 100V 15A TO2203 Vishay General Semiconductor - Diodes Division	2,829	-	RFQ	데이터시트	-	TO-220-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	100 V	15A	860 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	550 µA @ 100 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
VS-40CTQ150PBF DIODE ARR SCHOT 150V 20A TO2203 Vishay General Semiconductor - Diodes Division	2,728	-	RFQ	데이터시트	-	TO-220-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	150 V	20A	930 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 150 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
VS-62CTQ030PBF DIODE ARR SCHOTT 30V 30A TO2203 Vishay General Semiconductor - Diodes Division	3,156	-	RFQ	데이터시트	-	TO-220-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	30 V	30A	500 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2.5 mA @ 30 V	-65°C ~ 150°C	-	-	Through Hole	TO-220-3
VS-30CTQ080-1PBF DIODE ARR SCHOTT 80V 15A TO2623 Vishay General Semiconductor - Diodes Division	5,594	-	RFQ	데이터시트	-	TO-262-3 Long Leads, I2PAK, TO-262AA	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	80 V	15A	860 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	550 µA @ 80 V	-55°C ~ 175°C	-	-	Through Hole	TO-262-3
VS-30CTQ100SPBF DIODE ARR SCHOT 100V 15A TO263AB Vishay General Semiconductor - Diodes Division	8,501	-	RFQ	데이터시트	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	100 V	15A	860 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	550 µA @ 100 V	-55°C ~ 175°C	-	-	Surface Mount	TO-263AB (D2PAK)
VS-60CTQ150PBF DIODE ARR SCHOT 150V 30A TO2203 Vishay General Semiconductor - Diodes Division	7,727	-	RFQ	데이터시트	-	TO-220-3	Tube	Discontinued at Digi-Key	1 Pair Common Cathode	Schottky	150 V	30A	880 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	75 µA @ 150 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
