리미트 스위치

제조사	시리즈	패키징	제품 상태	회로	스위치 기능	전류 정격(암페어)	전압 정격 - AC	전압 정격 - DC	액추에이터 유형	장착 유형	종단 스타일	침투 방지	기능	작동력	해제 힘	작동 위치	이전 이동	차동 이동	과도 이동	작동 온도
ABB Control Alps Alpine Altech Corporation APEM Inc. ASI-Ez Balluff Banner Engineering Corporation Barksdale Control Products Bulgin C&K Carlo Gavazzi Inc. CIT Relay and Switch CLIFF Electronic Components Ltd Cole Hersee Control Products Crouzet E-Switch Euchner Honeywell Sensing and Control EMEA Honeywell Sensing and Productivity Solutions knitter-switch KOINO Lovato Electric Lumex Opto/Components Inc. MEAN WELL USA Inc. Moujen Namco/SPT Nidec Components Omron Automation and Safety Omron Electronics Inc-EMC Div Panasonic Electric Works Panasonic Electronic Components - Semiconductor Products Schneider Electric Senasys SICK, Inc. Siemens Steute TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity ALCOSWITCH Switches Telemecanique Sensors Traktronix Würth Elektronik ZF Electronics	* - 0055 14CE 14CE100 1S 1VAP2 1ZAP2 24CE 3005 3100 3140 3SE5 59200 6AS 83106 83109 83111 83112 83118 83123 83131 83132 83133 83134 83137 83139 83141 83151 83153 83154 83160 83161 83163 83169 83170 8318 83180 83181 83186 83194 83200 83201 83228 83229 8324 83240 832402 8325 8329 83523 83528 83581 83589 83731 83732 83733 83800 83832 83840 83841 83842 83843 83845 83846 83852 83853 83862 83870 83880 8632 8907 900 9007 9007AW 9007C 9007FT 9007ML 9007MS 9007T 914CE 91MCE 91PCE 924CE A ABJ ABP ABS ABV AC AEQ AGL AGX AH1 AH7 AHR5 AM1 AM5 AS ASQ1 ASQM1 ASQMR1 AV1 AV3 AV4 AV6 AVL3 AVM3 AVT3 AW AZ3 AZ4 AZ8 AZC AZH BA BAF1 BAF3 BE BF BI2 BM BS BX BX2 BZ BZF BZG BZH C C2 C3AW C50 C74 CF-DA CH CL-DA CL-DB CX D D2A D2AW D2D D2EW D2F D2FC D2FD D2FP D2FS D2FW-G D2GW D2HW D2JW D2LS D2MC D2MQ D2MV D2QW D2RV D2RW D2S D2SW D2SW-P D2T D2VW D2X D3C D3D D3DC D3M D3SH D3SK D3V D4 D4A D4B-N D4C D4CC D4E-xN D4ER-xN D4F D4MC D4N D4N-R D4V D5A D5B D5C D5F DA DB DC DDS DE DG DH DJ DM DM3 DP DS DS, COMAX DT DTF DTS DZ E E1092 E1117 E1134 E13 E47 E50 E6 E7 E9 EA080 EA170 EA700 EN ER6019 ES95 ESE105 ESE11 ESE13 ESE16 ESE18 ESE21 ESE22 ESE23 ESE24 ESE31 ESE58 EVN2000 EX F1 F1 UN F2 F2 UN F79 FA FA(3) FDSD FDSE FT FTN FTNG GC GDS GLA GLC GLD GLE GLG GLH GLL GLS GP GSA GSC GSX GXA GXE Harmony 9002AW Harmony XPE HB HCP HD HD1 HDLS HDLS LS2 HDP HDS HDT HE HL-5000 HM HS HS, COMAX HT HY i10P i10R i110P i110R i12S I49 IN62 IN65 IN73 J J4001 J4002 JCH JJA JJB JJC JJD JJE JJF JJG JJH JJI JJJ JJK JJL JJM JJN JJO JJP KDS KH KL KSU L100 L100/300 L300 L525 LC LCA LCS LCW LF LN LS LS-Titan LSQ LSX LZ M4 M49 M4CZ MA MAB MB MBB MBZ MDB MDS ME MEA MFS MJ MJ1 MJ2 MJ3 MK ML MM MN MN78 MS MS, COMAX MSC MT MV MV25 MVS MVS-36 MWZ MZ-7 NG NGC OP OsiSense XC PA PBX PCFS-3M PD PLD PP1 PP2 PS21L PS21M PS31L PS31M PS43L PT3 SAJ1 SAJ2 SAJ3 SAJ4 SAJ5 SAJS SDP SDS SDT SE SHL SHS SI-HG SI-HG63 SI-LM40 SI-LS31 SIRIUS SL SL-STI SL1 SLM-STI SM SM3 SPPB SPVE SPVL SPVM SPVR SPVS Square D Square D 9007 Square D 9007AW Square D 9007C Square D 9007CR Square D 9007FT Square D 9007ML Square D 9007MS Square D 9007T Square D HL100 Square D L100 Square D L300 SS SS-P SSCE SSCM SSG SSW SX SZL-VL SZL-VL-S SZL-WL T T3009 T5009 T5009-6 TB TD TD1150 TD1250 TD4700 TF TF2 TF3 TFS TI2 TL TL8018 TLS TM TP70 TRP TS TS1 TS2 TZ UM UP01 UP03 US UX V V15 V15W V15W2 V19 V3 V3D V3DS V3L V4D V5D V6 V7 V9 VB VM VM3 VM3S VPX VX W16 W26 WA WBX WGLA WL WL-N WLS WM WR WS WS-DESU WS-DESV WS-MITV WS1 WS2 WW WZ X XC XCKD XCKJ XCKL XCKM XCKMR XCKN XCKP XCKS XCKT XCKV XCKVR XCLJ XCMD XCMH XCMN XCMW XCNR XCNT XCPR XCR XCRT XCSD XCSM XCSP XCSPA XE XEP4 XF9 XR XV2 YA YE YM YZ Z ZC ZCMD ZD ZE ZM ZM1 ZMA ZMS ZMSM ZMT ZMV ZMW ZPA ZV ZV2 ZW ZX	- Bag Box Bulk Case Cut Tape (CT) Retail Package Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Not For New Designs Obsolete	- 3PDT 3PDT (DB/DM) 3PST-2NC/1NO 3PST-2NC/1NO (DB/DM) 3PST-2NC/1NO (MBB) 3PST-2NO/1NC 3PST-NC 3PST-NO 4PDT 4PST-2NO/2NC 4PST-2NO/2NC (BBM) 4PST-3NC/1NO 4PST-3NO/1NC 4PST-NC 4PST-NO 5PST-3NC/2NO 6PDT 6PST-3NO/3NC 6PST-4NC/2NO 6PST-4NO/2NC 8PST-4NO/4NC 8PST-4NO/4NC + 4PST-2NO/2NC 8PST-6NC/2NO Digital, Open Collector DPDT DPDT (DB/DM) DPDT x 2 DPST-NC DPST-NC (DB) DPST-NO DPST-NO (DM) DPST-NO x 2 DPST-NO/NC DPST-NO/NC (DB/DM) DPST-NO/NC (MBB) DPST-NO/NC x 2 DPST-NO/NC x 3 DPST-NO/NC x 4 SPDT SPDT (BBM) SPDT (DB/DM) SPDT (DB/DM) + SPST-NO (DB) SPDT (MBB) SPDT + SPST-NO SPDT x 2 SPDT x 3 SPDT x 4 SPDT x 5 SPDT x 6 SPDT-DB SPST-NC SPST-NC (DB) SPST-NC x 2 SPST-NO SPST-NO (DM) SPST-NO x 2 SPST-NO x 3 Transistor Output, PNP	- Mom-Off-Mom Off-Mom Off-Mom-Mom Off-On On-Mom On-Mom, Off-Mom On-Mom-Mom On-Off On-Off, Off-Mom On-Off, Off-On On-On On-On-Mom	- 0.4VA (AC/DC) 1.2A (AC), 100mA (DC) 1.2A (AC), 110mA (DC) 1.5 (AC), 500mA (DC) 1.5A (AC) 1.5A (AC), 0.4A (DC) 1.5A (AC), 100mA (DC) 1.5A (AC), 1A (DC) 1.5A (AC), 300mA (DC) 1.5A (AC), 400mA (DC) 1.5A (AC), 500mA (DC) 1.5A (AC), 550mA (DC) 1.5A (AC/DC) 1.5A (DC) 100mA (AC) 100mA (AC), 10mA (DC) 100mA (AC), 1A (DC) 100mA (AC), 250mA (DC) 100mA (AC), 2A (DC) 100mA (AC), 30mA (DC) 100mA (AC), 3A (DC) 100mA (AC), 500mA (DC) 100mA (AC/DC) 100mA (DC) 10A 10A (AC) 10A (AC), 0.4 (DC) 10A (AC), 0.5A (DC) 10A (AC), 1.5A (DC) 10A (AC), 100mA (DC) 10A (AC), 110A (DC) 10A (AC), 150mA (DC) 10A (AC), 1A (DC) 10A (AC), 2.5A (DC) 10A (AC), 200mA (DC) 10A (AC), 270mA (DC) 10A (AC), 2A (DC) 10A (AC), 300mA (DC) 10A (AC), 30A (DC) 10A (AC), 3A (DC) 10A (AC), 400mA (DC) 10A (AC), 500mA (DC) 10A (AC), 5A (DC) 10A (AC), 600mA (DC) 10A (AC), 6A (DC) 10A (AC), 800mA (DC) 10A (AC/DC) 10A (DC) 10mA (AC/DC) 10mA (DC) 11A (AC) 11A (AC), 100mA (DC) 11A (AC), 250mA (DC) 11A (AC), 500mA (DC) 11A (AC), 5A (DC) 11A (AC), 600mA (DC) 11A (AC), 6A (DC) 12A (AC) 12A (DC) 14A (AC) 15.1A (AC), 500mA (DC) 15A 15A (AC) 15A (AC), 0.5A (DC) 15A (AC), 100mA (DC) 15A (AC), 10A (DC) 15A (AC), 1A (DC) 15A (AC), 250mA (DC) 15A (AC), 2A (DC) 15A (AC), 400mA (DC) 15A (AC), 500mA (DC) 15A (AC), 550mA (DC) 15A (AC), 600mA (DC) 15A (AC), 6A (DC) 15A (AC), 800mA (DC) 15A (AC/DC) 15A (DC) 160mA (AC/DC) 16A 16A (AC) 16A (AC), 100mA (DC) 16A (AC), 10A (DC) 16A (AC), 500mA (DC) 16A (AC), 600mA (DC) 16A (AC), 6A (DC) 16A (AC), 800mA (DC) 16A (DC) 17A (AC) 18A (AC) 1A (AC) 1A (AC), 10A (DC) 1A (AC), 15A (DC) 1A (AC), 20A (DC) 1A (AC), 25A (DC) 1A (AC), 3A (DC) 1A (AC), 500mA (DC) 1A (AC), 5A (DC) 1A (AC/DC) 1A (DC) 1mA (DC) 2.5A (AC), 4A (DC) 200mA (AC) 200mA (DC) 20A 20A (AC) 20A (AC), 0.5A (DC) 20A (AC), 200mA (DC) 20A (AC), 300mA (DC) 20A (AC), 500mA (DC) 20A (AC), 5A (DC) 20A (AC), 6A (DC) 20A (DC) 20mA (DC) 21A (AC) 21A (AC), 100mA (DC) 21A (AC), 14A (DC) 21A (AC), 600mA (DC) 22A 22A (AC) 22A (AC), 500mA (DC) 24A (AC) 250mA (DC) 25A 25A (AC) 25A (AC), 1A (DC) 25A (AC), 2A (DC) 25A (DC) 26A (AC) 2A (AC), 4A (DC) 2A (AC), 5A (DC) 2A (AC), 600mA (DC) 2A (AC/DC) 2A (DC) 300mA (DC) 30A (AC) 30mA (DC) 35A (DC) 3A (AC) 3A (AC), 0.4A (DC) 3A (AC), 1.1A (DC) 3A (AC), 1.5A (DC) 3A (AC), 100mA (DC) 3A (AC), 1A (DC) 3A (AC), 2.8A (DC) 3A (AC), 200mA (DC) 3A (AC), 220mA (DC) 3A (AC), 270mA (DC) 3A (AC), 2A (DC) 3A (AC), 4A (DC) 3A (AC), 550mA (DC) 3A (AC), 5A (DC) 3A (AC/DC) 3A (DC) 3mA (DC) 4.6A (AC) 4.6A (DC) 4A (AC) 4A (AC), 150mA (DC) 4A (AC), 1A (DC) 4A (AC), 2.5A (DC) 4A (AC), 3.5A (DC) 4A (AC), 3A (DC) 4A (AC), 5A (DC) 4A (AC), 6A (DC) 4A (AC/DC) 4A (DC) 5.5A (AC), 2.8A (DC) 500mA (AC), 10A (DC) 500mA (AC), 25A (DC) 500mA (AC), 50mA (DC) 500mA (AC/DC) 500mA (DC) 50mA (AC/DC) 50mA (DC) 5A (AC) 5A (AC), 0.4A (DC) 5A (AC), 0.5A (DC) 5A (AC), 100mA (DC) 5A (AC), 1A (DC) 5A (AC), 2A (DC) 5A (AC), 300mA (DC) 5A (AC), 3A (DC) 5A (AC), 400mA 5A (AC), 400mA (DC) 5A (AC), 4A (DC) 5A (AC), 500mA (DC) 5A (AC), 6A (DC) 5A (AC/DC) 5A (DC) 5mA (DC) 600mA (AC), 220mA (DC) 600mA (AC/DC) 6A (AC) 6A (AC), 0.4A (DC) 6A (AC), 0.5A (DC) 6A (AC), 1A (DC) 6A (AC), 2.2A (DC) 6A (AC), 2.8A (DC) 6A (AC), 220mA (DC) 6A (AC), 3A (DC) 6A (AC), 400mA (DC) 6A (AC), 4A (DC) 6A (AC), 500mA (DC) 6A (AC), 550mA (DC) 6A (AC), 5A (DC) 6A (AC), 600mA (DC) 6A (AC), 800mA (DC) 6A (AC), 8A (DC) 6A (AC/DC) 6A (DC) 750mA (AC), 100mA (DC) 750mA (AC), 270mA (DC) 7A (AC) 7A (AC), 3.5A (DC) 7A (AC), 800mA (DC) 7A (AC/DC) 7A (DC) 8A (AC) 8A (AC), 200mA (DC) 8A (AC), 500mA (DC)	- 100 V 115 V 120 V 125 V 130 V 14 V 150 V 20 V 220 V 227 V 230 V 24 V 240 V 25 V 250 V 277 V 28 V 30 V 300 V 380 V 400 V 50 V 60 V 600 V	- 10 V 100 V 115 V 12 V 120 V 125 V 13.5 V 14 V 16 V 18 V 20 V 200 V 220 V 24 V 240 V 25 V 250 V 28 V 3.6 V 30 mV 30 V 33 V 36 V 42 V 48 V 5 V 50 V 6 V 60 V 600 V 8.2 V	- Adjustable Plunger Adjustable Rod Adjustable Side Plunger Angled Toggle (Detector) Arm Lever Ball Bearing Plunger Bar Bevel Plunger Cone Cross Roller Plunger Domed Flexible Cable Foot Switch Lever, Adjustable Plunger Lever, Formed Lever, Leaf Lever, Push Lever Lever, Roller Lever, Simulated Roller Lever, Straight Manual Palm Button Mushroom Button Overtravel Plunger Paddle Panel Disconnect Plunger for Cap Push-Pull Plunger Roller Plunger Round (Pin Plunger) Shaft Side Ball Bearing Plunger Side Plunger Side Roller Plunger Side Rotary - No Lever Side Rotary, Adjustable Rod Side Rotary, Adjustable Roller Side Rotary, Adjustable Wire Side Rotary, Fork Lever Lock (Yoke) Side Rotary, Rod Spring Side Rotary, Roller Side Rotary, Wire Side Sensing Target Spring, Cable Spring, Cat Whisker Spring, Coil Spring, Rod Spring, Wire Telescopic Plunger Top Rotary - No Lever Top Rotary, Adjustable Rod Top Rotary, Adjustable Roller Top Rotary, Roller Trigger Wire Lever Without	- Chassis Mount Panel Mount Panel Mount, Snap-In Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Right Angle	- Cable Leads Cable with Connector Clip-On Connector Gull Wing J Lead PC Pin Plug In Press-Fit Quick Connect Quick Connect - 0.058" (Round) Quick Connect - 0.062" (1.5mm) Quick Connect - 0.093" (2.3mm) Quick Connect - 0.110" (2.8mm) Quick Connect - 0.110"/0.187" Quick Connect - 0.110"/0.250" Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187"/0.250" Quick Connect - 0.205" (5.2mm) Quick Connect - 0.250" (6.3mm) RAST 5 Tab - 0.250" (6.3mm) Screw Terminal SMD (SMT) Tab Solder Lug Solder Turret Solder, Quick Connect - 0.110" (2.8mm) Solder, Quick Connect - 0.187" (4.7mm) Solder, Quick Connect - 0.250" (6.3mm) Spring Terminal Wire Leads Wire Leads with Connector Wireless	- Environment Sealed IP00 IP10 IP20 IP30 IP40 IP43 IP50 - Dust Protected IP54 - Dust Protected, Water Resistant IP55 - Dust Protected, Water Resistant IP56 - Dust Protected, Water Resistant IP60 - Dust Tight IP62 IP64 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof IP65/IP67 - Dust Tight, Water Resistant, Waterproof IP66 - Dust Tight, Water Resistant IP66/IP67 - Dust Tight, Water Resistant, Waterproof IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof IP66/IP69 - Dust Tight, Water Resistant, Waterproof IP67 IP67 - Dust Tight, Waterproof IP67/IP69K - Dust Tight, Water Resistant, Waterproof IP67F - Dust Tight, Oil Resistant, Waterproof IP67G - Dust Tight, Oil Resistant, Waterproof IP68 - Dust Tight, Waterproof IP69K - Dust Tight, High Temp Water Jets, Waterproof Oil Resistant Splash Proof Waterproof	- Actuator Mounted Left Side Actuator Mounted Right Side Actuator Seal Boot Actuator Seal Boot, Reset Plunger Black Actuator Board Guide Board Guide, Left Operating Lever Board Guide, Right Operating Lever Bronze Housing, Explosion Proof Bushing Panel Mount Actuator Button Guard Cable Length 0.3m Cable Length 0.3m, Status Indicator Cable Length 0.5m Cable Length 0.5m, Explosion Proof Cable Length 0.5m, Status Indicator Cable Length 1' Cable Length 1.2m Cable Length 1.5m Cable Length 10m Cable Length 10m, Explosion Proof Cable Length 12' Cable Length 15' Cable Length 1m Cable Length 1m, Explosion Proof Cable Length 2' Cable Length 2.2m Cable Length 20' Cable Length 21' Cable Length 25' Cable Length 27' Cable Length 2m Cable Length 3' Cable Length 30' Cable Length 3m Cable Length 3m, Status Indicator Cable Length 5m Cable Length 5m, Status Indicator Cable Length 6' Cable Length 6', Sealed Cable Length 6m Cable Length 6m, Explosion Proof Cable Length 8' Cable Length 9' Cadmium Free CCW Rotation to Reset, Explosion Proof Clockwise Rotation Corrosion Resistance Counterclockwise Operation Only Epoxy Sealed Terminals Explosion Proof Explosion Proof, Nylon Roller Back Mounted Explosion Proof, Stainless Steel Explosion Proof, Valve Position Indicator Fluorocarbon Sealed Heavy Duty Indium Contacts Insulation Barrier Large Black Button Large Red Button Left Operating Lever Left Operation, Rubber Rollers Long Lever Magnet Safeguards Magnetic Magnetic Blowout Metal Lever, Bearing Roller Metal Lever, Metal Roller Metal Lever, Resin Roller Metal Lever, Resin Roller, Reset Function Metal Lever, Rubber Roller Metal Lever, Rubber Roller, Reset Function Metal Roller Metallic Rollers, Back Metallic Rollers, Front Metallic Rollers, Front/Back Nylon Roller Nylon Roller, Back Mounted Nylon Roller, Front Mounted Nylon Roller, Status Indicator Nylon Rollers, Back Nylon Rollers, Front Nylon Rollers, Front/Back Oil Resist Boot Seal Oil Resistant Cable 3m Oil Resistant Cable 3m, Status Indicator Oil Resistant Cable 5m Oil Resistant Cable 5m, Status Indicator One Way Action Roller Plastic Roller Plunger in Vertical Position POM Roller Positive Opening PTFE Roller Pull On Lock Reset Function Reset Plunger on Bottom Resin Lever, Resin Roller Resin Roller Right Operating Lever Right Operation, Rubber Rollers Roller Perpendicular to Mounting Surface Rubber Roller Sealed Sealed - Flux Protection Sealed - Hermetically Sealed - Hermetically, Status Indicator Sequence Action Sequence Action, Status Indicator Spatter Prevention, Status Indicator Stainless Steel Stainless Steel Plunger Stainless Steel Roller Status Indicator Status Indicator, Steel Roller Steel Plunger Steel Roller Steel Roller, Back Mounted Steel Roller, Front Mounted Steel Roller, Solid State Switch Support Posts Terminal Cover UL94 V-0 Weather Resistant White Actuator	- 0.051gfm 0.076gfm 0.101gfm 0.102gfm 0.122gfm 1000gf 100gf 101gf 1020gf 102gf 102gfm 1040gf 104gf 106 ~ 141gf 106gf 1077gf 108gf 109gf 10gf 10gfm 1101gf 1106gf 110gf 1122gf 112gf 113 ~ 198gf 113 ~ 227gf 113 ~ 450gf 113 ~ 454gf 113 ~ 567gf 1132gf 1134 ~ 4536gf 1134gf 113gf 115gf 115gfm 117gf 118gf 11gf 11gfm 1200gf 120gf 1220gf 1224gf 122gf 1247gf 125 ~ 225gf 125gf 126gf 126gfm 127 ~ 212gf 127gf 1280gf 12gf 12gfm 130gf 1315gf 132gf 1360 ~ 2722gf 1360 ~ 7711gf 1360gf 1361 ~ 2722gf 1361gf 136gf 1377gf 138 ~ 288gfm 139gf 13gf 1400gf 140gf 141 ~ 283gf 141 ~ 482gf 141gf 142 ~ 482gf 1428gf 142gf 143gf 144gf 145gf 146gf 147gf 14gf 14gfm 1500gf 150gf 152gf 1530gf 153gf 156 ~ 269gf 156gf 1588gf 158gf 15gf 15gfm 160gf 162gf 1632gf 163gf 166gf 168gf 16gf 170 ~ 269gf 170 ~ 283gf 170 ~ 397gf 170 ~ 567gf 1700gf 170gf 171gf 173gf 175gf 176gf 1785gf 178gf 1795gf 179gf 17gf 17gfm 1800gf 180gf 1814gf 1815gf 183gf 184 ~ 283gf 184gf 185gf 18gf 18gfm 1900gf 190gf 194gf 195gf 198 ~ 255gf 198 ~ 269gf 198 ~ 283gf 198 ~ 312gf 198 ~ 340gf 198 ~ 368gf 198gf 19gf 19gfm 2.000gf 200 ~ 255gf 200 ~ 280gf 200 ~ 285gf 200 ~ 400gf 2000gf 200gf 2039gf 203gf 204 ~ 800gf 2041gf 204gf 205 ~ 450gf 205gf 208 ~ 800gf 20gf 20gfm 210gf 212gf 213gf 215gf 216gf 21gf 21gfm 2203gf 220gf 2243gf 224gf 225gf 226 ~ 567gf 2268 ~ 13608gf 2268 ~ 5443gf 2268gf 227 ~ 283gf 227 ~ 368gf 227 ~ 425gf 227 ~ 510gf 227 ~ 538gf 227 ~ 567gf 227 ~ 680gf 227gf 22gf 2300gf 230gf 23gf 240gf 245gf 249gf 24gf 250 ~ 350gf 250gf 255 ~ 368gf 255 ~ 369gf 255 ~ 397gf 255 ~ 425gf 255 ~ 482gf 255 ~ 595gf 255 ~ 680gf 2551gf 255gf 25gf 25gfm 2600gf 260gf 2651gf 265gf 269gf 26gf 270gf 271gf 2720gf 2721 ~ 5443gf 2721 ~ 5444gf 2722 ~ 5443gf 2722gf 2723gf 273gf 274gf 275gf 277gf 27gf 28 ~ 127gf 28 ~ 56gf 28 ~ 92gf 2800gf 280gf 283 ~ 510gf 283 ~ 567gf 283 ~ 624gf 283 ~ 709gf 283 ~ 737gf 283 ~ 794gf 283 ~ 850gf 283gf 2850gf 285gf 28gf 28gfm 290gf 291gf 295gf 296gf 29gf 3.000gf 3.500gf 3.571gfm 3.997gf 3000gf 300gf 3059gf 305gf 306gf 30gf 30gfm 310gf 312 ~ 482gf 312 ~ 567gf 312 ~ 624gf 312 ~ 709gf 312gf 3175gf 31gf 31gfm 320gf 329gf 32gf 32gfm 330gf 3365gf 337gf 33gf 33gfm 340 ~ 510gf 340 ~ 567gf 340 ~ 680gf 340 ~ 907gf 340gf 342 ~ 800gf 343gf 3467gf 347gf 348gf 34gf 34gfm 350gf 355gf 357gf 35gf 3629gf 367gf 368 ~ 538gf 368gf 36gf 36gfm 370gf 375gf 377gf 379gf 380gf 385gf 38gf 397 ~ 567gf 397 ~ 624gf 397 ~ 680gf 397 ~ 737gf 397 ~ 992gf 397gf 398gf 39gf 4.000gf 400 ~ 625gf 400gf 4079gf 4082gf 4087gf 408gf 40gf 40gfm 413gf 41gf 42 ~ 71gf 420gf 425 ~ 1106gf 425 ~ 595gf 425 ~ 709gf 425 ~ 922gf 425gf 428gf 42gf 430gf 43gf 44gf 450gf 4536 ~ 7257gf 4536gf 454 ~ 737gf 454 ~ 794gf 454gf 455 ~ 740gf 459gf 45gf 46gf 46gfm 47gf 480gf 482 ~ 624gf 482gf 48gf 49gf 5.000gf 5.092gfm 5.099gf 5.100gf 500gf 50gf 50gfm 510 ~ 850gf 510 ~ 907gf 510 ~ 964gf 510gf 51gf 51gfm 52gf 530gf 538gf 540gf 5443 ~ 11340gf 5443gf 5446 ~ 2723gf 54gf 551gf 55gf 56 ~ 141gf 560gf 561gf 567 ~ 1021gf 567 ~ 1134gf 567 ~ 1361gf 567 ~ 1502gf 567 ~ 794gf 567 ~ 850gf 567gf 56gf 570gf 571gf 57gf 580gf 58gf 595 ~ 1587gf 595gf 59gf 6.000gf 6.118gf 600gf 60gf 612gf 61gf 61gfm 624 ~ 1106gf 624 ~ 1134gf 624 ~ 1247gf 624 ~ 1531gf 624 ~ 794gf 624 ~ 850gf 624 ~ 992gf 624gf 625 ~ 800gf 630gf 63gf 640gf 649gf 64gf 65 ~ 125gf 650gf 653gf 65gf 660gf 663gf 66gf 67gf 680 ~ 1361gf 680gf 68gf 69 ~ 138gf 69gf 7.000gf 7.138gf 7.200gf 7.954gf 700gf 708gf 709 ~ 1134gf 709gf 70gf 71 ~ 141gf 71 ~ 184gf 714gf 71gf 72gf 737 ~ 1077gf 737 ~ 1672gf 737 ~ 1673gf 737gf 73gf 740gf 74gf 750gf 757gf 75gf 765gf 76gf 78 ~ 184gf 78gf 793gf 794 ~ 1531gf 794gf 79gf 8.000gf 8.157gfm 8.158 ~ 18gf 8.158 ~ 23gf 8.158gf 8.664gfm 800gf 806gf 80gf 816gf 820gf 82gf 842gf 84gf 85 ~ 141gf 85 ~ 142gf 85 ~ 198gf 850gf 85gf 86gf 86gfm 87gf 88gf 9.000gf 9.001 ~ 23gfm 90 ~ 190gf 900gf 907 ~ 1814gf 907gf 90gf 910gf 918gf 91gf 92gf 93gf 94gf 953gf 95gf 960gf 969gf 96gf 97gf 980gf 98gf 99 ~ 170gf 992gf 998gf 999gf 99gf	- 0.006gfm 0.009gfm 0.013gfm 0.029gfm 0.031gfm 0.300gf 0.306gf 0.408gf 0.500gf 0.510gf 0.700gf 1.000gf 1.020gf 1.02gf 1.224gf 1.300gf 1.500gf 1.530gf 1.734gf 10 in-oz 100gf 102gf 104gf 104gfm 107gf 10gf 11 ~ 25gf 110gf 113 ~ 142gf 113 ~ 340gf 113.392gf 113gf 114gf 1179gf 11gf 11gfm 12 ~ 50gf 120gf 1224gf 128gf 12gf 133gf 135gf 1361gf 137gf 13gf 142gf 143gf 145gf 14gf 150gf 153gf 155gf 15gf 15gfm 160gf 163gf 1672gf 16gf 170gf 177gf 17gf 180gf 1814gf 1815gf 1835gf 187gf 18gf 198gf 19gf 2.000gf 2.039gf 2.039gfm 2.070gf 2.160gf 2.189gfm 2.500gf 2.534gfm 2.549gf 2.880gf 2.957gf 200gf 201gf 204gf 20gf 21 ~ 50gf 21gf 224gf 2268gf 227gf 22gf 230gf 23gf 240gf 24gf 250gf 255gf 25gf 265gf 27gf 280gf 283 ~ 397gf 283gf 285gf 28gf 29gf 3.000gf 3.059gf 3.225gfm 3.240gfm 3.400gf 3.467gf 3.500gf 3.977gf 300gf 306gf 30gf 31gf 32gf 33gf 340gf 34gf 35gf 3629gf 36gf 3773gf 37gf 38gf 397gf 39gfm 4.000gf 4.078gfm 4.079gf 4.500gfm 400gf 4082gf 40gf 40gfm 41gf 42gf 43 ~ 99gf 43gf 446gf 450gf 454gf 45gf 46gf 48gf 4gf 5.000gf 5.046gfm 5.099gf 5.103gfm 500gf 50gf 510gf 51gf 54gf 55gf 56 ~ 285gf 56.696gf 56gf 57gf 58gf 5gf 6.000gf 6.118 ~ 25gf 6.118gf 60gf 61gf 66gf 680gf 68gf 6gf 7.000gf 7.087gf 7.138gf 7.200gfm 7.546gf 70gf 71gf 72gf 75gf 77gf 79gf 7gf 8.000gf 8.158gf 8.500gf 8.640gfm 80gf 810gf 816gf 820gf 82gf 84gf 85gf 87gf 88gf 8gf 9.000gf 9.177gf 900gf 907gf 90gf 910gf 92gf 93gf 97gf 99gf 9gf	- 0.020" (0.5mm) 0.055" (1.4mm) 0.059" (1.5mm) 0.061" (1.55mm) 0.063" (1.6mm) 0.065" (1.65mm) 0.067" (1.70mm) 0.069" (1.75mm) 0.075" (1.9mm) 0.077" (1.95mm) 0.079" (2.0mm) 0.083" (2.1mm) 0.085" (2.16mm) 0.087" (2.2mm) 0.091" (2.3mm) 0.098" (2.5mm) 0.102" (2.6mm) 0.104" (2.65mm) 0.106" (2.7mm) 0.110" (2.8mm) 0.114" (2.9mm) 0.117" (2.96mm) 0.120" (3.05mm) 0.122" (3.1mm) 0.126" (3.2mm) 0.130" (3.3mm) 0.132" (3.35mm) 0.134" (3.4mm) 0.136" (3.45mm) 0.138" (3.5mm) 0.146" (3.7mm) 0.148" (3.75mm) 0.150" (3.8mm) 0.157" (4.0mm) 0.160" (4.1mm) 0.173" (4.4mm) 0.177" (4.5mm) 0.179" (4.55mm) 0.183" (4.65mm) 0.185" (4.7mm) 0.189" (4.8mm) 0.197" (5.0mm) 0.203" (5.2mm) 0.209" (5.3mm) 0.213" (5.4mm) 0.217" (5.5mm) 0.220" (5.6mm) 0.224" (5.7mm) 0.228" (5.8mm) 0.231" (5.88mm) 0.232" (5.9mm) 0.236" (6.0mm) 0.240" (6.1mm) 0.248" (6.3mm) 0.250" (6.4mm) 0.252" (6.4mm) 0.256" (6.5mm) 0.260" (6.6mm) 0.264" (6.7mm) 0.266" (6.75mm) 0.268" (6.80mm) 0.268" (6.8mm) 0.270" (6.85mm) 0.272" (6.9mm) 0.276" (7.0mm) 0.280" (7.1mm) 0.281" (7.15mm) 0.283" (7.2mm) 0.285" (7.24mm) 0.287" (7.30mm) 0.289" (7.35mm) 0.291" (7.4mm) 0.295" (7.5mm) 0.300" (7.6mm) 0.301" (7.65mm) 0.303" (7.7mm) 0.305" (7.75mm) 0.307" (7.8mm) 0.311" (7.90mm) 0.312" (7.9mm) 0.313" (7.95mm) 0.315" (8.0mm) 0.317" (8.05mm) 0.319" (8.1mm) 0.320" (8.13mm) 0.321" (8.2mm) 0.325" (8.25mm) 0.327" (8.3mm) 0.328" (8.3mm) 0.330" (8.4mm) 0.331" (8.40mm) 0.332" (8.43mm) 0.335" (8.5mm) 0.340" (8.6mm) 0.343" (8.70mm) 0.343" (8.7mm) 0.345" (8.8mm) 0.346" (8.80mm) 0.350" (8.9mm) 0.354" (9.0mm) 0.355" (9.0mm) 0.356" (9.05mm) 0.358" (9.1mm) 0.362" (9.2mm) 0.366" (9.3mm) 0.370" (9.4mm) 0.374" (9.5mm) 0.378" (9.6mm) 0.380" (9.65mm) 0.380" (9.7mm) 0.386" (9.8mm) 0.390" (9.9mm) 0.392" (9.95mm) 0.394" (10.0mm) 0.398" (10.1mm) 0.400" (10.2mm) 0.406" (10.3mm) 0.409" (10.4mm) 0.413" (10.5mm) 0.415" (10.55mm) 0.415" (10.6mm) 0.417" (10.6mm) 0.420" (10.7mm) 0.421" (10.70mm) 0.423" (10.75mm) 0.425" (10.8mm) 0.429" (10.9mm) 0.433" (11.0mm) 0.437" (11.1mm) 0.440" (11.2mm) 0.441" (11.2mm) 0.445" (11.3mm) 0.449" (11.4mm) 0.450" (11.4mm) 0.451" (11.45mm) 0.453" (11.5mm) 0.455" (11.6mm) 0.459" (11.65mm) 0.460" (11.7mm) 0.465" (11.8mm) 0.468" (11.9mm) 0.472" (12.0mm) 0.476" (12.1mm) 0.480" (12.2mm) 0.485" (12.3mm) 0.488" (12.4mm) 0.492" (12.5mm) 0.497" (12.6mm) 0.500" (12.7mm) 0.508" (12.9mm) 0.512" (13.00mm) 0.512" (13.0mm) 0.516" (13.1mm) 0.520" (13.2mm) 0.522" (13.25mm) 0.524" (13.3mm) 0.528" (13.4mm) 0.530" (13.46mm) 0.531" (13.5mm) 0.533" (13.54mm) 0.535" (13.6mm) 0.539" (13.7mm) 0.540" (13.72mm) 0.541" (13.75mm) 0.547" (13.9mm) 0.549" (13.94mm) 0.551" (14.0mm) 0.555" (14.1mm) 0.557" (14.15mm) 0.560" (14.2mm) 0.562" (14.3mm) 0.565" (14.35mm) 0.567" (14.4mm) 0.571" (14.50mm) 0.571" (14.5mm) 0.575" (14.6mm) 0.578" (14.68mm) 0.579" (14.7mm) 0.581" (14.75mm) 0.583" (14.8mm) 0.585" (14.86mm) 0.587" (14.90mm) 0.587" (14.9mm) 0.591" (15.00mm) 0.591" (15.0mm) 0.593" (15.1mm) 0.594" (15.1mm) 0.595" (15.13mm) 0.598" (15.2mm) 0.600" (15.2mm) 0.602" (15.30mm) 0.602" (15.3mm) 0.605" (15.37mm) 0.606" (15.4mm) 0.610" (15.5mm) 0.615" (15.6mm) 0.618" (15.7mm) 0.622" (15.8mm) 0.625" (15.9mm) 0.630" (16.0mm) 0.634" (16.1mm) 0.638" (16.2mm) 0.640" (16.3mm) 0.646" (16.4mm) 0.650" (16.5mm) 0.652" (16.56mm) 0.654" (16.6mm) 0.657" (16.7mm) 0.660" (16.76mm) 0.665" (16.9mm) 0.670" (17.0mm) 0.677" (17.2mm) 0.680" (17.3mm) 0.685" (17.4mm) 0.687" (17.45mm) 0.689" (17.5mm) 0.693" (17.6mm) 0.697" (17.7mm) 0.705" (17.9mm) 0.710" (18.0mm) 0.713" (18.1mm) 0.715" (18.2mm) 0.717" (18.2mm) 0.718" (18.24mm) 0.720" (18.3mm) 0.720" ~ 0.820" (18.29mm ~ 20.83mm) 0.724" (18.40mm) 0.728" (18.49mm) 0.730" (18.5mm) 0.732" (18.6mm) 0.735" (18.67mm) 0.736" (18.69mm) 0.736" (18.70mm) 0.736" (18.7mm) 0.738" (18.7mm) 0.740" (18.8mm) 0.745" (18.9mm) 0.748" (19.0mm) 0.750" (19.1mm) 0.755" (19.2mm) 0.762" (19.35mm) 0.764" (19.4mm) 0.770" (19.5mm) 0.772" (19.6mm) 0.775" (19.69mm) 0.776" (19.7mm) 0.780" (19.8mm) 0.785" (19.9mm) 0.787" (20.0mm) 0.792" (20.1mm) 0.795" (20.2mm) 0.798" (20.3mm) 0.799" (20.3mm) 0.803" (20.4mm) 0.806" (20.5mm) 0.807" (20.50mm) 0.808" (20.52mm) 0.810" (20.57mm) 0.812" (20.6mm) 0.815" (20.7mm) 0.817" (20.75mm) 0.820" (20.8mm) 0.825" (21.0mm) 0.831" (21.1mm) 0.835" (21.2mm) 0.844" (21.44mm) 0.846" (21.5mm) 0.850" (21.6mm) 0.854" (21.7mm) 0.859" (21.8mm) 0.860" (21.84mm) 0.865" (22.0mm) 0.875" (22.2mm) 0.886" (22.5mm) 0.906" (23.0mm) 0.909" (23.1mm) 0.917" (23.3mm) 0.920" (23.37mm) 0.922" (23.4mm) 0.945" (24.0mm) 0.953" (24.2mm) 0.957" (24.3mm) 0.961" (24.4mm) 0.972" (24.7mm) 0.980" (24.9mm) 0.984" (25.0mm) 1.000" (25.4mm) 1.024" (26.0mm) 1.028" (26.1mm) 1.030" (26.2mm) 1.047" (26.6mm) 1.060" (26.9mm) 1.063" (27.0mm) 1.070" (27.2mm) 1.079" (27.4mm) 1.091" (27.7mm) 1.094" (27.8mm) 1.100" (28.0mm) 1.110" (28.2mm) 1.120" (28.45mm) 1.122" (28.5mm) 1.125" (28.6mm) 1.130" (28.7mm) 1.140" (28.95mm) 1.150" (29.2mm) 1.154" (29.3mm) 1.156" (29.4mm) 1.160" (29.46mm) 1.172" (29.8mm) 1.176" (29.9mm) 1.180" (30.0mm) 1.188" (30.2mm) 1.193" (30.3mm) 1.209" (30.7mm) 1.219" (31.0mm) 1.228" (31.2mm) 1.235" (31.4mm) 1.250" (31.8mm) 1.256" (31.9mm) 1.260" (32.0mm) 1.266" (32.2mm) 1.276" (32.4mm) 1.281" (32.5mm) 1.300" (33.0mm) 1.311" (33.3mm) 1.313" (33.4mm) 1.319" (33.5mm) 1.330" (33.8mm) 1.339" (34.0mm) 1.346" (34.2mm) 1.350" (34.3mm) 1.354" (34.4mm) 1.369" (34.8mm) 1.380" (35.0mm) 1.398" (35.5mm) 1.405" (35.7mm) 1.409" (35.8mm) 1.417" (36.0mm) 1.421" (36.1mm) 1.445" (36.7mm) 1.449" (36.8mm) 1.457" (37.0mm) 1.467" (37.3mm) 1.488" (37.8mm) 1.500" (38.1mm) 1.504" (38.2mm) 1.562" (39.7mm) 1.567" (39.8mm) 1.575" (40.0mm) 1.594" (40.5mm) 1.600" (40.6mm) 1.615" (41.0mm) 1.622" (41.2mm) 1.625" (41.3mm) 1.630" (41.4mm) 1.640" (41.65mm) 1.673" (42.5mm) 1.693" (43.0mm) 1.695" (43.05mm) 1.703" (43.3mm) 1.720" (43.7mm) 1.730" (43.9mm) 1.732" (44.0mm) 1.735" (44.1mm) 1.748" (44.4mm) 1.752" (44.5mm) 1.805" (45.8mm) 1.812" (46.0mm) 1.859" (47.2mm) 1.866" (47.4mm) 1.885" (47.9mm) 1.890" (48.0mm) 1.906" (48.4mm) 1.942" (49.3mm) 1.953" (49.6mm) 1.957" (49.7mm) 1.969" (50.0mm) 10° 15° 16° 18° 2.015" (51.2mm) 2.050" (52.1mm) 2.060" (52.3mm) 2.078" (52.8mm) 2.087" (53.0mm) 2.094" (53.2mm) 2.130" (54.1mm) 2.134" (54.2mm) 2.200" (55.9mm) 2.205" (56.0mm) 2.232" (56.7mm) 2.281" (57.94mm) 2.305" (58.5mm) 2.345" (59.6mm) 2.390" (60.7mm) 2.400" (61.0mm) 2.469" (62.7mm) 2.500" (63.5mm) 2.515" (63.9mm) 2.547" (64.7mm) 2.585" (65.7mm) 2.638" (67.0mm) 2.700" (68.6mm) 2.720" (69.1mm) 2.811" (71.4mm) 2.938" (74.6mm) 2.942" (74.7mm) 2.949" (74.9mm) 2.953" (75.0mm) 2.961" (75.2mm) 20° 21° 23° 25° 26.5° 26° 29° 2° 3.232" (82.1mm) 3.856" (97.9mm) 3.891" (98.8mm) 30° 39° 5° 6.5° 69°	- 0.004" (0.1mm) 0.006" (0.15mm) 0.007" (0.17mm) 0.008" (0.2mm) 0.010" (0.25mm) 0.012" (0.3mm) 0.013" (0.33mm) 0.014" (0.35mm) 0.015" (0.4mm) 0.016" (0.41mm) 0.018" (0.45mm) 0.020" (0.51mm) 0.020" (0.5mm) 0.024" (0.6mm) 0.025" (0.65mm) 0.028" (0.7mm) 0.029" (0.75mm) 0.030" (0.76mm) 0.030" (0.8mm) 0.031" (0.79mm) 0.031" (0.8mm) 0.035" (0.9mm) 0.037" (0.94mm) 0.040" (1.02mm) 0.040" (1.0mm) 0.041" (1.05mm) 0.043" (1.1mm) 0.045" (1.14mm) 0.047" (1.2mm) 0.050" (1.27mm) 0.051" (1.3mm) 0.052" (1.32mm) 0.053" (1.35mm) 0.055" (1.4mm) 0.057" (1.45mm) 0.060" (1.5mm) 0.063" (1.6mm) 0.065" (1.65mm) 0.067" (1.7mm) 0.068" (1.72mm) 0.070" (1.78mm) 0.071" (1.8mm) 0.075" (1.9mm) 0.078" (2.0mm) 0.079" (2.00mm) 0.080" (2.0mm) 0.081" (2.05mm) 0.083" (2.1mm) 0.085" (2.16mm) 0.087" (2.2mm) 0.090" (2.3mm) 0.094" (2.4mm) 0.100" (2.54mm) 0.100" (2.5mm) 0.101" (2.57mm) 0.102" (2.6mm) 0.106" (2.7mm) 0.110" (2.8mm) 0.112" (2.85mm) 0.114" (2.9mm) 0.116" (2.95mm) 0.118" (3.0mm) 0.120" (3.0mm) 0.122" (3.1mm) 0.125" (3.18mm) 0.125" (3.2mm) 0.128" (3.25mm) 0.131" (3.3mm) 0.134" (3.4mm) 0.138" (3.5mm) 0.140" (3.6mm) 0.144" (3.66mm) 0.146" (3.7mm) 0.150" (3.8mm) 0.152" (3.85mm) 0.154" (3.9mm) 0.157" (4.0mm) 0.158" (4.0mm) 0.161" (4.1mm) 0.165" (4.2mm) 0.170" (4.3mm) 0.172" (4.4mm) 0.178" (4.5mm) 0.180" (4.6mm) 0.181" (30.0mm) 0.183" (4.6mm) 0.185" (4.7mm) 0.188" (4.8mm) 0.193" (4.9mm) 0.195" (4.95mm) 0.197" (5.0mm) 0.200" (5.1mm) 0.203" (5.15mm) 0.205" (5.2mm) 0.209" (5.3mm) 0.214" (5.4mm) 0.218" (5.5mm) 0.219" (5.6mm) 0.224" (5.7mm) 0.234" (5.9mm) 0.236" (6.0mm) 0.240" (6.1mm) 0.244" (6.2mm) 0.248" (6.3mm) 0.250" (6.35mm) 0.252" (6.4mm) 0.256" (6.5mm) 0.260" (6.6mm) 0.266" (6.75mm) 0.268" (6.8mm) 0.270" (6.85mm) 0.272" (6.9mm) 0.274" (7.0mm) 0.275" (7.0mm) 0.280" (7.1mm) 0.281" (7.14mm) 0.283" (7.2mm) 0.290" (7.4mm) 0.296" (7.5mm) 0.300" (7.6mm) 0.303" (7.7mm) 0.310" (7.9mm) 0.312" (7.9mm) 0.315" (8.0mm) 0.328" (8.3mm) 0.330" (8.4mm) 0.335" (8.5mm) 0.344" (8.7mm) 0.347" (8.8mm) 0.351" (8.9mm) 0.354" (9.0mm) 0.366" (9.30mm) 0.372" (9.45mm) 0.374" (9.5mm) 0.380" (9.65mm) 0.394" (10.0mm) 0.400" (10.1mm) 0.416" (10.6mm) 0.433" (11.0mm) 0.450" (11.4mm) 0.460" (11.7mm) 0.470" (11.9mm) 0.472" (12.0mm) 0.484" (12.3mm) 0.500" (12.7mm) 0.512" (13.0mm) 0.524" (13.3mm) 0.531" (13.5mm) 0.535" (13.6mm) 0.551" (14.0mm) 0.562" (14.3mm) 0.583" (14.8mm) 0.591" (15.0mm) 0.594" (15.1mm) 0.600" (15.24mm) 0.625" (15.9mm) 0.630" (16.0mm) 0.650" (16.5mm) 0.718" (18.2mm) 0.728" (18.5mm) 0.748" (19.0mm) 0.750" (19.05mm) 0.780" (19.8mm) 0.787" (20.0mm) 0.984" (25.0mm) 1.000" (25.4mm) 1.125" (28.6mm) 1.180" (30.0mm) 1.181" (30.0mm) 1.500" (38.0mm) 1.575" (40.0mm) 10° 12° 13° 150° 15° 15° ~ 20° 16° 17.5° 17° 18° 19° 2.000" (50.8mm) 2.008" (51.0mm) 2.500" (63.5mm) 20° 21° 23° 25° 25° ~ 30° 26.5° 26° 28° 29° 30° 35° 39° 4.000" (102mm) 4.500" (114mm) 44° 45° 55° 5° 65° 7° 8° 9°	- 0.0002" (0.005mm) 0.0003" (0.008mm) 0.0004" (0.010mm) 0.0005" (0.013mm) 0.0006" (0.015mm) 0.0007" (0.018mm) 0.0008" (0.020mm) 0.001" (0.025mm) 0.002" (0.05mm) 0.002" (0.06mm) 0.003" (0.075mm) 0.004" (0.1mm) 0.005" (0.12mm) 0.005" (0.13mm) 0.006" (0.15mm) 0.007" (0.18mm) 0.008" (0.2mm) 0.009" (0.23mm) 0.010" (0.25mm) 0.011" (0.28mm) 0.012" (0.3mm) 0.013" (0.33mm) 0.014" (0.35mm) 0.015" (0.38mm) 0.016" (0.4mm) 0.017" (0.43mm) 0.018" (0.45mm) 0.019" (0.47mm) 0.020" (0.51mm) 0.020" (0.5mm) 0.022" (0.56mm) 0.023" (0.58mm) 0.025" (0.6mm) 0.026" (0.65mm) 0.027" (0.7mm) 0.028" (0.72mm) 0.028" (0.7mm) 0.030" (0.76mm) 0.031" (0.80mm) 0.031" (0.8mm) 0.032" (0.81mm) 0.034" (0.86mm) 0.035" (0.9mm) 0.037" (0.94mm) 0.038" (0.97mm) 0.039" (1.00mm) 0.039" (1.0mm) 0.040" (1.02mm) 0.040" (1.0mm) 0.041" (1.05mm) 0.045" (1.14mm) 0.045" (1.15mm) 0.045" (1.1mm) 0.047" (1.2mm) 0.049" (1.25mm) 0.050" (1.27mm) 0.050" (1.3mm) 0.053" (1.35mm) 0.055" (1.4mm) 0.056" (1.42mm) 0.060" (1.5mm) 0.062" (1.6mm) 0.065" (1.7mm) 0.070" (1.8mm) 0.072" (1.83mm) 0.075" (1.91mm) 0.075" (1.9mm) 0.080" (2.0mm) 0.083" (2.1mm) 0.085" (2.16mm) 0.086" (2.2mm) 0.090" (2.3mm) 0.093" (2.36mm) 0.094" (2.4mm) 0.098" (2.5mm) 0.100" (2.54mm) 0.103" (2.6mm) 0.107" (2.7mm) 0.110" (2.8mm) 0.114" (2.9mm) 0.118" (3.0mm) 0.120" (3.05mm) 0.125" (3.18mm) 0.125" (3.2mm) 0.130" (3.3mm) 0.135" (3.4mm) 0.138" (3.5mm) 0.140" (3.55mm) 0.140" (3.56mm) 0.145" (3.7mm) 0.150" (3.8mm) 0.154" (3.9mm) 0.156" (4.0mm) 0.165" (4.2mm) 0.170" (4.3mm) 0.175" (4.45mm) 0.177" (4.5mm) 0.190" (4.8mm) 0.200" (5.1mm) 0.219" (5.6mm) 0.229" (5.8mm) 0.234" (5.9mm) 0.250" (6.35mm) 0.25° 0.305" (7.75mm) 0.475" (12.1mm) 0.565" (14.35mm) 0.755" (19.2mm) 0.75° 10° 11.5° 12° 13° 14° 15° 16.5° 16° 18° 20.5° 20° 25° 2° 30° 35° 3° 40° 4° 5° 6° 7° 8°	- 0.003" (0.076mm) 0.004" (0.1mm) 0.005" (0.13mm) 0.006" (0.15mm) 0.007" (0.18mm) 0.008" (0.2mm) 0.010" (0.25mm) 0.011" (0.3mm) 0.012" (0.3mm) 0.014" (0.35mm) 0.015" (0.4mm) 0.018" (0.45mm) 0.019" (0.48mm) 0.020" (0.51mm) 0.020" (0.5mm) 0.022" (0.55mm) 0.023" (0.58mm) 0.024" (0.6mm) 0.025" (0.6mm) 0.026" (0.7mm) 0.028" (0.71mm) 0.029" (0.74mm) 0.030" (0.76mm) 0.031" (0.79mm) 0.031" (0.8mm) 0.032" (0.81mm) 0.035" (0.9mm) 0.039" (1.0mm) 0.040" (1.02mm) 0.040" (1.0mm) 0.045" (1.1mm) 0.047" (1.20mm) 0.047" (1.2mm) 0.049" (1.25mm) 0.050" (1.27mm) 0.051" (1.3mm) 0.053" (1.35mm) 0.055" (1.4mm) 0.057" (1.45mm) 0.058" (1.47mm) 0.059" (1.5mm) 0.060" (1.5mm) 0.062" (1.6mm) 0.063" (1.6mm) 0.064" (1.63mm) 0.065" (1.65mm) 0.065" (1.7mm) 0.068" (1.73mm) 0.069" (1.75mm) 0.070" (1.8mm) 0.072" (1.83mm) 0.075" (1.90mm) 0.075" (1.9mm) 0.077" (1.96mm) 0.079" (2.0mm) 0.080" (2.03mm) 0.081" (2.05mm) 0.083" (2.1mm) 0.084" (2.14mm) 0.085" (2.16mm) 0.087" (2.2mm) 0.090" (2.3mm) 0.094" (2.4mm) 0.098" (2.5mm) 0.100" (2.54mm) 0.100" (2.5mm) 0.101" (2.57mm) 0.102" (2.6mm) 0.105" (2.67mm) 0.106" (2.7mm) 0.109" (2.77mm) 0.110" (2.8mm) 0.115" (2.9mm) 0.118" (3.0mm) 0.120" (3.05mm) 0.122" (3.1mm) 0.125" (3.18mm) 0.125" (3.2mm) 0.126" (3.2mm) 0.129" (3.28mm) 0.130" (3.3mm) 0.134" (3.4mm) 0.138" (3.5mm) 0.141" (3.58mm) 0.141" (3.6mm) 0.146" (3.7mm) 0.150" (3.8mm) 0.155" (3.9mm) 0.156" (3.96mm) 0.157" (4.0mm) 0.158" (4.0mm) 0.160" (4.06mm) 0.161" (4.1mm) 0.164" (4.2mm) 0.168" (4.27mm) 0.168" (4.3mm) 0.172" (4.4mm) 0.175" (4.45mm) 0.175" (4.5mm) 0.178" (4.5mm) 0.180" (4.6mm) 0.185" (4.7mm) 0.187" (4.75mm) 0.188" (4.78mm) 0.190" (4.8mm) 0.193" (4.9mm) 0.197" (5.0mm) 0.201" (5.1mm) 0.203" (5.15mm) 0.205" (5.2mm) 0.209" (5.3mm) 0.210" (5.33mm) 0.213" (5.4mm) 0.217" (5.5mm) 0.219" (5.6mm) 0.220" (5.60mm) 0.224" (5.7mm) 0.230" (5.84mm) 0.235" (6.0mm) 0.236" (6.0mm) 0.240" (6.1mm) 0.250" (6.35mm) 0.252" (6.4mm) 0.256" (6.5mm) 0.263" (6.7mm) 0.266" (6.75mm) 0.268" (6.8mm) 0.270" (6.86mm) 0.276" (7.0mm) 0.278" (7.1mm) 0.283" (7.2mm) 0.295" (7.5mm) 0.300" (7.6mm) 0.303" (7.7mm) 0.312" (7.9mm) 0.327" (8.3mm) 0.331" (8.4mm) 0.350" (8.9mm) 0.350" (9.0mm) 0.374" (9.5mm) 0.375" (9.53mm) 0.375" (9.5mm) 0.380" (9.65mm) 0.394" (10.0mm) 0.398" (10.1mm) 0.400" (10.2mm) 0.406" (10.3mm) 0.433" (11.0mm) 0.469" (11.9mm) 0.485" (12.3mm) 0.500" (12.7mm) 0.520" (13.2mm) 0.585" (14.9mm) 0.590" (15.0mm) 0.625" (15.9mm) 0.75" (1.8mm) 0.788" (20.0mm) 0.838" (21.3mm) 0.866" (22.0mm) 1.000" (25.4mm) 1.220" (31.0mm) 100° 110° 12° 13° 168° 17° 19° 2.200" (55.9mm) 20° 23° 25° 30° 35° 40° 44° 48° 49° 50° 55° 57° 58° 59° 60° 65° 66° 68° 70° 75° 80° 85° 90°	- -10°C ~ 105°C -10°C ~ 125°C -10°C ~ 50°C -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 80°C -10°C ~ 94°C -12°C ~ 100°C -12°C ~ 105°C -12°C ~ 121°C -12°C ~ 60°C -12°C ~ 93°C -12°C ~ 94°C -15°C ~ 55°C -15°C ~ 65°C -15°C ~ 70°C -15°C ~ 80°C -17.8°C ~ 176.7°C -184°C ~ 121°C -184°C ~ 149°C -184°C ~ 164°C -184°C ~ 177°C -184°C ~ 200°C -184°C ~ 260°C -18°C ~ 149°C -18°C ~ 177°C -18°C ~ 82°C -18°C ~ 85°C -18°C ~ 93°C -1°C ~ 100°C -1°C ~ 105°C -1°C ~ 121°C -1°C ~ 93°C -20°C ~ 100°C -20°C ~ 105°C -20°C ~ 125°C -20°C ~ 130°C -20°C ~ 150°C -20°C ~ 60°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 75°C -20°C ~ 80°C -20°C ~ 85°C -20°C ~ 90°C -23°C ~ 85°C -25°C ~ 105°C -25°C ~ 120°C -25°C ~ 125°C -25°C ~ 150°C -25°C ~ 155°C -25°C ~ 200°C -25°C ~ 50°C -25°C ~ 55°C -25°C ~ 60°C -25°C ~ 65°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 82°C -25°C ~ 85°C -26°C ~ 85°C -29°C ~ 121°C -29°C ~ 49°C -29°C ~ 71°C -29°C ~ 85°C -29°C ~ 93.33°C -29°C ~ 93°C -30°C ~ 104°C -30°C ~ 120°C -30°C ~ 60°C -30°C ~ 70°C -30°C ~ 71°C -30°C ~ 75°C -30°C ~ 80°C -30°C ~ 85°C -31°C ~ 71°C -32°C ~ 121°C -32°C ~ 55°C -32°C ~ 71°C -37°C ~ 82°C -40°C ~ 100°C -40°C ~ 104°C -40°C ~ 105°C -40°C ~ 120°C -40°C ~ 121°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 150°C -40°C ~ 177°C -40°C ~ 204°C -40°C ~ 40°C -40°C ~ 50°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 71°C -40°C ~ 75°C -40°C ~ 79°C -40°C ~ 80°C -40°C ~ 85°C -40°C ~ 90°C -40°C ~ 93°C -40°C ~ 95°C -50°C ~ 125°C -50°C ~ 85°C -51°C ~ 85°C -53.9°C ~ 105°C -53°C ~ 105°C -53°C ~ 121°C -53°C ~ 163°C -53°C ~ 204°C -53°C ~ 85°C -54°C ~ 105°C -54°C ~ 121°C -54°C ~ 125°C -54°C ~ 130°C -54°C ~ 149°C -54°C ~ 399°C -54°C ~ 82°C -54°C ~ 85°C -55°C ~ 100°C -55°C ~ 120°C -55°C ~ 121°C -55°C ~ 125°C -55°C ~ 135°C -55°C ~ 150°C -55°C ~ 204°C -55°C ~ 82°C -55°C ~ 85°C -5°C ~ 60°C -5°C ~ 70°C -5°C ~ 85°C -60°C ~ 125°C -60°C ~ 150°C -65°C ~ 121°C -65°C ~ 125°C -65°C ~ 163°C -65°C ~ 200°C -65°C ~ 260°C -65°C ~ 399°C -65°C ~ 400°C 0°C ~ 105°C 0°C ~ 55°C 0°C ~ 65°C 0°C ~ 70°C 0°C ~ 85°C 25°C ~ 120°C 5°C ~ 120°C 5°C ~ 40°C 5°C ~ 70°C

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키징	제품 상태	회로	스위치 기능	전류 정격(암페어)	전압 정격 - AC	전압 정격 - DC	액추에이터 유형	장착 유형	종단 스타일	침투 방지	기능	작동력	해제 힘	작동 위치	이전 이동	차동 이동	과도 이동	작동 온도

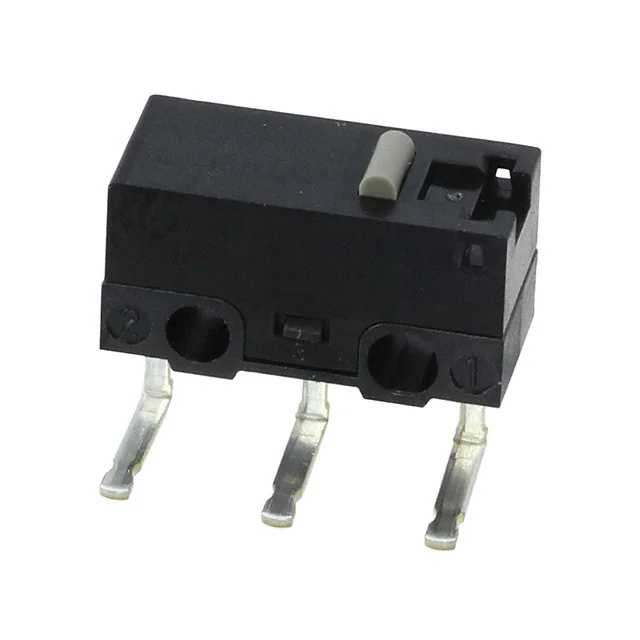

D2F-A SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	198	-	RFQ	데이터시트	D2F	Bulk	Active	SPDT	On-Mom	3A (AC), 2A (DC)	125 V	30 V	Round (Pin Plunger)	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Right Side	150gf	20gf	0.217" (5.5mm)	0.020" (0.5mm)	0.005" (0.13mm)	0.010" (0.25mm)	-40°C ~ 85°C
MS-105A01 (H) SWITCH SNAP ACTION SPDT 5A 125V C&K	4,370	-	RFQ	데이터시트	MS, COMAX	Tray	Active	SPDT	On-Mom	5A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	-	-	230gf	55gf	0.330" (8.4mm)	0.024" (0.6mm)	0.008" (0.2mm)	0.020" (0.5mm)	-40°C ~ 85°C
ABS1412509 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	242	-	RFQ	데이터시트	ABS	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	55gf	3.500gf	0.345" (8.8mm)	0.110" (2.8mm)	0.031" (0.8mm)	0.047" (1.2mm)	-40°C ~ 85°C
SS-01GLD-12 SWITCH SNAP ACTION HINGE Omron Electronics Inc-EMC Div	199	-	RFQ	데이터시트	SS	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2HW-BL211DL SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	1,661	-	RFQ	데이터시트	D2HW	Bulk	Active	SPDT	On-Mom	100mA (AC), 2A (DC)	125 V	12 V	Lever, Straight	Through Hole, Right Angle	PC Pin	IP67 - Dust Tight, Waterproof	Support Posts	76gf	7.138gf	0.295" (7.5mm)	-	0.020" (0.5mm)	0.062" (1.6mm)	-40°C ~ 85°C
D2F-A1 SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	669	-	RFQ	데이터시트	D2F	Tray	Active	SPDT	On-Mom	3A (AC), 2A (DC)	125 V	30 V	Round (Pin Plunger)	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	150gf	20gf	0.217" (5.5mm)	0.020" (0.5mm)	0.005" (0.13mm)	0.010" (0.25mm)	-40°C ~ 85°C
D3V-016-1C3 SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	573	-	RFQ	데이터시트	D3V	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	30gf	-	0.815" (20.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 85°C
D2HW-A201H SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	363	-	RFQ	데이터시트	D2HW	Bulk	Active	SPDT	On-Mom	100mA (AC), 2A (DC)	125 V	12 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	76gf	10gf	0.409" (10.4mm)	-	0.010" (0.25mm)	0.055" (1.4mm)	-40°C ~ 85°C
D3V-16-3C5 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	151	-	RFQ	데이터시트	D3V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C
D2F01L30 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	998	-	RFQ	데이터시트	D2F	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Simulated Roller	Through Hole	PC Pin	IP40	-	55gf	4.079gf	0.374" (9.5mm)	-	0.020" (0.5mm)	0.020" (0.5mm)	-40°C ~ 85°C
SSG-5L3P SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	404	-	RFQ	데이터시트	SSG	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Lever, Simulated Roller	Chassis Mount	Solder Lug	IP40	-	61gf	6.000gf	0.567" (14.4mm)	-	0.031" (0.8mm)	0.039" (1.0mm)	-25°C ~ 125°C
D3D-221 SWITCH DETECTOR SPST-NC 1A 125V Omron Electronics Inc-EMC Div	1,282	-	RFQ	데이터시트	D3D	Tray	Active	SPST-NC	On-Mom	1A (AC)	125 V	-	Angled Toggle (Detector)	Panel Mount, Snap-In	Connector	IP00	White Actuator	204gf	-	0.512" (13.0mm)	-	-	-	-30°C ~ 60°C
SS-01GL13-3 SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	4,867	-	RFQ	데이터시트	SS	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller	Chassis Mount	Solder Lug	IP40	-	50gf	6.118gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
ZMW00AP00PCAA SWITCH SNAP ACTION SPDT 0.1A 30V C&K	2,915	-	RFQ	데이터시트	ZMW	Tray	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Round (Pin Plunger)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	150gf	-	-	0.030" (0.8mm)	-	0.087" (2.2mm)	-40°C ~ 85°C
D2MQ-1 SWITCH SNAP ACTION SPDT 0.5A 30V Omron Electronics Inc-EMC Div	1,058	-	RFQ	데이터시트	D2MQ	Bulk	Active	SPDT	On-Mom	500mA (DC)	-	30 V	Round (Pin Plunger)	Through Hole	PC Pin	IP40	-	120gf	21gf	0.224" (5.7mm)	0.015" (0.4mm)	0.004" (0.1mm)	0.004" (0.1mm)	-15°C ~ 70°C
SS-10GLD SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	4,538	-	RFQ	데이터시트	SS	Tray	Active	SPDT	On-Mom	10A (AC)	250 V	-	Lever, Straight	Through Hole	PC Pin	IP40	-	50gf	6.118gf	0.345" (8.8mm)	-	0.040" (1.0mm)	0.039" (1.0mm)	-25°C ~ 85°C
D2MQ-1L-105 SWITCH SNAP ACT SPDT 0.05A 30V Omron Electronics Inc-EMC Div	899	-	RFQ	데이터시트	D2MQ	Bulk	Active	SPDT	On-Mom	50mA (DC)	-	30 V	Lever, Leaf	Through Hole	PC Pin	IP40	-	60gf	8.158gf	0.264" (6.7mm)	0.094" (2.4mm)	0.027" (0.7mm)	0.011" (0.3mm)	-15°C ~ 70°C
SS-5GL-FT SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	502	-	RFQ	데이터시트	SS	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	16gf	2.039gf	0.345" (8.8mm)	-	0.031" (0.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
D2FD-2L1-1H SWITCH SNAP ACTION SPDT 2A 125V Omron Electronics Inc-EMC Div	194	-	RFQ	데이터시트	D2FD	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP60 - Dust Tight	-	66gf	5.099gf	0.328" (8.3mm)	-	0.020" (0.5mm)	0.020" (0.5mm)	-20°C ~ 70°C
D3V-014-3C23 SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	9,506	-	RFQ	데이터시트	D3V	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	30gf	-	0.738" (18.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 85°C
