키패드 스위치

제조사	시리즈	패키징	제품 상태	스위치 유형	키 수	매트릭스(열 x 행)	조명	범례 유형	키 유형	출력 유형	범례	범례 색상	키 색상	장착 유형	종단 스타일	패널 컷아웃 치수	작동 온도	침투 방지	조명 전압(공칭)	전압에서의 접점 정격	기능
Adafruit Industries LLC APEM Inc. Blink Marine CANADUINO® EAO Gearbox Labs Grayhill Inc. knitter-switch Marlin Technologies NKK Switches Parallax Inc. Pimoroni Ltd SparkFun Electronics Storm Interface	* - 09 1000 1000 PLX 2000 3000 37F 3K 4000 5000 6000 700 720 BLK 720 GFX 720 GFX-i 720 TFX 720 TFX-i 82 83 84 84B 84BL 84LS 84R 84S 86 87 88 900 96 AudioComm AXS AXS-COM FLETAS FM GFX GFX Illuminator Nav-Bar™ NAV-Pad™ PZ SF6000 StrikeMaster ES VR Illuminator YFT KNI	- Box Bulk Tray Tube	Active Discontinued at Masstock Electronics Obsolete	- Capacitive Conductive Rubber Keyswitch Membrane (Snap Dome) Piezo Snap Dome	- 1 12 15 16 2 20 3 36 4 5 6 8	- 1 x 1 1 x 4 2 x 1 2 x 4 3 x 1 3 x 2 3 x 4 4 x 1 4 x 2 4 x 4 4 x 5 5 x 1 5 x 3 5 x 4 6 x 1	- Illuminated Illuminated - Amber Illuminated - Blue Illuminated - Green Illuminated - Light Source Not Included Illuminated - Orange Illuminated - Red Illuminated - Red/Green Illuminated - White Illuminated - Yellow Non-Illuminated	- Fixed Interchangeable Partially Interchangeable	- Metal Polyester Overlay Polymer Polymer, Transparent Key Cap Rubber Overlay Tempered Glass Transparent Key Cap	- CAN Bus (CANopen) CAN Bus (J1939) Common Bus Independent Switches (3PST) Independent Switches (4PST) Independent Switches (DPST) Independent Switches (SPST) Matrix Non-Standard (Controller Included) Non-Standard (Controller Needed) USB Wiegand™	- 0 ~ 9, A ~ F 1 ~ 4 1 ~ 6 1 ~ 8 A ~ D Arrows Arrows, Help Button Arrows, Help Button, Select Blank Buttons Calculator Format Calculator Format, A ~ C Color Coded Format Customizable (Included) Customizable (Sold Separate) F1 ~ F4 No Buttons No Legend Targets Telephone Format Telephone Format (Horizontal) Telephone Format, A ~ C Telephone Format, A ~ D Telephone Format, A ~ F Telephone Format, Color Coded Format Telephone Format, Function Keys	- Black Black, Blue Black, White Blue, White Gray Translucent White	- Black Blue Blue, Red Blue, White Clear Gray Multiple Red Silver Translucent Transparent White	- Adhesive Panel Mount, Front Panel Mount, Front or Rear Panel Mount, Rear Through Hole	- Cable with Connector Card Edge/Solder Pad Connector PC Pin Pin Header Screw Terminal Stud USB Socket	- Circular - 40.64mm Dia Circular - 46.99mm Dia Circular - 57.15mm Dia Rectangular - 100.50mm x 67.20mm Rectangular - 107.10mm x 68.80mm Rectangular - 109.50mm x 95.50mm Rectangular - 115.00mm x 109.50mm Rectangular - 169.00mm x 111.00mm Rectangular - 68.58mm x 50.80mm Rectangular - 68.58mm x 63.50mm Rectangular - 74.00mm x 54.00mm Rectangular - 81.00mm x 61.00mm Rectangular - 81.50mm x 62.50mm Rectangular - 82.50mm x 25.50mm Rectangular - 83.00mm x 64.00mm Rectangular - 83.57mm x 64.52mm Rectangular - 90.00mm x 88.00mm Rectangular - 97.00mm x 79.00mm Square - 83.00mm² Square - 83.57mm²	- -10°C ~ 75°C -10°C ~ 85°C -15°C ~ 50°C -15°C ~ 55°C -20°C ~ 60°C -20°C ~ 70°C -25°C ~ 85°C -30°C ~ 80°C -40°C ~ 100°C -40°C ~ 60°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 85°C 0°C ~ 70°C	- IP40 IP42 IP54 - Dust Protected, Water Resistant IP65 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof IP68 - Dust Tight, Waterproof IP69K - Dust Tight, High Temp Water Jets, Waterproof IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof	- 1.8, 2.2 VDC 1.95 VDC 2.1 VDC 3.3 VDC 3.5 VDC 5 VDC	- 0.005A @ 12VDC 0.01A @ 24VDC 0.02A @ 24VDC 0.02A @ 50VDC 0.03A @ 32VDC 0.05A @ 24VDC 0.05A @ 30VAC/DC 0.1A @ 24VDC 0.1A @ 5VDC 0.2A @ 24VDC 2A @ 24VAC/DC 3A @ 120VAC	- Anti-Vandal Anti-Vandal, Display Audio Enabled Black Housing Display Gray Housing Shielded

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키징	제품 상태	스위치 유형	키 수	매트릭스(열 x 행)	조명	범례 유형	키 유형	출력 유형	범례	범례 색상	키 색상	장착 유형	종단 스타일	패널 컷아웃 치수	작동 온도	침투 방지	조명 전압(공칭)	전압에서의 접점 정격	기능
EZB2-405H03 SWITCH KEYPAD 2KEY ILLUM Storm Interface	7	-	RFQ	데이터시트	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
8616-410023 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	11	-	RFQ	데이터시트	SF6000	Box	Active	Conductive Rubber	16	4 x 4	Illuminated	Fixed	Transparent Key Cap	Matrix	Telephone Format, Function Keys	Black	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 97.00mm x 79.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	5 VDC	0.05A @ 24VDC	-

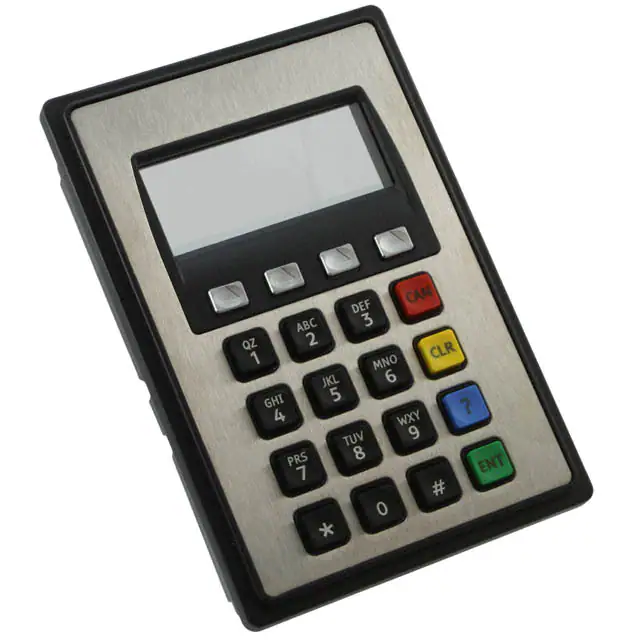

FT2K0503 SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface	12	-	RFQ	데이터시트	5000	Bulk	Active	Conductive Rubber	20	4 x 5	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, Function Keys	Black, White	Multiple	Panel Mount, Rear	Pin Header	Rectangular - 169.00mm x 111.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	-
EZ06-23001 SWITCH KEYPAD 6KEY NON-ILLUM Storm Interface	9	-	RFQ	데이터시트	NAV-Pad™	Bulk	Active	Conductive Rubber	6	-	Non-Illuminated	Fixed	Polymer	USB	Arrows, Help Button	Black, White	Multiple	Panel Mount, Front or Rear	USB Socket	Rectangular - 109.50mm x 95.50mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
AT02-430013 SWITCH KEYPAD 2KEY ILLUM Storm Interface	10	-	RFQ	데이터시트	AudioComm	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	USB	-	-	White	Panel Mount, Front	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
EZB6-730023 SWITCH KEYPAD 6KEY ILLUM Storm Interface	8	-	RFQ	데이터시트	Nav-Bar™	Bulk	Active	Conductive Rubber	6	6 x 1	Illuminated	Fixed	Polymer	USB	Arrows, Help Button, Select	Black, White	Multiple	Panel Mount, Rear	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
DE1KT103 SWITCH KEYPAD 12KEY NON-ILLUM Storm Interface	10	-	RFQ	데이터시트	AXS	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Fixed	Metal	Non-Standard (Controller Included)	Telephone Format	Black	Silver	Panel Mount, Front	Screw Terminal	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Anti-Vandal
3K120103 SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface	32	-	RFQ	데이터시트	3000	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Calculator Format	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 83.00mm x 64.00mm	-10°C ~ 85°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
3K160103 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	15	-	RFQ	데이터시트	3000	Bulk	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Calculator Format, A ~ C	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Square - 83.00mm²	-10°C ~ 85°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
83AB1-102 SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc.	95	-	RFQ	데이터시트	83	Bulk	Active	Snap Dome	12	3 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format	Black	White	Panel Mount, Front	Pin Header	-	-40°C ~ 80°C	-	-	0.01A @ 24VDC	-
2K042103 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	6	-	RFQ	데이터시트	2000	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Polymer	Matrix	F1 ~ F4	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal

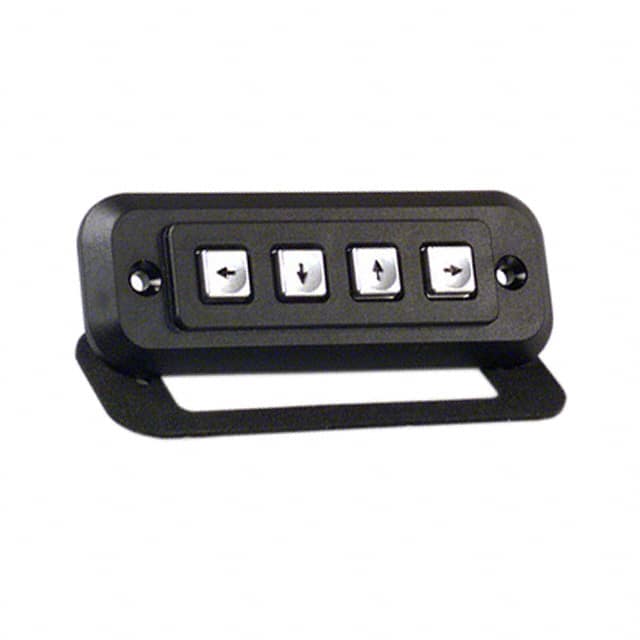

PLX041203 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	72	-	RFQ	데이터시트	1000 PLX	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Metal	Matrix	Arrows	Black	Silver	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-40°C ~ 100°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
EZB2-405003 SWITCH KEYPAD 2KEY ILLUM Storm Interface	5	-	RFQ	데이터시트	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
88AB2-143 SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc.	4	-	RFQ	데이터시트	88	Bulk	Active	Snap Dome	12	3 x 4	Non-Illuminated	Fixed	Polyester Overlay	Matrix	Telephone Format	Black	White	Panel Mount, Front or Rear	Pin Header	-	-40°C ~ 80°C	IP42	-	0.01A @ 24VDC	-
2K041103 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	19	-	RFQ	데이터시트	2000	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Arrows	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
GS120203 SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface	7	-	RFQ	데이터시트	GFX	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Interchangeable	Transparent Key Cap	Matrix	Customizable (Sold Separate)	-	Transparent	Panel Mount, Front or Rear	Pin Header	Rectangular - 83.00mm x 64.00mm	-20°C ~ 60°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
2K16T103 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	3	-	RFQ	데이터시트	2000	Bulk	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, A ~ C	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Square - 83.00mm²	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
EZB2-505003 SWITCH KEYPAD 2KEY ILLUM Storm Interface	13	-	RFQ	데이터시트	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
8616-210023 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	4	-	RFQ	데이터시트	SF6000	Box	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, Function Keys	Black, White	Multiple	Panel Mount, Front or Rear	Pin Header	Rectangular - 97.00mm x 79.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	-
EZB6-730003 SWITCH KEYPAD 6KEY ILLUM Storm Interface	4	-	RFQ	데이터시트	Nav-Bar™	Bulk	Active	Conductive Rubber	6	6 x 1	Illuminated	Fixed	Polymer	USB	Arrows, Help Button, Select	Black, White	Multiple	Panel Mount, Front	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
