홈 > 제품 > 개별 반도체 제품 > 트랜지스터 > IGBT > 단일 IGBT

단일 IGBT

제조사	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전류 - 콜렉터 펄스(Icm)	Vce(on) (최대) @ Vge, Ic	전력 - 최대	스위칭 에너지	입력 유형	게이트 충전	Td(켜짐/꺼짐) @ 25°C	테스트 조건	역방향 복구 시간(trr)	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
Alpha & Omega Semiconductor Inc. Bourns Inc. Diodes Incorporated Diotec Semiconductor Fairchild Semiconductor GeneSiC Semiconductor Harris Corporation Infineon Technologies International Rectifier IXYS Littelfuse Inc. Micro Commercial Co Microchip Technology Microsemi Corporation Motorola Nexperia USA Inc. onsemi Panjit International Inc. Powerex Inc. Qualcomm Renesas ROHM Semiconductor Sanken Electric USA Inc. Sanyo Semikron SemiQ STMicroelectronics Toshiba Semiconductor and Storage Watech Electronics WeEn Semiconductors	* - Alpha IGBT™ AlphaIGBT™ BIMOSFET™ CooliRIGBT™ CoolSiC™ EcoSPARK® FGH Gen5 XPT™ GenX3™ GenX3™, XPT™ GenX4™, XPT™ H HB HB2 HiPerFAST™ HiPerFAST™, Lightspeed 2™ HiPerFAST™, Lightspeed™ IH IH2 Lightspeed™ M PolarHV™ Polar™ POWER MOS 7® POWER MOS 8® POWER MOS 8™ PowerMESH™ RC-IGBT™ SMPS STripFET™ Thunderbolt IGBT® TrenchStop® TrenchStop™ TrenchStop™ 5 TrenchStop™ 5 WR5 TrenchStop™ 5 WR6 X2PT™ X2PT™, XPT™ XPT™ XPT™, Gen4 XPT™, GenX3™ XPT™, GenX4™ XPT™, GenX5™	- 12-SIP Exposed Tab 12-SIP, 7 Leads 24-PowerSMD, 21 Leads 4-SMD, Flat Leads 8-SMD, Flat Leads 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.173", 4.40mm Width) 8-TSOP (0.130", 3.30mm Width) 8-TSSOJ (0.094", 2.40mm Width) 8-TSSOP (0.173", 4.40mm Width) 8-VDFN 9-PowerSMD 9-SMD Module Die i4-Pac™-4, Isolated i4-Pac™-5 i4-Pac™-5 (3 Leads) ISOPLUS220™ ISOPLUS264™ ISOPLUSi5-PAK™ PLUS-220SMD SC-83 SC-94 SOT-227-4, miniBLOC TO-204AA TO-204AA, TO-3 TO-204AE TO-218-3 Isolated Tab, TO-218AC TO-218-5 TO-220-3 TO-220-3 Full Pack TO-220-3 Full Pack, Isolated Tab TO-220-3 Isolated Tab TO-220-3, Short Tab TO-220-5 TO-247-2 TO-247-3 TO-247-3 Exposed Pad TO-247-3 Variant TO-247-4 TO-247-6 TO-251-3 Short Leads, IPAK, TO-251AA TO-252-3, DPAK (2 Leads + Tab), SC-63 TO-261-3 TO-261-4, TO-261AA TO-262-3 Long Leads, I2PAK, TO-262AA TO-263-3, D2PAK (2 Leads + Tab), TO-263AB TO-263-4, D2PAK (3 Leads + Tab), TO-263AA TO-263-7, D2PAK (6 Leads + Tab), TO-263CB TO-263-8, D2PAK (7 Leads + Tab), TO-263CA TO-264-3, TO-264AA TO-268-3, D3PAK (2 Leads + Tab), TO-268AA TO-273AA TO-274AA TO-3P-3 Full Pack TO-3P-3, SC-65-3 TO-3PFM, SC-93-3 TO-3PL	Bag Box Bulk Cut Tape (CT) Retail Package Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Not For New Designs Obsolete	- Field Stop NPT NPT and Trench NPT, PT NPT, Trench Field Stop PT Trench Trench Field Stop	- 1000 V 1100 V 1200 V 1250 V 1300 V 135 V 1350 V 1400 V 1500 V 1600 V 1700 V 1800 V 250 V 2500 V 270 V 300 V 3000 V 330 V 3300 V 345 V 350 V 360 V 3600 V 365 V 375 V 380 V 390 V 395 V 400 V 4000 V 415 V 420 V 425 V 430 V 435 V 440 V 442 V 445 V 450 V 4500 V 460 V 480 V 500 V 560 V 600 V 650 V 670 V 700 V 750 V 900 V 950 V	- 1 A 10 A 10.8 A 100 A 101 A 104 A 105 A 106 A 107 A 108 A 109 A 11 A 11.4 A 11.5 A 11.7 A 11.8 A 110 A 111 A 112 A 113 A 114 A 115 A 116 A 117 A 118 A 119 A 12 A 120 A 121 A 122 A 125 A 126 A 13 A 130 A 132 A 133 A 134 A 135 A 136 A 138 A 14 A 14.3 A 14.7 A 140 A 141 A 143 A 144 A 145 A 148 A 15 A 15.5 A 150 A 154 A 155 A 156 A 16 A 16.5 A 160 A 161 A 164 A 165 A 166 A 17 A 17.5 A 170 A 175 A 178 A 18 A 18.8 A 180 A 183 A 188 A 19 A 190 A 198 A 2.2 A 2.4 A 20 A 20.3 A 200 A 208 A 21 A 212 A 216 A 22 A 220 A 223 A 225 A 229 A 23 A 23.5 A 23.6 A 230 A 232 A 234 A 24 A 240 A 245 A 25 A 250 A 26 A 26.9 A 260 A 27 A 275 A 28 A 280 A 283 A 29 A 290 A 3 A 3.2 A 30 A 300 A 31 A 310 A 32 A 320 A 33 A 34 A 340 A 35 A 36 A 37 A 37.5 A 37.7 A 370 A 375 A 38 A 380 A 39 A 4 A 40 A 400 A 41 A 410 A 42 A 43 A 44 A 440 A 45 A 450 A 46 A 47 A 470 A 48 A 480 A 49 A 5 A 5.3 A 5.5 A 5.7 A 50 A 500 A 500 mA 51 A 510 A 52 A 520 A 53 A 54 A 55 A 550 A 56 A 57 A 58 A 59 A 6 A 6.2 A 6.3 A 6.5 A 6.8 A 60 A 600 A 61 A 62 A 63 A 64 A 65 A 66 A 67 A 68 A 69 A 7 A 7.5 A 7.8 A 70 A 71 A 72 A 73 A 74 A 75 A 76 A 77 A 78 A 79 A 8 A 8.2 A 8.5 A 80 A 81 A 82 A 83 A 84 A 85 A 86 A 87 A 88 A 9 A 9.4 A 9.6 A 90 A 91 A 92 A 93 A 94 A 95 A 96 A 98 A 99 A	- 1.03 kA 1.13 kA 1.18 kA 10 A 100 A 1000 A 103 A 104 A 105 A 1050 A 1075 A 108 A 109 A 110 A 1100 A 112 A 113 A 114 A 1140 A 115 A 118 A 12 A 12.5 A 120 A 1200 A 124 A 125 A 126 A 128 A 129 A 13 A 13.5 A 130 A 132 A 133 A 135 A 136 A 14 A 140 A 144 A 145 A 146 A 1460 A 15 A 15.6 A 150 A 152 A 156 A 16 A 160 A 1600 A 161 A 165 A 166 A 168 A 17.5 A 170 A 174 A 18 A 180 A 184 A 19 A 190 A 192 A 193 A 195 A 196 A 2 A 20 A 200 A 202 A 204 A 207 A 208 A 21 A 210 A 215 A 216 A 22 A 220 A 224 A 225 A 23 A 230 A 235 A 236 A 239 A 24 A 240 A 25 A 250 A 252 A 255 A 26 A 260 A 265 A 27 A 275 A 28 A 280 A 29 A 290 A 3 A 3.5 A 30 A 300 A 307 A 310 A 32 A 320 A 330 A 34 A 340 A 35 A 350 A 36 A 360 A 370 A 378 A 38 A 380 A 40 A 400 A 42 A 42.5 A 420 A 424 A 430 A 44 A 440 A 45 A 450 A 46 A 460 A 47 A 48 A 480 A 485 A 490 A 50 A 500 A 52 A 520 A 530 A 54 A 56 A 560 A 57.5 A 570 A 58 A 580 A 6 A 60 A 600 A 62 A 620 A 630 A 64 A 640 A 65 A 675 A 68 A 680 A 7.5 A 70 A 700 A 72 A 720 A 730 A 74 A 740 A 75 A 750 A 76 A 760 A 770 A 79 A 790 A 8 A 80 A 800 A 82 A 84 A 840 A 860 A 88 A 9 A 9.6 A 9.9 A 90 A 900 A 92 A 950 A 96 A 98 A 99 A	- 1.15V @ 15V, 100A 1.25V @ 15V, 100A 1.25V @ 4V, 6A 1.2V @ 15V, 45A 1.2V @ 4V, 6A 1.35V @ 15V, 100A 1.35V @ 15V, 10A 1.35V @ 15V, 30A 1.35V @ 15V, 32A 1.35V @ 15V, 36A 1.35V @ 15V, 3A 1.35V @ 15V, 40A 1.35V @ 15V, 44A 1.35V @ 15V, 50A 1.35V @ 15V, 60A 1.35V @ 15V, 6A 1.35V @ 15V, 75A 1.36V @ 15V, 41A 1.3V @ 15V, 2A 1.3V @ 15V, 4A 1.45V @ 15V, 100A 1.45V @ 15V, 30A 1.45V @ 15V, 60A 1.45V @ 15V, 75A 1.4V @ 15V, 20A 1.4V @ 15V, 24A 1.4V @ 15V, 25A 1.4V @ 15V, 30A 1.4V @ 15V, 40A 1.4V @ 4V, 6A 1.55V @ 15V, 100A 1.55V @ 15V, 24A 1.55V @ 15V, 28A 1.55V @ 15V, 30A 1.55V @ 5V, 8A 1.57V @ 15V, 33A 1.58V @ 15V, 12A 1.59V @ 15V, 11A 1.5V @ 10V, 3A 1.5V @ 15V, 100A 1.5V @ 15V, 10A 1.5V @ 15V, 120A 1.5V @ 15V, 15A 1.5V @ 15V, 20A 1.5V @ 15V, 31A 1.5V @ 15V, 3A 1.5V @ 15V, 55A 1.5V @ 15V, 60A 1.5V @ 28V, 15A 1.5V @ 4.5V, 10A 1.65V @ 15V, 100A 1.65V @ 15V, 10A 1.65V @ 15V, 120A 1.65V @ 15V, 150A 1.65V @ 15V, 160A 1.65V @ 15V, 200A 1.65V @ 15V, 20A 1.65V @ 15V, 24A 1.65V @ 15V, 30A 1.65V @ 15V, 40A 1.65V @ 15V, 50A 1.65V @ 15V, 5A 1.65V @ 15V, 75A 1.65V @ 15V, 9A 1.65V @ 4.5V, 10A 1.65V @ 4V, 6A 1.67V @ 15V, 40A 1.68V @ 15V, 30A 1.69V @ 15V, 75A 1.6V @ 15V, 100A 1.6V @ 15V, 10A 1.6V @ 15V, 120A 1.6V @ 15V, 18A 1.6V @ 15V, 20A 1.6V @ 15V, 26A 1.6V @ 15V, 30A 1.6V @ 15V, 39A 1.6V @ 15V, 40A 1.6V @ 15V, 41A 1.6V @ 15V, 50A 1.6V @ 15V, 7A 1.6V @ 2.4V, 2.5A 1.6V @ 4.5V, 7A 1.6V @ 4V, 10A 1.6V @ 4V, 6A 1.71V @ 15V, 25A 1.72V @ 15V, 7.5A 1.73V @ 15V, 40A 1.74V @ 15V, 40A 1.75V @ 15V, 100A 1.75V @ 15V, 10A 1.75V @ 15V, 15A 1.75V @ 15V, 200A 1.75V @ 15V, 20A 1.75V @ 15V, 30A 1.75V @ 15V, 40A 1.75V @ 15V, 45A 1.75V @ 15V, 50A 1.75V @ 15V, 70A 1.75V @ 15V, 75A 1.75V @ 5V, 14A 1.77V @ 15V, 24A 1.77V @ 15V, 50A 1.7V @ 10V, 10A 1.7V @ 15V, 100A 1.7V @ 15V, 10A 1.7V @ 15V, 120A 1.7V @ 15V, 140A 1.7V @ 15V, 15A 1.7V @ 15V, 160A 1.7V @ 15V, 20A 1.7V @ 15V, 24A 1.7V @ 15V, 25A 1.7V @ 15V, 27A 1.7V @ 15V, 30A 1.7V @ 15V, 31A 1.7V @ 15V, 33A 1.7V @ 15V, 39A 1.7V @ 15V, 40A 1.7V @ 15V, 50A 1.7V @ 15V, 60A 1.7V @ 15V, 6A 1.7V @ 15V, 70A 1.7V @ 15V, 75A 1.7V @ 4.5V, 10A 1.7V @ 4.5V, 15A 1.81V @ 15V, 40A 1.81V @ 50A, 15V 1.82V @ 15V, 20A 1.82V @ 15V, 25A 1.82V @ 15V, 30A 1.82V @ 15V, 40A 1.85V @ 0V, 20A 1.85V @ 15V, 100A 1.85V @ 15V, 120A 1.85V @ 15V, 12A 1.85V @ 15V, 150A 1.85V @ 15V, 200A 1.85V @ 15V, 20A 1.85V @ 15V, 24A 1.85V @ 15V, 30A 1.85V @ 15V, 35A 1.85V @ 15V, 39A 1.85V @ 15V, 40A 1.85V @ 15V, 42A 1.85V @ 15V, 50A 1.85V @ 15V, 60A 1.85V @ 15V, 70A 1.85V @ 15V, 75A 1.85V @ 15V, 8A 1.88V @ 15V, 30A 1.8V @ 15V, 100A 1.8V @ 15V, 10A 1.8V @ 15V, 110A 1.8V @ 15V, 15A 1.8V @ 15V, 160A 1.8V @ 15V, 17A 1.8V @ 15V, 200A 1.8V @ 15V, 20A 1.8V @ 15V, 24A 1.8V @ 15V, 25A 1.8V @ 15V, 30A 1.8V @ 15V, 31A 1.8V @ 15V, 32A 1.8V @ 15V, 33A 1.8V @ 15V, 36A 1.8V @ 15V, 38A 1.8V @ 15V, 39A 1.8V @ 15V, 40.3A 1.8V @ 15V, 40A 1.8V @ 15V, 44A 1.8V @ 15V, 45A 1.8V @ 15V, 50A 1.8V @ 15V, 55A 1.8V @ 15V, 5A 1.8V @ 15V, 60A 1.8V @ 15V, 70A 1.8V @ 15V, 75A 1.8V @ 15V, 85A 1.8V @ 15V, 8A 1.8V @ 15V, 90A 1.8V @ 4.5V, 10A 1.8V @ 4V, 6A 1.91V @ 15V, 10A 1.94V @ 15V, 30A 1.95V @ 15V, 10A 1.95V @ 15V, 120A 1.95V @ 15V, 12A 1.95V @ 15V, 15A 1.95V @ 15V, 18A 1.95V @ 15V, 20A 1.95V @ 15V, 24A 1.95V @ 15V, 25A 1.95V @ 15V, 30A 1.95V @ 15V, 35A 1.95V @ 15V, 3A 1.95V @ 15V, 40A 1.95V @ 15V, 48A 1.95V @ 15V, 50A 1.95V @ 15V, 5A 1.95V @ 15V, 60A 1.95V @ 15V, 75A 1.95V @ 15V, 7A 1.96V @ 15V, 30A 1.96V @ 15V, 40A 1.96V @ 15V, 60A 1.97V @ 15V, 100A 1.97V @ 15V, 40A 1.98V @ 15V, 5A 1.99V @ 15V, 60A 1.9V @ 15V, 100A 1.9V @ 15V, 10A 1.9V @ 15V, 11.5A 1.9V @ 15V, 120A 1.9V @ 15V, 12A 1.9V @ 15V, 150A 1.9V @ 15V, 15A 1.9V @ 15V, 200A 1.9V @ 15V, 20A 1.9V @ 15V, 24A 1.9V @ 15V, 25A 1.9V @ 15V, 28A 1.9V @ 15V, 30A 1.9V @ 15V, 35A 1.9V @ 15V, 3A 1.9V @ 15V, 40A 1.9V @ 15V, 45A 1.9V @ 15V, 48A 1.9V @ 15V, 50A 1.9V @ 15V, 5A 1.9V @ 15V, 60A 1.9V @ 15V, 6A 1.9V @ 15V, 75A 1.9V @ 15V, 8.5A 1.9V @ 15V, 80A 1.9V @ 15V, 85A 1.9V @ 4.5V, 20A 1.9V @ 4V, 6A 1.9V @ 5V, 14A 1.9V @ 5V, 20A 10V @ 12V, 300A 10V @ 26V, 200A 2.01V @ 15V, 60A 2.02V @ 15V, 30A 2.02V @ 15V, 4A 2.05V @ 15V, 100A 2.05V @ 15V, 10A 2.05V @ 15V, 120A 2.05V @ 15V, 15A 2.05V @ 15V, 160A 2.05V @ 15V, 200A 2.05V @ 15V, 20A 2.05V @ 15V, 30A 2.05V @ 15V, 40A 2.05V @ 15V, 4A 2.05V @ 15V, 50A 2.05V @ 15V, 6A 2.05V @ 15V, 82A 2.07V @ 15V, 15A 2.07V @ 15V, 25A 2.07V @ 15V, 35A 2.07V @ 15V, 75A 2.07V @ 15V, 8A 2.0V @ 5V, 10A 2.11V @ 15V, 75A 2.14V @ 15V, 48A 2.14V @ 15V, 60A 2.15V @ 10V, 50A 2.15V @ 15V, 100A 2.15V @ 15V, 120A 2.15V @ 15V, 140A 2.15V @ 15V, 15A 2.15V @ 15V, 20A 2.15V @ 15V, 30A 2.15V @ 15V, 40A 2.15V @ 15V, 50A 2.15V @ 15V, 75A 2.15V @ 5V, 30A 2.1V @ 10V, 50A 2.1V @ 15V, 100A 2.1V @ 15V, 10A 2.1V @ 15V, 110A 2.1V @ 15V, 11A 2.1V @ 15V, 120A 2.1V @ 15V, 12A 2.1V @ 15V, 150A 2.1V @ 15V, 15A 2.1V @ 15V, 160A 2.1V @ 15V, 17A 2.1V @ 15V, 20A 2.1V @ 15V, 22A 2.1V @ 15V, 24A 2.1V @ 15V, 25A 2.1V @ 15V, 3.5A 2.1V @ 15V, 30A 2.1V @ 15V, 32A 2.1V @ 15V, 35A 2.1V @ 15V, 36A 2.1V @ 15V, 3A 2.1V @ 15V, 40A 2.1V @ 15V, 48A 2.1V @ 15V, 4A 2.1V @ 15V, 50A 2.1V @ 15V, 55A 2.1V @ 15V, 6.5A 2.1V @ 15V, 60A 2.1V @ 15V, 6A 2.1V @ 15V, 70A 2.1V @ 15V, 75A 2.1V @ 15V, 7A 2.1V @ 15V, 80A 2.1V @ 15V, 8A 2.1V @ 4.5V, 10A 2.22V @ 15V, 100A 2.22V @ 15V, 75A 2.25V @ 15V, 10A 2.25V @ 15V, 2A 2.25V @ 15V, 40A 2.25V @ 15V, 50A 2.25V @ 15V, 75A 2.25V @ 15V, 8A 2.2V @ 15V, 100A 2.2V @ 15V, 10A 2.2V @ 15V, 110A 2.2V @ 15V, 12A 2.2V @ 15V, 150A 2.2V @ 15V, 15A 2.2V @ 15V, 17A 2.2V @ 15V, 18A 2.2V @ 15V, 20A 2.2V @ 15V, 22A 2.2V @ 15V, 24A 2.2V @ 15V, 25A 2.2V @ 15V, 27A 2.2V @ 15V, 30A 2.2V @ 15V, 32A 2.2V @ 15V, 35A 2.2V @ 15V, 37A 2.2V @ 15V, 40A 2.2V @ 15V, 50A 2.2V @ 15V, 5A 2.2V @ 15V, 60A 2.2V @ 15V, 70A 2.2V @ 15V, 75A 2.2V @ 15V, 8A 2.2V @ 3.7V, 10A 2.2V @ 4V, 10A 2.2V @ 5V, 14A 2.32V @ 15V, 30A 2.34V @ 15V, 25A 2.34V @ 15V, 40A 2.35V @ 15V, 110A 2.35V @ 15V, 15A 2.35V @ 15V, 20A 2.35V @ 15V, 25A 2.35V @ 15V, 30A 2.35V @ 15V, 32A 2.35V @ 15V, 40A 2.35V @ 15V, 50A 2.35V @ 15V, 55A 2.35V @ 15V, 60A 2.35V @ 15V, 75A 2.35V @ 15V, 7A 2.35V @ 15V, 9A 2.37V @ 15V, 40A 2.37V @ 15V, 60A 2.3V @ 15V, 100A 2.3V @ 15V, 10A 2.3V @ 15V, 120A 2.3V @ 15V, 15A 2.3V @ 15V, 17A 2.3V @ 15V, 1A 2.3V @ 15V, 20A 2.3V @ 15V, 24A 2.3V @ 15V, 25A 2.3V @ 15V, 27A 2.3V @ 15V, 30A 2.3V @ 15V, 32A 2.3V @ 15V, 35A 2.3V @ 15V, 36A 2.3V @ 15V, 3A 2.3V @ 15V, 40A 2.3V @ 15V, 4A 2.3V @ 15V, 50A 2.3V @ 15V, 55A 2.3V @ 15V, 60A 2.3V @ 15V, 6A 2.3V @ 15V, 70A 2.3V @ 15V, 75A 2.3V @ 15V, 7A 2.3V @ 15V, 8.6A 2.3V @ 15V, 80A 2.3V @ 15V, 8A 2.3V @ 4.5V, 10A 2.3V @ 4.5V, 7A 2.3V @ 4V, 200A 2.42V @ 15V, 100A 2.42V @ 15V, 15A 2.42V @ 15V, 25A 2.42V @ 15V, 40A 2.42V @ 15V, 50A 2.42V @ 15V, 75A 2.45V @ 15V, 10A 2.45V @ 15V, 15A 2.45V @ 15V, 20A 2.45V @ 15V, 30A 2.45V @ 15V, 40A 2.45V @ 15V, 50A 2.45V @ 15V, 60A 2.4V @ 15V, 10A 2.4V @ 15V, 110A 2.4V @ 15V, 11A 2.4V @ 15V, 15A 2.4V @ 15V, 2.6A 2.4V @ 15V, 20A 2.4V @ 15V, 24A 2.4V @ 15V, 25A 2.4V @ 15V, 26A 2.4V @ 15V, 2A 2.4V @ 15V, 30A 2.4V @ 15V, 35A 2.4V @ 15V, 3A 2.4V @ 15V, 40A 2.4V @ 15V, 45A 2.4V @ 15V, 4A 2.4V @ 15V, 50A 2.4V @ 15V, 5A 2.4V @ 15V, 60A 2.4V @ 15V, 6A 2.4V @ 15V, 7.8A 2.4V @ 15V, 70A 2.4V @ 15V, 75A 2.4V @ 15V, 8A 2.4V @ 15V, 95A 2.52V @ 15V, 3A 2.55V @ 15V, 35A 2.55V @ 15V, 40A 2.56V @ 15V, 8A 2.5V @ 10V, 3A 2.5V @ 10V, 5A 2.5V @ 15V, 100A 2.5V @ 15V, 10A 2.5V @ 15V, 12A 2.5V @ 15V, 150A 2.5V @ 15V, 15A 2.5V @ 15V, 16A 2.5V @ 15V, 2.5A 2.5V @ 15V, 200A 2.5V @ 15V, 20A 2.5V @ 15V, 24A 2.5V @ 15V, 25A 2.5V @ 15V, 26A 2.5V @ 15V, 30A 2.5V @ 15V, 32A 2.5V @ 15V, 3A 2.5V @ 15V, 40A 2.5V @ 15V, 45A 2.5V @ 15V, 47A 2.5V @ 15V, 4A 2.5V @ 15V, 50A 2.5V @ 15V, 55A 2.5V @ 15V, 5A 2.5V @ 15V, 60A 2.5V @ 15V, 62A 2.5V @ 15V, 6A 2.5V @ 15V, 75A 2.5V @ 15V, 7A 2.5V @ 15V, 80A 2.5V @ 15V, 85A 2.5V @ 15V, 8A 2.5V @ 4V, 15A 2.61V @ 15V, 40A 2.62V @ 15V, 5A 2.65V @ 15V, 15A 2.65V @ 15V, 20A 2.65V @ 15V, 30A 2.65V @ 15V, 50A 2.65V @ 4.5V, 10A 2.6V @ 15V, 1.2A 2.6V @ 15V, 100A 2.6V @ 15V, 10A 2.6V @ 15V, 12A 2.6V @ 15V, 15A 2.6V @ 15V, 20A 2.6V @ 15V, 25A 2.6V @ 15V, 30A 2.6V @ 15V, 3A 2.6V @ 15V, 40A 2.6V @ 15V, 50A 2.6V @ 15V, 5A 2.6V @ 15V, 6.5A 2.6V @ 15V, 60A 2.6V @ 15V, 75A 2.6V @ 15V, 80A 2.6V @ 4V, 20A 2.72V @ 15V, 15A 2.73V @ 15V, 30A 2.75V @ 15V, 12A 2.75V @ 15V, 20A 2.75V @ 15V, 3A 2.75V @ 15V, 5A 2.75V @ 15V, 60A 2.76V @ 15V, 120A 2.7V @ 15V, 100A 2.7V @ 15V, 10A 2.7V @ 15V, 11A 2.7V @ 15V, 12A 2.7V @ 15V, 140A 2.7V @ 15V, 14A 2.7V @ 15V, 15A 2.7V @ 15V, 16A 2.7V @ 15V, 18A 2.7V @ 15V, 20A 2.7V @ 15V, 24A 2.7V @ 15V, 27A 2.7V @ 15V, 28A 2.7V @ 15V, 2A 2.7V @ 15V, 30A 2.7V @ 15V, 32A 2.7V @ 15V, 35A 2.7V @ 15V, 3A 2.7V @ 15V, 40A 2.7V @ 15V, 45A 2.7V @ 15V, 4A 2.7V @ 15V, 50A 2.7V @ 15V, 55A 2.7V @ 15V, 5A 2.7V @ 15V, 60A 2.7V @ 15V, 65A 2.7V @ 15V, 70A 2.7V @ 15V, 7A 2.7V @ 15V, 80A 2.7V @ 15V, 8A 2.85V @ 15V, 20A 2.85V @ 15V, 50A 2.88V @ 15V, 120A 2.8V @ 15V, 100A 2.8V @ 15V, 10A 2.8V @ 15V, 12A 2.8V @ 15V, 15A 2.8V @ 15V, 1A 2.8V @ 15V, 20A 2.8V @ 15V, 30A 2.8V @ 15V, 35A 2.8V @ 15V, 3A 2.8V @ 15V, 40A 2.8V @ 15V, 42A 2.8V @ 15V, 50A 2.8V @ 15V, 5A 2.8V @ 15V, 60A 2.8V @ 15V, 7A 2.8V @ 15V, 9A 2.8V @ 5V, 20A 2.95V @ 15V, 1.5A 2.95V @ 15V, 10A 2.96V @ 15V, 120A 2.9V @ 15V, 100A 2.9V @ 15V, 10A 2.9V @ 15V, 1A 2.9V @ 15V, 25A 2.9V @ 15V, 30A 2.9V @ 15V, 32A 2.9V @ 15V, 3A 2.9V @ 15V, 40A 2.9V @ 15V, 42A 2.9V @ 15V, 50A 2.9V @ 15V, 60A 2.9V @ 15V, 75A 2.9V @ 4V, 150A 2.9V @ 4V, 25A 2V @ 15A, 60A 2V @ 15V, 100A 2V @ 15V, 10A 2V @ 15V, 120A 2V @ 15V, 12A 2V @ 15V, 140A 2V @ 15V, 15A 2V @ 15V, 160A 2V @ 15V, 20A 2V @ 15V, 24A 2V @ 15V, 25A 2V @ 15V, 27A 2V @ 15V, 28A 2V @ 15V, 300mA 2V @ 15V, 30A 2V @ 15V, 35A 2V @ 15V, 36A 2V @ 15V, 3A 2V @ 15V, 40A 2V @ 15V, 48A 2V @ 15V, 50A 2V @ 15V, 5A 2V @ 15V, 60A 2V @ 15V, 6A 2V @ 15V, 75A 2V @ 15V, 7A 2V @ 15V, 80A 2V @ 15V, 8A 2V @ 15V, 9A 2V @ 4.5V, 10A 2V @ 4.5V, 20A 2V @ 4V, 15A 2V @ 5V, 10A 3.15V @ 15V, 15A 3.15V @ 15V, 20A 3.15V @ 15V, 30A 3.15V @ 15V, 50A 3.15V @ 15V, 6A 3.1V @ 15V, 14A 3.1V @ 15V, 16A 3.1V @ 15V, 18A 3.1V @ 15V, 20A 3.1V @ 15V, 21A 3.1V @ 15V, 25A 3.1V @ 15V, 2A 3.1V @ 15V, 38A 3.1V @ 15V, 47A 3.1V @ 15V, 75A 3.2V @ 12V, 14A 3.2V @ 15V, 120A 3.2V @ 15V, 12A 3.2V @ 15V, 15A 3.2V @ 15V, 20A 3.2V @ 15V, 25A 3.2V @ 15V, 32A 3.2V @ 15V, 40A 3.2V @ 15V, 50A 3.2V @ 15V, 55A 3.2V @ 15V, 70A 3.2V @ 15V, 82A 3.2V @ 15V, 85A 3.2V @ 20V, 17.5A 3.2V @ 20V, 35A 3.3V @ 15V, 15A 3.3V @ 15V, 16A 3.3V @ 15V, 17A 3.3V @ 15V, 24A 3.3V @ 15V, 25A 3.3V @ 15V, 30A 3.3V @ 15V, 32A 3.3V @ 15V, 34A 3.3V @ 15V, 35A 3.3V @ 15V, 60A 3.4V @ 15V, 15A 3.4V @ 15V, 20A 3.4V @ 15V, 60A 3.4V @ 15V, 6A 3.4V @ 15V, 82A 3.5V @ 15V, 100A 3.5V @ 15V, 10A 3.5V @ 15V, 12A 3.5V @ 15V, 15A 3.5V @ 15V, 16A 3.5V @ 15V, 17A 3.5V @ 15V, 21A 3.5V @ 15V, 24A 3.5V @ 15V, 25A 3.5V @ 15V, 28A 3.5V @ 15V, 2A 3.5V @ 15V, 30A 3.5V @ 15V, 32A 3.5V @ 15V, 35A 3.5V @ 15V, 40A 3.5V @ 15V, 50A 3.5V @ 15V, 65A 3.5V @ 15V, 75A 3.6V @ 15V, 150A 3.6V @ 15V, 15A 3.6V @ 15V, 25A 3.6V @ 15V, 28A 3.6V @ 15V, 2A 3.6V @ 15V, 35A 3.6V @ 15V, 5A 3.6V @ 15V, 8A 3.71V @ 15V, 50A 3.7V @ 15V, 24A 3.7V @ 15V, 25A 3.7V @ 15V, 30A 3.7V @ 15V, 50A 3.7V @ 15V, 8A 3.85V @ 15V, 20A 3.85V @ 15V, 30A 3.8V @ 15V, 10A 3.8V @ 15V, 15A 3.8V @ 15V, 16A 3.8V @ 15V, 20A 3.9V @ 15V, 13A 3.9V @ 15V, 15A 3.9V @ 15V, 19A 3.9V @ 15V, 25A 3.9V @ 15V, 30A 3.9V @ 15V, 35A 3.9V @ 15V, 40A 3.9V @ 15V, 42A 3.9V @ 15V, 45A 3.9V @ 15V, 75A 3V @ 15V, 100A 3V @ 15V, 10A 3V @ 15V, 12A 3V @ 15V, 15A 3V @ 15V, 20A 3V @ 15V, 25A 3V @ 15V, 27A 3V @ 15V, 30A 3V @ 15V, 35A 3V @ 15V, 40A 3V @ 15V, 42A 3V @ 15V, 45A 3V @ 15V, 50A 3V @ 15V, 6.5A 3V @ 15V, 64A 3V @ 15V, 6A 3V @ 15V, 8A 4.1V @ 10V, 20A 4.2V @ 15V, 10A 4.2V @ 15V, 20A 4.2V @ 15V, 24A 4.2V @ 15V, 40A 4.3V @ 15V, 5.3A 4.3V @ 15V, 5A 4.4V @ 15V, 30A 4.5V @ 15V, 12A 4.5V @ 15V, 5A 4.7V @ 15V, 40A 4.7V @ 20V, 100A 4.85V @ 15V, 40A 4.99V @ 15V, 20A 4V @ 15V, 10A 4V @ 15V, 12A 4V @ 15V, 16A 4V @ 15V, 17A 4V @ 15V, 24A 4V @ 15V, 25A 4V @ 15V, 30A 4V @ 15V, 35A 4V @ 15V, 40A 4V @ 15V, 50A 4V @ 15V, 60A 4V @ 15V, 6A 4V @ 15V, 8A 5.2V @ 15V, 100A 5.2V @ 15V, 21A 5.2V @ 15V, 30A 5.2V @ 15V, 75A 5.2V @ 15V, 90A 5.4V @ 2.5V, 100A 5.4V @ 4V, 150A 5.5V @ 10V, 5A 5.5V @ 15V, 75A 5.5V @ 2.5V, 150A 5.6V @ 4V, 100A 5.9V @ 15V, 40A 5V @ 13V, 3A 5V @ 15V, 11A 5V @ 15V, 20A 5V @ 15V, 21A 5V @ 15V, 240A 5V @ 15V, 40A 5V @ 15V, 8A 5V @ 4V, 150A 6V @ 15V, 10A 6V @ 15V, 14A 6V @ 15V, 15A 6V @ 15V, 16A 6V @ 15V, 21A 6V @ 15V, 42A 6V @ 15V, 4A 6V @ 15V, 5A 6V @ 4V, 150A 7.1V @ 15V, 20A 7.2V @ 15V, 3A 7V @ 15V, 3A 7V @ 15V, 5A 7V @ 2.5V, 100A 8V @ 4.5V, 130A 8V @ 4.5V, 150A 8V @ 4V, 130A 9V @ 2.5V, 150A 9V @ 3V, 150A	- 1 W 1.071 kW 1.086 kW 1.16 kW 1.2 W 1.25 W 1.6 W 1.61 kW 1.8 W 100 W 1000 W 1004 W 101 W 104 W 1040 W 1041 W 1042 W 105 W 106 W 107 W 108 W 110 W 111 W 113 W 114 W 115 W 115.4 W 1150 W 117 W 120 W 1200 W 122 W 124 W 125 W 1250 W 127 W 130 W 133 W 136 W 1360 W 138 W 139 W 140 W 141 W 144 W 145 W 147 W 148 W 149 W 1495 W 150 W 1500 W 154 W 156 W 156.2 W 1560 W 159 W 16 W 160 W 161 W 163 W 1630 W 164 W 165 W 166 W 166.7 W 167 W 168 W 170 W 1700 W 174 W 175 W 176 W 177 W 178 W 178.5 W 179 W 18 W 180 W 184 W 185 W 186 W 187 W 188 W 189 W 190 W 192 W 192.3 W 194 W 195 W 197 W 198 W 2 W 2.1 W 2.5 W 20 W 200 W 201 W 201.6 W 202 W 203 W 205 W 206 W 208 W 208.3 W 210 W 211 W 212 W 214 W 215 W 216 W 217 W 219 W 22 W 220 W 223 W 225 W 227 W 227.2 W 228 W 229 W 23 W 230 W 230.8 W 2300 W 231 W 234 W 235 W 235.48 W 235.8 W 238 W 239 W 24 W 24.2 W 240 W 245 W 246 W 249 W 25 W 250 W 251 W 254 W 255 W 257 W 258 W 259 W 260 W 260.4 W 261 W 263 W 267 W 268 W 270 W 272 W 273 W 274 W 275 W 276 W 277 W 278 W 28 W 28.4 W 280 W 282 W 283 W 284 W 285 W 287 W 288 W 289 W 29 W 290 W 291 W 294 W 297 W 297.6 W 298 W 30 W 30.5 W 300 W 303 W 304 W 305 W 306 W 308 W 31 W 31.2 W 310 W 312 W 312.5 W 313 W 319 W 319.2 W 32 W 32.6 W 320 W 321 W 325 W 326 W 328.9 W 329 W 33 W 33.3 W 33.8 W 330 W 333 W 337 W 338 W 339 W 339.37 W 34 W 340 W 340.9 W 341 W 345 W 346 W 347 W 348 W 349 W 35 W 35.3 W 35.7 W 350 W 357 W 36 W 36.6 W 360 W 365 W 366 W 368 W 37 W 370 W 375 W 378 W 379 W 38 W 380 W 384 W 385 W 39 W 39.7 W 390 W 391 W 394 W 395 W 398 W 40 W 400 W 404 W 405 W 41 W 41.2 W 412 W 415 W 416 W 417 W 42 W 420 W 427 W 428 W 429 W 43 W 430 W 434 W 44 W 44.6 W 441 W 446 W 45 W 450 W 452 W 453 W 454 W 455 W 46 W 46.8 W 460 W 462 W 463 W 468 W 469 W 47 W 470 W 48 W 480 W 483 W 484 W 49 W 49.2 W 498 W 5.1 W 50 W 50.4 W 500 W 503 W 51.6 W 51.7 W 510 W 517 W 52 W 520 W 521 W 529 W 53 W 53.6 W 535 W 536 W 54 W 54.4 W 540 W 543 W 549 W 55 W 555 W 556 W 56 W 56.8 W 560 W 57 W 576 W 577 W 58 W 59 W 595 W 6.3 W 6.8 W 60 W 600 mW 600 W 61 W 62 W 62.5 W 621 W 625 W 63 W 63.5 W 630 W 635 W 64 W 65 W 650 W 652 W 66 W 660 W 67 W 68 W 68.8 W 680 W 682 W 69 W 694 W 695 W 7.2 W 70 W 714 W 72 W 721 W 73 W 73.5 W 735 W 74 W 75 W 750 W 76 W 77 W 78 W 780 W 781 W 789 W 79 W 790 W 80 W 81 W 82 W 82.4 W 824 W 83 W 830 W 833 W 85 W 866 W 87 W 88 W 880 W 882 W 89 W 892 W 90 W 92 W 937 W 938 W 94 W 940 W 95 W 96 W 960 W 961 W 962 W 99 W	- -, 1.2mJ (off) -, 1.3mJ (off) -, 110µJ (off) -, 140µJ (off) -, 2.15J (off) -, 2.315mJ (off) -, 2.33mJ (off) -, 240µJ (off) -, 290µJ (off) -, 350µJ (off) -, 540µJ (off) -, 700µJ (off) -, 70µJ (off) 1.01mJ (on), 2.53mJ (off) 1.01mJ (on), 297µJ (off) 1.02mJ (on), 370µJ (off) 1.02mJ (on), 410µJ (off) 1.02mJ (on), 710µJ (off) 1.03mJ (on), 480µJ (off) 1.04mJ (on), 1.35mJ (off) 1.04mJ (on), 3.4mJ (off) 1.04mJ (on), 730µJ (off) 1.05mJ (off) 1.05mJ (on), 1.03mJ (off) 1.05mJ (on), 2.5mJ (off) 1.05mJ (on), 490µJ (off) 1.05mJ (on), 520µJ (off) 1.05mJ (on), 590µJ (off) 1.05mJ (on), 700µJ (off) 1.05mJ (on), 800µJ (off) 1.06mJ (on), 1.14mJ (off) 1.06mJ (on), 1.56mJ (off) 1.06mJ (on), 610µJ (off) 1.06mJ (on), 620µJ (off) 1.07mJ (on), 1.49mJ (off) 1.09mJ (on), 1.33mJ (off) 1.09mJ (on), 570µJ (off) 1.09mJ (on), 580µJ (off) 1.09mJ (on), 626µJ (off) 1.11mJ (on), 1.68mJ (off) 1.13mJ (on), 310µJ (off) 1.14mJ (on), 740µJ (off) 1.15mJ 1.15mJ (off) 1.15mJ (on), 271µJ (off) 1.15mJ (on), 350µJ (off) 1.15mJ (on), 460µJ (off) 1.16mJ (on), 270µJ (off) 1.16mJ (on), 280µJ (off) 1.16mJ (on), 470µJ (off) 1.16mJ (on), 900µJ (off) 1.17mJ 1.17mJ (on), 280µJ (off) 1.17mJ (on), 500µJ (off) 1.17mJ (on), 540µJ (off) 1.17mJ (on), 940µJ (off) 1.185mJ (on), 1.565mJ (off) 1.18mJ (on), 200µJ (off) 1.18mJ (on), 960µJ (off) 1.19mJ (on), 380µJ (off) 1.19mJ (on), 460µJ (off) 1.19mJ (on), 630µJ (off) 1.1mJ (off) 1.1mJ (on), 1.15mJ (off) 1.1mJ (on), 1.1mJ (off) 1.1mJ (on), 1.2mJ (off) 1.1mJ (on), 130µJ (off) 1.1mJ (on), 21mJ (off) 1.1mJ (on), 240µJ (off) 1.1mJ (on), 3.2mJ (off) 1.1mJ (on), 400µJ (off) 1.1mJ (on), 420µJ (off) 1.1mJ (on), 600µJ (off) 1.1mJ (on), 800µJ (off) 1.21mJ (off) 1.21mJ (on), 2.25mJ (off) 1.22mJ (on), 440µJ (off) 1.22mJ (on), 610µJ (off) 1.23mJ (on), 380µJ (off) 1.23mJ (on), 550µJ (off) 1.23mJ (on), 740µJ (off) 1.24mJ (on), 1.22mJ (off) 1.25mJ (on), 1.26mJ (off) 1.25mJ (on), 3.2mJ (off) 1.25mJ (on), 500µJ (off) 1.25mJ (on), 530µJ (off) 1.26mJ (on), 450µJ (off) 1.27mJ (on), 1.37mJ (off) 1.27mJ (on), 2mJ (off) 1.27mJ (on), 460µJ (off) 1.27mJ (on), 650µJ (off) 1.28mJ (off) 1.28mJ (on), 384µJ (off) 1.28mJ (on), 500µJ (off) 1.28mJ (on), 560µJ (off) 1.28mJ (on), 780µJ (off) 1.29mJ 1.2mJ (off) 1.2mJ (on), 1.1mJ (off) 1.2mJ (on), 1.4mJ (off) 1.2mJ (on), 370µJ (off) 1.2mJ (on), 400µJ (off) 1.2mJ (on), 500µJ (off) 1.2mJ (on), 850µJ (off) 1.315mJ (on), 1.515mJ (off) 1.31mJ (on), 1.12mJ (off) 1.32mJ (off) 1.32mJ (on), 1.37mJ (off) 1.34mJ (on), 1.5mJ (off) 1.354mJ (on), 1.614mJ (off) 1.35mJ (on), 309µJ (off) 1.35mJ (on), 400µJ (off) 1.35mJ (on), 440µJ (off) 1.36mJ (on), 3.36mJ (off) 1.37mJ 1.37mJ (on), 250µJ (off) 1.37mJ (on), 470µJ (off) 1.38mJ 1.38mJ (on), 1.05mJ (off) 1.38mJ (on), 3.5mJ (off) 1.38mJ (on), 906µJ (off) 1.3mJ (off) 1.3mJ (on), 1.05mJ (off) 1.3mJ (on), 1.2mJ (off) 1.3mJ (on), 1.34mJ (off) 1.3mJ (on), 1.5mJ (off) 1.3mJ (on), 1mJ (off) 1.3mJ (on), 260µJ (off) 1.3mJ (on), 3.4mJ (off) 1.3mJ (on), 370µJ (off) 1.3mJ (on), 500µJ (off) 1.3mJ (on), 7.95mJ (off) 1.3mJ (on), 800µJ (off) 1.41mJ (on), 600µJ (off) 1.428mJ (on), 1.05mJ (off) 1.42mJ (on), 1.16mJ (off) 1.43mJ (on), 1.2mJ (off) 1.43mJ (on), 3.83mJ (off) 1.44mJ (on), 550µJ (off) 1.45mJ (off) 1.45mJ (on), 1.55mJ (off) 1.45mJ (on), 470µJ (off) 1.46mJ 1.46mJ (on), 1.07mJ (off) 1.46mJ (on), 1.29mJ (off) 1.46mJ (on), 540µJ (off) 1.46mJ (on), 630µJ (off) 1.47mJ (off) 1.48mJ (on), 660µJ (off) 1.49mJ (on), 670µJ (off) 1.4mJ (off) 1.4mJ (on), 1.1mJ (off) 1.4mJ (on), 1.3mJ (off) 1.4mJ (on), 1.65mJ (off) 1.4mJ (on), 1.8mJ (off) 1.4mJ (on), 1mJ (off) 1.4mJ (on), 220µJ (off) 1.4mJ (on), 3.5mJ (off) 1.4mJ (on), 560µJ (off) 1.4mJ (on), 700µJ (off) 1.4mJ (on), 800µJ (off) 1.51mJ (on), 1.46mJ (off) 1.52mJ (on), 700µJ (off) 1.53mJ (on), 850µJ (off) 1.54mJ (on), 450µJ (off) 1.55mJ 1.55mJ (on), 1.68mJ (off) 1.55mJ (on), 1.7mJ (off) 1.55mJ (on), 300µJ (off) 1.55mJ (on), 480µJ (off) 1.56mJ (on), 1.07mJ (off) 1.56mJ (on), 1.22mJ (off) 1.57mJ (on), 1.06mJ (off) 1.57mJ (on), 3.2mJ (off) 1.57mJ (on), 720µJ (off) 1.58mJ (on), 1.14mJ (off) 1.59mJ 1.59mJ (on), 1.34mJ (off) 1.59mJ (on), 390µJ (off) 1.59mJ (on), 580µJ (off) 1.59mJ (on), 660µJ (off) 1.59mJ (on), 750µJ (off) 1.59mJ (on), 900µJ (off) 1.5mJ (off) 1.5mJ (on), 1.1mJ (off) 1.5mJ (on), 1.42mJ (off) 1.5mJ (on), 1.5mJ (off) 1.5mJ (on), 1mJ (off) 1.5mJ (on), 2.25mJ (off) 1.5mJ (on), 2.4mJ (off) 1.5mJ (on), 3.3mJ (off) 1.5mJ (on), 3.4mJ (off) 1.5mJ (on), 460µJ (off) 1.5mJ (on), 500µJ (off) 1.5mJ (on), 590µJ (off) 1.5mJ (on), 660µJ (off) 1.5mJ (on), 730µJ (off) 1.5mJ (on), 950µJ (off) 1.61mJ (on), 3.2mJ (off) 1.61mJ (on), 530µJ (off) 1.61mJ (on), 840µJ (off) 1.625mJ (on), 1.389mJ (off) 1.65mJ (off) 1.65mJ (on), 1.7mJ (off) 1.66mJ (on), 4.44mJ (off) 1.68mJ 1.68mJ (on), 1.03mJ (off) 1.68mJ (on), 1.11mJ (off) 1.69mJ (on), 630µJ (off) 1.69mJ (on), 920µJ (off) 1.6mJ (off) 1.6mJ (on), 1.1mJ (off) 1.6mJ (on), 1.7mJ (off) 1.6mJ (on), 1.8mJ (off) 1.6mJ (on), 1mJ (off) 1.6mJ (on), 420µJ (off) 1.6mJ (on), 700µJ (off) 1.6mJ (on), 800µJ (off) 1.72mJ (on), 300µJ (off) 1.74mJ (on), 560µJ (off) 1.75mJ (off) 1.76mJ (on), 362µJ (off) 1.79mJ (on), 670µJ (off) 1.7mJ (on), 1.1mJ (off) 1.7mJ (on), 1.4mJ (off) 1.7mJ (on), 1.5mJ (off) 1.7mJ (on), 1mJ (off) 1.7mJ (on), 500µJ (off) 1.7mJ (on), 600µJ (off) 1.81mJ (on), 2.02mJ (off) 1.81mJ (on), 810µJ (off) 1.82mJ (on), 850µJ (off) 1.85mJ (on), 1.6mJ (off) 1.85mJ (on), 450µJ (off) 1.86mJ (on), 1.13mJ (off) 1.88mJ (on), 2.38mJ (off) 1.89mJ (on), 550µJ (off) 1.8mJ (off) 1.8mJ (on), 1.4mJ (off) 1.8mJ (on), 1.5mJ (off) 1.8mJ (on), 1.93mJ (off) 1.8mJ (on), 19.6mJ (off) 1.8mJ (on), 1mJ (off) 1.8mJ (on), 4.41mJ (off) 1.8mJ (on), 550µJ (off) 1.8mJ (on), 600µJ (off) 1.92mJ (on), 850µJ (off) 1.93mJ (off) 1.94mJ (on), 1.55mJ (off) 1.94mJ (on), 730µJ (off) 1.94mJ (on), 770µJ (off) 1.95mJ (on), 1.71mJ (off) 1.95mJ (on), 600µJ (off) 1.96mJ 1.96mJ (on), 540µJ (off) 1.97mJ (on), 570µJ (off) 1.9mJ 1.9mJ (on), 0.52mJ (off) 1.9mJ (on), 1.5mJ (off) 1.9mJ (on), 1.8mJ (off) 1.9mJ (on), 1mJ (off) 1.9mJ (on), 2mJ (off) 10.3mJ (on), 5.72mJ (off) 10.6mJ (off) 100µJ (on), 120µJ (off) 100µJ (on), 130µJ (off) 100µJ (on), 160µJ (off) 100µJ (on), 40µJ (off) 100µJ (on), 600µJ (off) 105µJ (on), 150µJ (off) 108µJ (on), 99µJ (off) 10mJ (off) 10mJ (on), 33mJ (off) 11.3mJ (on), 4.7mJ (off) 11.7mJ (on), 6.9mJ (off) 11.8mJ (off) 110µJ 110µJ (off) 110µJ (on), 135µJ (off) 110µJ (on), 160µJ (off) 110µJ (on), 220µJ (off) 110µJ (on), 230µJ (off) 110µJ (on), 40µJ (off) 110µJ (on), 80µJ (off) 114µJ (on), 165µJ (off) 115µJ (on), 135µJ (off) 115µJ (on), 165µJ (off) 115µJ (on), 195µJ (off) 115µJ (on), 600µJ (off) 1185µJ (on), 1565µJ (off) 1192µJ (on), 1088µJ (off) 11mJ (off) 11mJ (on), 9.5mJ (off) 12.4mJ (on), 5.7mJ (off) 120µJ (off) 120µJ (on), 150µJ (off) 120µJ (on), 2.05mJ (off) 120µJ (on), 270µJ (off) 120µJ (on), 340µJ (off) 120µJ (on), 50µJ (off) 120µJ (on), 540µJ (off) 120µJ (on), 90µJ (off) 123µJ (off) 125µJ (off) 127µJ (on), 334µJ (off) 13.1mJ (on), 6.3mJ (off) 130µJ (on), 110µJ (off) 130µJ (on), 120µJ (off) 130µJ (on), 121µJ (off) 130µJ (on), 130µJ (off) 130µJ (on), 40µJ (off) 130µJ (on), 83µJ (off) 130µJ (on), 92µJ (off) 131µJ 131µJ (on), 96µJ (off) 132µJ (on), 62µJ (off) 135µJ (on), 815µJ (off) 136µJ (on), 207µJ (off) 138µJ (on), 52µJ (off) 13mJ (off) 13mJ (on), 11mJ (off) 14.4mJ (on), 6.9mJ (off) 140µJ 140µJ (off) 140µJ (on), 120µJ (off) 140µJ (on), 150µJ (off) 140µJ (on), 2.58mJ (off) 140µJ (on), 250µJ (off) 140µJ (on), 40µJ (off) 140µJ (on), 560µJ (off) 140µJ (on), 62µJ (off) 141µJ (on), 215µJ (off) 143µJ 14mJ (off) 15.3mJ (on), 7mJ (off) 15.5mJ (on), 4.3mJ (off) 150µJ (on), 215µJ (off) 150µJ (on), 250µJ (off) 150µJ (on), 300µJ (off) 150µJ (on), 50µJ (off) 150µJ (on), 700µJ (off) 151mJ (on), 293mJ (off) 151µJ (on), 104µJ (off) 151µJ (on), 293µJ (off) 156µJ (on), 165µJ (off) 15mJ (off) 15mJ (on), 30mJ (off) 160µJ (on), 100µJ (off) 160µJ (on), 110µJ (off) 160µJ (on), 120µJ (off) 160µJ (on), 130µJ (off) 160µJ (on), 160µJ (off) 160µJ (on), 200µJ (off) 160µJ (on), 40µJ (off) 160µJ (on), 60µJ (off) 160µJ (on), 90µJ (off) 1620µJ (on), 2500µJ (off) 1652µJ (on), 1389µJ (off) 165µJ (on), 255µJ (off) 165µJ (on), 600µJ (off) 16mJ (off) 170µJ (off) 170µJ (on), 110µJ (off) 170µJ (on), 130µJ (off) 170µJ (on), 60µJ (off) 170µJ (on), 80µJ (off) 180µJ (on), 130µJ (off) 180µJ (on), 180µJ (off) 180µJ (on), 250µJ (off) 180µJ (on), 420µJ (off) 180µJ (on), 45µJ (off) 1857µJ (on), 2311µJ (off) 185µJ (off) 190µJ 190µJ (off) 190µJ (on), 1.06mJ (off) 190µJ (on), 100µJ (off) 190µJ (on), 140µJ (off) 190µJ (on), 160µJ (off) 190µJ (on), 920µJ (off) 194µJ (on), 388µJ (off) 19µJ (on), 12µJ (off) 1mJ 1mJ (off) 1mJ (on), 1.185mJ (off) 1mJ (on), 1.32mJ (off) 1mJ (on), 1.4mJ (off) 1mJ (on), 1.5mJ (off) 1mJ (on), 270µJ (off) 1mJ (on), 3.75mJ (off) 1mJ (on), 300µJ (off) 1mJ (on), 3mJ (off) 1mJ (on), 520µJ (off) 1mJ (on), 600µJ (off) 1mJ (on), 700µJ (off) 1mJ (on), 800µJ (off) 1mJ (on), 850µJ (off) 2.01mJ (on), 1.76mJ (off) 2.02mJ (off) 2.05mJ 2.05mJ (on), 360µJ (off) 2.08mJ (on), 1.15mJ (off) 2.08mJ (on), 3.36mJ (off) 2.09mJ (on), 1.03mJ (off) 2.105mJ (on), 1.182mJ (off) 2.11mJ (on), 1.18mJ (off) 2.12mJ (on), 1.14mJ (off) 2.14mJ (on), 1.48mJ (off) 2.15mJ (on), 840µJ (off) 2.15µJ (off) 2.17mJ (on), 1.23mJ (off) 2.18mJ (on), 1.3mJ (off) 2.1mJ (off) 2.1mJ (on), 1.13mJ (off) 2.1mJ (on), 1.3mJ (off) 2.1mJ (on), 1.5mJ (off) 2.1mJ (on), 560µJ (off) 2.21mJ (on), 1.2mJ (off) 2.23mJ (on), 1.64mJ (off) 2.24mJ (on), 1.02mJ (off) 2.25mJ (on), 950µJ (off) 2.2mJ (off) 2.2mJ (on), 1.05mJ (off) 2.2mJ (on), 1.07mJ (off) 2.2mJ (on), 1.1mJ (off) 2.2mJ (on), 1.3mJ (off) 2.2mJ (on), 1.4mJ (off) 2.2mJ (on), 2.3mJ (off) 2.2mJ (on), 2.95mJ (off) 2.2mJ (on), 630µJ (off) 2.315mJ (off) 2.33mJ (on), 1.12mJ (off) 2.35mJ (on), 1.15mJ (off) 2.35mJ (on), 1.25mJ (off) 2.35mJ (on), 3.14mJ (off) 2.36mJ 2.36mJ (on), 1.17mJ (off) 2.37mJ (on), 2.65mJ (off) 2.37mJ (on), 500µJ (off) 2.39mJ (on), .90mJ (off) 2.39mJ (on), 1.68mJ (off) 2.39mJ (on), 730µJ (off) 2.3mJ (off) 2.3mJ (on), 1.1mJ (off) 2.3mJ (on), 1.6mJ (off) 2.3mJ (on), 1.7mJ (off) 2.3mJ (on), 1.9mJ (off) 2.3mJ (on), 2.9mJ (off) 2.3mJ (on), 3.75mJ (off) 2.3mJ (on), 5.3mJ (off) 2.3mJ (on), 600µJ (off) 2.3mJ (on), 770µJ (off) 2.3mJ (on), 900µJ (off) 2.42mJ (on), 1.17mJ (off) 2.42mJ (on), 1.4mJ (off) 2.46mJ (on), 3.55mJ (off) 2.46mJ (on), 520µJ (off) 2.47mJ (on), 1.27mJ (off) 2.47mJ (on), 2.16mJ (off) 2.47mJ (on), 670µJ (off) 2.47mJ (on), 810µJ (off) 2.48mJ (on), 1.31mJ (off) 2.4mJ (on), 1.1mJ (off) 2.4mJ (on), 2.2mJ (off) 2.4mJ (on), 4.3mJ (off) 2.4mJ (on), 5.5mJ (off) 2.4mJ (on), 5mJ (off) 2.4mJ (on), 720µJ (off) 2.4mJ (on), 950µJ (off) 2.53mJ 2.55mJ (on), 1.55mJ (off) 2.55mJ (on), 1.75mJ (off) 2.56mJ (on), 1.78mJ (off) 2.58mJ (on), 3.31mJ (off) 2.59mJ (on), 9mJ (off) 2.5mJ (off) 2.5mJ (on), 1.3mJ (off) 2.5mJ (on), 1.76mJ (off) 2.5mJ (on), 1.7mJ (off) 2.5mJ (on), 2.14mJ (off) 2.5mJ (on), 2.2mJ (off) 2.5mJ (on), 3mJ (off) 2.5mJ (on), 760µJ (off) 2.5mJ (on), 8.4mJ (off) 2.5mJ (on), 990µJ (off) 2.61mJ (on), 1.1mJ (off) 2.61mJ (on), 1.85mJ (off) 2.63mJ (on), 1.34mJ (off) 2.64mJ (on), 3.9mJ (off) 2.64mJ (on), 920µJ (off) 2.65mJ 2.65mJ (on), 1.3mJ (off) 2.65mJ (on), 1.8mJ (off) 2.66mJ (on), 1.53mJ (off) 2.66mJ (on), 4.35mJ (off) 2.6mJ 2.6mJ (off) 2.6mJ (on), 1.07mJ (off) 2.6mJ (on), 1.1mJ (off) 2.6mJ (on), 1.3mJ (off) 2.6mJ (on), 1.6mJ (off) 2.6mJ (on), 700µJ (off) 2.6mJ (on), 9.5mJ (off) 2.72mJ (on), 750µJ (off) 2.7mJ 2.7mJ (off) 2.7mJ (on), 1.1mJ (off) 2.7mJ (on), 1.55mJ (off) 2.7mJ (on), 1.6mJ (off) 2.7mJ (on), 2.35J (off) 2.7mJ (on), 3.5mJ (off) 2.7mJ (on), 5mJ (off) 2.7mJ (on), 6.6mJ (off) 2.7mJ (on), 740µJ (off) 2.84mJ (on), 1.21mJ (off) 2.85mJ (on), 1.2mJ (off) 2.85mJ (on), 2.9mJ (off) 2.85mJ (on), 4.4mJ (off) 2.85mJ (on), 6.47mJ (off) 2.8mJ (on), 1mJ (off) 2.8mJ (on), 2.2mJ (off) 2.8mJ (on), 2.3mJ (off) 2.8mJ (on), 2.8mJ (off) 2.8mJ (on), 3.5mJ (off) 2.92mJ (on), 2.84mJ (off) 2.97mJ (on), 790µJ (off) 2.9mJ 2.9mJ (on), 1.1mJ (off) 2.9mJ (on), 1.4mJ (off) 2.9mJ (on), 2.1mJ (off) 2.9mJ (on), 3.5mJ (off) 200µJ 200µJ (off) 200µJ (on), 130µJ (off) 200µJ (on), 180µJ (off) 200µJ (on), 210µJ (off) 200µJ (on), 390µJ (off) 200µJ (on), 410µJ (off) 200µJ (on), 70µJ (off) 200µJ (on), 90µJ (off) 209µJ (on), 261µJ (off) 20µJ (on), 125µJ (off) 20µJ (on), 68µJ (off) 210µJ (off) 210µJ (on), 1.147mJ (off) 210µJ (on), 160µJ (off) 210µJ (on), 380µJ (off) 214µJ (off) 215µJ 215µJ (on), 245µJ (off) 21mJ (off) 220µJ 220µJ (on), 215µJ (off) 220µJ (on), 330µJ (off) 220µJ (on), 340µJ (off) 223µJ (on), 91.13µJ (off) 227µJ (on), 100µJ (off) 230µJ (on), 1.18mJ (off) 230µJ (on), 100µJ (off) 230µJ (on), 110µJ (off) 230µJ (on), 160µJ (off) 230µJ (on), 180µJ (off) 230µJ (on), 290µJ (off) 230µJ (on), 520µJ (off) 230µJ (on), 580µJ (off) 230µJ (on), 730µJ (off) 2330µJ (off) 236µJ (on), 290µJ (off) 240µJ 240µJ (off) 240µJ (on), 110µJ (off) 240µJ (on), 170µJ (off) 240µJ (on), 260µJ (off) 240µJ (on), 310µJ (off) 240µJ (on), 330µJ (off) 240µJ (on), 750µJ (off) 247µJ (on), 94µJ (off) 25.1µJ (on), 13.5µJ (off) 2500µJ (on), 2140µJ (off) 250µJ (on), 140µJ (off) 250µJ (on), 1mJ (off) 250µJ (on), 4.2mJ (off) 250µJ (on), 640µJ (off) 250µJ (on), 90µJ (off) 255µJ (on), 375µJ (off) 2585µJ (on), 1910µJ (off) 258µJ (off) 25µJ (on), 58µJ (off) 260µJ (off) 260µJ (on), 250µJ (off) 260µJ (on), 3.45mJ (off) 260µJ (on), 70µJ (off) 265µJ (on), 214µJ (off) 270µJ (on), 230µJ (off) 270µJ (on), 250µJ (off) 270µJ (on), 3.8mJ (off) 270µJ (on), 310µJ (off) 270µJ (on), 86µJ (off) 270µJ (on), 90µJ (off) 280µJ (off) 280µJ (on), 1.1mJ (off) 280µJ (on), 100µJ (off) 280µJ (on), 190µJ (off) 280µJ (on), 240µJ (off) 280µJ (on), 70µJ (off) 284µJ (off) 28mJ (on), 30mJ (off) 290µJ 290µJ (off) 290µJ (on), 185µJ (off) 290µJ (on), 200µJ (off) 290µJ (on), 290µJ (off) 293µJ (off) 295µJ (on), 500µJ (off) 298µJ (on), 147µJ (off) 29µJ (on), 200µJ (off) 2mJ (off) 2mJ (on), 1.4mJ (off) 2mJ (on), 1.8mJ (off) 2mJ (on), 2.1mJ (off) 2mJ (on), 2.5mJ (off) 2mJ (on), 2mJ (off) 2mJ (on), 3.2mJ (off) 2mJ (on), 630µJ (off) 2mJ (on), 950µJ (off) 3.03mJ (on), 3.98mJ (off) 3.05mJ (on), 1.35mJ (off) 3.09mJ (on), 830µJ (off) 3.12mJ (on), 1.11mJ (off) 3.12mJ (on), 2.55mJ (off) 3.13mJ (on), 1.15mJ (off) 3.15mJ (on), 2.2mJ (off) 3.16mJ 3.1mJ 3.1mJ (on), 1.6mJ (off) 3.1mJ (on), 2.4mJ (off) 3.1mJ (on), 2.5mJ (off) 3.1mJ (on), 2.8mJ (off) 3.1mJ (on), 2.9mJ (off) 3.1mJ (on), 700µJ (off) 3.1mJ (on), 730µJ (off) 3.21mJ (on), 4.78mJ (off) 3.25mJ (off) 3.25mJ (on), 3.125mJ (off) 3.26mJ (on), 2.27mJ (off) 3.26mJ (on), 2.33mJ (off) 3.26mJ (on), 840µJ (off) 3.27mJ (on), 1.27mJ (off) 3.27mJ (on), 600µJ (off) 3.2mJ (on), 1.7mJ (off) 3.2mJ (on), 2.3mJ (off) 3.2mJ (on), 2.5mJ (off) 3.2mJ (on), 830µJ (off) 3.2µJ (on), 15mJ (off) 3.32mJ (on), 1.9mJ (off) 3.35mJ (on), 1.9mJ (off) 3.36mJ (on), 1.83mJ (off) 3.37mJ (on), 1.59mJ (off) 3.38mJ (on), 1.7mJ (off) 3.3mJ (off) 3.3mJ (on), 1.3mJ (off) 3.3mJ (on), 1.4mJ (off) 3.3mJ (on), 1.88mJ (off) 3.43mJ (on), 430µJ (off) 3.44mJ (on), 1.9mJ (off) 3.45mJ (on), 2.86mJ (off) 3.47mJ (on), 2.16mJ (off) 3.4mJ 3.4mJ (off) 3.4mJ (on), 1.1mJ (off) 3.4mJ (on), 1.2mJ (off) 3.4mJ (on), 1.4mJ (off) 3.4mJ (on), 1.8mJ (off) 3.4mJ (on), 2.3mJ (off) 3.4mJ (on), 2.75mJ (off) 3.4mJ (on), 2.9mJ (off) 3.4mJ (on), 800µJ (off) 3.56mJ (on), 1.7mJ (off) 3.58mJ (on), 2.37mJ (off) 3.5mJ (off) 3.5mJ (on), 1.34mJ (off) 3.5mJ (on), 1.3mJ (off) 3.5mJ (on), 2.3mJ (off) 3.67mJ (on), 1.26mJ (off) 3.68mJ (on), 1.6mJ (off) 3.68mJ (on), 1.7mJ (off) 3.6mJ (on), 1.76mJ (off) 3.6mJ (on), 1.8mJ (off) 3.6mJ (on), 1.9mJ (off) 3.6mJ (on), 1mJ (off) 3.6mJ (on), 2.2mJ (off) 3.6mJ (on), 2.64mJ (off) 3.6mJ (on), 2.75mJ (off) 3.6mJ (on), 3.85mJ (off) 3.6mJ (on), 3.9mJ (off) 3.77mJ (on), 1.2mJ (off) 3.77mJ (on), 2.04mJ (off) 3.7mJ 3.7mJ (on), 1.2mJ (off) 3.7mJ (on), 1.3mJ (off) 3.7mJ (on), 1.9mJ (off) 3.7mJ (on), 5.7mJ (off) 3.82mJ (on), 2.58mJ (off) 3.82mJ (on), 6.97mJ (off) 3.83mJ (on), 1.9mJ (off) 3.85mJ (on), 3.31mJ (off) 3.87mJ (on), 1.25mJ (off) 3.8mJ 3.8mJ (off) 3.8mJ (on), 1.7mJ (off) 3.8mJ (on), 3.3mJ (off) 3.8mJ (on), 4.1mJ (off) 3.95mJ (on), 2.33mJ (off) 3.9mJ (on), 1.6mJ (off) 3.9mJ (on), 4.6mJ (off) 3.9mJ (on), 660µJ (off) 300µJ (off) 300µJ (on), 1.28mJ (off) 300µJ (on), 200µJ (off) 300µJ (on), 285µJ (off) 300µJ (on), 300µJ (off) 300µJ (on), 330µJ (off) 300µJ (on), 4.6mJ (off) 300µJ (on), 630µJ (off) 300µJ (on), 70µJ (off) 300µJ (on), 840µJ (off) 300µJ (on), 960µJ (off) 302µJ (on), 349µJ (off) 304µJ (on), 250µJ (off) 305µJ (on), 181µJ (off) 307µJ (on), 254µJ (off) 307µJ (on), 266µJ (off) 30µJ (on), 13µJ (off) 30µJ (on), 180µJ (off) 30µJ (on), 58µJ (off) 31.8µJ (on), 95µJ (off) 310µJ (on), 1.14mJ (off) 310µJ (on), 120µJ (off) 310µJ (on), 130µJ (off) 310µJ (on), 3.28mJ (off) 310µJ (on), 300µJ (off) 310µJ (on), 460µJ (off) 31µJ (on), 183µJ (off) 320µJ 320µJ (off) 320µJ (on), 1.93mJ (off) 320µJ (on), 170µJ (off) 320µJ (on), 2.58mJ (off) 320µJ (on), 350µJ (off) 320µJ (on), 356µJ (off) 320µJ (on), 550µJ (off) 320µJ (on), 800µJ (off) 32µJ (on), 24µJ (off) 330µJ 330µJ (off) 330µJ (on), 100µJ (off) 330µJ (on), 120µJ (off) 330µJ (on), 160µJ (off) 330µJ (on), 230µJ (off) 330µJ (on), 300µJ (off) 330µJ (on), 720µJ (off) 330µJ (on), 760µJ (off) 333µJ (on), 537µJ (off) 33µJ (off) 340µJ (off) 340µJ (on), 300µJ (off) 340µJ (on), 320µJ (off) 340µJ (on), 650µJ (off) 340µJ (on), 900µJ (off) 345µJ (on), 95µJ (off) 346µJ (on), 1.161mJ (off) 350µJ (on), 100µJ (off) 350µJ (on), 200µJ (off) 350µJ (on), 400µJ (off) 350µJ (on), 435µJ (off) 350µJ (on), 825µJ (off) 3585µJ (on), 1910µJ (off) 35µJ (on), 75µJ (off) 360µJ 360µJ (off) 360µJ (on), 100µJ (off) 360µJ (on), 110µJ (off) 360µJ (on), 150µJ (off) 360µJ (on), 170µJ (off) 360µJ (on), 260µJ (off) 360µJ (on), 300µJ (off) 360µJ (on), 350µJ (off) 360µJ (on), 360µJ (off) 360µJ (on), 380µJ (off) 360µJ (on), 400µJ (off) 360µJ (on), 510µJ (off) 363µJ (off) 365µJ (on), 560µJ (off) 36µJ (on), 200µJ (off) 370µJ (off) 370µJ (on), 1.42mJ (off) 370µJ (on), 1.81mJ (off) 370µJ (on), 160µJ (off) 370µJ (on), 2.1mJ (off) 370µJ (on), 360µJ (off) 370µJ (on), 400µJ (off) 370µJ (on), 530µJ (off) 370µJ (on), 67µJ (off) 37µJ (on), 25µJ (off) 380µJ (off) 380µJ (on), 120µJ (off) 380µJ (on), 160µJ (off) 380µJ (on), 260µJ (off) 380µJ (on), 3.5mJ (off) 380µJ (on), 370µJ (off) 380µJ (on), 900µJ (off) 382µJ (on), 293µJ (off) 383µJ (on), 233µJ (off) 383µJ (on), 293µJ (off) 385µJ (on), 350µJ (off) 385µJ (on), 352µJ (off) 38µJ (on), 130µJ (off) 390µJ (on), 120µJ (off) 390µJ (on), 330µJ (off) 390µJ (on), 370µJ (Off) 390µJ (on), 430µJ (off) 390µJ (on), 632µJ (off) 390µJ (on), 800µJ (off) 393µJ (off) 3mJ (off) 3mJ (on), 1.1mJ (off) 3mJ (on), 1.5mJ (off) 3mJ (on), 1.7mJ (off) 3mJ (on), 1.9mJ (off) 3mJ (on), 1mJ (off) 3mJ (on), 2.4mJ (off) 3mJ (on), 3.1mJ (off) 3mJ (on), 600µJ (off) 3mJ (on), 700µJ (off) 3mJ (on), 750µJ (off) 4.15mJ (on), 870µJ (off) 4.1mJ (off) 4.1mJ (on), 1.5mJ (off) 4.1mJ (on), 1mJ (off) 4.1mJ (on), 2.8mJ (off) 4.1mJ (on), 960µJ (off) 4.22mJ (on), 1.66mJ (off) 4.24mJ (on), 2.17mJ (off) 4.2mJ 4.2mJ (off) 4.2mJ (on), 2.6mJ (off) 4.2mJ (on), 3.7mJ (off) 4.2mJ (on), 5.9mJ (off) 4.37mJ 4.3mJ (on), 1.9mJ (off) 4.3mJ (on), 2mJ (off) 4.3mJ (on), 3.9mJ (off) 4.3mJ (on), 4mJ (off) 4.47mJ (on), 3.43mJ (off) 4.4mJ 4.4mJ (on), 1.18mJ (off) 4.4mJ (on), 1.4mJ (off) 4.4mJ (on), 1mJ (off) 4.4mJ (on), 2.2mJ (off) 4.4mJ (on), 2.6mJ (off) 4.4mJ (on), 3.5mJ (off) 4.51mJ (on), 2.44mJ (off) 4.5mJ 4.5mJ (on), 2.7mJ (off) 4.5mJ (on), 3.4mJ (off) 4.5mJ (on), 3mJ (off) 4.5mJ (on), 5.5mJ (off) 4.6mJ (on), 2.2mJ (off) 4.6mJ (on), 3.2mJ (off) 4.6mJ (on), 3.4mJ (off) 4.75mJ (on), 2.675mJ (off) 4.75mJ (on), 3.9mJ (off) 4.77mJ (on), 9.54mJ (off) 4.7mJ (off) 4.7mJ (on), 2.3mJ (off) 4.7mJ (on), 2.675mJ (off) 4.8mJ (off) 4.8mJ (on), 1.5mJ (off) 4.8mJ (on), 1mJ (off) 4.8mJ (on), 2.8mJ (off) 4.95mJ (on), 2.78mJ (off) 4.9mJ (on), 1.7mJ (off) 4.9mJ (on), 1.95mJ (off) 4.9mJ (on), 12mJ (off) 4.9mJ (on), 8.3mJ (off) 400µJ (off) 400µJ (on), 1.25mJ (off) 400µJ (on), 1.3mJ (off) 400µJ (on), 300µJ (off) 400µJ (on), 310µJ (off) 400µJ (on), 340µJ (off) 400µJ (on), 370µJ (off) 400µJ (on), 480µJ (off) 400µJ (on), 80µJ (off) 400µJ (on), 810µJ (off) 409µJ (on), 258µJ (off) 409µJ (on), 450µJ (off) 409µJ (on), 838µJ (off) 40µJ (on), 136µJ (off) 410µJ (off) 410µJ (on), 190µJ (off) 410µJ (on), 2.03mJ (off) 410µJ (on), 220µJ (off) 410µJ (on), 230µJ (off) 410µJ (on), 860µJ (off) 410µJ (on), 88µJ (off) 410µJ (on), 950µJ (off) 411µJ (off) 412µJ (on), 140µJ (off) 413µJ (on), 287µJ (off) 420µJ (off) 420µJ (on), 1.99mJ (off) 420µJ (on), 100µJ (off) 420µJ (on), 110µJ (off) 420µJ (on), 4.1mJ (off) 420µJ (on), 550µJ (off) 430µJ 430µJ (off) 430µJ (on), 130µJ (off) 430µJ (on), 300µJ (off) 430µJ (on), 350µJ (off) 430µJ (on), 650µJ (off) 434µJ (on), 466µJ (off) 440µJ (on), 220µJ (off) 440µJ (on), 330µJ (off) 440µJ (on), 490µJ (off) 440µJ (on), 700µJ (off) 4495µJ (off) 450µJ (off) 450µJ (on), 160µJ (off) 450µJ (on), 260µJ (off) 450µJ (on), 390µJ (off) 450µJ (on), 440µJ (off) 450µJ (on), 550µJ (off) 450µJ (on), 6.5mJ (off) 450µJ (on), 660µJ (off) 450µJ (on), 750µJ (off) 452µJ (on), 141µJ (off) 456µJ (on), 411µJ (off) 456µJ (on), 635µJ (off) 45µJ (on), 105µJ (off) 45µJ (on), 125µJ (off) 46.5µJ (on), 23.5µJ (off) 460µJ (on), 180µJ (off) 460µJ (on), 410µJ (off) 460µJ (on), 660µJ (off) 465µJ (on), 635µJ (off) 465µJ (on), 637µJ (off) 46µJ (on), 90µJ (off) 470µJ (on), 1.35mJ (off) 470µJ (on), 130µJ (off) 470µJ (on), 270µJ (off) 470µJ (on), 420µJ (off) 475µJ (on), 1.05mJ (off) 47µJ (on), 141µJ (off) 480µJ (off) 480µJ (on), 490µJ (off) 490µJ (off) 490µJ (on), 140µJ (off) 490µJ (on), 160µJ (off) 490µJ (on), 680µJ (off) 498mJ (on), 363mJ (off) 498µJ (on), 363µJ (off) 4mJ (off) 4mJ (on), 1.1mJ (off) 4mJ (on), 2.4mJ (off) 4mJ (on), 3.4mJ (off) 5.02mJ (on), 2.72mJ (off) 5.13mJ (on), 3.48mJ (off) 5.15mJ (on), 2.95mJ (off) 5.1mJ (on), 13.3mJ (off) 5.1mJ (on), 2.7mJ (off) 5.25mJ 5.28mJ (on), 1.76mJ (off) 5.34mJ (on), 6.23mJ (off) 5.3mJ (on), 1.1mJ (off) 5.4mJ (off) 5.4mJ (on), 2.6mJ (off) 5.4mJ (on), 3.8mJ (off) 5.55mJ (on), 1.55mJ (off) 5.5mJ (on), 1.4mJ (off) 5.5mJ (on), 12.5mJ (off) 5.5mJ (on), 5.8mJ (off) 5.68mJ (on), 3.23mJ (off) 5.75mJ (on), 2.67mJ (off) 5.75mJ (on), 3.43mJ (off) 5.7mJ (on), 2.8mJ (off) 5.7mJ (on), 4.2mJ (off) 5.8mJ (on), 1.5mJ (off) 5.8mJ (on), 5.4mJ (off) 5.9mJ (on), 2.9mJ (off) 5.9mJ (on), 3.3mJ (off) 500µJ (off) 500µJ (on), 270µJ (off) 500µJ (on), 400µJ (off) 500µJ (on), 438µJ (off) 500µJ (on), 440µJ (off) 500µJ (on), 450µJ (off) 500µJ (on), 500µJ (off) 500µJ (on), 680µJ (off) 50µJ (on), 27µJ (off) 50µJ (on), 40µJ (off) 510µJ (on), 110µJ (off) 510µJ (on), 880µJ (off) 515µJ (on), 140µJ (off) 520µJ (on), 180µJ (off) 520µJ (on), 240µJ (off) 520µJ (on), 560µJ (off) 524µJ (on), 473µJ (off) 525µJ (on), 600µJ (off) 525µJ (on), 700µJ (off) 52µJ (on), 231µJ (off) 52µJ (on), 30µJ (off) 530µJ 530µJ (on), 1.41mJ (off) 530µJ (on), 380µJ (off) 530µJ (on), 400µJ (off) 532µJ (on), 311µJ (off) 534µJ (on), 466µJ (off) 540µJ (on), 1.38mJ (off) 540µJ (on), 800µJ (off) 543µJ (off) 550µJ (off) 550µJ (on), 220µJ (off) 550µJ (on), 350µJ (off) 550µJ (on), 500µJ (off) 550µJ (on), 600µJ (off) 550µJ (on), 680µJ (off) 550µJ (on), 800µJ (off) 550µJ (on), 850µJ (off) 555µJ (on), 300µJ (off) 55mJ (on), 165mJ (off) 55µJ (on), 100µJ (off) 55µJ (on), 110µJ (off) 55µJ (on), 150µJ (off) 55µJ (on), 50µJ (off) 55µJ (on), 60µJ (off) 55µJ (on), 85µJ (off) 560µJ (off) 560µJ (on), 1.35mJ (off) 560µJ (on), 130µJ (off) 560µJ (on), 320µJ (off) 560µJ (on), 490µJ (off) 560µJ (on), 780µJ (off) 56µJ (on), 122µJ (off) 56µJ (on), 78.5µJ (off) 570µJ 570µJ (off) 570µJ (on), 350µJ (off) 570µJ (on), 500µJ (off) 570µJ (on), 590µJ (off) 57µJ (on), 25µJ (off) 580µJ (off) 580µJ (on), 280µJ (off) 580µJ (on), 630µJ (off) 585µJ (on), 260µJ (off) 590µJ 590µJ (on), 180µJ (off) 590µJ (on), 500µJ (off) 595µJ (on), 716µJ (off) 598µJ (on), 167µJ (off) 59µJ (on), 177µJ (off) 5mJ (off) 5mJ (on), 12.9mJ (off) 5mJ (on), 2.32mJ (off) 5mJ (on), 3.3mJ (off) 5mJ (on), 4mJ (off) 6.1mJ (on), 3mJ (off) 6.25mJ (on), 1.96mJ (off) 6.2mJ (on), 5.9mJ (off) 6.4mJ (on), 2.8mJ (off) 6.4mJ (on), 3.4mJ (off) 6.5mJ 6.5mJ (off) 6.5mJ (on), 2.9mJ (off) 6.6mJ (on), 3.8mJ (off) 6.75mJ (on), 5.1mJ (off) 6.7mJ (on), 2.52mJ (off) 6.7mJ (on), 4.1mJ (off) 6.82mJ (on), 3.8mJ (off) 6.87mJ (on), 4.71mJ (off) 6.8mJ (on), 3.5mJ (off) 600µJ (off) 600µJ (on), 1.3mJ (off) 600µJ (on), 1.45mJ (off) 600µJ (on), 1.5mJ (off) 600µJ (on), 3.4mJ (off) 600µJ (on), 580µJ (off) 600µJ (on), 5mJ (off) 600µJ (on), 600µJ (off) 600µJ (on), 700µJ (off) 600µJ (on), 800µJ (off) 605µJ (on), 895µJ (off) 605µJ (on), 896µJ (off) 60µJ (off) 60µJ (on), 30µJ (off) 60µJ (on), 340µJ (off) 60µJ (on), 50µJ (off) 60µJ (on), 80µJ (off) 610µJ (on), 1.2mJ (off) 61µJ (on), 84µJ (off) 620µJ (off) 620µJ (on), 1.03mJ (off) 620µJ (on), 300µJ (off) 620µJ (on), 330µJ (off) 620µJ (on), 520µJ (off) 625µJ (on), 1.28mJ (off) 626µJ (off) 629µJ (on), 478µJ (off) 62µJ (on), 140µJ (off) 62µJ (on), 39µJ (off) 62µJ (on), 44µJ (off) 630µJ (off) 630µJ (on), 1.39mJ (off) 630µJ (on), 140µJ (off) 640µJ (off) 640µJ (on), 920µJ (off) 642µJ (on), 382µJ (off) 64µJ 64µJ (on), 123µJ (off) 650µJ (off) 650µJ (on), 400µJ (off) 650µJ (on), 650µJ (off) 650µJ (on), 790µJ (off) 660µJ (on), 400µJ (off) 660µJ (on), 440µJ (off) 660µJ (on), 810µJ (off) 66µJ (on), 88µJ (off) 670µJ (on), 1.2mJ (off) 670µJ (on), 740µJ (off) 675µJ (on), 500µJ (off) 680µJ (on), 430µJ (off) 68µJ (on), 45µJ (off) 690µJ 690µJ (on), 2.54mJ (off) 690µJ (on), 770µJ (off) 6mJ (off) 6mJ (on), 3.8mJ (off) 7.2mJ (on), 1.04mJ (off) 7.2mJ (on), 4.8mJ (off) 7.3mJ (on), 2.2mJ (off) 7.5mJ (on), 4.6mJ (off) 7.7mJ (on), 4.6mJ (off) 7.7mJ (on), 7.1mJ (off) 7.8mJ (on), 4.7mJ (off) 700µJ (off) 700µJ (on), 1.4mJ (off) 700µJ (on), 2.4mJ (off) 700µJ (on), 280µJ (off) 700µJ (on), 400µJ (off) 700µJ (on), 550µJ (off) 700µJ (on), 600µJ (off) 700µJ (on), 660µJ (off) 70µJ (on), 120µJ (off) 70µJ (on), 145µJ (off) 70µJ (on), 20µJ (off) 70µJ (on), 220µJ (off) 70µJ (on), 300µJ (off) 70µJ (on), 30µJ (off) 70µJ (on), 600µJ (off) 70µJ (on), 90µJ (off) 710µJ (on), 350µJ (off) 710µJ (on), 420µJ (off) 715µJ (on), 607µJ (off) 716µJ (on), 208µJ (off) 720µJ (off) 720µJ (on), 330µJ (off) 720µJ (on), 8.27mJ (off) 720µJ (on), 960µJ (off) 72µJ (on), 120µJ (off) 730µJ (on), 1.66mJ (off) 730µJ (on), 260µJ (off) 73µJ (on), 47µJ (off) 740µJ (on), 180µJ (off) 740µJ (on), 3mJ (off) 740µJ (on), 500µJ (off) 740µJ (on), 600µJ (off) 742µJ (on), 427µJ (off) 743µJ (on), 560µJ (off) 74µJ (on), 39µJ (off) 750µJ (off) 750µJ (on), 1.05mJ (off) 750µJ (on), 540µJ (off) 750µJ (on), 550µJ (off) 750µJ (on), 680µJ (off) 750µJ (on), 700µJ (off) 750µJ (on), 840µJ (off) 755µJ (off) 756µJ (on), 1.057mJ (off) 75µJ (on), 225µJ (off) 75µJ (on), 350µJ (off) 75µJ (on), 59µJ (off) 760µJ (on), 180µJ (off) 760µJ (on), 400µJ (off) 760µJ (on), 720µJ (off) 765µJ (on), 410µJ (off) 770µJ 770µJ (on), 1.11mJ (off) 770µJ (on), 160µJ (off) 770µJ (on), 550µJ (off) 770µJ (on), 880µJ (off) 77µJ (on), 170µJ (off) 780µJ (on), 560µJ (off) 790µJ (on), 1.98mJ (off) 795µJ (off) 8.13mJ (on), 7.05mJ (off) 8.2mJ (on), 2.9mJ (off) 8.3mJ (on), 7.3mJ (off) 8.7mJ (on), 5.6mJ (off) 8.81mJ (on), 4.295mJ (off) 8.84mJ (on), 3.38mJ (off) 8.8mJ (on), 3.2mJ (off) 8.8mJ (on), 6.7mJ (off) 8.8mJ (on), 9.4mJ (off) 800µJ 800µJ (off) 800µJ (on), 1.25mJ (off) 800µJ (on), 1.8mJ (off) 800µJ (on), 450µJ (off) 800µJ (on), 470µJ (off) 800µJ (on), 500µJ (off) 800µJ (on), 600µJ (off) 800µJ (on), 700µJ (off) 800µJ (on), 800µJ (off) 800µJ (on), 900µJ (off) 8045µJ (on), 7640µJ (off) 80µJ (on), 160µJ (off) 80µJ (on), 320µJ (off) 80µJ (on), 605µJ (off) 80µJ (on), 70µJ (off) 80µJ (on), 90µJ (off) 810µJ (on), 650µJ (off) 81µJ (on), 125µJ (off) 81µJ (on), 49µJ (off) 820µJ (off) 820µJ (on), 260µJ (off) 825µJ (off) 828µJ (off) 82µJ (on), 155µJ (off) 830µJ (off) 830µJ (on), 2.37mJ (off) 830µJ (on), 360µJ (off) 830µJ (on), 450µJ (off) 830µJ (on), 640µJ (off) 830µJ (on), 650µJ (off) 830µJ (on), 670µJ (off) 83µJ (on), 140µJ (off) 840µJ (on), 220µJ (off) 840µJ (on), 280µJ (off) 840µJ (on), 660µJ (off) 840µJ (on), 7.4mJ (off) 840µJ (on), 751µJ (off) 850mJ (on), 1mJ (off) 850µJ (off) 850µJ (on), 1.3mJ (off) 850µJ (on), 240µJ (off) 850µJ (on), 370µJ (off) 850µJ (on), 425µJ (off) 850µJ (on), 600µJ (off) 850µJ (on), 770µJ (off) 850µJ (on), 800µJ (off) 858µJ (on), 229µJ (off) 85µJ (off) 85µJ (on), 189µJ (off) 85µJ (on), 245µJ (off) 85µJ (on), 95µJ (off) 860µJ (on), 400µJ (off) 860µJ (on), 520µJ (off) 8620µJ (on), 11400µJ (off) 870µJ (on), 260µJ (off) 870µJ (on), 300µJ (off) 870µJ (on), 360µJ (off) 870µJ (on), 400µJ (off) 875µJ (on), 425µJ (off) 880µJ (on), 1.57mJ (off) 880µJ (on), 350µJ (off) 880µJ (on), 490µJ (off) 880µJ (on), 520µJ (off) 88µJ (on), 107µJ (off) 890µJ (on), 440µJ (off) 890µJ (on), 860µJ (off) 8mJ (off) 9.15mJ (on), 1.4mJ (off) 9.3mJ (off) 9.5mJ 9.6mJ (off) 9.7mJ (on), 21.5mJ (off) 9.7mJ (on), 5.2mJ (off) 900µJ 900µJ (off) 900µJ (on), 3.8mJ (off) 900µJ (on), 300µJ (off) 900µJ (on), 400µJ (off) 900µJ (on), 580µJ (off) 900µJ (on), 680µJ (off) 900µJ (on), 900µJ (off) 900µJ (on), 904µJ (off) 900µJ (on), 905µJ (off) 90µJ 90µJ (off) 90µJ (on), 150µJ (off) 90µJ (on), 300µJ (off) 90µJ (on), 450µJ (off) 90µJ (on), 600µJ (off) 90µJ (on), 60µJ (off) 90µJ (on), 90µJ (off) 910µJ (on), 580µJ (off) 915µJ (on), 280µJ (off) 919µJ (on), 814µJ (off) 920µJ 920µJ (on), 300µJ (off) 920µJ (on), 450µJ (off) 920µJ (on), 530µJ (off) 920µJ (on), 560µJ (off) 929µJ (on), 1070µJ (off) 930µJ (on), 1mJ (off) 930µJ (on), 720µJ (off) 940µJ (off) 940µJ (on), 1.06mJ (off) 950µJ (off) 950µJ (on), 1.15mJ (off) 950µJ (on), 1.3mJ (off) 950µJ (on), 1.42mJ (off) 950µJ (on), 2.01mJ (off) 950µJ (on), 2.9mJ (off) 950µJ (on), 460µJ (off) 950µJ (on), 760µJ (off) 950µJ (on), 840µJ (off) 95µJ (on), 100µJ (off) 95µJ (on), 115µJ (off) 95µJ (on), 140µJ (off) 95µJ (on), 350µJ (off) 95µJ (on), 62µJ (off) 960µJ (on), 162µJ (off) 960µJ (on), 165µJ (off) 96µJ (on), 355µJ (off) 970µJ (on), 1.01mJ (off) 970µJ (on), 280µJ (off) 970µJ (on), 420µJ (off) 970µJ (on), 440µJ (off) 980µJ (on), 560µJ (off) 980µJ (on), 910µJ (off) 989µJ (on), 310µJ (off) 990µJ (on), 330µJ (off) 990µJ (on), 590µJ (off) 990µJ (on), 660µJ (off) 992µJ (on), 766µJ (off) 995µJ (on), 1070µJ (off) 99µJ (on), 100µJ (off) 99µJ (on), 104µJ (off) 9mJ (off)	- Logic Standard	- 1.6 nC 10.5 nC 10.6 nC 10.8 nC 100 nC 101 nC 1018 nC 102 nC 103 nC 1032 nC 104 nC 105 nC 106 nC 107 nC 108 nC 109 nC 11 nC 110 nC 111 nC 112 nC 113 nC 114 nC 115 nC 116 nC 117 nC 118 nC 1180 nC 119 nC 12 nC 12.1 nC 12.5 nC 120 nC 121 nC 122 nC 123 nC 125 nC 1256 nC 126 nC 127 nC 128 nC 129 nC 13 nC 13.3 nC 13.4 nC 13.5 nC 13.6 nC 13.7 nC 13.8 nC 130 nC 132 nC 133 nC 134 nC 135 nC 136 nC 137 nC 138 nC 139 nC 14 nC 14.9 nC 140 nC 141 nC 142 nC 143 nC 144 nC 145 nC 146 nC 147 nC 148 nC 149 nC 15 nC 15.1 nC 15.2 nC 150 nC 151 nC 152 nC 153 nC 155 nC 156 nC 157 nC 158 nC 159 nC 16 nC 160 nC 162 nC 163 nC 164 nC 165 nC 166 nC 167 nC 168 nC 169 nC 17 nC 17.1 nC 17.3 nC 17.4 nC 170 nC 171 nC 172 nC 173 nC 174 nC 175 nC 177 nC 178 nC 179 nC 18 nC 18.2 nC 18.3 nC 18.5 nC 180 nC 181 nC 183 nC 184 nC 185 nC 186 nC 187 nC 188 nC 189 nC 19 nC 19.2 nC 19.5 nC 19.7 nC 190 nC 192 nC 193 nC 194 nC 195 nC 196 nC 198 nC 199 nC 20 nC 20.4 nC 20.5 nC 200 nC 202 nC 203 nC 203.5 nC 204 nC 205 nC 206 nC 207 nC 208 nC 209 nC 21 nC 21.2 nC 210 nC 211 nC 212 nC 213 nC 214 nC 215 nC 217 nC 219 nC 22 nC 220 nC 221 nC 223 nC 225 nC 225.6 nC 226 nC 227 nC 228 nC 229 nC 23 nC 230 nC 234 nC 235 nC 239 nC 24 nC 24.6 nC 240 nC 243 nC 244 nC 245 nC 248 nC 249 nC 25 nC 25.4 nC 25.7 nC 250 nC 251 nC 254 nC 256 nC 257 nC 258 nC 259 nC 26 nC 26.5 nC 260 nC 263 nC 265 nC 267 nC 269 nC 27 nC 270 nC 275 nC 277 nC 28 nC 28.7 nC 280 nC 284 nC 285 nC 287 nC 288 nC 29 nC 290 nC 294 nC 296 nC 298 nC 30 nC 300 nC 301 nC 305 nC 306 nC 307 nC 308 nC 31 nC 310 nC 311 nC 312 nC 313 nC 314 nC 315 nC 318 nC 32 nC 32.7 nC 320 nC 325 nC 33 nC 330 nC 334 nC 335 nC 34 nC 34.4 nC 340 nC 341 nC 345 nC 35 nC 350 nC 358 nC 36 nC 360 nC 365 nC 366 nC 369 nC 37 nC 37.4 nC 370 nC 372 nC 375 nC 38 nC 380 nC 385 nC 39 nC 395 nC 398 nC 399 nC 40 nC 40.3 nC 400 nC 405 nC 41 nC 410 nC 412 nC 414 nC 415 nC 415.4 nC 42 nC 420 nC 422 nC 425 nC 426 nC 427 nC 43 nC 435 nC 436 nC 438 nC 44 nC 440 nC 445 nC 448 nC 45 nC 450 nC 453 nC 46 nC 460 nC 465 nC 468 nC 47 nC 470 nC 474 nC 48 nC 480 nC 481 nC 485 nC 49 nC 50 nC 509 nC 51 nC 510 nC 518 nC 52 nC 53 nC 53.5 nC 530 nC 535 nC 54 nC 54.5 nC 54.7 nC 540 nC 544 nC 55 nC 55.5 nC 550 nC 553 nC 554 nC 56 nC 560 nC 565 nC 57 nC 578 nC 58 nC 585 nC 59 nC 6.4 nC 6.7 nC 6.9 nC 60 nC 60.5 nC 60.7 nC 600 nC 61 nC 610 nC 62 nC 622 nC 625 nC 63 nC 63.5 nC 64 nC 65 nC 650 nC 654 nC 66 nC 660 nC 663.3 nC 67 nC 67.5 nC 68 nC 69 nC 690 nC 696 nC 7.5 nC 7.8 nC 70 nC 701 nC 703 nC 71 nC 710 nC 714 nC 718 nC 72 nC 72.2 nC 73 nC 731 nC 736 nC 74 nC 75 nC 750 nC 76 nC 77 nC 772 nC 779 nC 78 nC 79 nC 790 nC 793 nC 797 nC 8.6 nC 8.8 nC 80 nC 81 nC 81.6 nC 83 nC 830 nC 84 nC 85 nC 86 nC 87 nC 88 nC 89 nC 9 nC 9.2 nC 9.4 nC 90 nC 91 nC 92 nC 93 nC 94 nC 95 nC 96 nC 97 nC 970 nC 98 nC 99 nC 99.7 nC	- -/10.8µs -/106ns -/110ns -/115ns -/116ns -/120ns -/123ns -/125ns -/128ns -/129ns -/130ns -/134ns -/139ns -/140ns -/142ns -/145ns -/146ns -/150ns -/152ns -/156ns -/15µs -/160ns -/165ns -/170ns -/175ns -/186ns -/193ns -/195ns -/200ns -/208ns -/210ns -/225ns -/229ns -/230ns -/233ns -/235ns -/245ns -/250ns -/260ns -/270ns -/282ns -/284ns -/28ns -/290ns -/3.64µs -/300ns -/310ns -/320ns -/324ns -/326ns -/330ns -/335ns -/336ns -/337ns -/343ns -/350ns -/359ns -/360ns -/387ns -/4.7µs -/4.8µs -/410ns -/420ns -/485ns -/4µs -/5.3µs -/5.4µs -/511ns -/525ns -/5µs -/6.7µs -/616ns -/71ns -/78.8ns -/792ns -/7µs -/846ns 0.42µs/2.9µs 0.65µs/4.7µs 0.65µs/5.4µs 0.7µs/4µs 0.9µs/4.8µs 0.9µs/5.4µs 1.1µs/26.5µs 1.1µs/4.6µs 1.1µs/5.2µs 1.1µs/7.4µs 1.3µs/8.2µs 1.3µs/8µs 1.5µs/8µs 1.7µs/2µs 100ns/200ns 100ns/237ns 100ns/300ns 100ns/390ns 100ns/450ns 100ns/500ns 100ns/550ns 100ns/600ns 100ns/650ns 100ns/850ns 104ns/122ns 105ns/45ns 10ns/100ns 10ns/116ns 10ns/128ns 10ns/150ns 10ns/30ns 10ns/400ns 10ns/65ns 10ns/68ns 10ns/72ns 10ns/85ns 10ns/90ns 11.2ns/40.8ns 110ns/270ns 110ns/490ns 112ns/478ns 116ns/286ns 116ns/292ns 117ns/265ns 117ns/285ns 118ns/282ns 11ns/100ns 11ns/115ns 11ns/140ns 11ns/150ns 11ns/180ns 11ns/196ns 11ns/51ns 11ns/60ns 12.5ns/105ns 120ns/275ns 120ns/410ns 122ns/250ns 125ns/225ns 125ns/3.4µs 125µs/- 125µs/3.4µs 128ns/514ns 12ns/103ns 12ns/104ns 12ns/116ns 12ns/117ns 12ns/124ns 12ns/127ns 12ns/145ns 12ns/155ns 12ns/160ns 12ns/167ns 12ns/168ns 12ns/215ns 12ns/225ns 12ns/275ns 12ns/32ns 12ns/42.4ns 12ns/68ns 12ns/70ns 12ns/76ns 12ns/82ns 12ns/83ns 12ns/86ns 12ns/91ns 12ns/92ns 130ns/280ns 130ns/340ns 130ns/385ns 136ns/360ns 13ns/110ns 13ns/115ns 13ns/116ns 13ns/134ns 13ns/150ns 13ns/158ns 13ns/160ns 13ns/161ns 13ns/209ns 13ns/216ns 13ns/33ns 13ns/34ns 13ns/370ns 13ns/55ns 13ns/70ns 13ns/87ns 13ns/90ns 14.2ns/72ns 14.4ns/52.8ns 14.5ns/63.2ns 140ns/1.04µs 140ns/360ns 140ns/630ns 14ns/102ns 14ns/110ns 14ns/130ns 14ns/146ns 14ns/150ns 14ns/160ns 14ns/164ns 14ns/185ns 14ns/192ns 14ns/240ns 14ns/250ns 14ns/260ns 14ns/33ns 14ns/90ns 14ns/96ns 14ns/99ns 158ns/331ns 15ns/100ns 15ns/109ns 15ns/110ns 15ns/118ns 15ns/142ns 15ns/147ns 15ns/149ns 15ns/150ns 15ns/160ns 15ns/170ns 15ns/175ns 15ns/179ns 15ns/200ns 15ns/230ns 15ns/235ns 15ns/250ns 15ns/300ns 15ns/35ns 15ns/36ns 15ns/400ns 15ns/50ns 15ns/600ns 15ns/60ns 15ns/65ns 15ns/67ns 15ns/680ns 15ns/68ns 15ns/70ns 15ns/73ns 15ns/75ns 15ns/80ns 15ns/90ns 15ns/94ns 16.4ns/86.4ns 16.8ns/136ns 16.8ns/54.4ns 160ns/237ns 160ns/630ns 167ns/298ns 16ns/102ns 16ns/122ns 16ns/127ns 16ns/143ns 16ns/145ns 16ns/146ns 16ns/150ns 16ns/155ns 16ns/156ns 16ns/183ns 16ns/190ns 16ns/194ns 16ns/210ns 16ns/225ns 16ns/290ns 16ns/360ns 16ns/37ns 16ns/40ns 16ns/42ns 16ns/75ns 16ns/78.8ns 16ns/84ns 16ns/93ns 16ns/94ns 16ns/95ns 17.5ns/175ns 17.6ns/75.2ns 17.6ns/94.4ns 17.8ns/81.6ns 170ns/1.3µs 17ns/105ns 17ns/112ns 17ns/113ns 17ns/124ns 17ns/125ns 17ns/130ns 17ns/150ns 17ns/160ns 17ns/165ns 17ns/188ns 17ns/194ns 17ns/211ns 17ns/42ns 17ns/44ns 17ns/60ns 17ns/69ns 17ns/72ns 17ns/78ns 17ns/87ns 17ns/93ns 17ns/96ns 18.4ns/71ns 18.5ns/72ns 180ns/285ns 180ns/460ns 18ns/100ns 18ns/102ns 18ns/104ns 18ns/105ns 18ns/106ns 18ns/110ns 18ns/115ns 18ns/128ns 18ns/130ns 18ns/131ns 18ns/141ns 18ns/144ns 18ns/145ns 18ns/149ns 18ns/150ns 18ns/152ns 18ns/156ns 18ns/163ns 18ns/165ns 18ns/182ns 18ns/190ns 18ns/199ns 18ns/205ns 18ns/207ns 18ns/222ns 18ns/238ns 18ns/240ns 18ns/250ns 18ns/300ns 18ns/330ns 18ns/35ns 18ns/374ns 18ns/48ns 18ns/580ns 18ns/64ns 18ns/68ns 18ns/70ns 18ns/72ns 18ns/73ns 18ns/75ns 18ns/90ns 18ns/92ns 18ns/95ns 19.2ns/65.6ns 19.2ns/68.8ns 19.5ns/103ns 19ns/109ns 19ns/110ns 19ns/116ns 19ns/125ns 19ns/128ns 19ns/129ns 19ns/130ns 19ns/140ns 19ns/147ns 19ns/160ns 19ns/165ns 19ns/170ns 19ns/177ns 19ns/197ns 19ns/200ns 19ns/204ns 19ns/220ns 19ns/48ns 19ns/60ns 19ns/80ns 19ns/83ns 19ns/85ns 19ns/89ns 19ns/90ns 19ns/91ns 19ns/93ns 1ns/65ns 1µs/12.1µs 1µs/4.5µs 1µs/5.3µs 2.3µs/11.5µs 2.3µs/2µs 20.8ns/102ns 20.8ns/62.4ns 20ns/100ns 20ns/110ns 20ns/115ns 20ns/120ns 20ns/123ns 20ns/125ns 20ns/126ns 20ns/127ns 20ns/135ns 20ns/138ns 20ns/139ns 20ns/140ns 20ns/144ns 20ns/149ns 20ns/150ns 20ns/153ns 20ns/156ns 20ns/157ns 20ns/160ns 20ns/163ns 20ns/165ns 20ns/166ns 20ns/170ns 20ns/180ns 20ns/190ns 20ns/200ns 20ns/205ns 20ns/208ns 20ns/215ns 20ns/230ns 20ns/245ns 20ns/250ns 20ns/259ns 20ns/260ns 20ns/270ns 20ns/310ns 20ns/350ns 20ns/390ns 20ns/410ns 20ns/58ns 20ns/59ns 20ns/60ns 20ns/64ns 20ns/66ns 20ns/70ns 20ns/73ns 20ns/77ns 20ns/81ns 20ns/90ns 20ns/93ns 20ns/98ns 20ns/99ns 21.5ns/180ns 21.6ns/138ns 21ns/110ns 21ns/113ns 21ns/122ns 21ns/126ns 21ns/133ns 21ns/138ns 21ns/140ns 21ns/143ns 21ns/156ns 21ns/160ns 21ns/173ns 21ns/174ns 21ns/175ns 21ns/180ns 21ns/200ns 21ns/207ns 21ns/260ns 21ns/261ns 21ns/290ns 21ns/336ns 21ns/463ns 21ns/540ns 21ns/70ns 21ns/73ns 21ns/75ns 21ns/77ns 21ns/86ns 21ns/90ns 21ns/93ns 21ns/95ns 22.4ns/162ns 22.4ns/73.6ns 22.5ns/116ns 22.8ns/70ns 22ns/100ns 22ns/105ns 22ns/109ns 22ns/110ns 22ns/116ns 22ns/117ns 22ns/121ns 22ns/130ns 22ns/134ns 22ns/139ns 22ns/145ns 22ns/151ns 22ns/160ns 22ns/163ns 22ns/165ns 22ns/177ns 22ns/180ns 22ns/182ns 22ns/185ns 22ns/204ns 22ns/236ns 22ns/237ns 22ns/246ns 22ns/250ns 22ns/252ns 22ns/280ns 22ns/420ns 22ns/540ns 22ns/650ns 22ns/66ns 22ns/73ns 22ns/75ns 22ns/80ns 22ns/96ns 230ns/1480ns 23ns/105ns 23ns/108ns 23ns/109ns 23ns/110ns 23ns/111ns 23ns/120ns 23ns/123ns 23ns/126ns 23ns/130ns 23ns/131ns 23ns/135ns 23ns/140ns 23ns/141ns 23ns/150ns 23ns/157ns 23ns/158ns 23ns/165ns 23ns/170ns 23ns/173ns 23ns/180ns 23ns/215ns 23ns/227ns 23ns/235ns 23ns/254ns 23ns/260ns 23ns/300ns 23ns/365ns 23ns/74ns 23ns/77ns 23ns/83ns 23ns/90ns 23ns/93ns 23ns/97ns 24.5ns/118ns 24ns/106ns 24ns/107.2ns 24ns/112ns 24ns/118ns 24ns/125ns 24ns/136ns 24ns/152ns 24ns/159ns 24ns/170ns 24ns/174ns 24ns/190ns 24ns/195ns 24ns/220ns 24ns/22ns 24ns/230ns 24ns/248ns 24ns/250ns 24ns/300ns 24ns/364ns 24ns/385ns 24ns/502ns 24ns/62ns 24ns/70ns 24ns/73ns 24ns/74ns 24ns/87ns 24ns/89ns 24ns/93ns 25.6ns/71ns 257ns/247.5ns 25ns/100ns 25ns/106ns 25ns/115ns 25ns/120ns 25ns/124ns 25ns/130ns 25ns/138ns 25ns/145ns 25ns/150ns 25ns/165ns 25ns/166ns 25ns/170ns 25ns/172ns 25ns/175ns 25ns/180ns 25ns/188ns 25ns/205ns 25ns/210ns 25ns/212ns 25ns/215ns 25ns/220ns 25ns/229ns 25ns/250ns 25ns/260ns 25ns/334ns 25ns/45ns 25ns/60ns 25ns/630ns 25ns/65ns 25ns/85ns 25ns/90ns 25ns/96ns 25ns/97ns 25ns/99ns 26ns/106ns 26ns/108ns 26ns/110ns 26ns/112ns 26ns/122ns 26ns/123ns 26ns/130ns 26ns/134ns 26ns/146ns 26ns/150ns 26ns/151ns 26ns/155ns 26ns/180ns 26ns/194ns 26ns/199ns 26ns/204ns 26ns/220ns 26ns/240ns 26ns/299ns 26ns/310ns 26ns/347ns 26ns/350ns 26ns/395ns 26ns/418ns 26ns/66ns 26ns/68ns 26ns/71ns 26ns/73ns 26ns/77ns 26ns/87ns 26ns/93ns 27.2ns/116ns 27ns/100ns 27ns/105ns 27ns/118ns 27ns/120ns 27ns/128ns 27ns/150ns 27ns/167ns 27ns/181ns 27ns/184ns 27ns/190ns 27ns/215ns 27ns/252ns 27ns/265ns 27ns/277ns 27ns/315ns 27ns/440ns 27ns/540ns 27ns/59ns 27ns/75ns 27ns/77ns 27ns/78ns 27ns/79ns 27ns/81ns 27ns/88ns 27ns/93ns 27ns/94ns 28.8ns/117ns 28.8ns/153.6ns 282ns/915ns 28ns/100ns 28ns/104ns 28ns/106ns 28ns/109ns 28ns/115ns 28ns/116ns 28ns/127ns 28ns/129ns 28ns/133ns 28ns/144ns 28ns/150ns 28ns/151ns 28ns/160ns 28ns/174ns 28ns/178ns 28ns/198ns 28ns/200ns 28ns/212ns 28ns/230ns 28ns/237ns 28ns/305ns 28ns/310ns 28ns/320ns 28ns/400ns 28ns/424ns 28ns/77ns 28ns/80ns 28ns/86ns 28ns/91ns 29.5ns/118ns 29.8ns/143ns 29ns/100ns 29ns/101ns 29ns/110ns 29ns/113ns 29ns/120ns 29ns/130ns 29ns/138ns 29ns/150ns 29ns/170ns 29ns/187ns 29ns/192ns 29ns/220ns 29ns/226ns 29ns/266ns 29ns/275ns 29ns/285ns 29ns/74ns 29ns/84ns 3.1µs/2µs 30ns/100ns 30ns/105ns 30ns/106ns 30ns/107ns 30ns/116ns 30ns/117ns 30ns/120ns 30ns/130ns 30ns/137ns 30ns/139ns 30ns/140ns 30ns/143ns 30ns/145ns 30ns/148ns 30ns/150ns 30ns/153ns 30ns/160ns 30ns/168ns 30ns/170ns 30ns/173ns 30ns/175ns 30ns/180ns 30ns/200ns 30ns/206ns 30ns/210ns 30ns/230ns 30ns/258ns 30ns/265ns 30ns/280ns 30ns/290ns 30ns/300ns 30ns/340ns 30ns/350ns 30ns/421ns 30ns/42ns 30ns/48ns 30ns/54ns 30ns/55ns 30ns/600ns 30ns/67ns 30ns/70ns 30ns/75ns 30ns/87ns 30ns/90ns 30ns/91ns 30ns/95ns 31.6ns/115ns 31ns/100ns 31ns/110ns 31ns/119ns 31ns/123ns 31ns/147ns 31ns/150ns 31ns/152ns 31ns/240ns 31ns/261ns 31ns/265ns 31ns/310ns 31ns/320ns 31ns/408ns 31ns/54ns 31ns/83ns 31ns/94ns 32ns/121ns 32ns/123ns 32ns/160ns 32ns/166ns 32ns/170ns 32ns/175ns 32ns/181ns 32ns/210ns 32ns/234ns 32ns/240ns 32ns/260ns 32ns/271ns 32ns/296ns 32ns/300ns 32ns/328ns 32ns/362ns 32ns/390ns 32ns/490ns 32ns/492ns 32ns/70ns 32ns/74ns 32ns/845ns 32ns/85ns 32ns/91ns 330ns/700ns 33ns/105ns 33ns/116ns 33ns/125ns 33ns/129ns 33ns/168ns 33ns/176ns 33ns/178ns 33ns/231ns 33ns/278ns 33ns/308ns 33ns/310ns 33ns/314ns 33ns/330ns 33ns/340ns 33ns/535ns 33ns/650ns 33ns/65ns 33ns/76ns 33ns/84ns 34ns/110ns 34ns/119ns 34ns/120ns 34ns/122ns 34ns/130ns 34ns/138ns 34ns/172ns 34ns/183ns 34ns/184ns 34ns/243ns 34ns/265ns 34ns/282ns 34ns/297ns 34ns/300ns 34ns/312ns 34ns/360ns 34ns/54ns 34ns/56ns 34ns/84ns 34ns/90ns 35ns/102ns 35ns/105ns 35ns/118ns 35ns/120ns 35ns/121ns 35ns/125ns 35ns/140ns 35ns/142ns 35ns/143ns 35ns/148ns 35ns/168ns 35ns/176ns 35ns/190ns 35ns/194ns 35ns/200ns 35ns/265ns 35ns/280ns 35ns/285ns 35ns/311ns 35ns/331ns 35ns/430ns 35ns/500ns 35ns/546ns 35ns/62ns 35ns/80ns 35ns/85ns 35ns/90ns 36.9ns/175ns 36ns/100ns 36ns/107ns 36ns/110ns 36ns/112ns 36ns/115ns 36ns/125ns 36ns/137ns 36ns/157ns 36ns/160ns 36ns/200ns 36ns/225ns 36ns/250ns 36ns/251ns 36ns/275ns 36ns/294ns 36ns/336ns 36ns/360ns 36ns/78ns 37ns/101ns 37ns/111ns 37ns/112ns 37ns/113ns 37ns/114ns 37ns/120ns 37ns/125ns 37ns/133ns 37ns/140ns 37ns/141ns 37ns/145ns 37ns/146ns 37ns/150ns 37ns/290ns 37ns/320ns 37ns/328ns 37ns/330ns 37ns/340ns 37ns/353ns 37ns/436ns 37ns/91ns 38ns/120ns 38ns/125ns 38ns/149ns 38ns/156ns 38ns/160ns 38ns/168ns 38ns/184ns 38ns/190ns 38ns/200ns 38ns/258ns 38ns/287ns 38ns/303ns 38ns/90ns 39ns/105ns 39ns/113ns 39ns/120ns 39ns/143ns 39ns/153ns 39ns/186ns 39ns/200ns 39ns/220ns 39ns/295ns 39ns/319ns 39ns/333ns 39ns/367ns 39ns/93ns 4.3ns/36ns 4.8ns/24.8ns 40.1ns/152ns 40.2ns/164ns 400ns/2.9µs 400ns/400ns 40ns/100ns 40ns/105ns 40ns/114ns 40ns/120ns 40ns/125ns 40ns/140ns 40ns/142ns 40ns/144ns 40ns/145ns 40ns/150ns 40ns/166ns 40ns/227ns 40ns/240ns 40ns/245ns 40ns/250ns 40ns/255ns 40ns/270ns 40ns/275ns 40ns/284ns 40ns/320ns 40ns/323ns 40ns/351ns 40ns/359ns 40ns/400ns 40ns/420ns 40ns/450ns 40ns/455ns 40ns/475ns 40ns/490ns 40ns/548ns 40ns/600ns 40ns/80ns 40ns/86ns 40ns/87ns 40ns/90ns 40ns/91ns 40ns/95ns 41ns/100ns 41ns/104ns 41ns/130ns 41ns/142ns 41ns/180ns 41ns/200ns 41ns/398ns 41ns/76ns 42.5ns/177ns 420ns/2.9µs 42ns/105ns 42ns/130ns 42ns/137ns 42ns/142ns 42ns/148ns 42ns/151ns 42ns/171ns 42ns/190ns 42ns/200ns 42ns/216ns 42ns/218ns 42ns/230ns 42ns/310ns 42ns/367ns 42ns/378ns 42ns/432ns 42ns/550ns 43ns/113ns 43ns/130ns 43ns/140ns 43ns/145ns 43ns/148ns 43ns/203ns 43ns/240ns 43ns/300ns 44ns/143ns 44ns/166ns 44ns/186ns 44ns/205ns 44ns/208ns 44ns/245ns 44ns/250ns 44ns/276ns 44ns/291ns 44ns/324ns 44ns/343ns 44ns/359ns 44ns/363ns 44ns/430ns 44ns/464ns 44ns/65ns 45ns/100ns 45ns/128ns 45ns/150ns 45ns/170ns 45ns/180ns 45ns/189ns 45ns/190ns 45ns/201ns 45ns/220ns 45ns/270ns 45ns/341ns 45ns/370ns 45ns/390ns 45ns/400ns 45ns/410ns 45ns/417ns 45ns/520ns 45ns/556ns 45ns/560ns 45ns/70ns 45ns/730ns 45ns/85ns 46.4ns/209.6ns 46ns/105ns 46ns/120ns 46ns/125ns 46ns/140ns 46ns/145ns 46ns/146ns 46ns/164ns 46ns/182ns 46ns/185ns 46ns/190ns 46ns/205ns 46ns/220ns 46ns/250ns 46ns/260ns 46ns/284ns 46ns/390ns 46ns/405ns 46ns/70ns 46ns/97ns 47ns/110ns 47ns/125ns 47ns/170ns 47ns/175ns 47ns/176ns 47ns/185ns 47ns/310ns 47ns/385ns 47ns/650ns 48ns/120ns 48ns/123ns 48ns/160ns 48ns/180ns 48ns/186ns 48ns/208ns 48ns/210ns 48ns/230ns 48ns/338ns 48ns/350ns 48ns/480ns 48ns/568ns 49ns/150ns 49ns/180ns 49ns/199ns 49ns/232ns 49ns/97ns 4ns/90ns 4µs/15µs 5.4ns/25.4ns 5.5ns/22ns 5.5ns/61ns 5.6ns/80ns 5.9ns/32.3ns 500ns/4µs 50ns/100ns 50ns/105ns 50ns/110ns 50ns/130ns 50ns/135ns 50ns/150ns 50ns/160ns 50ns/180ns 50ns/183ns 50ns/190ns 50ns/200ns 50ns/220ns 50ns/240ns 50ns/300ns 50ns/336ns 50ns/340ns 50ns/407ns 50ns/480ns 50ns/520ns 50ns/560ns 50ns/565ns 50ns/600ns 50ns/615ns 50ns/70ns 50ns/96ns 51ns/160ns 51ns/250ns 51ns/280ns 52ns/180ns 52ns/197ns 52ns/208ns 52ns/220ns 52ns/240ns 52ns/296ns 52ns/412ns 52ns/496ns 52ns/590ns 53.5ns/311ns 53ns/102ns 53ns/105ns 53ns/110ns 53ns/185ns 53ns/210ns 53ns/227ns 53ns/90ns 53ns/95ns 53ns/98ns 54ns/110ns 54ns/136ns 54ns/146ns 54ns/180ns 54ns/270ns 55.2ns/241ns 55ns/180ns 55ns/189ns 55ns/200ns 55ns/240ns 55ns/319ns 55ns/370ns 55ns/400ns 55ns/450ns 55ns/461ns 56ns/470ns 570ns/- 57ns/109ns 57ns/146ns 57ns/240ns 57ns/285ns 57ns/380ns 58.2ns/258ns 58ns/131ns 58ns/144ns 58ns/245ns 58ns/328ns 59.2ns/232.4ns 59.2ns/249.6ns 59ns/243ns 59ns/283ns 5ns/53ns 5ns/91ns 6.7ns/46ns 60.8ns/232ns 60.8ns/236.8ns 60ns/140ns 60ns/145ns 60ns/155ns 60ns/160ns 60ns/170ns 60ns/180ns 60ns/190ns 60ns/193ns 60ns/200ns 60ns/208ns 60ns/220ns 60ns/240ns 60ns/370ns 60ns/400ns 60ns/60ns 60ns/620ns 610ns/3.64µs 61ns/310ns 61ns/366ns 62ns/178ns 62ns/220ns 62ns/237ns 62ns/245ns 62ns/265ns 62ns/690ns 63ns/142ns 63ns/150ns 63ns/230ns 63ns/267ns 64ns/128ns 64ns/132ns 64ns/180ns 64ns/229ns 64ns/332ns 64ns/540ns 65.6ns/241.6ns 650ns/13.5µs 65ns/170ns 65ns/180ns 65ns/190ns 65ns/250ns 65ns/261ns 65ns/308ns 65ns/450ns 66.2ns/442.7ns 668ns/2.034µs 66ns/163ns 66ns/185ns 66ns/210ns 66ns/547ns 67ns/118ns 67ns/165ns 67ns/230ns 68ns/209ns 68ns/264ns 68ns/274ns 68ns/383ns 68ns/541ns 690ns/12.1µs 69ns/198ns 69ns/404ns 6ns/105ns 6ns/129ns 6ns/40ns 6ns/44ns 6ns/55ns 6ns/71ns 6ns/73ns 6ns/79ns 7.7ns/87ns 700ns/- 700ns/1.2µs 700ns/10.8µs 700ns/4.3µs 700ns/4.8µs 70ns/140ns 70ns/144ns 70ns/150ns 70ns/190ns 70ns/200ns 70ns/250ns 70ns/400ns 70ns/500ns 71ns/150ns 71ns/244ns 72ns/132ns 72ns/165ns 72ns/324ns 72ns/445ns 73ns/269ns 75ns/128ns 75ns/300ns 75ns/315ns 75ns/320ns 75ns/400ns 76ns/815ns 77ns/470ns 78ns/130ns 78ns/329ns 7ns/100ns 7ns/106ns 7ns/18ns 7ns/29ns 7ns/77.5ns 7ns/78ns 8.5ns/102ns 8.5ns/106ns 8.8ns/174ns 800ns/5.1µs 80ns/190ns 80ns/200ns 80ns/280ns 80ns/364ns 80ns/400ns 80ns/565ns 81ns/190ns 82ns/282ns 83ns/170ns 84ns/177ns 84ns/216ns 84ns/280ns 84ns/366ns 85ns/174ns 85ns/178ns 85ns/222ns 86ns/235ns 87ns/140ns 87ns/179ns 87ns/180ns 88ns/190ns 89ns/235ns 89ns/266ns 8ns/105ns 8ns/126ns 8ns/20ns 8ns/29ns 8ns/35ns 8ns/52.2ns 8ns/73ns 8ns/80ns 9.2ns/281ns 9.3ns/54.8ns 9.4ns/130ns 9.5ns/87ns 900ns/4.4µs 900ns/4.8µs 900ns/5.4µs 900ns/6µs 90ns/226ns 90ns/245ns 90ns/300ns 90ns/310ns 90ns/340ns 90ns/362ns 91ns/228ns 92ns/1.1µs 94ns/344ns 95ns/200ns 95ns/220ns 95ns/407ns 98ns/210ns 98ns/213ns 9ns/100ns 9ns/130ns 9ns/140ns 9ns/28ns 9ns/33ns 9ns/65ns 9ns/91ns 9ns/98ns	- 1020V, 32A, 2.7Ohm, 15V 1250V, 128A, 1Ohm, 15V 1250V, 12A, 10Ohm, 15V 1250V, 16A, 10Ohm, 15V 1250V, 25A, 5Ohm, 15V 1250V, 32A, 2Ohm, 15V 1250V, 40A, 1Ohm, 15V 1250V, 42A, 20Ohm, 15V 1250V, 4A, 20Ohm, 15V 1250V, 50A, 5Ohm, 15V 1250V, 8A, 15Ohm, 15V 1360V, 10A, 10Ohm, 15V 1360V, 10A, 56Ohm, 15V 1360V, 16A, 10Ohm, 15V 1360V, 21A, 2.7Ohm, 15V 1360V, 32A, 2.7Ohm, 15V 1360V, 42A, 1Ohm, 15V 1360V, 50A, 5Ohm, 15V 1360V, 6A, 33Ohm, 15V 14V, 10A, 1000Ohm, 5V 14V, 1Ohm 1500V, 10A, 10Ohm, 15V 1500V, 15A, 10Ohm, 15V 1500V, 19A, 47Ohm, 15V 1500V, 20A, 10Ohm, 15V 1500V, 42A, 20Ohm, 15V 180V, 25A, 10Ohm 180V, 25A, 10Ohm, 15V 180V, 30A, 5Ohm, 15V 180V, 35A, 10Ohm 196V, 12A, 10Ohm 196V, 25A, 10Ohm 2000V, 2A, 47Ohm, 15V 200V, 20A, 20Ohm, 15V 200V, 21A, 10Ohm, 15V 200V, 30A, 5Ohm, 15V 200V, 40A, 15Ohm, 15V 200V, 42.5A, 3.3Ohm, 15V 200V, 50A, 2Ohm, 15V 200V, 55A, 5Ohm, 15V 200V, 60A, 2Ohm, 15V 240V, 11A, 10Ohm 240V, 40A, 10Ohm, 15V 250V, 20A, 1kOhm, 4.5V 25V, 20A, 2.2Ohm, 15V 25V, 25A, 2.2Ohm, 15V 25V, 30A, 2.2Ohm, 15V 25V, 40A, 2.2Ohm, 15V 2800V, 40A, 33Ohm, 15V 280V, 40A, 10Ohm, 20V 300V, 1.2A, 200Ohm, 15V 300V, 1000Ohm, 5V 300V, 100A, 10Ohm, 15V 300V, 100A, 1Ohm, 15V 300V, 100A, 2.2Ohm, 15V 300V, 100A, 2Ohm, 15V 300V, 10A, 100Ohm, 15V 300V, 10A, 1kOhm, 5V 300V, 10A, 20Ohm, 15V 300V, 10A, 25Ohm, 5V 300V, 10A, 27Ohm, 15V 300V, 10A, 30Ohm, 15V 300V, 10A, 51Ohm, 15V 300V, 10A, 5Ohm, 15V 300V, 10A, 5V 300V, 12A, 23Ohm, 15V 300V, 12A, 5Ohm, 15V 300V, 150A, 1.5Ohm, 15V 300V, 150A, 51Ohm, 4V 300V, 15A, 13Ohm, 15V 300V, 15A, 18Ohm, 15V 300V, 15A, 30Ohm, 15V 300V, 15A, 33Ohm, 15V 300V, 15A, 51Ohm, 15V 300V, 15A, 5Ohm, 15V 300V, 15A, 5V 300V, 17A, 5Ohm, 15V 300V, 1kOhm, 5V 300V, 2.5A, 51Ohm, 4V 300V, 200A, 1.5Ohm, 15V 300V, 200A, 30Ohm, 26V 300V, 20A, 10Ohm, 15V 300V, 20A, 13Ohm, 15V 300V, 20A, 22Ohm, 15V 300V, 20A, 30Ohm, 15V 300V, 20A, 33Ohm, 15V 300V, 20A, 51Ohm, 15V 300V, 20A, 5Ohm, 15V 300V, 22A, 5Ohm, 15V 300V, 25A, 10Ohm, 15V 300V, 25A, 5Ohm, 15V 300V, 300A, 15Ohm, 15V 300V, 300A, 30Ohm, 12V 300V, 30A 300V, 30A, 10Ohm, 15V 300V, 30A, 22Ohm, 15V 300V, 30A, 24Ohm, 15V 300V, 30A, 30Ohm, 15V 300V, 30A, 33Ohm, 15V 300V, 30A, 39Ohm, 15V 300V, 30A, 7Ohm, 15V 300V, 30A, 8.2Ohm, 15V 300V, 35A, 10Ohm, 15V 300V, 37A, 5Ohm, 15V 300V, 3A, 30Ohm, 15V 300V, 3A, 80Ohm, 15V 300V, 400mA, 25Ohm, 15V 300V, 40A, 20Ohm, 15V 300V, 40A, 39Ohm, 15V 300V, 40A, 5Ohm, 15V 300V, 46Ohm, 5V 300V, 50A, 100Ohm, 15V 300V, 50A, 10Ohm, 15V 300V, 50A, 13Ohm, 15V 300V, 50A, 20Ohm, 15V 300V, 50A, 2Ohm, 15V 300V, 50A, 3.3Ohm, 15V 300V, 50A, 39Ohm, 15V 300V, 50A, 5.9Ohm, 15V 300V, 50A, 5Ohm, 15V 300V, 5A, 40Ohm, 15V 300V, 6.5A, 1000Ohm, 5V 300V, 6.5A, 1kOhm 300V, 6.5A, 1kOhm, 5V 300V, 6.5A, 470Ohm, 5V 300V, 6.5A, 50Ohm, 15V 300V, 60A, 39Ohm, 15V 300V, 6A, 54Ohm, 15V 300V, 75A, 3Ohm, 15V 300V, 7A, 25Ohm, 5V 300V, 7A, 30Ohm, 15V 300V, 7A, 470Ohm, 15V 300V, 80A, 3.9Ohm, 15V 300V, 8A, 100Ohm, 5V 300V, 8A, 5Ohm, 15V 300V, 9A, 1kOhm, 5V 320V, 20A, 1kOhm, 5V 320V, 240A, 10Ohm, 15V 328V, 10A, 1kOhm, 5V 360V, 100A, 1Ohm, 15V 360V, 24A, 10Ohm, 15V 360V, 36A, 5Ohm, 15V 360V, 70A, 2Ohm, 15V 390V, 12A, 10Ohm, 15V 390V, 13A, 10Ohm, 15V 390V, 20A, 10Ohm, 15V 390V, 20A, 3.3Ohm, 15V 390V, 20A, 3Ohm, 15V 390V, 22A, 3.3Ohm, 15V 390V, 30A, 10Ohm, 15V 390V, 30A, 3Ohm, 15V 390V, 33A, 3.3Ohm, 15V 390V, 3A, 10Ohm, 15V 390V, 3A, 50Ohm, 15V 390V, 40A, 10Ohm, 15V 390V, 40A, 2.2Ohm, 15V 390V, 40A, 3.3Ohm, 15V 390V, 40A, 3Ohm, 15V 390V, 5A, 10Ohm, 15V 390V, 7A, 10Ohm, 15V 390V, 7A, 25Ohm, 15V 400V, 1.5A, 100Ohm, 15V 400V, 100A, 0Ohm, 15V 400V, 100A, 10Ohm, 15V 400V, 100A, 16Ohm, 15V 400V, 100A, 1Ohm, 15V 400V, 100A, 2.2Ohm, 15V 400V, 100A, 3.3Ohm, 15V 400V, 100A, 3.5Ohm, 15V 400V, 100A, 3.6Ohm, 15V 400V, 100A, 4.3Ohm, 15V 400V, 100A, 4.7Ohm, 15V 400V, 100A, 5Ohm, 15V 400V, 10A, 10Ohm, 15V 400V, 10A, 20Ohm, 15V 400V, 10A, 22Ohm, 15V 400V, 10A, 23Ohm, 15V 400V, 10A, 25Ohm, 15V 400V, 10A, 26Ohm, 15V 400V, 10A, 30Ohm, 15V 400V, 10A, 32Ohm, 15V 400V, 10A, 47Ohm, 15V 400V, 10A, 49Ohm, 15V 400V, 10A, 50Ohm, 15V 400V, 10A, 6Ohm, 15V 400V, 11.5A, 47Ohm, 15V 400V, 11A, 22Ohm, 15V 400V, 11A, 5Ohm, 15V 400V, 12.5A, 10Ohm, 15V 400V, 12.5A, 4.7Ohm, 15V 400V, 120A, 10Ohm, 15V 400V, 120A, 3Ohm, 15V 400V, 120A, 4.7Ohm, 15V 400V, 120A, 5Ohm, 15V 400V, 12A, 10Ohm, 15V 400V, 12A, 20Ohm, 15V 400V, 12A, 22Ohm, 15V 400V, 150A, 10Ohm, 15V 400V, 150A, 1Ohm, 15V 400V, 150A, 5Ohm, 15V 400V, 15A, 10Ohm, 15V 400V, 15A, 12Ohm, 15V 400V, 15A, 13Ohm, 15V 400V, 15A, 15Ohm, 15V 400V, 15A, 2.5Ohm, 15V 400V, 15A, 20Ohm, 15V 400V, 15A, 21Ohm, 15V 400V, 15A, 22.3Ohm, 15V 400V, 15A, 22Ohm, 15V 400V, 15A, 23Ohm, 15V 400V, 15A, 25Ohm, 15V 400V, 15A, 26Ohm, 15V 400V, 15A, 39Ohm, 15V 400V, 15A, 4.7Ohm, 15V 400V, 15A, 49Ohm, 15V 400V, 15A, 56Ohm, 15V 400V, 15A, 5Ohm, 15V 400V, 160A, 15V 400V, 160A, 5Ohm, 15V 400V, 18.8A, 15Ohm, 15V 400V, 18.8A, 4.7Ohm, 15V 400V, 18A, 22Ohm, 15V 400V, 1A, 49Ohm, 15V 400V, 2.5A, 68Ohm, 15V 400V, 200A, 15Ohm, 15V 400V, 200A, 1Ohm, 15V 400V, 200A, 2Ohm, 15V 400V, 200A, 4.7Ohm, 15V 400V, 200A, 5Ohm, 15V 400V, 20A, 10Ohm, 15V 400V, 20A, 12Ohm, 15V 400V, 20A, 14.6Ohm, 15V 400V, 20A, 15Ohm, 15V 400V, 20A, 15V 400V, 20A, 16Ohm, 15V 400V, 20A, 2.2Ohm, 15V 400V, 20A, 20Ohm, 15V 400V, 20A, 22Ohm, 15V 400V, 20A, 32Ohm, 15V 400V, 20A, 3Ohm, 15V 400V, 20A, 4.3Ohm, 15V 400V, 20A, 4.7Ohm, 15V 400V, 20A, 5Ohm, 15V 400V, 20A, 6Ohm, 15V 400V, 225A, 2Ohm, 15V 400V, 24A, 10Ohm, 15V 400V, 24A, 5Ohm, 15V 400V, 25A, 10Ohm 400V, 25A, 10Ohm, 15V 400V, 25A, 12Ohm, 15V 400V, 25A, 15Ohm, 15V 400V, 25A, 16Ohm, 15V 400V, 25A, 23.1Ohm, 15V 400V, 25A, 4.7Ohm, 15V 400V, 25A, 8Ohm, 15V 400V, 25A, 9Ohm, 15V 400V, 26A, 4.7Ohm, 15V 400V, 28A, 34Ohm, 15V 400V, 2A, 100Ohm, 15V 400V, 2A, 118Ohm, 15V 400V, 30A, 1.8Ohm, 15V 400V, 30A, 10.5Ohm, 15V 400V, 30A, 10.6Ohm, 15V 400V, 30A, 10Ohm, 15V 400V, 30A, 10Ohm, 5V 400V, 30A, 11Ohm, 15V 400V, 30A, 13Ohm, 15V 400V, 30A, 15Ohm, 15V 400V, 30A, 2.5Ohm, 15V 400V, 30A, 22Ohm, 15V 400V, 30A, 23Ohm, 15V 400V, 30A, 27Ohm, 15V 400V, 30A, 3.3Ohm, 15V 400V, 30A, 3Ohm, 15V 400V, 30A, 4.3Ohm, 15V 400V, 30A, 4.7Ohm, 15V 400V, 30A, 5Ohm, 15V 400V, 30A, 6.8Ohm, 15V 400V, 30A, 6Ohm, 15V 400V, 30A, 8Ohm, 15V 400V, 30A, 9.1Ohm, 15V 400V, 30A, 9.8Ohm, 15V 400V, 32A, 4.7Ohm, 15V 400V, 35A, 10Ohm, 15V 400V, 36A, 10Ohm, 15V 400V, 36A, 5Ohm, 15V 400V, 37.5A, 10Ohm, 15V 400V, 37.5A, 27Ohm, 15V 400V, 37.5A, 9Ohm, 15V 400V, 39A, 12.8Ohm, 15V 400V, 3A, 100Ohm, 15V 400V, 3A, 10Ohm, 15V 400V, 3A, 47Ohm, 15V 400V, 3A, 49Ohm, 15V 400V, 40A, 10.1Ohm, 15V 400V, 40A, 10Ohm, 15V 400V, 40A, 12.5Ohm, 15V 400V, 40A, 12Ohm, 15V 400V, 40A, 14Ohm, 15V 400V, 40A, 15.1Ohm, 15V 400V, 40A, 15Ohm, 15V 400V, 40A, 16Ohm, 15V 400V, 40A, 2.5Ohm, 15V 400V, 40A, 22Ohm, 15V 400V, 40A, 23.1Ohm, 15V 400V, 40A, 27Ohm, 15V 400V, 40A, 4.7Ohm, 15V 400V, 40A, 5.6Ohm, 15V 400V, 40A, 5Ohm, 15V 400V, 40A, 6Ohm, 15V 400V, 40A, 7.5Ohm, 15V 400V, 40A, 7.9Ohm, 15V 400V, 40A, 7Ohm, 15V 400V, 40A, 8Ohm, 15V 400V, 40A, 9.8Ohm, 15V 400V, 45A, 10Ohm, 15V 400V, 47A, 4.7Ohm, 15V 400V, 48A, 10Ohm, 15V 400V, 4A, 100Ohm, 15V 400V, 4A, 43Ohm, 15V 400V, 4A, 47Ohm, 15V 400V, 4A, 48Ohm, 15V 400V, 4A, 49Ohm, 15V 400V, 4A, 50Ohm, 15V 400V, 4A, 67Ohm, 15V 400V, 50A, 10Ohm, 15V 400V, 50A, 12.2Ohm, 15V 400V, 50A, 12Ohm, 15V 400V, 50A, 15Ohm, 15V 400V, 50A, 16Ohm, 15V 400V, 50A, 2.5Ohm, 15V 400V, 50A, 22Ohm, 15V 400V, 50A, 2Ohm, 15V 400V, 50A, 3.3Ohm, 15V 400V, 50A, 30Ohm, 15V 400V, 50A, 3Ohm, 15V 400V, 50A, 4.3Ohm, 15V 400V, 50A, 4.7Ohm, 15V 400V, 50A, 5Ohm, 15V 400V, 50A, 6.8Ohm, 15V 400V, 50A, 6Ohm, 15V 400V, 50A, 7.9Ohm, 15V 400V, 50A, 7Ohm, 15V 400V, 50A, 8.2Ohm, 15V 400V, 50A, 8Ohm, 15V 400V, 50A, 9.8Ohm, 15V 400V, 50A, 9Ohm, 15V 400V, 55A, 2Ohm, 15V 400V, 5A, 100Ohm, 15V 400V, 5A, 10Ohm, 15V 400V, 5A, 20Ohm, 15V 400V, 5A, 47Ohm, 15V 400V, 5A, 60Ohm, 15V 400V, 60A, 10Ohm, 15V 400V, 60A, 12Ohm, 15V 400V, 60A, 15Ohm, 15V 400V, 60A, 3Ohm, 15V 400V, 60A, 4.7Ohm, 15V 400V, 60A, 5Ohm, 15V 400V, 60A, 6Ohm, 15V 400V, 60A, 7Ohm, 15V 400V, 60A, 8Ohm, 15V 400V, 60A, 9.8Ohm, 15V 400V, 62A, 4.7Ohm, 15V 400V, 65A, 5Ohm, 15V 400V, 6A, 22Ohm, 15V 400V, 6A, 23Ohm, 15V 400V, 6A, 47Ohm, 15V 400V, 6A, 49Ohm, 15V 400V, 6A, 50Ohm, 15V 400V, 7.5A, 39Ohm, 15V 400V, 7.5A, 47Ohm, 15V 400V, 70A, 15Ohm, 15V 400V, 70A, 9.8Ohm, 15V 400V, 75A, 1.5Ohm, 15V 400V, 75A, 10Ohm, 15V 400V, 75A, 15Ohm, 15V 400V, 75A, 16Ohm, 15V 400V, 75A, 18Ohm, 15V 400V, 75A, 1Ohm, 15V 400V, 75A, 2.2Ohm, 15V 400V, 75A, 20Ohm, 15V 400V, 75A, 23Ohm, 15V 400V, 75A, 2Ohm, 15V 400V, 75A, 3.3Ohm, 15V 400V, 75A, 3Ohm, 15V 400V, 75A, 4.7Ohm, 15V 400V, 75A, 4Ohm, 15V 400V, 75A, 5.2Ohm, 15V 400V, 75A, 5.6Ohm, 15V 400V, 75A, 5Ohm, 15V 400V, 75A, 8Ohm, 15V 400V, 75A, 9Ohm, 15V 400V, 7A, 10Ohm, 15V 400V, 7A, 43Ohm, 15V 400V, 7A, 47Ohm, 15V 400V, 8.5A, 47Ohm, 15V 400V, 80A, 10Ohm, 15V 400V, 80A, 1Ohm, 15V 400V, 80A, 3Ohm, 15V 400V, 80A, 5Ohm, 15V 400V, 85A, 10Ohm, 15V 400V, 8A, 10Ohm, 15V 400V, 8A, 22Ohm, 15V 400V, 8A, 37.5Ohm, 15V 400V, 8A, 47Ohm, 15V 400V, 8A, 50Ohm, 15V 400V, 9A, 22Ohm, 15V 433V, 45A, 4.3Ohm, 15V 433V, 70A, 4.3Ohm, 15V 433V, 95A, 4.3Ohm, 15V 450V, 100A, 1Ohm, 15V 450V, 120A, 4.8Ohm, 15V 450V, 160A, 4.8Ohm, 15V 450V, 200A, 4.8Ohm, 15V 450V, 24A, 10Ohm, 15V 450V, 40A, 5Ohm, 15V 450V, 60A, 3Ohm, 15V 450V, 80A, 2Ohm, 15V 450V, 8A, 30Ohm, 15V 470V, 120A, 5Ohm, 15V 480V, 100A, 1.5Ohm, 15V 480V, 100A, 1Ohm, 15V 480V, 100A, 2.4Ohm, 15V 480V, 100A, 2Ohm, 15V 480V, 10A, 1kOhm, 15V 480V, 10A, 30Ohm, 15V 480V, 10A, 50Ohm, 15V 480V, 11A, 50Ohm, 15V 480V, 12A, 10Ohm, 15V 480V, 12A, 18Ohm, 15V 480V, 12A, 23Ohm, 15V 480V, 12A, 25Ohm, 15V 480V, 12A, 50Ohm, 15V 480V, 16A, 10Ohm, 15V 480V, 16A, 23Ohm, 15V 480V, 17A, 23Ohm, 15V 480V, 18A, 23Ohm, 15V 480V, 20A, 100Ohm, 15V 480V, 20A, 10Ohm, 15V 480V, 20A, 82Ohm, 15V 480V, 24A, 10Ohm, 15V 480V, 24A, 18Ohm, 15V 480V, 24A, 33Ohm, 15V 480V, 25A, 10Ohm, 15V 480V, 27A, 10Ohm, 15V 480V, 27A, 5Ohm, 15V 480V, 28A, 10Ohm, 15V 480V, 3.5A, 82Ohm, 15V 480V, 30A, 10Ohm, 15V 480V, 30A, 3Ohm, 15V 480V, 30A, 4.7Ohm, 15V 480V, 30A, 5Ohm, 15V 480V, 31A, 10Ohm, 15V 480V, 32A, 4.7Ohm, 15V 480V, 32A, 5Ohm, 15V 480V, 38A, 10Ohm, 15V 480V, 39A, 4.7Ohm, 15V 480V, 39A, 5Ohm, 15V 480V, 3A, 10Ohm, 15V 480V, 3A, 1kOhm, 15V 480V, 3A, 470Ohm, 10V 480V, 3A, 82Ohm, 15V 480V, 4.7Ohm, 15V 480V, 40A, 2.7Ohm, 15V 480V, 40A, 22Ohm, 15V 480V, 40A, 2Ohm, 15V 480V, 40A, 3Ohm, 15V 480V, 40A, 4.7Ohm, 15V 480V, 40A, 5Ohm, 15V 480V, 41A, 10Ohm, 15V 480V, 41A, 5Ohm, 15V 480V, 44A, 5Ohm, 15V 480V, 50A, 2.7Ohm, 15V 480V, 50A, 2Ohm, 15V 480V, 50A, 3Ohm, 15V 480V, 50A, 5Ohm, 15V 480V, 5A, 100Ohm, 15V 480V, 6.5A, 50Ohm, 15V 480V, 60A, 2.7Ohm, 15V 480V, 60A, 2Ohm, 15V 480V, 60A, 3Ohm, 15V 480V, 60A, 5Ohm, 15V 480V, 7.8A, 75Ohm, 15V 480V, 75A, 5Ohm, 15V 480V, 7A, 10Ohm, 15V 480V, 7A, 18Ohm, 15V 480V, 7A, 1kOhm, 15V 480V, 7A, 1kOhm, 5V 480V, 7A, 22Ohm, 15V 480V, 7A, 50Ohm, 15V 480V, 8.6A, 75Ohm, 15V 480V, 80A, 2.7Ohm, 15V 480V, 8A, 100Ohm, 15V 480V, 9A, 50Ohm, 15V 5V, 1kOhm 5V, 470Ohm 600V, 100A, 1.6Ohm, 15V 600V, 100A, 1Ohm, 15V 600V, 100A, 2Ohm, 15V 600V, 100A, 4.7Ohm, 15V 600V, 100A, 4Ohm, 15V 600V, 100A, 7Ohm, 15V 600V, 10A, 100Ohm, 15V 600V, 10A, 10Ohm, 15V 600V, 10A, 47Ohm, 15V 600V, 13A, 5Ohm, 15V 600V, 140A, 4.7Ohm, 15V 600V, 14A, 10Ohm, 15V 600V, 15A, 10Ohm, 15V 600V, 15A, 14.6Ohm, 15V 600V, 15A, 14.8Ohm, 15V 600V, 15A, 15Ohm, 15V 600V, 15A, 20Ohm, 15V 600V, 15A, 22Ohm, 15V 600V, 15A, 33Ohm, 15V 600V, 15A, 34Ohm, 15V 600V, 15A, 35Ohm, 15V 600V, 15A, 4.3Ohm, 15V 600V, 15A, 4.7Ohm, 15V 600V, 15A, 41.8Ohm, 15V 600V, 15A, 56Ohm, 15V 600V, 15A, 5Ohm, 15V 600V, 15A, 82Ohm, 15V 600V, 160A, 4Ohm, 15V 600V, 16A, 15Ohm, 15V 600V, 18A, 10Ohm, 15V 600V, 20A, 10Ohm, 15V 600V, 20A, 12Ohm, 15V 600V, 20A, 15Ohm, 15V 600V, 20A, 28Ohm, 15V 600V, 20A, 5Ohm, 15V 600V, 20A, 68Ohm, 15V 600V, 20A, 6Ohm, 15V 600V, 20A, 82Ohm, 15V 600V, 24A, 5Ohm, 15V 600V, 25A, 10Ohm, 15V 600V, 25A, 15Ohm, 15V 600V, 25A, 16.4Ohm, 15V 600V, 25A, 18Ohm, 15V 600V, 25A, 22Ohm, 15V 600V, 25A, 23Ohm, 15V 600V, 25A, 39Ohm, 15V 600V, 25A, 4.3Ohm, 15V 600V, 25A, 4.7Ohm, 15V 600V, 25A, 5Ohm, 15V 600V, 25A, 6Ohm, 15V 600V, 25A, 8Ohm, 15V 600V, 30A, 10Ohm, 15V 600V, 30A, 15Ohm, 15V 600V, 30A, 16Ohm, 15V 600V, 30A, 26Ohm, 15V 600V, 30A, 28Ohm, 15V 600V, 30A, 39Ohm, 15V 600V, 30A, 3Ohm, 15V 600V, 30A, 4.7Ohm, 15V 600V, 30A, 47Ohm, 15V 600V, 30A, 5Ohm, 15V 600V, 32A, 5Ohm, 15V 600V, 33A, 5Ohm, 15V 600V, 35A, 10Ohm, 15V 600V, 35A, 15Ohm, 15V 600V, 35A, 27Ohm, 15V 600V, 35A, 39Ohm, 15V 600V, 35A, 4.3Ohm, 15V 600V, 35A, 5Ohm, 15V 600V, 37.5A, 4.7Ohm, 15V 600V, 38A, 4.7Ohm, 15V 600V, 3A, 330Ohm, 15V 600V, 3A, 60Ohm, 15V 600V, 40A, 10Ohm, 15V 600V, 40A, 12Ohm, 15V 600V, 40A, 15Ohm, 15V 600V, 40A, 23Ohm, 15V 600V, 40A, 2Ohm, 15V 600V, 40A, 39Ohm, 15V 600V, 40A, 4.3Ohm, 15V 600V, 40A, 4.7Ohm, 15V 600V, 40A, 4Ohm, 15V 600V, 40A, 5Ohm, 15V 600V, 40A, 6Ohm, 15V 600V, 40A, 7.5Ohm, 15V 600V, 40A, 9Ohm, 15V 600V, 45A, 5Ohm, 15V 600V, 47A, 4.7Ohm, 15V 600V, 50A, 1.5Ohm, 15V 600V, 50A, 10Ohm, 15V 600V, 50A, 15Ohm, 15V 600V, 50A, 2.3Ohm, 15V 600V, 50A, 2Ohm, 15V 600V, 50A, 3Ohm, 15V 600V, 50A, 4.3Ohm, 15V 600V, 50A, 4.7Ohm, 15V 600V, 50A, 5Ohm, 15V 600V, 5A, 10Ohm, 10V 600V, 5A, 30Ohm, 15V 600V, 5A, 47Ohm, 15V 600V, 60A, 10Ohm, 15V 600V, 60A, 22Ohm, 15V 600V, 60A, 4.7Ohm, 15V 600V, 60A, 50Ohm, 15V 600V, 60A, 51Ohm, 15V 600V, 60A, 5Ohm, 15V 600V, 60A, 6Ohm, 15V 600V, 6A, 50Ohm, 15V 600V, 70A, 1.5Ohm, 15V 600V, 70A, 4.3Ohm, 15V 600V, 75A, 10Ohm, 15V 600V, 75A, 11.5Ohm, 15V 600V, 75A, 2.1Ohm, 15V 600V, 75A, 4.7Ohm, 15V 600V, 75A, 4Ohm, 15V 600V, 75A, 5Ohm, 15V 600V, 75A, 6Ohm, 15V 600V, 80A, 10Ohm, 15V 600V, 80A, 2Ohm, 15V 600V, 85A, 4.3Ohm, 15V 600V, 8A, 20Ohm, 15V 600V, 8A, 33Ohm, 15V 600V, 8A, 81Ohm, 15V 600V, 9A, 22Ohm, 15V 610V, 10A, 81Ohm, 15V 68V, 20A, 9.1Ohm, 5V 700V, 20A, 5Ohm, 15V 720V, 12A, 22Ohm, 15V 720V, 20A, 20Ohm, 15V 720V, 28A, 4.7Ohm, 15V 720V, 28A, 5Ohm, 15V 720V, 32A, 5Ohm, 15V 720V, 50A, 5Ohm, 15V 792V, 20A, 10Ohm, 15V 800mV, 20A, 10Ohm, 15V 800V, 100A, 1Ohm, 15V 800V, 10A, 150Ohm, 15V 800V, 10A, 23Ohm, 15V 800V, 12A, 120Ohm, 15V 800V, 15A, 10Ohm, 15V 800V, 15A, 33Ohm, 15V 800V, 15A, 4.3Ohm, 15V 800V, 15A, 5Ohm, 15V 800V, 17A, 82Ohm, 15V 800V, 1A, 241Ohm, 15V 800V, 20A, 47Ohm, 15V 800V, 21A, 10Ohm, 15V 800V, 24A, 10Ohm, 15V 800V, 24A, 5Ohm, 15V 800V, 25A, 1Ohm, 15V 800V, 25A, 22Ohm, 15V 800V, 25A, 33Ohm, 15V 800V, 25A, 4.3Ohm, 15V 800V, 25A, 5Ohm, 15V 800V, 2A, 150Ohm, 15V 800V, 2A, 91Ohm, 15V 800V, 32A, 10Ohm, 15V 800V, 35A, 2.2Ohm, 15V 800V, 35A, 2.7Ohm, 15V 800V, 35A, 22Ohm, 15V 800V, 35A, 5Ohm, 15V 800V, 3A, 10Ohm, 15V 800V, 3A, 82Ohm, 15V 800V, 40A, 10Ohm, 15V 800V, 42A, 5Ohm, 15V 800V, 45A, 2.7Ohm, 15V 800V, 4A, 120Ohm, 15V 800V, 50A, 1Ohm, 15V 800V, 50A, 2.2Ohm, 15V 800V, 50A, 4.7Ohm, 15V 800V, 5A, 50Ohm, 15V 800V, 75A, 1Ohm, 15V 800V, 8A, 10Ohm, 15V 800V, 8A, 120Ohm, 15V 800V, 8A, 47Ohm, 15V 850V, 100A, 1Ohm, 15V 850V, 10A, 10Ohm, 15V 850V, 10A, 22Ohm, 15V 850V, 14A, 10Ohm, 15V 850V, 16A, 10Ohm, 15V 850V, 21A, 1Ohm, 15V 850V, 24A, 10Ohm, 15V 850V, 24A, 5Ohm, 15V 850V, 30A, 10Ohm, 15V 850V, 30A, 2.7Ohm, 15V 850V, 32A, 2.7Ohm, 15V 850V, 42A, 10Ohm, 15V 850V, 50A, 1Ohm, 15V 850V, 6A, 33Ohm, 15V 900V, 20A, 10Ohm, 15V 960mV, 20A, 10Ohm, 15V 960V, 100A, 1Ohm, 15V 960V, 10A, 10Ohm, 15V 960V, 10A, 23Ohm, 15V 960V, 11A, 10Ohm, 15V 960V, 12A, 100Ohm, 15V 960V, 12A, 10Ohm, 15V 960V, 14A, 20Ohm, 15V 960V, 15A, 10Ohm, 15V 960V, 18A, 3Ohm, 15V 960V, 1A, 82Ohm, 15V 960V, 2.6A, 51Ohm, 15V 960V, 20A, 10Ohm, 15V 960V, 20A, 22Ohm, 15V 960V, 21A, 10Ohm, 15V 960V, 24A, 5Ohm, 15V 960V, 25A, 18Ohm, 15V 960V, 25A, 22Ohm, 15V 960V, 25A, 33Ohm, 15V 960V, 25A, 5Ohm, 15V 960V, 27A, 3Ohm, 15V 960V, 28A, 5Ohm, 15V 960V, 2A, 150Ohm, 15V 960V, 30A, 10Ohm, 15V 960V, 30A, 15Ohm, 15V 960V, 30A, 5Ohm, 15V 960V, 32A, 5Ohm, 15V 960V, 33A, 5Ohm, 15V 960V, 35A, 2.7Ohm, 15V 960V, 35A, 3Ohm, 15V 960V, 35A, 4.7Ohm, 15V 960V, 35A, 5Ohm, 15V 960V, 3A, 47Ohm, 10V 960V, 40A, 2Ohm, 15V 960V, 42A, 5Ohm, 15V 960V, 45A, 2.7Ohm, 15V 960V, 45A, 5Ohm, 15V 960V, 50A, 5Ohm, 15V 960V, 55A, 3Ohm, 15V 960V, 5A, 1kOhm, 15V 960V, 5A, 25Ohm, 15V 960V, 5A, 27Ohm, 10V 960V, 5A, 50Ohm, 15V 960V, 60A, 4.7Ohm, 15V 960V, 70A, 5Ohm, 15V 960V, 7A, 1kOhm, 15V	- 1.06 µs 1.08 µs 1.2 µs 1.32 µs 1.35 µs 1.4 µs 1.5 µs 1.6 µs 1.7 µs 1.9 µs 1.95 µs 10 ns 100 ns 101 ns 102 ns 103 ns 104 ns 105 ns 106 ns 107 ns 108 ns 109 ns 110 ns 111 ns 112 ns 113 ns 114 ns 115 ns 116 ns 120 ns 121 ns 121.6 ns 122 ns 123 ns 124 ns 125 ns 127 ns 129 ns 130 ns 131 ns 132 ns 133 ns 134 ns 134.5 ns 135 ns 136 ns 137 ns 138 ns 140 ns 142 ns 143 ns 144 ns 145 ns 146 ns 147 ns 148 ns 149 ns 150 ns 1500 ns 151 ns 152 ns 153 ns 154 ns 155 ns 156 ns 157 ns 159 ns 16 ns 160 ns 162 ns 163 ns 165 ns 166 ns 17 ns 170 ns 173 ns 174 ns 174.5 ns 175 ns 176 ns 180 ns 182 ns 185 ns 19 ns 190 ns 192 ns 194 ns 195 ns 196 ns 197 ns 198 ns 2.1 µs 2.4 µs 2.5 µs 2.6 µs 20 ns 200 ns 202 ns 203 ns 205 ns 208 ns 21 ns 210 ns 212 ns 215 ns 22 ns 220 ns 223 ns 225 ns 23 ns 23.5 ns 230 ns 231 ns 233 ns 234 ns 235 ns 236 ns 24 ns 240 ns 241 ns 245 ns 248 ns 249.4 ns 25 ns 250 ns 255 ns 256 ns 257 ns 258 ns 259 ns 26 ns 26.7 ns 260 ns 261 ns 262 ns 263 ns 264.1 ns 265 ns 266 ns 266.9 ns 267 ns 27 ns 270 ns 274 ns 279 ns 28 ns 280 ns 288 ns 29 ns 290 ns 292 ns 293 ns 295 ns 298 ns 3 ns 3 µs 3.5 ns 30 ns 300 ns 303 ns 307 ns 307.3 ns 308 ns 31 ns 31.8 ns 310 ns 312 ns 315 ns 317 ns 318 ns 319 ns 32 ns 32.3 ns 320 ns 322 ns 325 ns 327 ns 33 ns 33.7 ns 330 ns 337 ns 339 ns 34 ns 34.6 ns 340 ns 346 ns 347 ns 35 ns 350 ns 355 ns 356 ns 36 ns 360 ns 365 ns 367 ns 37 ns 37.5 ns 37.7 ns 372 ns 376 ns 378 ns 38 ns 380 ns 39 ns 390 ns 40 ns 400 ns 41 ns 42 ns 420 ns 425 ns 43 ns 43.4 ns 430 ns 439 ns 44 ns 440 ns 447 ns 45 ns 450 ns 46 ns 465 ns 47 ns 48 ns 480 ns 488 ns 49.6 ns 5 ns 50 ns 51 ns 52 ns 53 ns 535 ns 54 ns 54.6 ns 55 ns 56 ns 57 ns 575 ns 58 ns 59 ns 59.5 ns 60 ns 600 ns 61 ns 62 ns 63 ns 64 ns 65 ns 66 ns 67 ns 68 ns 69 ns 7 µs 70 ns 700 ns 706 ns 71 ns 72 ns 73 ns 730 ns 74 ns 75 ns 76 ns 77 ns 770 ns 78 ns 79 ns 80 ns 80.5 ns 800 ns 81 ns 82 ns 82.4 ns 83 ns 84 ns 85 ns 86 ns 87 ns 88 ns 89 ns 90 ns 91 ns 92 ns 920 ns 93 ns 94 ns 95 ns 96 ns 98 ns 99 ns	- -40°C ~ 150°C (TJ) -40°C ~ 175°C (TJ) -40°C ~ 75°C (TJ) -55°C ~ 125°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 175°C (TJ) -65°C ~ 150°C (TJ) -65°C ~ 175°C (TJ) 150°C (TJ) 175°C (TJ)	- Automotive	- AEC-Q100 AEC-Q101	- Chassis Mount Surface Mount Through Hole	- 12-SIP 24-SMPD 4-LDPAK 7-SIP 8-ECH 8-SOIC 8-SOP 8-SOP (5.5x6.0) 8-TSOJ 8-TSSOP 8-VSON (3x4.4) 9-ACEPACK SMIT D2PAK D2PAK-3 D2PAK-6 D3PAK Die DPAK DPAK (TO-252) type C2 DPAK-3 H2PAK-2 HPM F2 HU3PAK I2PAK I2PAK (TO-262) IPAK IPAK (TO-251) ISO247 ISOPLUS i4-PAC™ ISOPLUS-SMPD™.B ISOPLUS220™ ISOPLUS247™ ISOPLUS264™ ISOPLUSi5-Pak™ ITO-220AB LDPAK LPDS MAX247™ PG-HSIP247-3-2 PG-SOT223-3 PG-SOT223-3-1 PG-TO220 Full Pack PG-TO220-3 PG-TO220-3-1 PG-TO220-3-111 PG-TO220-3-31 PG-TO220-3-FP PG-TO220-FP PG-TO247-3 PG-TO247-3-1 PG-TO247-3-21 PG-TO247-3-32 PG-TO247-3-41 PG-TO247-3-46 PG-TO247-3-51 PG-TO247-3-55 PG-TO247-3-AI PG-TO247-3-U01 PG-TO247-3-U06 PG-TO247-4 PG-TO247-4-2 PG-TO247-4-3 PG-TO247-4-U02 PG-TO247-4-U10 PG-TO247-44 PG-TO247-6 PG-TO247AD PG-TO247HC-3 PG-TO251-3 PG-TO252-3 PG-TO252-3-11 PG-TO252-3-313 PG-TO262-3 PG-TO262-3-1 PG-TO263-3 PG-TO263-3-2 PG-TO263-3-901 PG-TO263-7-U04 PG-TO274-3-903 PLUS-220SMD PLUS247™-3 PLUS264™ PowerTO-247-3 SOT-223-4 SOT-227 SOT-227B SOT-28FL/ECH8 SUPER-220™ (TO-273AA) SUPER-247 (TO-274AA) SUPER-247™ (TO-274AA) SUPER-TO-220™ (TO-273AA) T-MAX™ T-MAX™ [B2] TO-204AE TO-218 Isolated TO-218-5 TO-220 TO-220 (IXYP) TO-220 Isolated Tab TO-220 [K] TO-220-3 TO-220-5 TO-220AB TO-220AB Full-Pak TO-220AC TO-220F TO-220F-3 TO-220F-3FS TO-220FI(LS) TO-220FL TO-220FP TO-220NFM TO-220SIS TO-247 TO-247 (IXTH) TO-247 (IXYH) TO-247 Long Leads TO-247 [B] TO-247-3 TO-247-3L TO-247-4 TO-247-4L TO-247A TO-247AB TO-247AC TO-247AD TO-247AD (IXXH) TO-247G TO-247GE TO-247HV TO-247HV (IXBH) TO-247N TO-247N-3L TO-247PLUS-HV TO-251 (IPAK) TO-252 TO-252 (DPAK) TO-252AA TO-252AA (DPAK) TO-252GE TO-261A TO-262 TO-262 (I2PAK) TO-262AA TO-263 TO-263 (D2PAK) TO-263AA TO-263AB TO-263HV TO-263L TO-264 TO-264 (IXGK) TO-264 (IXXK) TO-264 (IXYK) TO-264 (L) TO-264 [L] TO-264-3 TO-264AA TO-264AA (IXSK) TO-268 TO-268AA TO-268HV (IXBT) TO-268HV (IXGT) TO-268HV (IXYT) TO-3 TO-3P TO-3P(LH) TO-3P(N) TO-3P-3L TO-3PF TO-3PF-3 TO-3PFM TO-3PFP TO-3PN TO247-3L Wafer

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전류 - 콜렉터 펄스(Icm)	Vce(on) (최대) @ Vge, Ic	전력 - 최대	스위칭 에너지	입력 유형	게이트 충전	Td(켜짐/꺼짐) @ 25°C	테스트 조건	역방향 복구 시간(trr)	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
APT30GT60BRDQ2G IGBT 600V 64A 250W TO247 Microchip Technology	2,450	-	RFQ	데이터시트	Thunderbolt IGBT®	TO-247-3	Tube	Obsolete	NPT	600 V	64 A	110 A	2.5V @ 15V, 30A	250 W	80µJ (on), 605µJ (off)	Standard	7.5 nC	12ns/225ns	400V, 30A, 10Ohm, 15V	22 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247 [B]
IRG4PSC71K IGBT 600V 85A 350W SUPER247 Infineon Technologies	3,147	-	RFQ	데이터시트	-	TO-274AA	Bag	Obsolete	-	600 V	85 A	200 A	2.3V @ 15V, 60A	350 W	790µJ (on), 1.98mJ (off)	Standard	340 nC	34ns/54ns	480V, 60A, 5Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	SUPER-247™ (TO-274AA)
IXGA30N120B3-TRL IXGA30N120B3 TRL IXYS	6,384	-	RFQ	데이터시트	GenX3™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	PT	1200 V	60 A	150 A	3.5V @ 15V, 30A	300 W	3.47mJ (on), 2.16mJ (off)	Standard	87 nC	16ns/127ns	960V, 30A, 5Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
IXYA20N65C3D1 IGBT 650V 50A TO263AA IXYS	5	-	RFQ	데이터시트	XPT™, GenX3™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	-	650 V	50 A	105 A	2.5V @ 15V, 20A	200 W	430µJ (on), 650µJ (off)	Standard	30 nC	19ns/80ns	400V, 20A, 20Ohm, 15V	34 ns	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-263AA
AOK40B120P1 IGBT 40A Alpha & Omega Semiconductor Inc.	4,482	-	RFQ	데이터시트	AlphaIGBT™	TO-247-3	Tube	Active	-	1200 V	80 A	160 A	2.3V @ 15V, 40A	600 W	2.5mJ (on), 1.3mJ (off)	Standard	202 nC	53ns/210ns	600V, 40A, 7.5Ohm, 15V	-	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247
IXGT15N120C IGBT 1200V 30A TO268AA IXYS	9,259	-	RFQ	데이터시트	Lightspeed™	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Obsolete	-	1200 V	30 A	60 A	3.8V @ 15V, 15A	150 W	1.05mJ (off)	Standard	69 nC	25ns/150ns	960V, 15A, 10Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-268AA
IXYQ40N65B3D1 DISC IGBT XPT-GENX3 TO-3P (3) IXYS	6,847	-	RFQ	데이터시트	GenX3™, XPT™	TO-3P-3, SC-65-3	Tube	Active	PT	650 V	86 A	195 A	2V @ 15V, 40A	300 W	800µJ (on), 700µJ (off)	Standard	68 nC	20ns/140ns	400V, 30A, 10Ohm, 15V	37 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-3P
RJH1CV6DPK-00#T0 IGBT TRENCH 1200V 60A TO3P Renesas Electronics Corporation	4,462	-	RFQ	데이터시트	-	TO-3P-3, SC-65-3	Tube	Obsolete	Trench	1200 V	60 A	-	2.6V @ 15V, 30A	290 W	2.3mJ (on), 1.7mJ (off)	Standard	105 nC	46ns/125ns	600V, 30A, 5Ohm, 15V	180 ns	150°C (TJ)	-	-	Through Hole	TO-3P
STGW40S120DF3 IGBT 1200V 40A TO247 STMicroelectronics	7,766	-	RFQ	데이터시트	-	TO-247-3	Tube	Obsolete	Trench Field Stop	1200 V	80 A	160 A	2.15V @ 15V, 40A	468 W	1.43mJ (on), 3.83mJ (off)	Standard	129 nC	35ns/148ns	600V, 40A, 15Ohm, 15V	355 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247-3
IXYT40N120A4HV IGBT PT 1200V 140A TO268HV IXYS	7,445	-	RFQ	데이터시트	XPT™, GenX4™	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Active	PT	1200 V	140 A	275 A	1.8V @ 15V, 32A	600 W	2.3mJ (on), 3.75mJ (off)	Standard	90 nC	22ns/204ns	600V, 32A, 5Ohm, 15V	-	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-268HV (IXYT)
MIW40N120FLAHE3-BP IGBT TRENCH FS 1200V 80A TO247AB Micro Commercial Co	3,929	-	RFQ	데이터시트	-	TO-247-3	Tape & Reel (TR)	Active	Trench Field Stop	1200 V	80 A	160 A	2.4V @ 15V, 40A	428 W	3.8mJ (on), 1.7mJ (off)	Standard	330 nC	45ns/180ns	600V, 40A, 12Ohm, 15V	439 ns	-40°C ~ 175°C (TJ)	Automotive	AEC-Q101	Through Hole	TO-247AB
IRGP4055DPBF IGBT 300V 110A 255W TO247AC Infineon Technologies	3,311	-	RFQ	데이터시트	-	TO-247-3	Bag	Obsolete	Trench	300 V	110 A	-	2.1V @ 15V, 110A	255 W	-	Standard	132 nC	44ns/245ns	-	27 ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	TO-247AC
MIW40N120F-BP Interface Micro Commercial Co	2,766	-	RFQ	데이터시트	-	TO-247-3	Bulk	Active	Trench Field Stop	1200 V	80 A	160 A	2.2V @ 15V, 40A	277 W	5.02mJ (on), 2.72mJ (off)	Standard	240 nC	160ns/237ns	600V, 40A, 10Ohm, 15V	367 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247-3
APT15GP90BDQ1G IGBT PT 900V 43A TO247 Microchip Technology	9,900	-	RFQ	데이터시트	POWER MOS 7®	TO-247-3	Tube	Active	PT	900 V	43 A	60 A	3.9V @ 15V, 15A	250 W	200µJ (off)	Standard	60 nC	9ns/33ns	600V, 15A, 4.3Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247 [B]

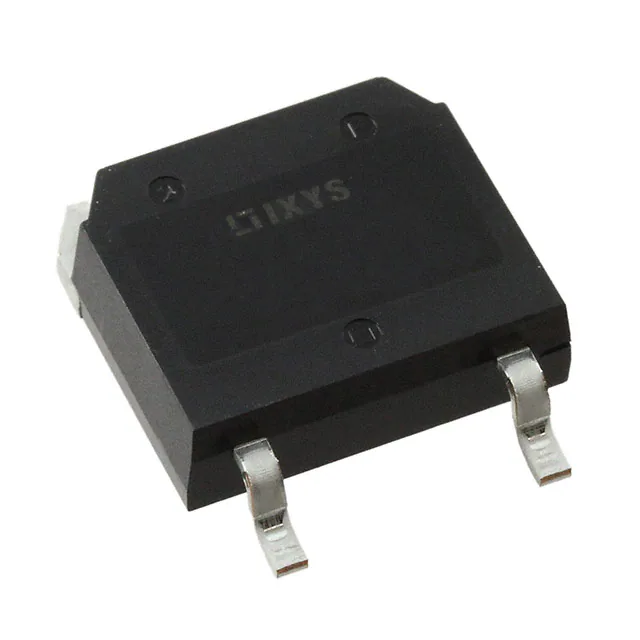

IXYT20N120C3D1HV IGBT 1200V 36A TO268HV IXYS	7,204	-	RFQ	데이터시트	XPT™, GenX3™	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Active	-	1200 V	36 A	88 A	3.4V @ 15V, 20A	230 W	1.3mJ (on), 1mJ (off)	Standard	53 nC	20ns/90ns	600V, 20A, 10Ohm, 15V	29 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-268HV (IXYT)
IXGH30N120B3 DISC IGBT PT-MID FREQUENCY TO-24 IXYS	4,317	-	RFQ	데이터시트	GenX3™	TO-247-3	Tube	Active	PT	1200 V	60 A	150 A	3.5V @ 15V, 30A	300 W	3.47mJ (on), 2.16mJ (off)	Standard	87 nC	16ns/127ns	960V, 30A, 5Ohm, 15V	37 ns	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247AD
HGTG40N60A4 IGBT 600V 75A TO247-3 onsemi	5,977	-	RFQ	데이터시트	-	TO-247-3	Tube	Obsolete	-	600 V	75 A	300 A	2.7V @ 15V, 40A	625 W	400µJ (on), 370µJ (off)	Standard	350 nC	25ns/145ns	390V, 40A, 2.2Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247-3
IXYP15N65B3D1 IGBT TO220AB IXYS	6,931	-	RFQ	데이터시트	-	-	Tube	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IXXH50N60B3 IGBT 600V 120A 600W TO247 IXYS	6,728	-	RFQ	데이터시트	GenX3™, XPT™	TO-247-3	Tube	Active	PT	600 V	120 A	200 A	1.8V @ 15V, 36A	600 W	670µJ (on), 740µJ (off)	Standard	70 nC	27ns/100ns	360V, 36A, 5Ohm, 15V	-	-	-	-	Through Hole	TO-247AD (IXXH)
APT13GP120BG IGBT PT 1200V 41A TO247 Microchip Technology	2,845	-	RFQ	데이터시트	POWER MOS 7®	TO-247-3	Tube	Active	PT	1200 V	41 A	50 A	3.9V @ 15V, 13A	250 W	115µJ (on), 165µJ (off)	Standard	55 nC	9ns/28ns	600V, 13A, 5Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247 [B]
