Korean고정 인덕터
| 사진 | 제조사 부품번호 | 재고 여부 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1245CC-1R5MIND SMD 1.5UH 27A Bourns Inc. |
0 |
|
 데이터시트
|
SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 48A | Shielded | 3.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRU2013-470YFIXED IND 47UH 250MA 2.86OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SRU2013 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 230mA | Shielded | 2.86Ohm Max | 14 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
SRP0315-1R5KFIXED IND 1.5UH 4.1A 48 MOHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SRP0315 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±10% | 4.1 A | 4.4A | Shielded | 48mOhm Max | 14 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.059" (1.50mm) |
|
|
SRP1265CC-R68MIND SMD 0.68UH 41A Bourns Inc. |
0 |
|
데이터시트
|
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 680 nH | ±20% | 41 A | 58A | Shielded | 1.5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR0805-681KFIXED IND 680UH 170MA 3.4OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 170 mA | 320mA | Shielded | 3.4Ohm Max | 32 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|

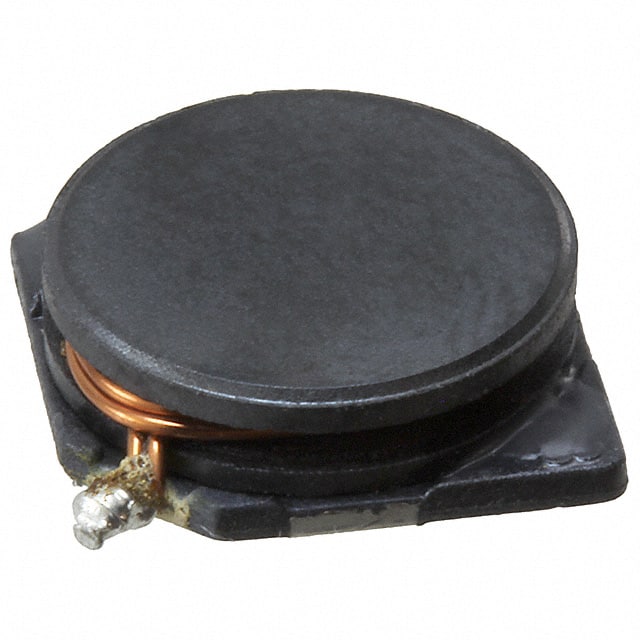

SDR1030-2R7MFIXED IND 2.7UH 3A 28 MOHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3 A | 4.2A | Unshielded | 28mOhm Max | 13 @ 7.96MHz | 73.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
|
SRP7030CA-2R7MFIXED IND 2.7UH SMD Bourns Inc. |
0 |
|
데이터시트
|
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.7 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

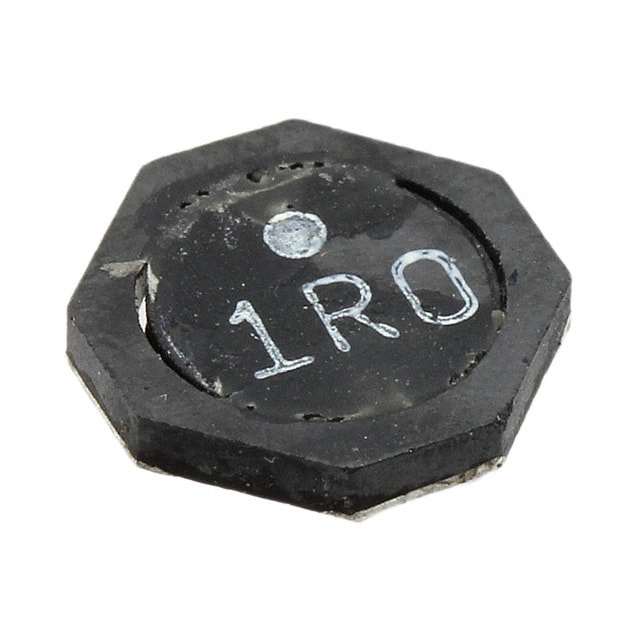

SRU6013-330YFIXED IND 33UH 780MA 500MOHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SRU6013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 780 mA | 580mA | Shielded | 500mOhm Max | 10 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.063" (1.60mm) |
|
SRE6603-102MFIXED IND 1MH 150MA 3.4 OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SRE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | 45mA | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
9250-393FIXED IND 39UH 205MA 1.93 OHM TH Bourns Inc. |
0 |
|
데이터시트
|
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
