Korean고정 인덕터
| 사진 | 제조사 부품번호 | 재고 여부 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0503-103JFIXED IND 10MH 27MA 110 OHM SMD Bourns Inc. |
0 |
|
 데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 27 mA | 40mA | Unshielded | 110Ohm Max | 30 @ 79.6kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-153JFIXED IND 15MH 20MA 168 OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 20 mA | 32mA | Unshielded | 168Ohm Max | 30 @ 79.6kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-181KLFIXED IND 180UH 300MA 2.3OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 300 mA | 350mA | Unshielded | 2.3Ohm Max | 40 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-271KLFIXED IND 270UH 230MA 2.9OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 230 mA | 280mA | Unshielded | 2.9Ohm Max | 35 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-391KLFIXED IND 390UH 190MA 3.7OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 190 mA | 240mA | Unshielded | 3.7Ohm Max | 30 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-560KLFIXED IND 56UH 500MA 710MOHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 500 mA | 700mA | Unshielded | 710mOhm Max | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-820KLFIXED IND 82UH 420MA 880MOHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 420 mA | 520mA | Unshielded | 880mOhm Max | 15 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-821KLFIXED IND 820UH 120MA 10 OHM SMD Bourns Inc. |
0 |
|
데이터시트
|
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 120 mA | 155mA | Unshielded | 10Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
RLB1314-102KFIXED IND 1MH 310MA 1.3 OHM TH Bourns Inc. |
0 |
|
데이터시트
|
RLB | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 310 mA | - | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|

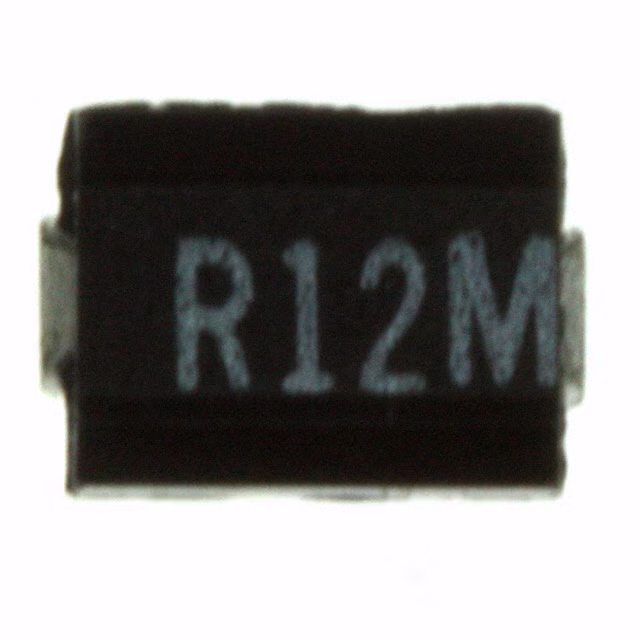

PM40-R12MFIXED IND 120NH 450MA 220MOHM SM Bourns Inc. |
0 |
|
데이터시트
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 120 nH | ±20% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 500MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
