Korean고정 인덕터
| 사진 | 제조사 부품번호 | 재고 여부 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 재질 - 코어 | 인덕턴스 | 허용 오차 | 전류 정격(암페어) | 전류 - 포화(Isat) | 차폐 | DC 저항(DCR) | Q @ 주파수 | 주파수 - 자기 공진 | 정격 | 작동 온도 | 인덕턴스 주파수 - 테스트 | 기능 | 장착 유형 | 공급자 장치 패키지 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

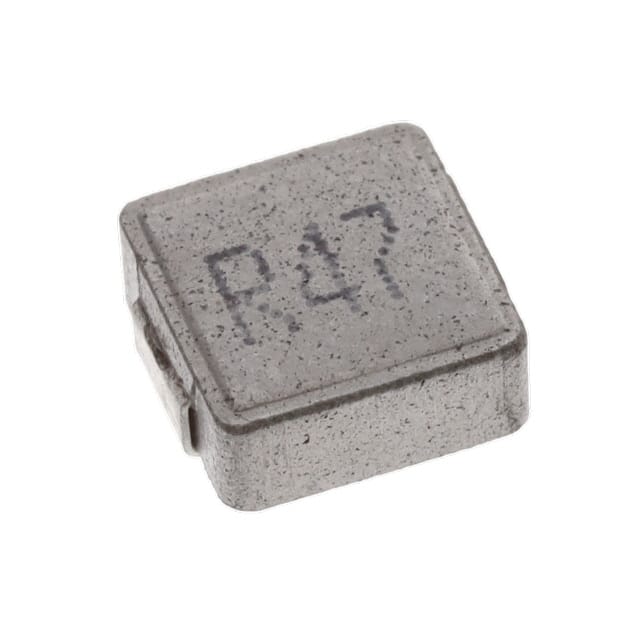

SRP6530A-R47MIND,7.1X6.6X3MM,0.47UH20%,21A,SH Bourns Inc. |
2,327 |
|
 데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 21 A | 30A | Shielded | 4.2mOhm Max | 10 @ 25.2MHz | 80MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP5020CC-8R2MIND SMD 8.2UH 2.6A Bourns Inc. |
1,824 |
|
데이터시트
|
SRP5020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 2.6 A | 4A | Shielded | 171mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
SRP6530A-R22MIND,7.1X6.6X3MM,0.22UH20%,25.5A, Bourns Inc. |
1,414 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 25.5 A | 50A | Shielded | 2.8mOhm Max | 12 @ 25.2MHz | 145MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-1R0MIND,7.1X6.6X3MM,1UH20%,12A,SHD Bourns Inc. |
1,066 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 12 A | 25A | Shielded | 10mOhm Max | 30 @ 7.96MHz | 58MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6530A-R10MIND,7.1X6.6X3MM,0.1UH20%,34A,SHD Bourns Inc. |
919 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 34 A | 70A | Shielded | 1.7mOhm Max | 14 @ 25.2MHz | 200MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

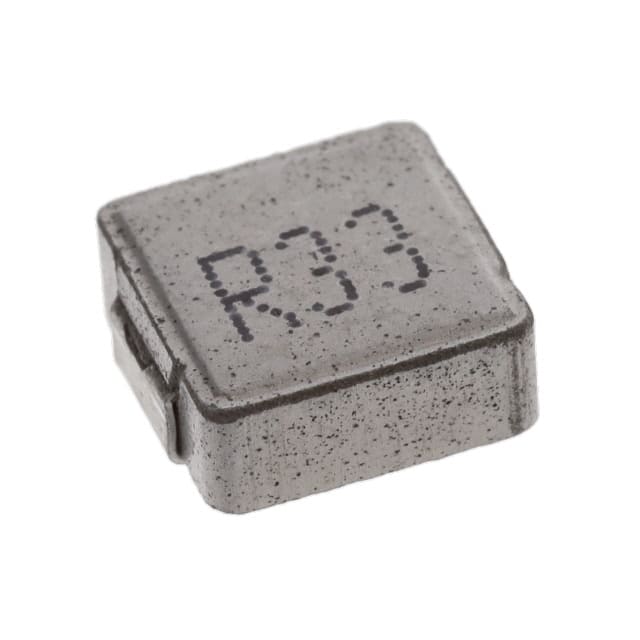

SRP6530A-R33MIND,7.1X6.6X3MM,0.33UH20%,21.5A, Bourns Inc. |
891 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 21.5 A | 35A | Shielded | 3.9mOhm Max | 12 @ 25.2MHz | 140MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6530A-R56MIND,7.1X6.6X3MM,0.56UH20%,18A,SH Bourns Inc. |
880 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 560 nH | ±20% | 18 A | 28A | Shielded | 5.5mOhm Max | 12 @ 25.2MHz | 78MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-5R6MIND,7.1X6.6X3MM,5.6UH20%,5.8A,SH Bourns Inc. |
653 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 5.6 µH | ±20% | 5.8 A | 10.5A | Shielded | 60mOhm Max | 21 @ 7.96MHz | 20MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-8R2MIND,7.1X6.6X3MM,8.2UH20%,5A,SHD Bourns Inc. |
591 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 8.2 µH | ±20% | 5 A | 7.5A | Shielded | 68mOhm Max | 26 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-1R5MIND,7.1X6.6X3MM,1.5UH20%,10A,SHD Bourns Inc. |
421 |
|
데이터시트
|
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10 A | 18A | Shielded | 15mOhm Max | 30 @ 7.96MHz | 45MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
