DIP 스위치

제조사	시리즈	패키징	제품 상태	회로	위치 수	전류 정격(암페어)	전압 정격	액추에이터 유형	액추에이터 레벨	접점 재질	접점 마감	보드 위 높이	장착 유형	종단 스타일	피치	세척 가능	기능	작동 온도
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) TE Connectivity TE Connectivity ALCOSWITCH Switches Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- Gull Wing J Lead PC Pin	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키징	제품 상태	회로	위치 수	전류 정격(암페어)	전압 정격	액추에이터 유형	액추에이터 레벨	접점 재질	접점 마감	보드 위 높이	장착 유형	종단 스타일	피치	세척 가능	기능	작동 온도
A6S-2104-PH SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	1,918	-	RFQ	데이터시트	A6S-H	Tape & Reel (TR)	Active	SPST	2	25mA	24VDC	Slide (Standard)	Raised	-	Gold	0.173" (4.40mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 70°C

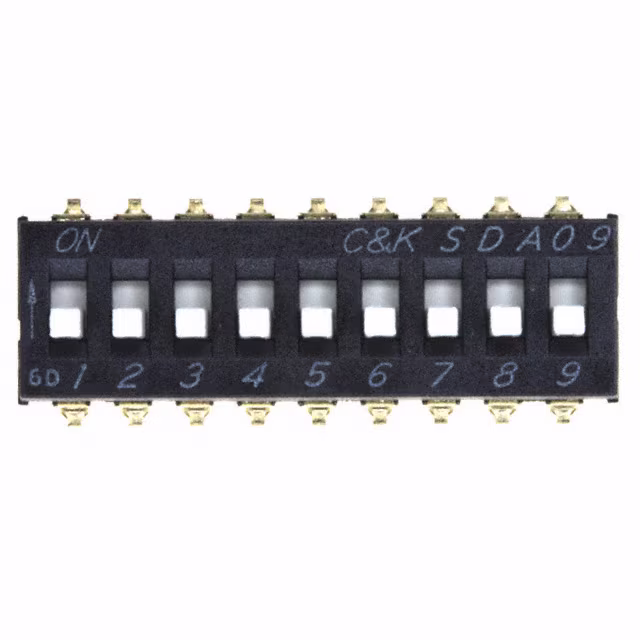

SDA09H1SBD SWITCH SLIDE DIP SPST 0.025A 24V C&K	888	-	RFQ	데이터시트	SDA	Tube	Active	SPST	9	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.214" (5.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
SDA05H0SB SWITCH SLIDE DIP SPST 0.025A 24V C&K	513	-	RFQ	데이터시트	SDA	Tube	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.175" (4.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
RDS-16S-74385-SMT-TR SWITCH ROTARY DIP HEX 0.1A 42V Same Sky (Formerly CUI Devices)	414	-	RFQ	데이터시트	RDS-74385-SMT	Tape & Reel (TR)	Active	Hexadecimal	16	100mA	42VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.152" (3.85mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	IP67 - Dust Tight, Waterproof	-60°C ~ 125°C
RDS-16S-7229-S-JSMT SWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices)	348	-	RFQ	데이터시트	RDS-7229-JSMT	Tube	Active	Hexadecimal	16	100mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.236" (6.00mm)	Surface Mount	J Lead	0.100" (2.54mm), Full	No	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C
A6TN-0104 SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	119	-	RFQ	데이터시트	A6TN	Tube	Active	SPST	10	25mA	24VDC	Slide (Standard)	Raised	-	-	0.228" (5.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-30°C ~ 85°C
RDS-10S-74385-45A-SMT-TR SWITCH ROTARY DIP BCD 0.1A 42V Same Sky (Formerly CUI Devices)	204	-	RFQ	데이터시트	RDS-74385-45A-SMT	Tape & Reel (TR)	Active	BCD	10	100mA	42VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.329" (8.35mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	IP67 - Dust Tight, Waterproof	-60°C ~ 125°C
RD10RB6RTT SWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch	326	-	RFQ	데이터시트	RD10	Tube	Active	BCD	6	150mA	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.543" (13.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
A6HF-6102-P SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	1,509	-	RFQ	데이터시트	A6HF	Tape & Reel (TR)	Active	SPST	6	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.091" (2.30mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	Yes	Tape Seal	-30°C ~ 85°C
SD06H0B SWITCH SLIDE DIP SPST 0.1A 25V C&K	220	-	RFQ	데이터시트	SD	Tube	Active	SPST	6	100mA	25VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.178" (4.52mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
TDP04H0SBD1 SWITCH PIANO DIP SPST 0.025A 24V C&K	482	-	RFQ	데이터시트	TDP	Tube	Active	SPST	4	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.161" (4.10mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-40°C ~ 85°C
418121160812 SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik	673	-	RFQ	데이터시트	WS-DISV	Tape & Reel (TR)	Active	SPST	12	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.138" (3.50mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
S-2010A SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation	2,815	-	RFQ	데이터시트	S-2000A	Bulk	Active	BCD	10	100mA	5VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.275" (6.99mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
BD12 SWITCH SLIDE DIP SPST 0.1A 5V C&K	521	-	RFQ	데이터시트	BD	Tube	Active	SPST	12	100mA	5VDC	Slide (Standard)	Raised	Phosphor Bronze	Gold	0.297" (7.54mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
EDSP04SGLNNTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	1,034	-	RFQ	데이터시트	EDSP	Tube	Active	SPST	4	25mA	24VDC	Piano	Raised	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 85°C
A6S-7104-H SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	424	-	RFQ	데이터시트	A6S-H	Tube	Active	SPST	7	25mA	24VDC	Slide (Standard)	Raised	-	Gold	0.173" (4.40mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 70°C
SDA05H0SBD SWITCH SLIDE DIP SPST 0.025A 24V C&K	240	-	RFQ	데이터시트	SDA	Tube	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.175" (4.45mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
SDA10H1BD SWITCH SLIDE DIP SPST 0.025A 24V C&K	217	-	RFQ	데이터시트	SDA	Tube	Active	SPST	10	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.228" (5.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
A6H-6102 SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	5,964	-	RFQ	데이터시트	A6H	Tube	Active	SPST	6	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	-	0.061" (1.55mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	Yes	Tape Seal	-20°C ~ 70°C
418121160810 SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik	1,986	-	RFQ	데이터시트	WS-DISV	Tape & Reel (TR)	Active	SPST	10	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.138" (3.50mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
