브리지 정류기

제조사	시리즈	패키지/케이스	패키징	제품 상태	다이오드 유형	기술	전압 - 피크 역방향(최대)	전류 - 평균 정류(Io)	전압 - 순방향(Vf)(최대) @ If	전류 - 역방향 누설 @ Vr	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
Bourns Inc. Central Semiconductor Corp Comchip Technology Diodes Incorporated Diotec Semiconductor EIC SEMICONDUCTOR INC. EVVO Fairchild Semiconductor GeneSiC Semiconductor Good-Ark Semiconductor Harris Corporation HY Electronic (Cayman) Limited Infineon Technologies IXYS IXYS Integrated Circuits Division JATTA KYOCERA AVX Lumimax Optoelectronic Technology MDD Micro Commercial Co Microchip Technology Microsemi Corporation onsemi Panasonic - BSG Panjit International Inc. Phoenix Contact Powerex Inc. Rectron USA ROHM Semiconductor SanRex Corporation Sanyo SemiQ Semtech Corporation Sensata-Crydom Shenzhen Slkormicro Semicon Co., Ltd. SMC Diode Solutions STMicroelectronics SURGE Taiwan Semiconductor Corporation Texas Instruments Torex Semiconductor Ltd Unitrode Vicor Corporation Vishay General Semiconductor - Diodes Division WAGO Corporation WeEn Semiconductors Weidmuller	* - 2GBJ 4GBJ ABS B B1005S B1S B48 CBR1 CBR1A CBR4M-L040 CBS CD-DF4xxS CD-DF4xxSL CD-MBL2xxS CD-MBL2xxSL CoolSiC™ D2K D3K D4K D6K D8K DB DB1 DBS DF DIODESTAR™ EconoPACK™ EconoPACK™ 2 FRED FRED Pt® GBJ GBJ8 GBL GBL4 GBP GBPC GBPC10 GBPC15 GBPC25 GBPC35 GBPC40 GBPC50 GBU HiPerFRED²™ isoCink+™ ISOPLUS™ KBL KBP KBPC KBPC15 KBPC25 KBPC35 KBPC8xx KBU LMB M4 MBF MBS MLVC SBR® Super Planar™ UMSB VS-2KBP VS-GBPC VS-KBPC1 VS-KBPC6 VS-KBPC8 WOM XBR12A	- 12-MTP Module 16-DIP (0.300", 7.62mm) 16-SOIC (0.295", 7.50mm Width) 16-UFBGA, WLCSP 4-BESOP (0.173", 4.40mm Width) 4-Circular, A Case 4-Circular, RB-15 4-Circular, WOB 4-Circular, WOBM 4-Circular, WOG 4-Circular, WOL 4-Circular, WOM 4-Circular, WOMC 4-DIP (0.200", 5.08mm) 4-DIP (0.300", 7.62mm) 4-EDIP (0.200", 5.08mm) 4-EDIP (0.300", 7.62mm) 4-EDIP (0.321", 8.15mm) 4-ESIP 4-ESIP, GBU 4-ESIP, KBP 4-ESIP, PB 4-LDFN 4-LDFN Exposed Pad 4-PowerUDFN 4-Rectangle 4-Round 4-SIP 4-SIP, 2KBB 4-SIP, BR-8D 4-SIP, BU 4-SIP, BU-5S 4-SIP, D-44 4-SIP, DBF 4-SIP, DBG 4-SIP, DM 4-SIP, DMM 4-SIP, GBI 4-SIP, GBJ 4-SIP, GBJL 4-SIP, GBL 4-SIP, GBO 4-SIP, GBP 4-SIP, GBU 4-SIP, GSIB-5S 4-SIP, JA 4-SIP, JB 4-SIP, KBF 4-SIP, KBJ 4-SIP, KBJ-2 4-SIP, KBJL 4-SIP, KBL 4-SIP, KBP 4-SIP, KBPF 4-SIP, KBPL 4-SIP, KBPM 4-SIP, KBPR 4-SIP, KBU 4-SIP, PB 4-SIP, PBU 4-SIP, RBV-25 4-SIP, RS-1 4-SIP, RS-1M 4-SIP, RS-2 4-SIP, RS-2M 4-SIP, RS-4L 4-SIP, RS-5 4-SIP, RS-6 4-SIP, RS-8 4-SIP, TS-4B 4-SIP, TS-6P 4-SIP, TS4K 4-SIP, with Heat Sink 4-SMD 4-SMD, Flat Leads 4-SMD, Gull Wing 4-SMD, No Lead 4-SOIC (0.118", 3.00mm Width) 4-Square 4-Square, BR 4-Square, BR-10 4-Square, BR-3 4-Square, BR-50 4-Square, BR-50W 4-Square, BR-6 4-Square, BR-8 4-Square, BR-W 4-Square, CM 4-Square, CVB 4-Square, D-34 4-Square, D-38 4-Square, D-72 4-Square, FO-A 4-Square, FO-B 4-Square, FP 4-Square, FPW 4-Square, GBPC 4-Square, GBPC-1 4-Square, GBPC-6 4-Square, GBPC-A 4-Square, GBPC-M 4-Square, GBPC-T 4-Square, GBPC-W 4-Square, GBPC40 4-Square, GBPC40-M 4-Square, KBPC 4-Square, KBPC FP 4-Square, KBPC WP 4-Square, KBPC-1 4-Square, KBPC-6 4-Square, KBPC-8 4-Square, KBPC-T 4-Square, KBPC-W 4-Square, KBPC35 4-Square, MA 4-Square, MB 4-Square, MB-35 4-Square, MB-35D 4-Square, MB-35W 4-Square, MB-W 4-Square, MP-15 4-Square, MP-50 4-Square, MP-50W 4-Square, MP-8 4-Square, MT-35A 4-Square, NA 4-Square, NB 4-Square, PB 4-Square, PB-10 4-Square, PB-3 4-Square, PB-6 4-Square, PBPC-6 4-Square, PBPC-8 4-Square, VJ 4-UDFN Exposed Pad 4-VDFN 5-ESIP 5-PowerDIP Module 5-Rectangle 5-SIP 5-SIP Exposed Pad 5-SIP, TSB-5 5-SMD Module 5-Square, D-63 5-Square, DB-35 5-Square, FO-B 5-Square, MT-35A 5-Square, MT-W 5-Square, SCVB 5-Square, SKBPC 6-SMD, Flat Lead Exposed Pad 6-TSSOP, SC-88, SOT-363 7-MTPA 7-MTPB 8-DIP (0.300", 7.62mm) 8-SOIC (0.154", 3.90mm Width) 8-UDFN Exposed Pad 9-PowerSMD 9-SMD Module B48 Module Chip, Concave Terminals DO-203AB, DO-5, Stud DO-214AB, SMC DO-214AC, SMA E2 E3 ECO-PAC1 ECO-PAC2 FO-F-B FO-T-A i4-Pac™-5 ISOPLUSi5-PAK™ ISOTOP KAMM M1 M2 M2 Module M3 M3-1 M4 Module M5 Module ME Module MT-K Module MTC MTK NC NC, Module Press Fit PWS-A PWS-B PWS-C PWS-D PWS-D Flat PWS-E SC-61AB SC-74A, SOT-753 Slim-PAC SM3-20H SOT-223-8 SOT-227-4, miniBLOC SP1 SP4 SP6 Stud TO-253-4, TO-253AA TO-268-3, D3PAK (2 Leads + Tab), TO-268AA TO-269AA, 4-BESOP UGB-1 UGB-3 V1-A V1-B-Pack V1A-PAK V2-PAK Z4-D	- Bag Box Bulk Can Cut Tape (CT) Sheet Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Not For New Designs Obsolete	- Single Phase Single Phase (Braking) Single Phase (PFC Module) Three Phase Three Phase (Braking) Three Phase (PFC Module)	- Avalanche Schottky Silicon Carbide Schottky Standard Super Barrier	- 1 kV 1.1 kV 1.2 kV 1.4 kV 1.6 kV 1.7 kV 1.8 kV 10.5 kV 100 V 110 V 120 V 125 V 150 V 160 V 190 V 2 kV 2.2 kV 2.5 kV 20 V 200 V 230 V 240 V 250 V 30 V 300 V 35 V 380 V 4.8 kV 40 V 400 V 45 V 50 V 500 V 60 V 600 V 65 V 650 V 7.2 kV 70 V 700 V 75 V 80 V 800 V 85 V 90 V 900 V	- 1 A 1.2 A 1.3 A 1.5 A 1.6 A 1.8 A 1.9 A 10 A 10.5 A 100 A 100 mA 104 A 105 A 106 A 107 A 11 A 110 A 116 A 117 A 118 A 12 A 120 A 121 A 122 A 124 A 125 A 127 A 13 A 130 A 132 A 135 A 140 A 140 mA 145 A 15 A 150 A 16 A 160 A 160 mA 166 A 166 mA 174 A 175 A 18 A 180 A 188 A 19 A 2 A 2.2 A 2.3 A 2.5 A 2.6 A 2.7 A 2.8 A 20 A 200 A 200 mA 21 A 210 A 215 mA 218 A 22 A 22.5 A 235 A 24 A 240 A 248 A 25 A 25 mA 250 A 250 mA 255 A 257 A 258 A 27 A 270 A 28 A 280 A 285 A 3 A 3.2 A 3.4 A 3.5 A 3.6 A 3.7 A 3.8 A 3.9 A 30 A 300 A 31 A 32 A 333 mA 34 A 35 A 36 A 360 A 37 A 37.5 A 38 A 4 A 4.2 A 4.5 A 4.8 A 4.9 A 40 A 400 mA 41 mA 416 mA 42 A 43 A 44 A 45 A 450 A 47 A 5 A 5.6 A 50 A 500 mA 52 A 54 A 55 A 56 A 58 A 59 A 6 A 6.6 A 60 A 61 A 63 A 660 A 68 A 7 A 70 A 70 mA 72 A 74 A 75 A 78 A 8 A 8.4 A 80 A 800 mA 82 A 83 mA 85 A 86 A 88 A 9 A 9.5 A 90 A 900 A 900 mA 92 A	- 0.9 V @ 20 A 0.9 V @ 5 A 1 V @ 1 A 1 V @ 1.5 A 1 V @ 10 A 1 V @ 12 A 1 V @ 12.5 A 1 V @ 15 A 1 V @ 17.5 A 1 V @ 18 A 1 V @ 2 A 1 V @ 2.5 A 1 V @ 20 mA 1 V @ 25 A 1 V @ 3 A 1 V @ 4 A 1 V @ 400 mA 1 V @ 5 A 1 V @ 500 mA 1 V @ 6 A 1 V @ 7.5 A 1 V @ 750 mA 1 V @ 8 A 1 V @ 9 A 1 V @ 900 mA 1.01 V @ 15 A 1.015 V @ 1.2 A 1.02 V @ 1 A 1.03 V @ 20 A 1.04 V @ 15 A 1.05 V @ 1 A 1.05 V @ 1.5 A 1.05 V @ 10 A 1.05 V @ 12.5 A 1.05 V @ 15 A 1.05 V @ 17.5 A 1.05 V @ 2 A 1.05 V @ 2.5 A 1.05 V @ 200 mA 1.05 V @ 25 A 1.05 V @ 3 A 1.05 V @ 4 A 1.05 V @ 400 mA 1.05 V @ 5 A 1.05 V @ 500 mA 1.05 V @ 6 A 1.05 V @ 7.5 A 1.05 V @ 700 mA 1.05 V @ 8 A 1.05 V @ 800 mA 1.07 V @ 160 A 1.07 V @ 20 A 1.07 V @ 50 A 1.07 V @ 80 A 1.08 V @ 30 A 1.09 V @ 40 A 1.1 V @ 1 A 1.1 V @ 1.2 A 1.1 V @ 1.5 A 1.1 V @ 1.9 A 1.1 V @ 10 A 1.1 V @ 100 A 1.1 V @ 12.5 A 1.1 V @ 120 A 1.1 V @ 15 A 1.1 V @ 17.5 A 1.1 V @ 18 A 1.1 V @ 2 A 1.1 V @ 2.5 A 1.1 V @ 20 A 1.1 V @ 22.5 A 1.1 V @ 25 A 1.1 V @ 3 A 1.1 V @ 3.14 A 1.1 V @ 30 A 1.1 V @ 35 A 1.1 V @ 4 A 1.1 V @ 400 mA 1.1 V @ 5 A 1.1 V @ 500 mA 1.1 V @ 6 A 1.1 V @ 6.28 A 1.1 V @ 60 A 1.1 V @ 7.5 A 1.1 V @ 750 mA 1.1 V @ 8 A 1.1 V @ 800 mA 1.1 V @ 9 A 1.12 V @ 7 A 1.13 V @ 20 A 1.13 V @ 50 A 1.14 V @ 30 A 1.14 V @ 40 A 1.15 V @ 100 A 1.15 V @ 15 A 1.15 V @ 2 A 1.15 V @ 20 A 1.15 V @ 25 A 1.15 V @ 3 A 1.15 V @ 4 A 1.15 V @ 400 mA 1.15 V @ 60 A 1.15 V @ 7 A 1.15 V @ 75 A 1.16 V @ 60 A 1.17 V @ 20 A 1.19 V @ 10 A 1.19 V @ 40 A 1.2 V @ 1 A 1.2 V @ 1.2 A 1.2 V @ 1.5 A 1.2 V @ 10 A 1.2 V @ 100 A 1.2 V @ 100 mA 1.2 V @ 12 A 1.2 V @ 12.5 A 1.2 V @ 150 A 1.2 V @ 17.5 A 1.2 V @ 2 A 1.2 V @ 20 A 1.2 V @ 200 A 1.2 V @ 25 A 1.2 V @ 3 A 1.2 V @ 30 A 1.2 V @ 37.5 A 1.2 V @ 4 A 1.2 V @ 40 A 1.2 V @ 5 A 1.2 V @ 50 A 1.2 V @ 500 mA 1.2 V @ 6 A 1.2 V @ 60 A 1.2 V @ 7.5 A 1.2 V @ 70 mA 1.2 V @ 75 A 1.2 V @ 8 A 1.23 V @ 100 A 1.23 V @ 75 A 1.24 V @ 50 A 1.25 V @ 1.5 A 1.25 V @ 150 mA 1.25 V @ 20 A 1.25 V @ 30 A 1.25 V @ 35 A 1.25 V @ 400 mA 1.25 V @ 75 A 1.26 V @ 30 A 1.27 V @ 100 A 1.28 V @ 30 A 1.29 V @ 75 A 1.3 V @ 1 A 1.3 V @ 1.5 A 1.3 V @ 1.57 A 1.3 V @ 100 A 1.3 V @ 100 mA 1.3 V @ 150 A 1.3 V @ 17.5 A 1.3 V @ 2 A 1.3 V @ 2.5 A 1.3 V @ 20 A 1.3 V @ 25 A 1.3 V @ 3 A 1.3 V @ 30 A 1.3 V @ 39 A 1.3 V @ 4 A 1.3 V @ 40 A 1.3 V @ 500 mA 1.3 V @ 60 A 1.3 V @ 75 A 1.3 V @ 800 mA 1.3 V @ 90 A 1.31 V @ 150 A 1.32 V @ 200 A 1.34 V @ 100 A 1.35 V @ 100 A 1.35 V @ 15.7 A 1.35 V @ 150 A 1.35 V @ 200 A 1.35 V @ 50 A 1.36 V @ 55 A 1.39 V @ 50 A 1.4 V @ 100 A 1.4 V @ 150 A 1.4 V @ 200 A 1.4 V @ 4 A 1.4 V @ 75 A 1.42 V @ 120 A 1.43 V @ 20 A 1.43 V @ 300 A 1.45 V @ 100 A 1.45 V @ 150 A 1.45 V @ 200 A 1.49 V @ 250 mA 1.5 V @ 1 A 1.5 V @ 100 A 1.5 V @ 150 A 1.5 V @ 20 A 1.5 V @ 45 A 1.5 V @ 60 A 1.51 V @ 100 A 1.51 V @ 300 A 1.52 V @ 150 A 1.54 V @ 300 A 1.55 V @ 125 A 1.55 V @ 300 A 1.57 V @ 30 A 1.59 V @ 150 A 1.6 V @ 100 A 1.6 V @ 150 A 1.6 V @ 300 A 1.6 V @ 45 A 1.6 V @ 60 A 1.6 V @ 9 A 1.62 V @ 30 A 1.65 V @ 150 A 1.65 V @ 22 A 1.65 V @ 300 A 1.68 V @ 150 A 1.7 V @ 1 A 1.7 V @ 150 A 1.7 V @ 30 A 1.7 V @ 300 A 1.7 V @ 37.5 A 1.7 V @ 50 A 1.7 V @ 500 mA 1.73 V @ 50 A 1.75 V @ 200 A 1.75 V @ 210 A 1.75 V @ 270 A 1.75 V @ 300 A 1.76 V @ 450 A 1.8 V @ 10 A 1.8 V @ 100 A 1.8 V @ 150 A 1.8 V @ 20 A 1.8 V @ 200 A 1.8 V @ 25 A 1.8 V @ 300 A 1.8 V @ 360 A 1.8 V @ 40 A 1.8 V @ 50 A 1.8 V @ 55 A 1.8 V @ 6 A 1.81 V @ 450 A 1.85 V @ 20 A 1.85 V @ 300 A 1.85 V @ 40 A 1.85 V @ 55 A 1.85 V @ 60 A 1.9 V @ 150 A 1.9 V @ 240 A 1.9 V @ 300 A 1.9 V @ 90 A 1.92 V @ 240 A 1.92 V @ 900 A 1.95 V @ 660 A 2 V @ 100 A 2 V @ 200 A 2 V @ 30 A 2 V @ 50 A 2 V @ 75 A 2.01 V @ 10 A 2.01 V @ 15 A 2.04 V @ 60 A 2.05 V @ 300 A 2.09 V @ 10 A 2.1 V @ 12.5 A 2.1 V @ 30 A 2.1 V @ 4 A 2.1 V @ 50 A 2.1 V @ 75 A 2.13 V @ 11 A 2.15 V @ 35 A 2.15 V @ 50 A 2.2 V @ 150 A 2.2 V @ 30 A 2.2 V @ 50 A 2.2 V @ 55 A 2.2 V @ 75 A 2.2 V @ 9 A 2.24 V @ 20 A 2.3 V @ 60 A 2.35 V @ 60 A 2.37 V @ 10 A 2.4 V @ 20 A 2.5 V @ 100 A 2.55 V @ 150 A 2.55 V @ 30 A 2.7 V @ 100 A 2.7 V @ 200 A 2.7 V @ 30 A 2.7 V @ 60 A 2.71 V @ 30 A 2.73 V @ 15 A 2.75 V @ 30 A 2.76 V @ 30 A 2.92 V @ 10 A 2.92 V @ 60 A 2.95 V @ 30 A 2.95 V @ 60 A 3 V @ 100 A 3 V @ 200 A 3 V @ 30 A 3 V @ 60 A 3.1 V @ 30 A 3.15 V @ 60 A 3.19 V @ 60 A 370 mV @ 1 A 420 mV @ 1 A 440 mV @ 1 A 450 mV @ 2 A 490 mV @ 500 mA 5 V @ 1 A 5.41 V @ 12 A 500 mV @ 1 A 500 mV @ 2 A 500 mV @ 3 A 520 mV @ 2 A 530 mV @ 3 A 550 mV @ 1 A 550 mV @ 1.5 A 550 mV @ 2 A 550 mV @ 3 A 550 mV @ 5 A 550 mV @ 500 mA 560 mV @ 3 A 580 mV @ 40 A 580 mV @ 60 A 600 mV @ 1 A 600 mV @ 2 A 625 mV @ 1 A 630 mV @ 500 mA 650 mV @ 1 A 650 mV @ 1.5 A 650 mV @ 15 A 650 mV @ 2 A 650 mV @ 500 mA 660 mV @ 3 A 700 mV @ 1 A 700 mV @ 2 A 700 mV @ 500 mA 700 mV @ 900 mA 720 mV @ 2 A 750 mV @ 1 A 790 mV @ 200 mA 800 mV @ 50 A 820 mV @ 1 A 840 mV @ 2 A 850 mV @ 1 A 850 mV @ 1.5 A 850 mV @ 2 A 850 mV @ 30 A 850 mV @ 500 mA 880 mV @ 40 A 900 mV @ 1 A 900 mV @ 1 mA 900 mV @ 10 A 900 mV @ 12.5 A 900 mV @ 2 A 900 mV @ 3 A 900 mV @ 4 A 900 mV @ 5 A 900 mV @ 5 mA 900 mV @ 60 A 900 mV @ 7.5 A 910 mV @ 17.5 A 910 mV @ 60 A 920 mV @ 1 A 920 mV @ 1.1 A 920 mV @ 1.25 A 920 mV @ 1.5 A 920 mV @ 10 A 920 mV @ 12.5 A 920 mV @ 17.5 A 920 mV @ 2 A 920 mV @ 4 A 920 mV @ 5 A 920 mV @ 7.5 A 930 mV @ 17.5 A 930 mV @ 7.5 A 940 mV @ 12.5 A 940 mV @ 5 A 950 mV @ 1 A 950 mV @ 1.5 A 950 mV @ 10 A 950 mV @ 12.5 A 950 mV @ 17.5 A 950 mV @ 2 A 950 mV @ 3 A 950 mV @ 30 A 950 mV @ 4 A 950 mV @ 400 mA 950 mV @ 5 A 950 mV @ 500 mA 950 mV @ 6 A 950 mV @ 7.5 A 960 mV @ 2 A 960 mV @ 3 A 960 mV @ 6 A 960 mV @ 7.5 A 970 mV @ 2.2 A 970 mV @ 20 A 970 mV @ 25 A 970 mV @ 30 A 970 mV @ 5 A 980 mV @ 12.5 A 980 mV @ 4 A 980 mV @ 7.5 A	- 1 mA @ 100 V 1 mA @ 1200 V 1 mA @ 1600 V 1 mA @ 20 V 1 mA @ 200 V 1 mA @ 30 V 1 mA @ 40 V 1 mA @ 50 V 1 mA @ 60 V 1 mA @ 80 V 1 mA @ 800 V 1 mA @ 90 V 1 µA @ 100 V 1 µA @ 1000 V 1 µA @ 200 V 1 µA @ 400 V 1 µA @ 600 V 1 µA @ 800 V 1.5 mA @ 600 V 1.5 mA @ 800 V 10 mA @ 1000 V 10 mA @ 1200 V 10 mA @ 1400 V 10 mA @ 1600 V 10 mA @ 600 V 10 mA @ 800 V 10 nA @ 50 V 10 µA @ 1 V 10 µA @ 100 V 10 µA @ 1000 V 10 µA @ 1200 V 10 µA @ 125 V 10 µA @ 1400 V 10 µA @ 150 V 10 µA @ 1600 V 10 µA @ 1800 V 10 µA @ 200 V 10 µA @ 30 V 10 µA @ 300 V 10 µA @ 40 V 10 µA @ 400 V 10 µA @ 50 V 10 µA @ 500 V 10 µA @ 60 V 10 µA @ 600 V 10 µA @ 65 V 10 µA @ 800 V 100 nA @ 70 V 100 nA @ 80 V 100 µA @ 100 V 100 µA @ 1000 V 100 µA @ 1200 V 100 µA @ 1400 V 100 µA @ 1600 V 100 µA @ 1800 V 100 µA @ 20 V 100 µA @ 200 V 100 µA @ 2200 V 100 µA @ 30 V 100 µA @ 40 V 100 µA @ 400 V 100 µA @ 45 V 100 µA @ 4800 V 100 µA @ 50 V 100 µA @ 60 V 100 µA @ 600 V 100 µA @ 650 V 100 µA @ 800 V 116 µA @ 1200 V 12 mA @ 1600 V 12 mA @ 1800 V 12 mA @ 800 V 12 µA @ 400 V 120 µA @ 1200 V 120 µA @ 150 V 120 µA @ 650 V 14 mA @ 1600 V 140 µA @ 40 V 15 mA @ 1200 V 15 mA @ 1600 V 15 mA @ 800 V 150 µA @ 1200 V 150 µA @ 600 V 174 µA @ 1200 V 18 µA @ 200 V 18 µA @ 400 V 18 µA @ 600 V 180 µA @ 1200 V 180 µA @ 150 V 2 mA @ 1 V 2 mA @ 1.2 V 2 mA @ 100 V 2 mA @ 1200 V 2 mA @ 1600 V 2 mA @ 20 V 2 mA @ 200 V 2 mA @ 400 V 2 mA @ 600 V 2 mA @ 800 V 2 µA @ 100 V 2 µA @ 1000 V 2 µA @ 110 V 2 µA @ 1200 V 2 µA @ 1400 V 2 µA @ 200 V 2 µA @ 300 V 2 µA @ 400 V 2 µA @ 5 V 2 µA @ 50 V 2 µA @ 500 V 2 µA @ 600 V 2 µA @ 800 V 2 µA @ 880 V 2.5 µA @ 75 V 20 mA @ 1600 V 20 mA @ 1800 V 20 mA @ 45 V 20 mA @ 500 V 20 mA @ 800 V 20 µA @ 100 V 20 µA @ 1200 V 20 µA @ 125 V 20 µA @ 1400 V 20 µA @ 150 V 20 µA @ 1600 V 20 µA @ 1800 V 20 µA @ 200 V 20 µA @ 30 V 20 µA @ 300 V 20 µA @ 400 V 20 µA @ 50 V 20 µA @ 500 V 20 µA @ 60 V 20 µA @ 600 V 20 µA @ 800 V 200 nA @ 500 V 200 µA @ 100 V 200 µA @ 1200 V 200 µA @ 1400 V 200 µA @ 1600 V 200 µA @ 1700 V 200 µA @ 1800 V 200 µA @ 2200 V 200 µA @ 40 V 200 µA @ 60 V 200 µA @ 600 V 200 µA @ 700 V 200 µA @ 800 V 25 mA @ 2200 V 25 µA @ 100 V 25 µA @ 400 V 25 µA @ 600 V 250 µA @ 1200 V 250 µA @ 1700 V 250 µA @ 200 V 250 µA @ 600 V 3 mA @ 1200 V 3 mA @ 1600 V 3 mA @ 800 V 3 µA @ 1 V 3 µA @ 100 V 3 µA @ 1000 V 3 µA @ 200 V 3 µA @ 2000 V 3 µA @ 2500 V 3 µA @ 400 V 3 µA @ 50 V 3 µA @ 600 V 3 µA @ 800 V 30 mA @ 45 V 30 mA @ 500 V 30 µA @ 50 V 30 µA @ 600 V 300 mA @ 40 V 300 mA @ 60 V 300 µA @ 1200 V 300 µA @ 1400 V 300 µA @ 1600 V 300 µA @ 1800 V 300 µA @ 60 V 300 µA @ 800 V 350 µA @ 1700 V 350 µA @ 30 V 350 µA @ 600 V 4 mA @ 800 V 4 µA @ 100 V 40 µA @ 1200 V 40 µA @ 1400 V 40 µA @ 1600 V 40 µA @ 1800 V 40 µA @ 20 V 40 µA @ 2000 V 40 µA @ 2200 V 40 µA @ 800 V 400 µA @ 1200 V 400 µA @ 1700 V 400 µA @ 2200 V 400 µA @ 30 V 400 µA @ 600 V 400 µA @ 700 V 5 mA @ 100 V 5 mA @ 1200 V 5 mA @ 1400 V 5 mA @ 1600 V 5 mA @ 1800 V 5 mA @ 45 V 5 mA @ 50 V 5 mA @ 600 V 5 mA @ 800 V 5 nA @ 75 V 5 µA @ 1 V 5 µA @ 1.6 kV 5 µA @ 100 V 5 µA @ 1000 V 5 µA @ 1100 V 5 µA @ 1200 V 5 µA @ 1400 V 5 µA @ 150 V 5 µA @ 160 V 5 µA @ 1600 V 5 µA @ 1800 V 5 µA @ 190 V 5 µA @ 20 V 5 µA @ 200 V 5 µA @ 2000 V 5 µA @ 250 V 5 µA @ 300 V 5 µA @ 380 V 5 µA @ 400 V 5 µA @ 5 V 5 µA @ 50 V 5 µA @ 500 V 5 µA @ 600 V 5 µA @ 700 V 5 µA @ 80 V 5 µA @ 800 V 5 µA @ 900 V 50 µA @ 100 V 50 µA @ 1200 V 50 µA @ 150 V 50 µA @ 1600 V 50 µA @ 200 V 50 µA @ 250 V 50 µA @ 40 V 50 µA @ 60 V 50 µA @ 600 V 50 µA @ 80 V 500 nA @ 100 V 500 nA @ 200 V 500 nA @ 60 V 500 nA @ 80 V 500 µA @ 100 V 500 µA @ 1200 V 500 µA @ 1400 V 500 µA @ 1600 V 500 µA @ 1800 V 500 µA @ 20 V 500 µA @ 200 V 500 µA @ 40 V 500 µA @ 60 V 500 µA @ 600 V 500 µA @ 80 V 500 µA @ 800 V 58 µA @ 1200 V 6 µA @ 100 V 6 µA @ 1000 V 60 mA @ 600 V 60 µA @ 1200 V 60 µA @ 600 V 65 µA @ 60 V 7 mA @ 1600 V 7 mA @ 800 V 70 µA @ 40 V 70 µA @ 60 V 750 µA @ 1200 V 750 µA @ 200 V 750 µA @ 2000 V 8 mA @ 1600 V 8 mA @ 800 V 80 µA @ 150 V 80 µA @ 600 V 80 µA @ 650 V 800 µA @ 1200 V 800 µA @ 1700 V 800 µA @ 600 V 800 µA @ 700 V 9 µA @ 100 V 9 µA @ 400 V 9 µA @ 600 V	- -20°C ~ 55°C (TA) -25°C ~ 125°C (TA) -25°C ~ 40°C -30°C ~ 40°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 130°C (TJ) -40°C ~ 150°C -40°C ~ 150°C (TJ) -40°C ~ 175°C (TJ) -50°C ~ 125°C -50°C ~ 125°C (TJ) -50°C ~ 150°C (TJ) -50°C ~ 175°C (TJ) -55°C ~ 105°C (TJ) -55°C ~ 125°C -55°C ~ 125°C (TJ) -55°C ~ 150°C -55°C ~ 150°C (TJ) -55°C ~ 165°C -55°C ~ 165°C (TJ) -55°C ~ 175°C -55°C ~ 175°C (TJ) -65°C ~ 125°C (TJ) -65°C ~ 150°C -65°C ~ 150°C (TJ) -65°C ~ 160°C -65°C ~ 160°C (TA) -65°C ~ 175°C (TJ) 0°C ~ 70°C (TA) 125°C (TJ) 150°C (TJ) 175°C (TJ) 70°C (TA)	- Automotive	- AEC-Q101	- Chassis Mount Chassis, Stud Mount DIN Rail QC Terminal Stud Mount Surface Mount Through Hole	- 12-MTP Pressfit 16-DIP 16-PowerDIP 16-SOIC 16-WLCSP (1.41x1.41) 2320 2GBJ 2KBB 4-BR DFN 4-Case FP 4-Case FPW 4-DF 4-DFN (3.5x3.8) 4-DFN-A (10.5x8.1) 4-DIL 4-DIP 4-HD DIP 4-LPDIP 4-MDI 4-MicroDIL 4-MicroDIP/SMD 4-MiniDIP 4-MSB 4-MSBL 4-SDIP 4-SIL 4-SIP 4-SMD 4-SMDIP 4-SO-DIL SLIM 4-SOIC 4-SOPA 4-SOPA (Type WX) 4-SPB 4-T MiniDip 4-TBS 4-UDFN (3.5x3.5) 4-UDFN (3x3) 4GBJ 5-DIP 5-SIP 5-SMD 7-MTPA 7-MTPB 8-PDIP 8-SOIC 8-UDFN (4x4) 9-ACEPACK SMIT 9-SMPD-B A Case ABF ABS ABS(Z4) ABS-L ABS/LBF ACEPACK SMIT AG-EASY1B-1 AG-ECONO2-7 AG-ECONO2A B-M BG-PB20-1 BG-PB50AT-1 BR BR-10 BR-3 BR-50 BR-50W BR-6 BR-8 BR-8D BR-L BR-W CBS CM CVB D-34 D-38 D-44 D-63 D-72 D3K DB DB-1 DB-35 DB-M DB-S DBF DBI DBI-A DBI-B DBL DBL-1 DBLS DBS DF DF-S DFM DFS DM DMM DO-214AB (SMC) DO-214AC (SMA) DXK E2 E3 ECO-PAC1 ECO-PAC2 FJ FO-A FO-B FO-F-B FO-T-A GBI GBJ GBJ(5S) GBJ-1 GBJ-2 GBJ-6 GBJL GBJS GBL GBL(2S) GBL-2 GBP GBPC GBPC-A GBPC-M GBPC-T GBPC-W GBPC1 GBPC40 GBPC40-M GBPC6 GBU GBU-1 GBU-2 GSIB-5S GUFP HBS HDS isoCINK+™ BU isoCINK+™ BU-5S isoCINK+™ PB ISOPLUS i4-PAC™ ISOPLUS-SMPD™.B ISOTOP® JA JB KAMM KBF KBJ KBJ(3S) KBJ-2 KBJL KBL KBP KBPC KBPC FP KBPC WP KBPC-15 KBPC-25W KBPC-35W KBPC-T KBPC-W KBPC1 KBPC25 KBPC35 KBPC6 KBPC8 KBPF KBPL KBPM KBPR KBU LMBS-1 M2 M2-1 M3 M3-1 M4 M5 M8 MA MB MB-1 MB-35 MB-35D MB-35W MB-F MB-W MBF MBLS-1 MBM MBS MBS-1 MBS-2 MBXS MD ME Mini-Dip (TO-269AA) Mini4-G1 Mini4-G4-B MMB Module MP-15 MP-50 MP-50W MP8 MSBL MSD MT-35A MT-K MT-W MTC MTK NA NB NBS04 NC NM3 PB PB-10 PB-3 PB-6 PBPC-6 PBPC-8 PBU PG-SOT-143-3D Press Fit PWS-A PWS-B PWS-C PWS-D PWS-D-Flat PWS-E PWS-E-Flat RB-15 RBV-25 RS-1 RS-1M RS-2 RS-2M RS-4L RS-6 RS-8 RS5 SCVB SDB-1 SDBL-1 SDIP SGBJ SKBPC SKBPC75 Slim-PAC SM2 SM8 SMD5 SOT-143 SOT-227 SOT-227 (ISOTOP®) SOT-227B SOT-363 SP1 SP4 SP6 T-DFN5564-4 TBL TBN TBS TBSG TBSL TO-268AA (D3Pak-HV) TO-269AA TO-269AA (MBS) TO-269AA MINIDIL SLIM TS-6P TS4B TS4K TSB-5 TT TTF TTL U-DFN3030-4 U-DFN4040-8 UGB-1 UGB-3 UMSB V-DFN5060-4 V1-A V1-B-Pack V1A-PAK V2-PAK VJ WMM01 WOB WOBM WOG WOL WOM WOMC WOMS YBS Z4-D

전체 초기화

전체 적용

결과

제조사 부품번호	재고 여부	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	다이오드 유형	기술	전압 - 피크 역방향(최대)	전류 - 평균 정류(Io)	전압 - 순방향(Vf)(최대) @ If	전류 - 역방향 누설 @ Vr	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
GBPC1201-E4/51 BRIDGE RECT 1PHASE 100V 12A GBPC Vishay General Semiconductor - Diodes Division	196	-	RFQ	데이터시트	-	4-Square, GBPC	Box	Active	Single Phase	Standard	100 V	12 A	1.1 V @ 6 A	5 µA @ 100 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
GBPC5010-BP BRIDGE RECT 1PHASE 1KV 50A GBPC Micro Commercial Co	740	-	RFQ	데이터시트	-	4-Square, GBPC	Bulk	Active	Single Phase	Standard	1 kV	50 A	1.1 V @ 25 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
MP504W-BP BRIDGE RECT 1P 400V 50A MP-50W Micro Commercial Co	1,028	-	RFQ	데이터시트	-	4-Square, MP-50W	Bulk	Not For New Designs	Single Phase	Standard	400 V	50 A	1.2 V @ 25 A	10 µA @ 400 V	-50°C ~ 150°C (TJ)	-	-	Through Hole	MP-50W
GBPC5010-G BRIDGE RECT 1PHASE 1KV 50A GBPC Comchip Technology	2,465	-	RFQ	데이터시트	-	4-Square, GBPC	Tray	Active	Single Phase	Standard	1 kV	50 A	1.1 V @ 25 A	10 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
GBPC3510W-E4/51 BRIDGE RECT 1P 1KV 35A GBPC-W Vishay General Semiconductor - Diodes Division	352	-	RFQ	데이터시트	-	4-Square, GBPC-W	Box	Active	Single Phase	Standard	1 kV	35 A	1.1 V @ 17.5 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
GBPC3506-E4/51 BRIDGE RECT 1PHASE 600V 35A GBPC Vishay General Semiconductor - Diodes Division	286	-	RFQ	데이터시트	-	4-Square, GBPC	Box	Active	Single Phase	Standard	600 V	35 A	1.1 V @ 17.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
GBPC2502 BRIDGE RECT 1PHASE 200V 25A GBPC onsemi	334	-	RFQ	데이터시트	-	4-Square, GBPC	Bulk	Active	Single Phase	Standard	200 V	25 A	1.1 V @ 12.5 A	5 µA @ 200 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
GBPC3504W BRIDGE RECT 1P 400V 35A GBPC-W onsemi	1,474	-	RFQ	데이터시트	-	4-Square, GBPC-W	Tray	Active	Single Phase	Standard	400 V	35 A	1.1 V @ 17.5 A	5 µA @ 400 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
GBPC5006W-G BRIDGE RECT 1P 600V 50A GBPC-W Comchip Technology	300	-	RFQ	데이터시트	-	4-Square, GBPC-W	Tray	Active	Single Phase	Standard	600 V	50 A	1.1 V @ 25 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
GBPC3506 BRIDGE RECT 1PHASE 600V 35A GBPC onsemi	147	-	RFQ	데이터시트	-	4-Square, GBPC	Bulk	Active	Single Phase	Standard	600 V	35 A	1.1 V @ 17.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
GBPC3506W BRIDGE RECT 1P 600V 35A GBPC-W onsemi	278	-	RFQ	데이터시트	-	4-Square, GBPC-W	Tray	Active	Single Phase	Standard	600 V	35 A	1.1 V @ 17.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
GBPC3508W-E4/51 BRIDGE RECT 1P 800V 35A GBPC-W Vishay General Semiconductor - Diodes Division	200	-	RFQ	데이터시트	-	4-Square, GBPC-W	Box	Active	Single Phase	Standard	800 V	35 A	1.1 V @ 17.5 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
VS-GBPC2502A BRIDGE RECT 1P 200V 25A GBPC-A Vishay General Semiconductor - Diodes Division	3,071	-	RFQ	데이터시트	VS-GBPC	4-Square, GBPC-A	Tray	Active	Single Phase	Standard	200 V	25 A	-	2 mA @ 200 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC-A
DBI25-16A BRIDGE RECT 3P 1.6KV 40A DBI-A Diotec Semiconductor	110	-	RFQ	데이터시트	-	5-ESIP	Tube	Active	Three Phase	Standard	1.6 kV	40 A	1.05 V @ 12.5 A	5 µA @ 1600 V	-50°C ~ 175°C (TJ)	-	-	Through Hole	DBI-A
GBPC25005 BRIDGE RECT 1PHASE 50V 25A GBPC onsemi	132	-	RFQ	데이터시트	-	4-Square, GBPC	Bulk	Active	Single Phase	Standard	50 V	25 A	-	5 µA @ 50 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC
VS-GBPC3504A BRIDGE RECT 1P 400V 35A GBPC-A Vishay General Semiconductor - Diodes Division	139	-	RFQ	데이터시트	VS-GBPC	4-Square, GBPC-A	Bulk	Active	Single Phase	Standard	400 V	35 A	-	2 mA @ 400 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC-A
GBPC3502W BRIDGE RECT 1P 200V 35A GBPC-W onsemi	264	-	RFQ	데이터시트	-	4-Square, GBPC-W	Bulk	Active	Single Phase	Standard	200 V	35 A	1.1 V @ 17.5 A	5 µA @ 200 V	-55°C ~ 150°C (TJ)	-	-	Through Hole	GBPC-W
GBPC3502 BRIDGE RECT 1PHASE 200V 35A GBPC onsemi	170	-	RFQ	데이터시트	-	4-Square, GBPC	Bulk	Active	Single Phase	Standard	200 V	35 A	1.1 V @ 17.5 A	5 µA @ 200 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	GBPC

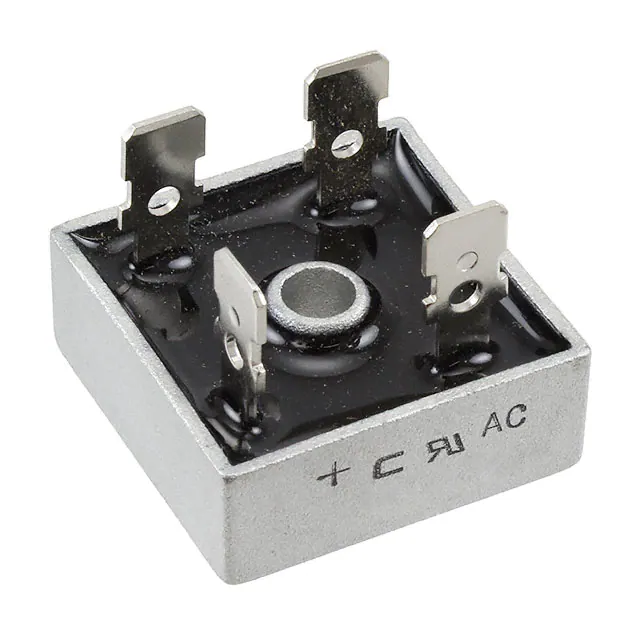

KBPC1010-G BRIDGE RECT 1PHASE 1KV 10A KBPC Comchip Technology	9,566	-	RFQ	데이터시트	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	1 kV	10 A	1.1 V @ 5 A	10 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC

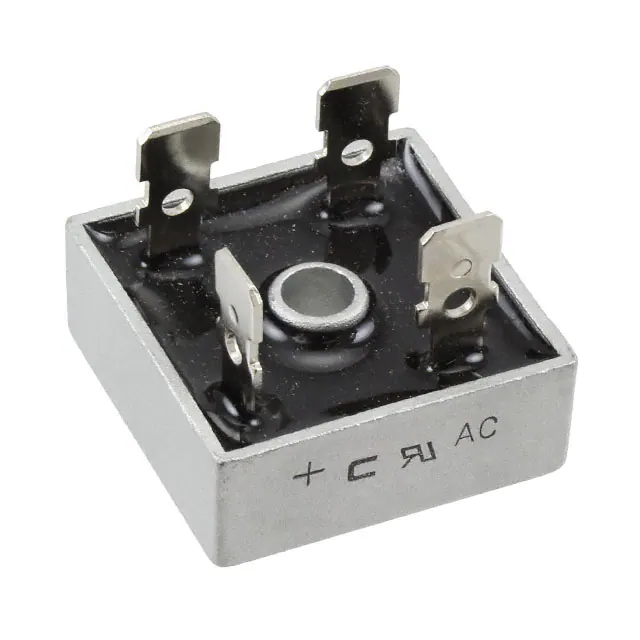

KBPC2510-G BRIDGE RECT 1PHASE 1KV 25A KBPC Comchip Technology	5,280	-	RFQ	데이터시트	-	4-Square, KBPC	Bulk	Active	Single Phase	Standard	1 kV	25 A	1.1 V @ 12.5 A	10 µA @ 1000 V	-55°C ~ 150°C (TJ)	-	-	QC Terminal	KBPC
